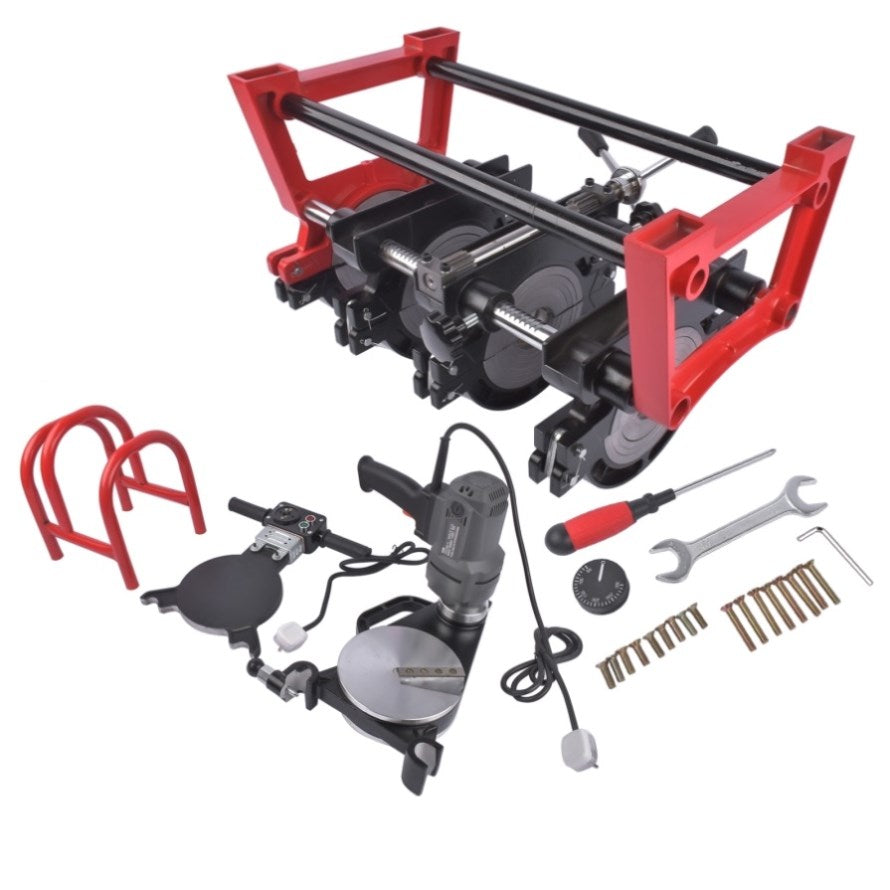

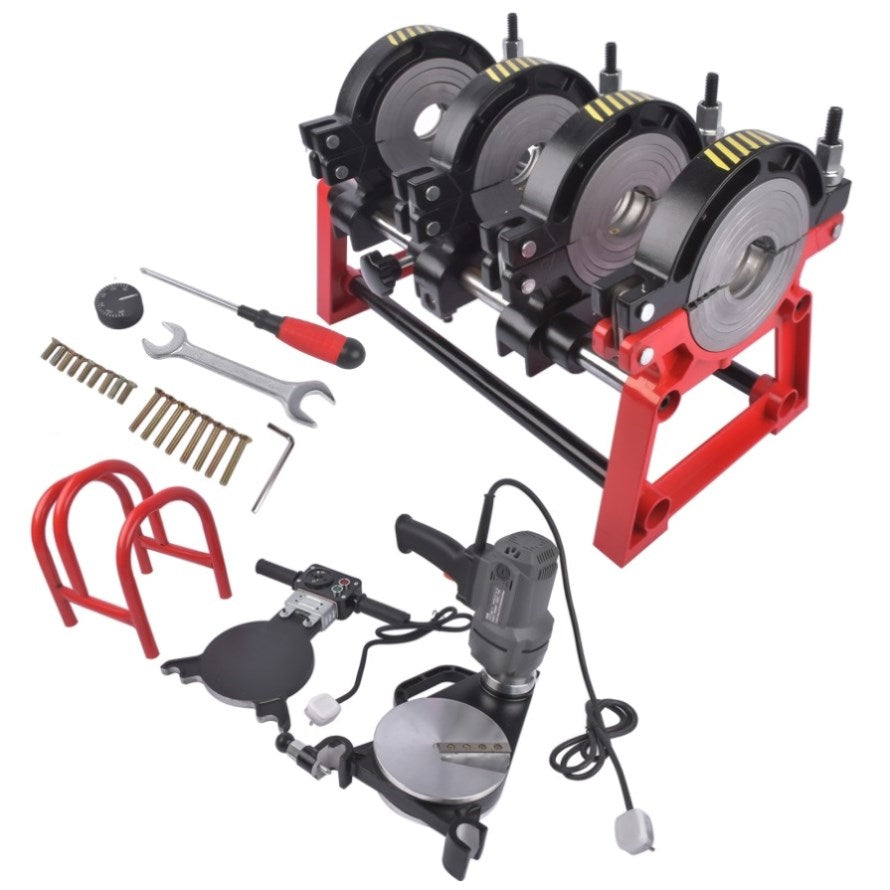

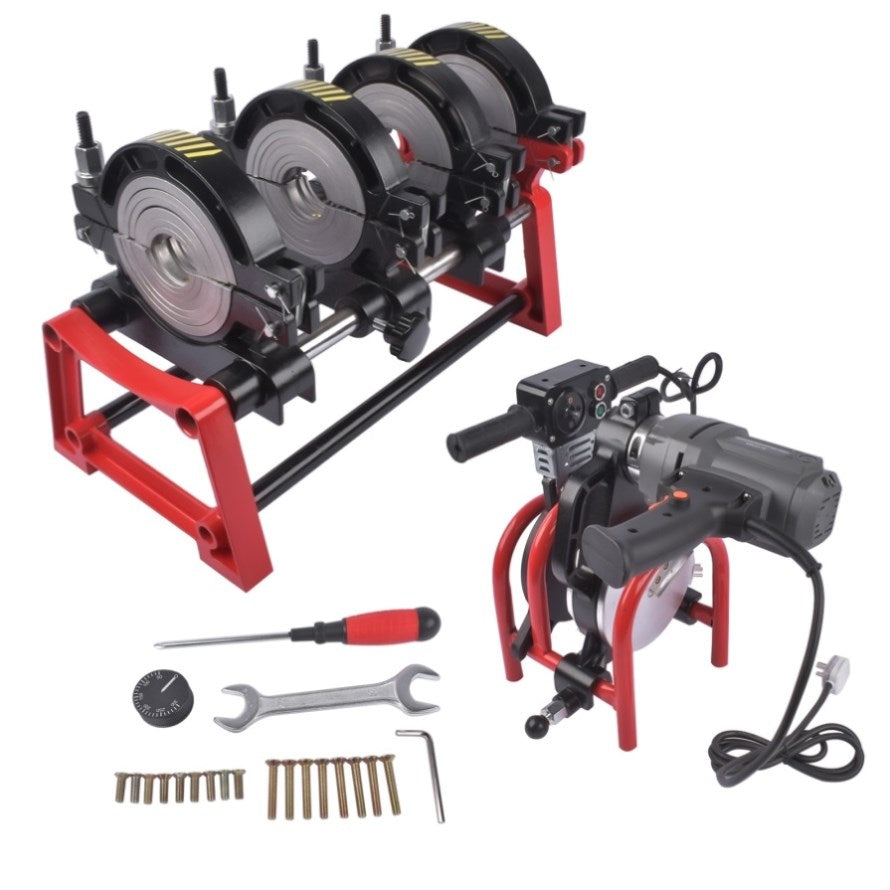

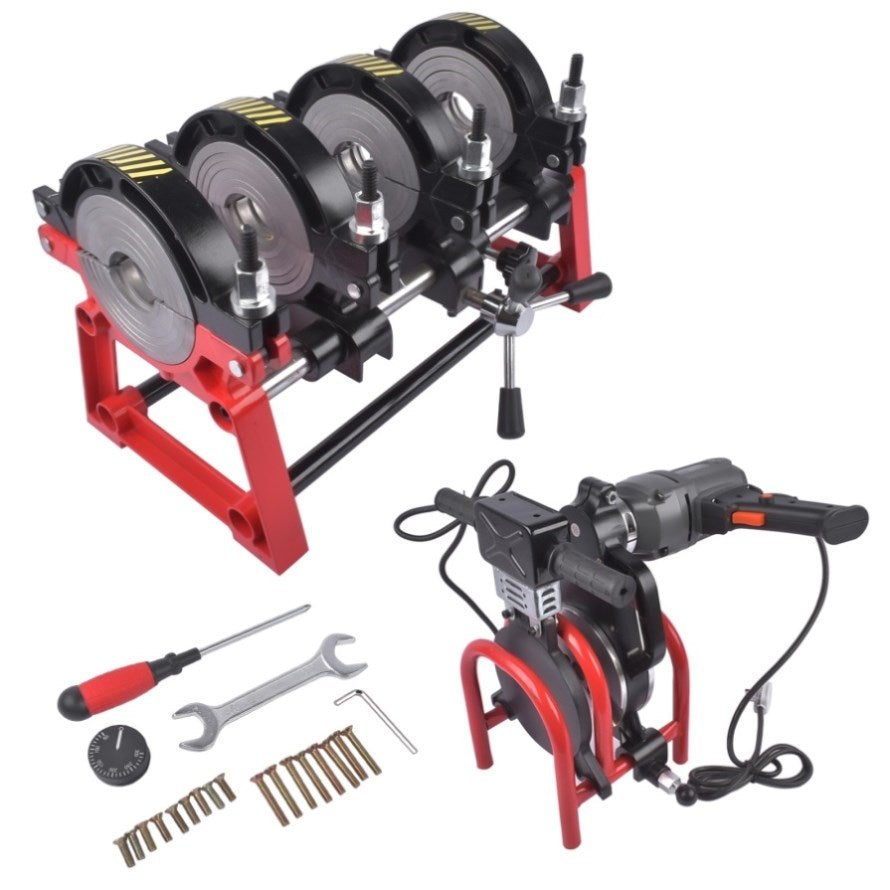

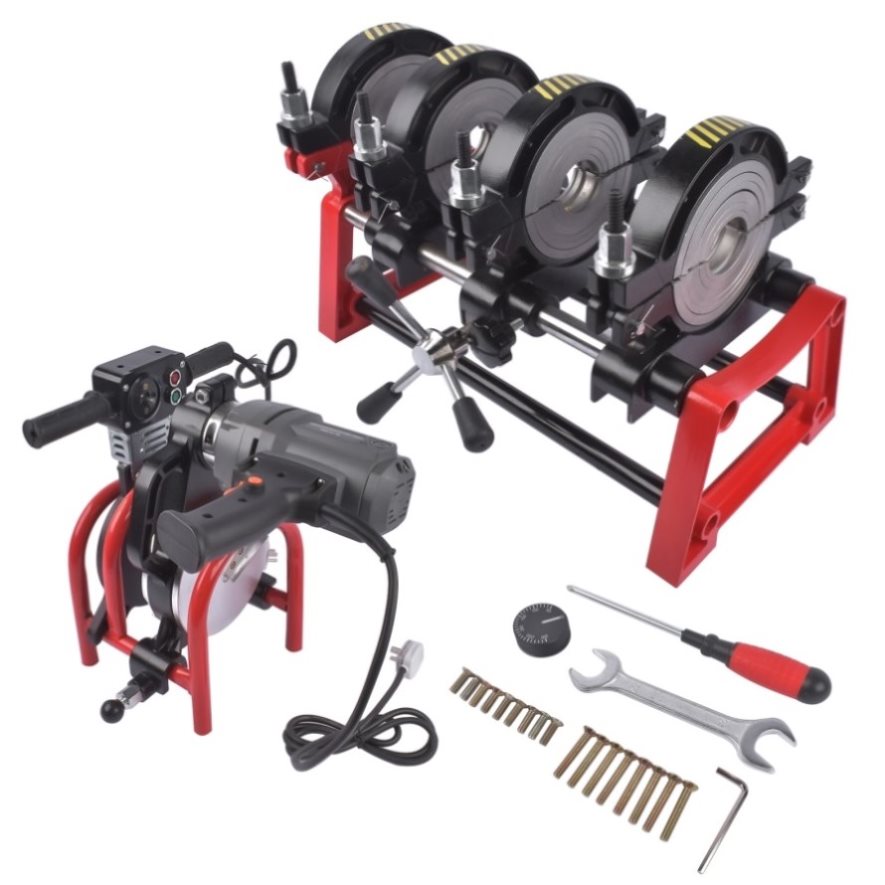

ZUN PP PE PVC Butt Fusion Welding Machine Manual 4Clamps Pipe Fusion Welder 63-160MM 11405336

Specifications:

Model No. 63-160MM four rings manual

Materials Aluminum alloy casting, 45# steel

Welding level(Φ, mm) Outer dia 63mm(2.48”)75mm(2.95”)90 mm (3.54”)110 mm (4.33”)125 mm (4.92”)140 mm (5.51”)160 mm (6.30”)

Docking deviation ≤0.3mm

Power of Heater 2.5KW/110V

Power of Milling Cutter 1.1KW/110V

Working temperature 300°c

Temperature deviation ±5°c

Environment temperature -5……40°c

Time required to reach soldering temperature <20min

Materials can be welded PE PP PB PVDF HDPE PVC

Package Includes:

1x Pipe Fusion Welder Machine
