2.5" Front 2" Rear Suspension Lift fit for Honda Pilot 2003-2008 Carbon Steel 28201146

Application:

fit for Honda Pilot 2003-2008

NOTE:The package is including set of sway bar end links which allows the customer to retain the OEM spec.

Specification:

Product Type: lift spacer kit

Lift Height：F: 2.5" R:2"

Spacer Thickness:F:51 mm/2.01" R:51mm/2.01"

Camber Arms adjustable length range (hole center to center): F 232mm-272mm/9.13"-10.71"

Material: F&R: High Tensile Strength Carbon Steel

Finish:F&R: Powder coated

NOTE: the ratio between spacer thickness and the final lift height not always 1:1 due to the suspension geometry

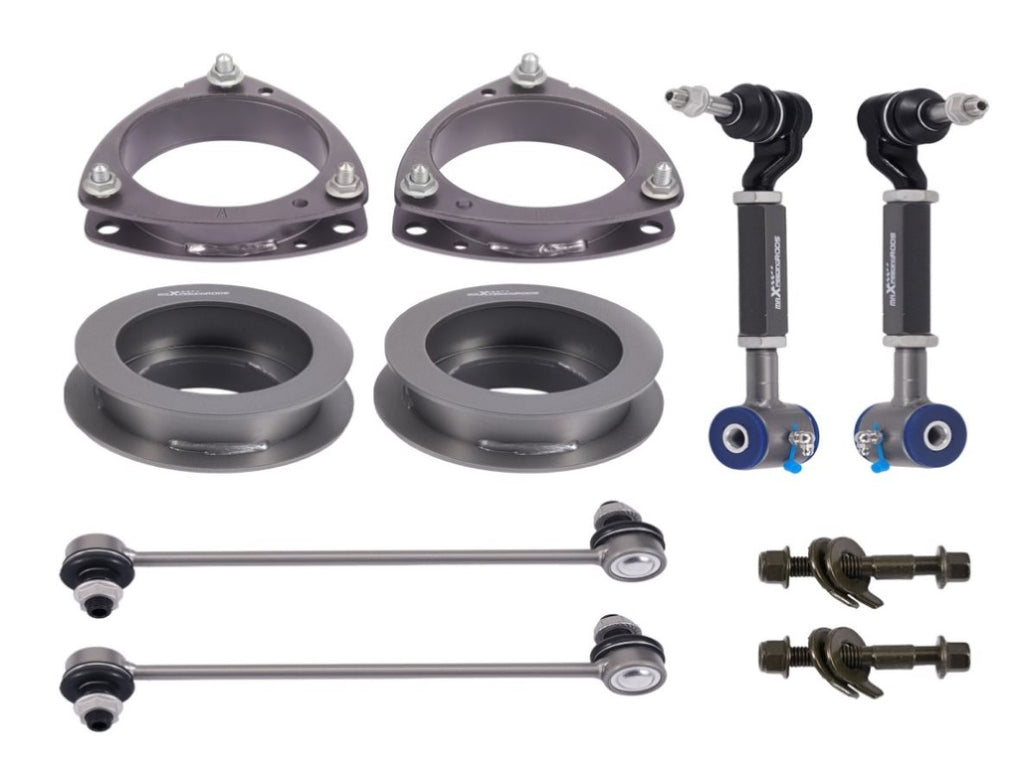

Package included:

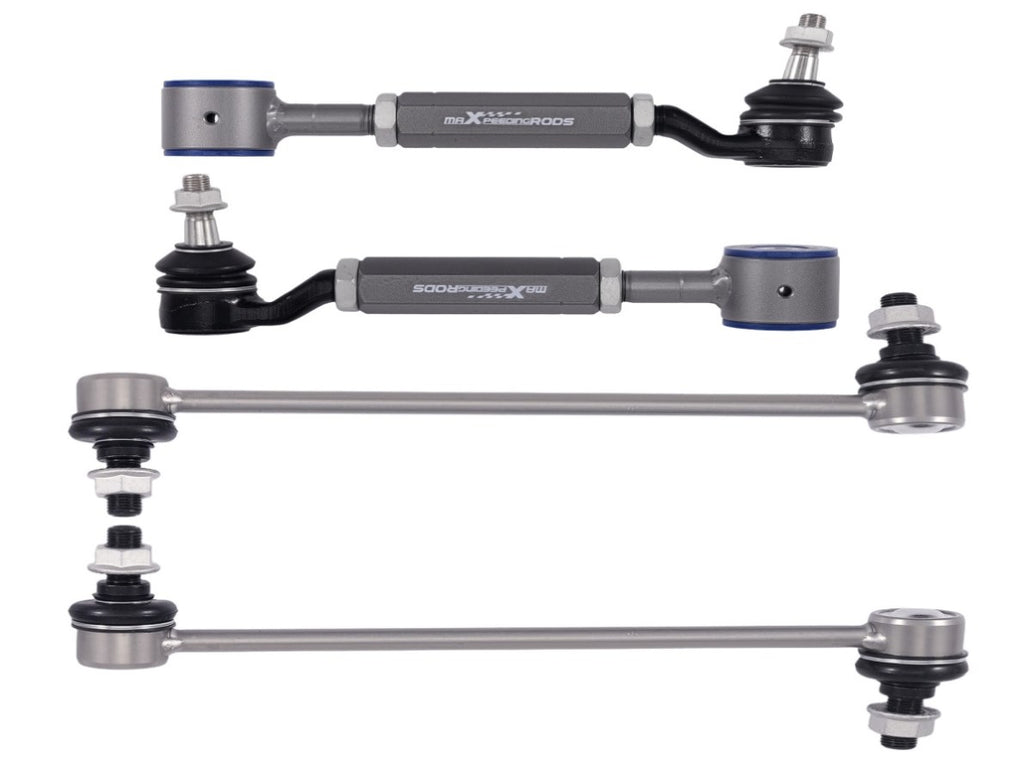

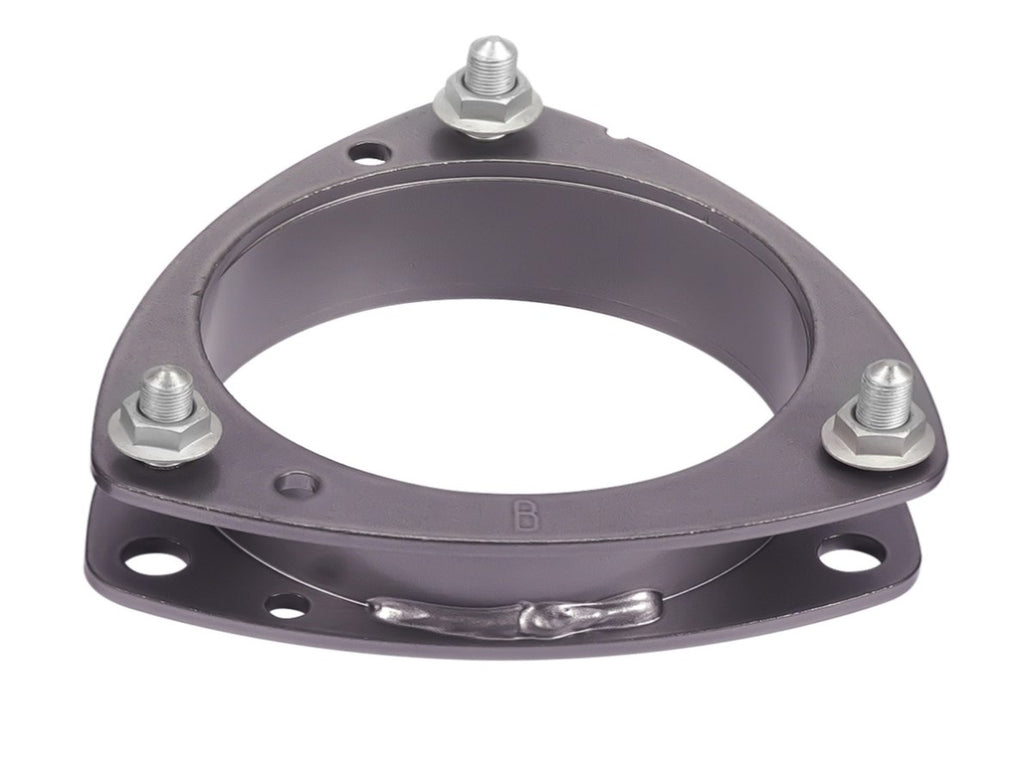

Front Lift Spacers With Cambers x2

Front Sway Bar End Links x2

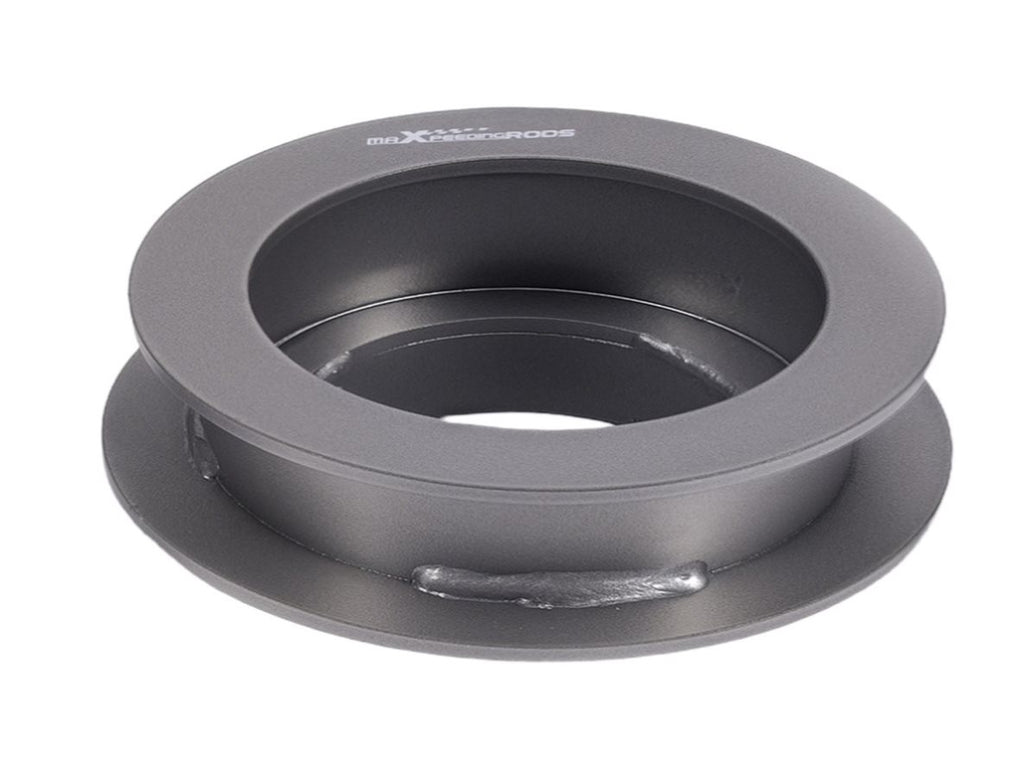

Rear Lift Spacers x2

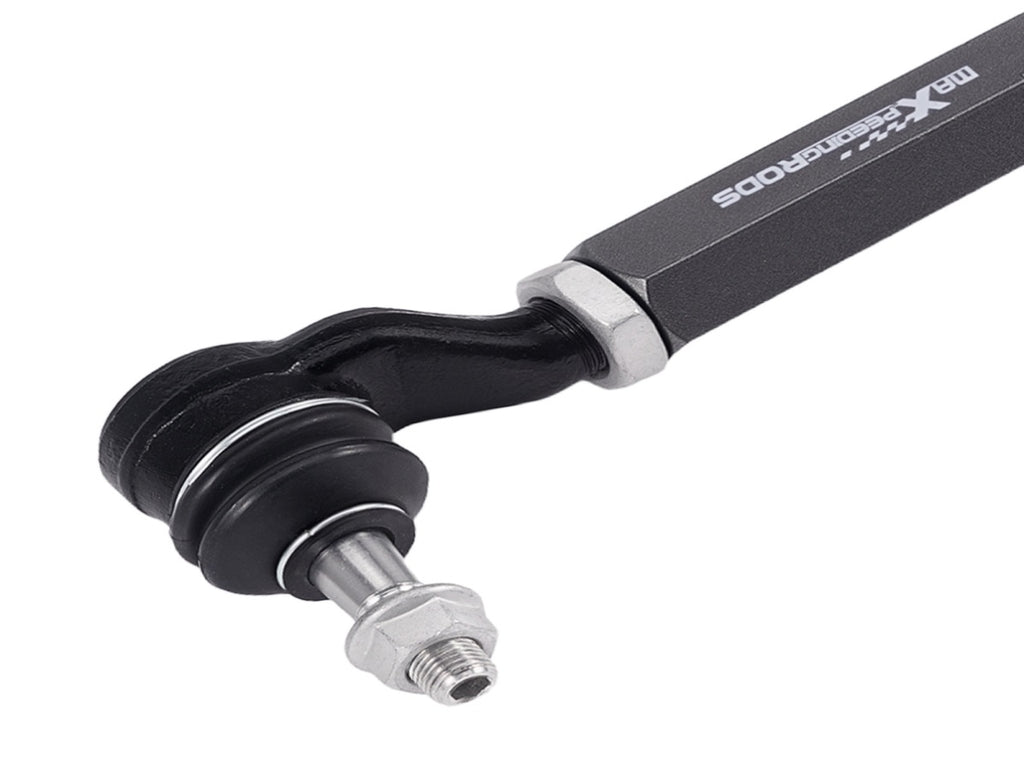

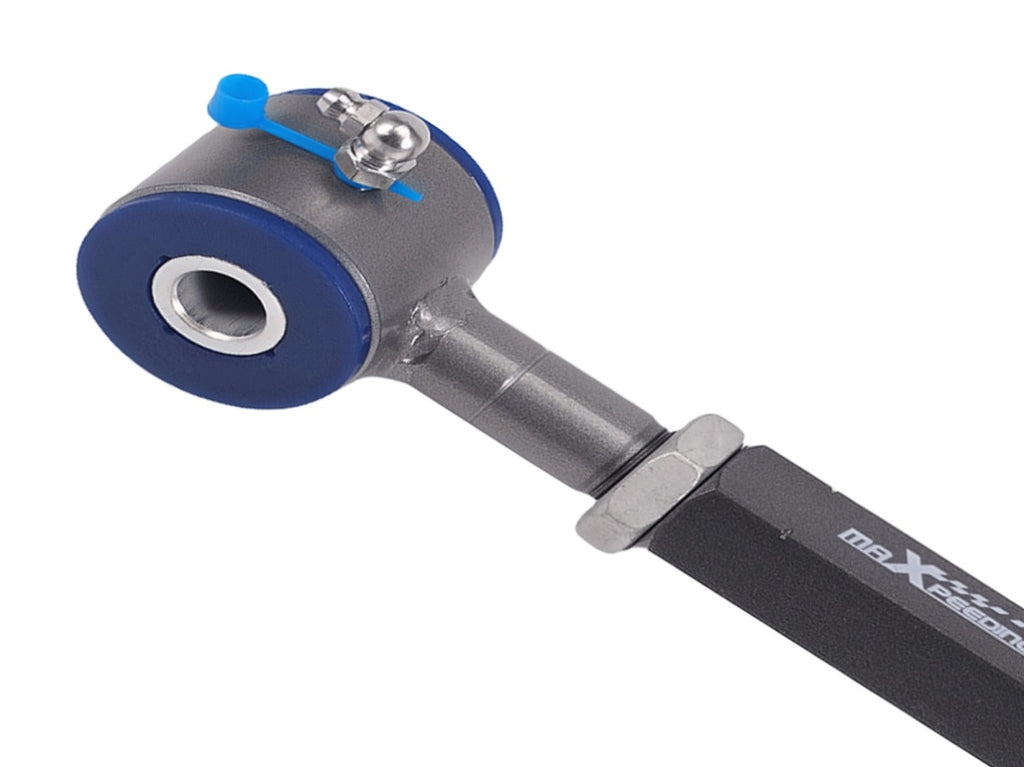

Rear Camber Arms x2

Hardware Kit

Feature:

High Tensile Strength Carbon Steel fit for optimal durability and fitment.

high strength bolts fit for safer connection.

Powder coated surface：provides superior corrosion resistance.

Precision cutting and welding.

Improve the appearance of your vehicle and accommodate larger tire and wheel setups.

Increase ground clearance to level the front with the rear of the vehicle

Maintain factory ride quality.
