2x Air Brake Chamber Sealed 2.5" 64mm Type 3030 Stroke 30x30 30/30 BTS3030WCR 35268095

Application：
fit for Bendix: K129605, K067114,
fit for Haldex: GC3030CW, GC3030S4CW,
fit for Others: BTS-3030-WCR, GTA-3030-WCR

OE/Part number：
BTS-3030-WCR,
GTA-3030-WCR,
GC3030CW,
GC3030S4CW,
K129605,K067114,
BTS3030WCR,
GTA3030WCR

Specification：
Condition: New
Actuator Type Size: 3030
Stroke Type: Standard
Available Stroke: 2-1/2", 64mm
Length from mounting bracket to the end of Spring Housing: 9", 229mm
Length of Piggyback: 6-13/16", 173mm
Dimension at rolled Spring Housing flange: 8-5/16", 211mm
Dimension at Service Clampband: 10-3/16", 259mm
Pushrod Length from the face of Service Housing: 1"
Distance to Clevis Pin centerline from the face of Service Housing: 2-1/4"
Weight: 21.3 lbs. , 9.7 kg.
Packaging Type: Box
Fitment Type: Direct Replacement

Feature:

- High-Quality Torque Long Stroke Air Brake Chamber Type 3030
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings fit for positive sealing and plastic bearings fit for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications

Package Includes:

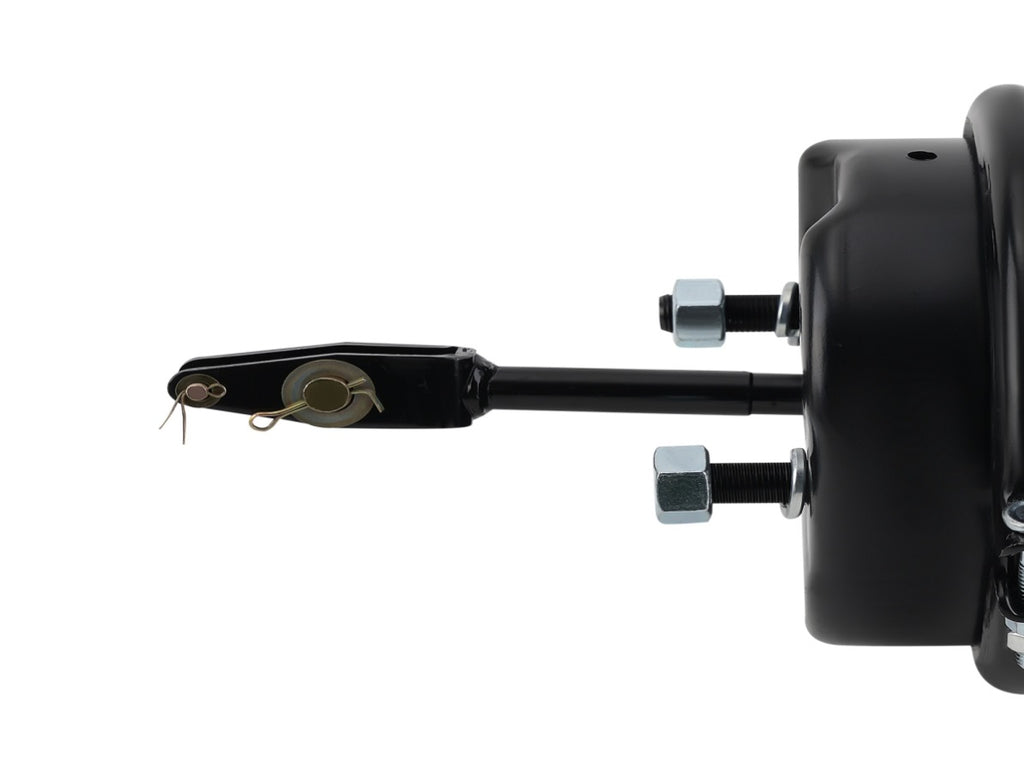

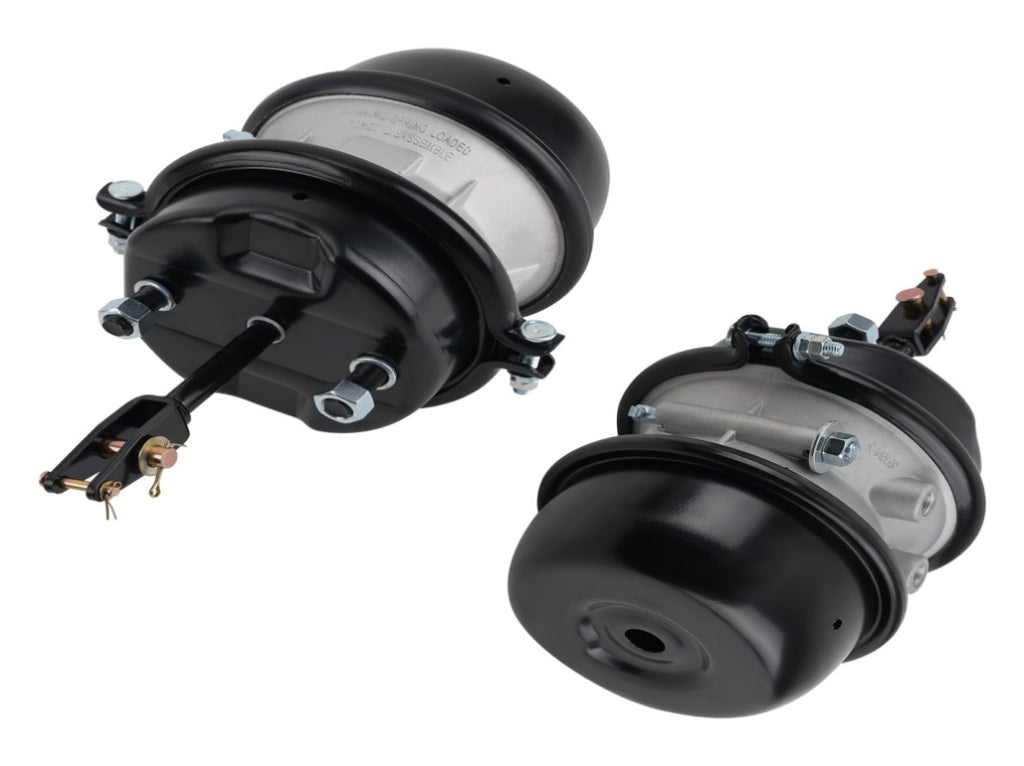

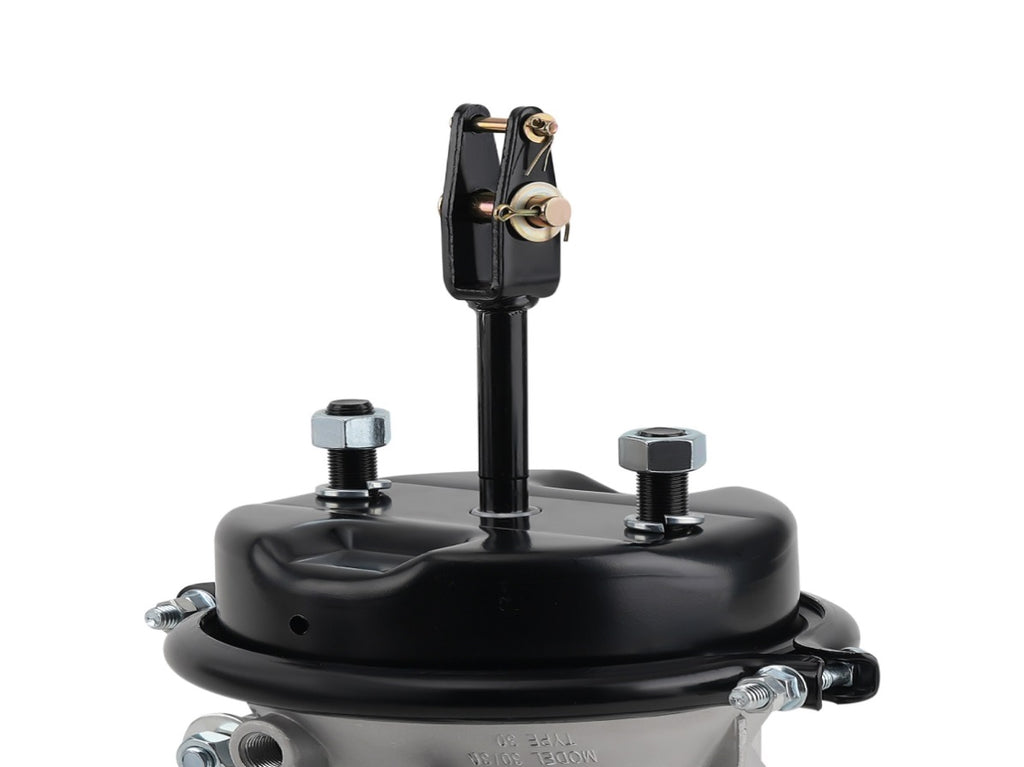

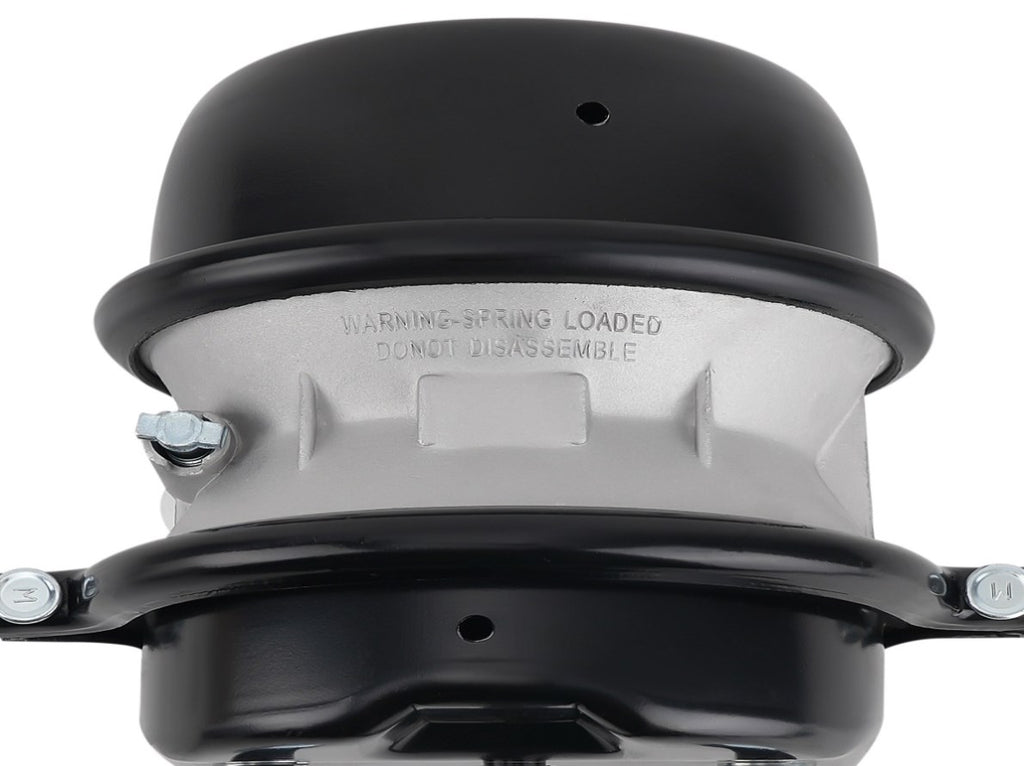

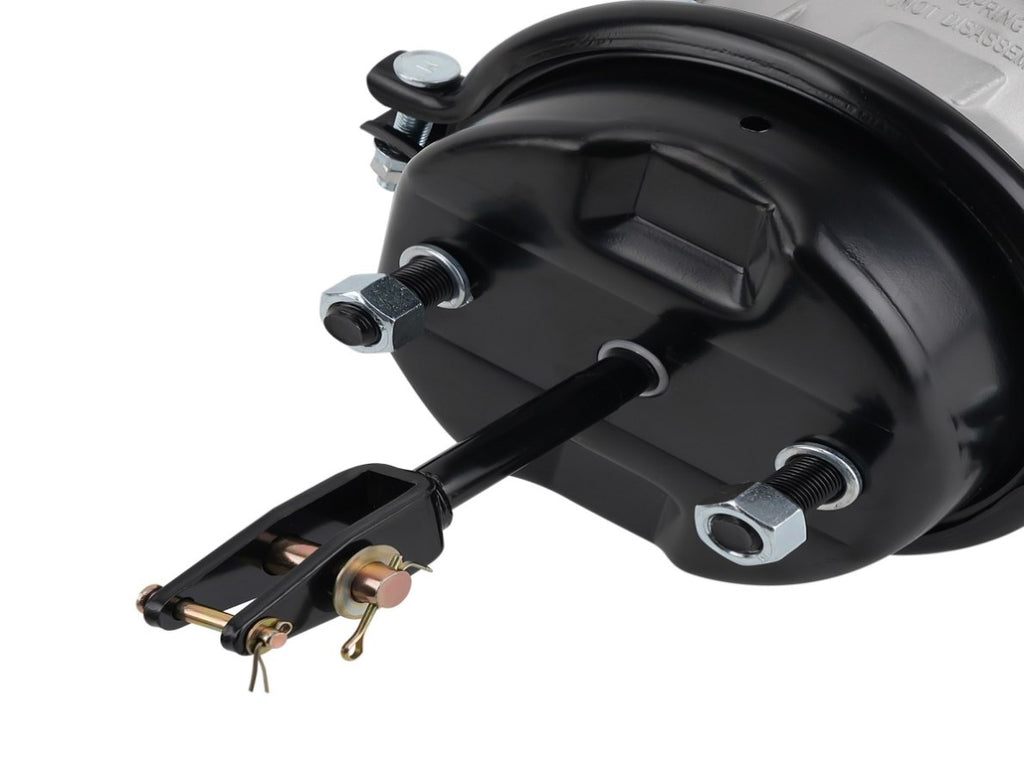

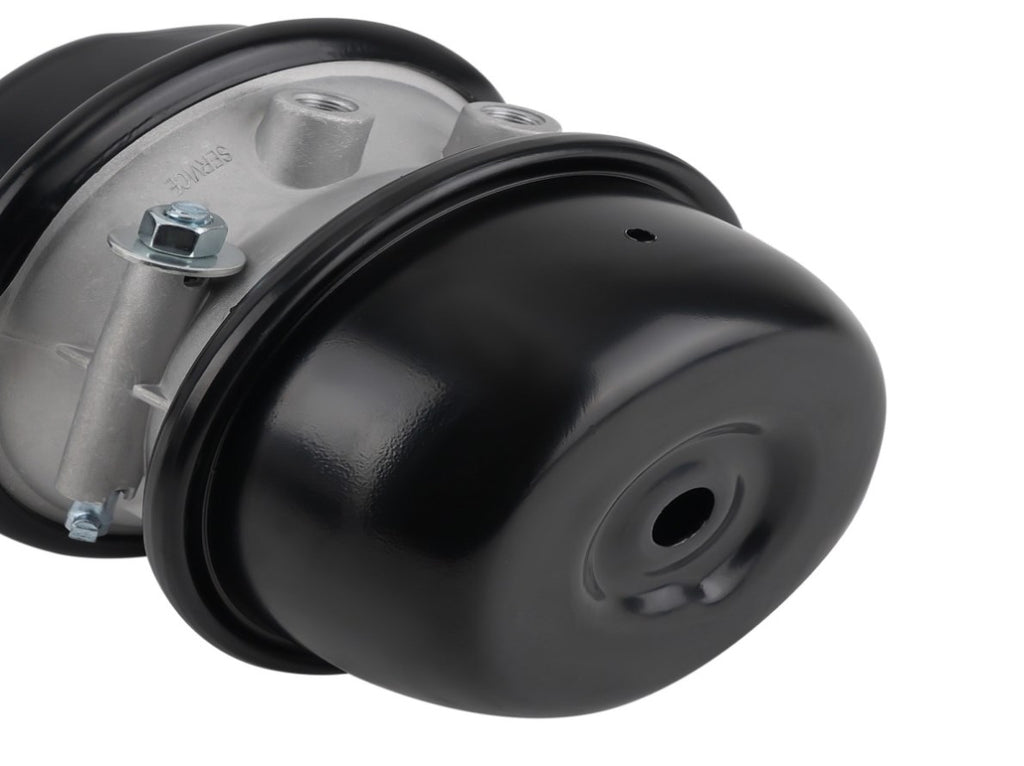

2 x Air Brake Chamber  (Showing as the picture)

Note：
●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
