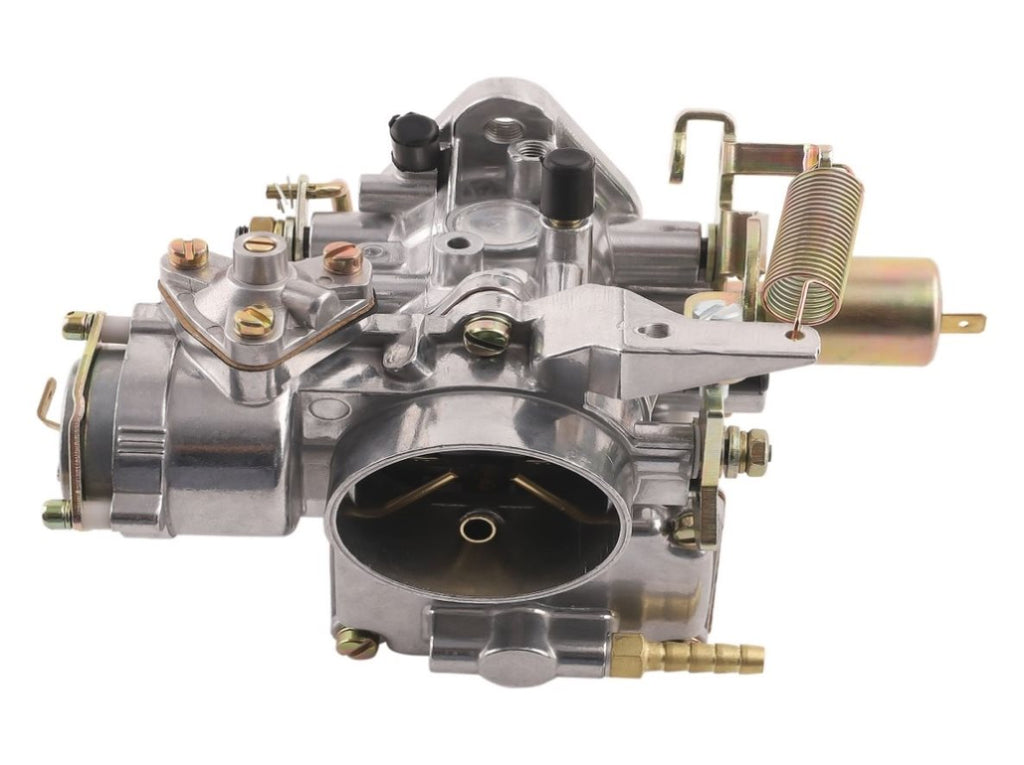

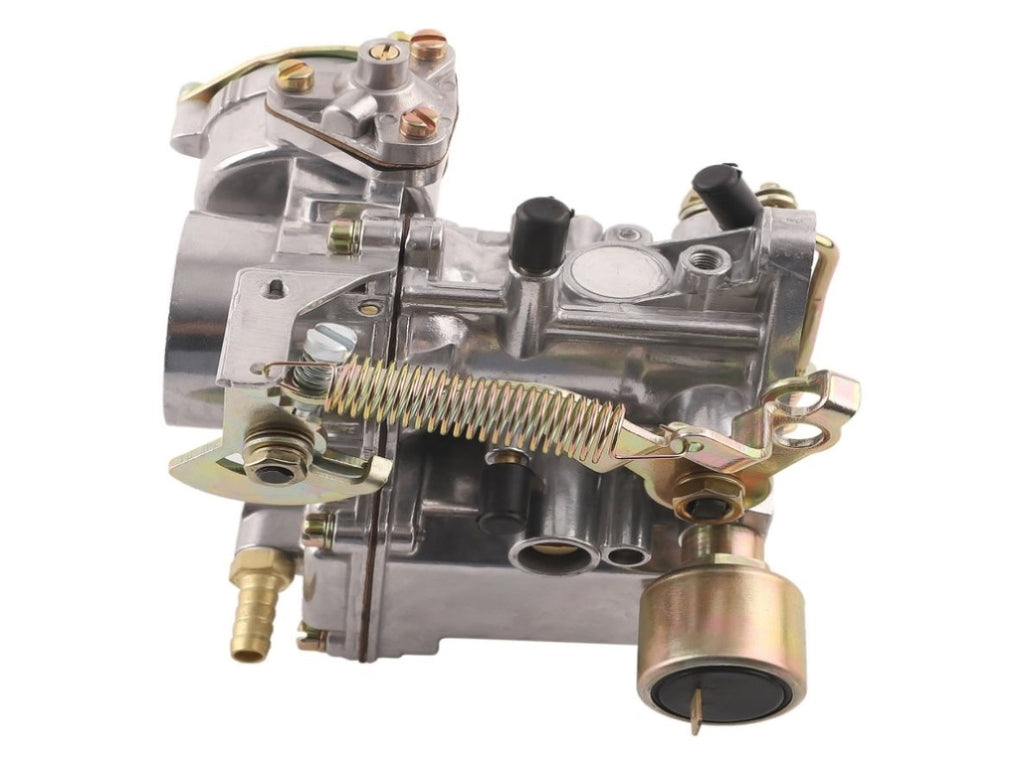

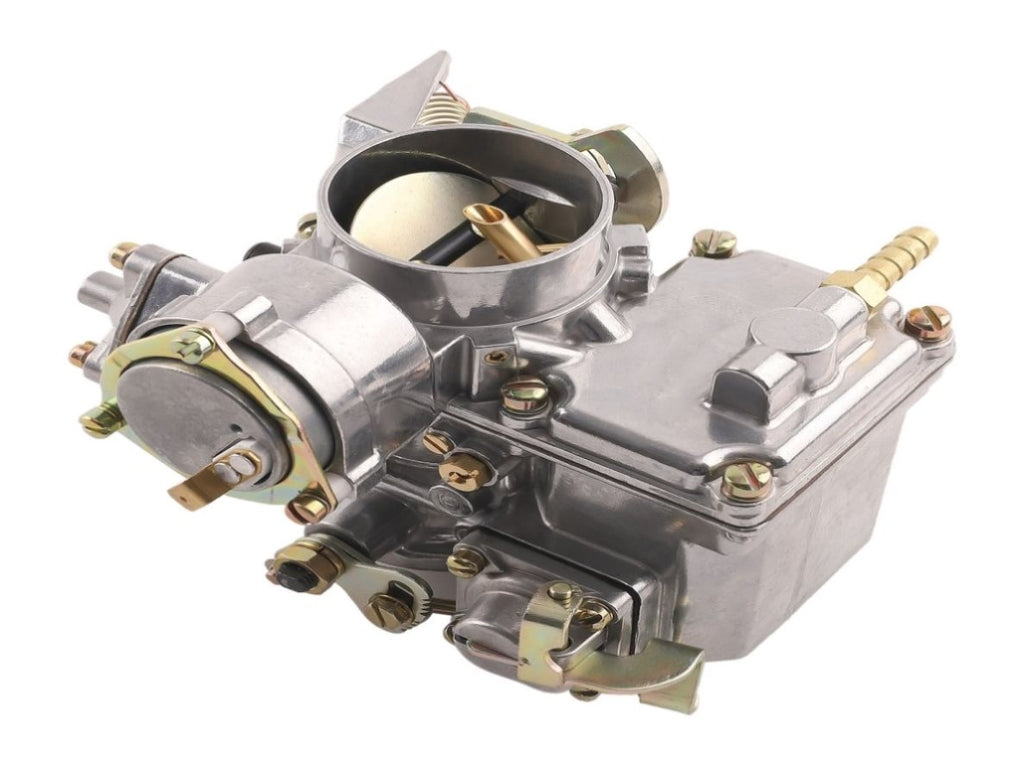

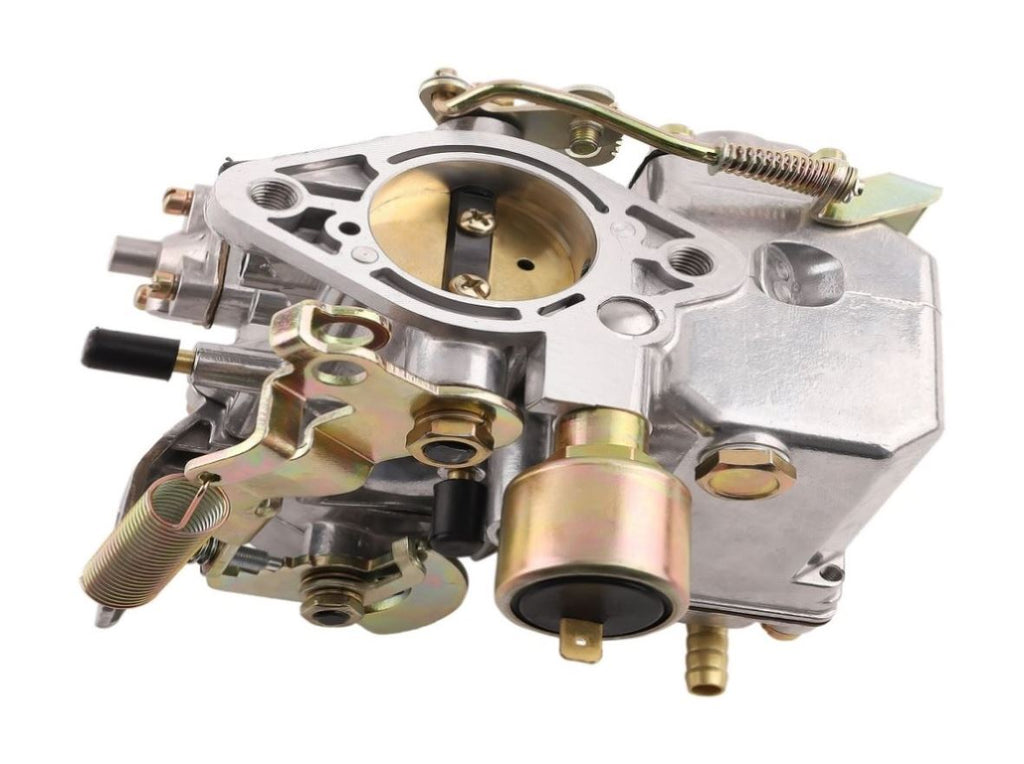

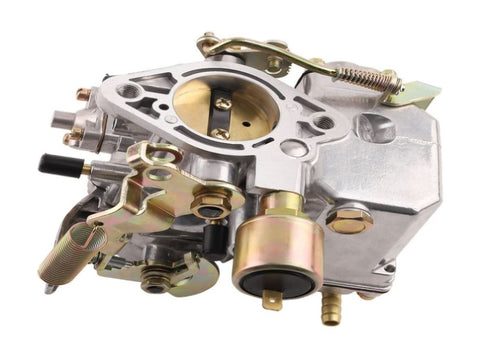

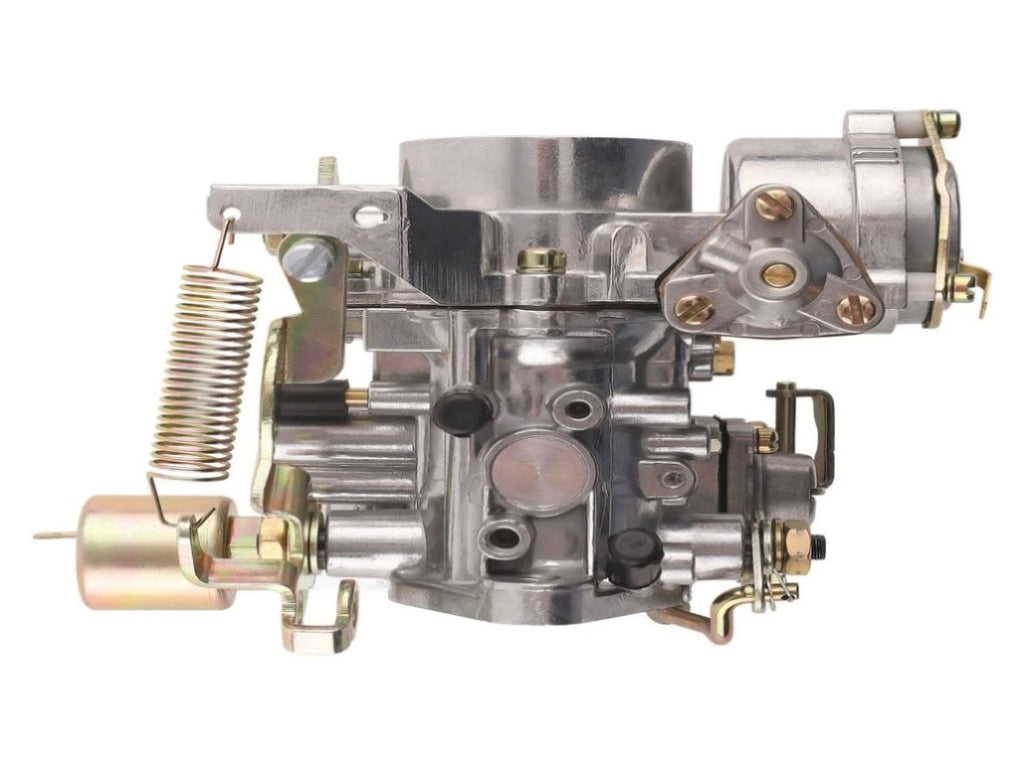

37 Pict-3 carburetter fit for Volkswagen Karmann Ghia 1971-1974 113129031K 98-1289-B 20533948
Fitment:
- It will apply fit for VW Air cooled Type 1 engines 1600cc
- Compatible with any 1.6L Dual Port Engines.
fit for VolksWagen Beetle 1.6L 1971-1979
fit for VolksWagen Super Beetle 1.6L 1971-1979
fit for VolksWagen Thing 1.6L 1973-1974
fit for VolksWagen Karmann Ghia 1.6L 1971-1974
fit for VolksWagen Squareback 1.6L 1967-1973
fit for VolksWagen Transporter 1.6L 1969-1972
(Only fit for Dual port engine, not fit for single port engine)
OE/Part number:
37 Pict-3, 113129031K, 98-1289-B
Specification:
Mounting Studs Measure: 68mm (Center To Center)
Intake Mount: 37mm
Choke Air Horn Inner Diameter: 47.3mm
Choke Air Horn Outer Diameter: 51.7mm
Venturi Diameter: 28mm
Choke Type: Automatic Choke
Placement: The intake pipe between the air filter and the engine of the car
Input Voltage: 12V
Material: Zinc Alloy
Package Dimensions: 20*18*16 cm
Package Weight: 1.45 kg
Note:
*Please allow 1-2mm error due to manual measurement.
*Please check the measurement information of the carburetor and confirm your old part number and car engine to ensure you are ordering the correct part.

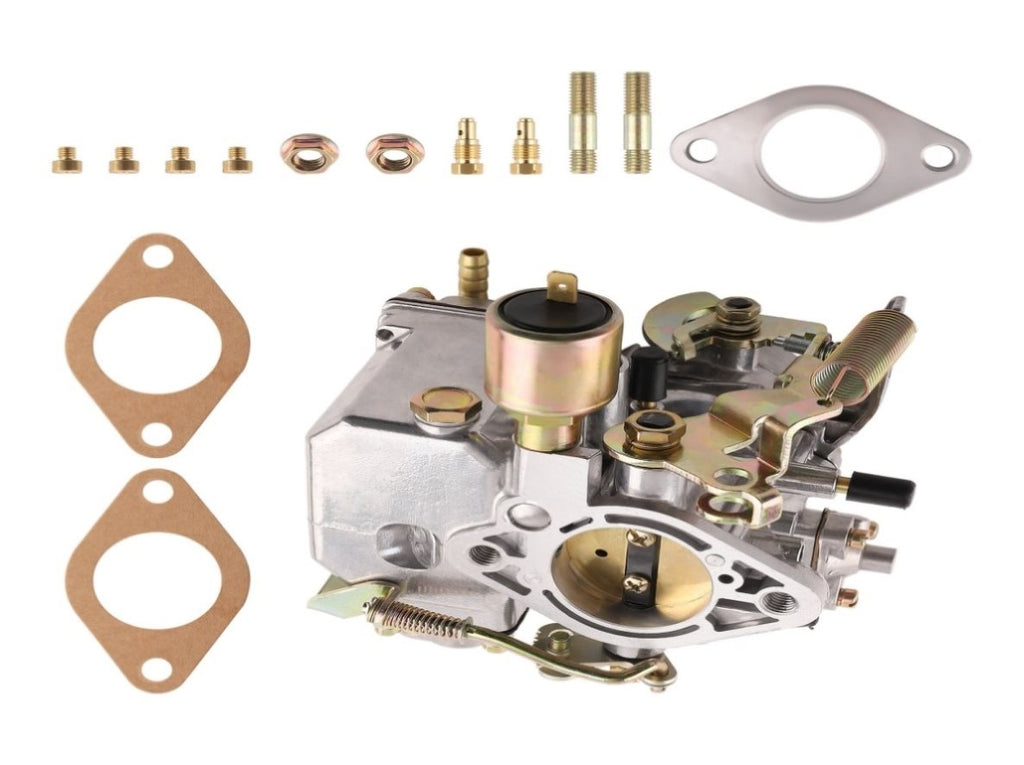

Package Included:
1x 37 PICT-3 Carburetor
1x Gasket
2 x Jets Screws
2 x Mounting bolts
2 x Screws
(Showing as the picture)
Feature:
1.The carburetor was made of high quality Zinc alloy, add more horse power while maintaining near stock fuel mileage.
2.To mix air and gasoline in a correct ratio to ensure proper engine function，Give your machine the new power it deserves.
3.Solve problems such as engine lack of power and low fuel efficiency, engine backfiring and overheating and hard starting.
4. Low fuel consumption, Start fast stable idle speed,allowsing you to get a better driving experience and maneuverability
5.100% tested fit for reliability and performance，backed by satisfying after-sales service
Note:
*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.
*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work. (No Instruction Included)
*To ensure correct purchase,please compare carburetor against picture before you purchase.
