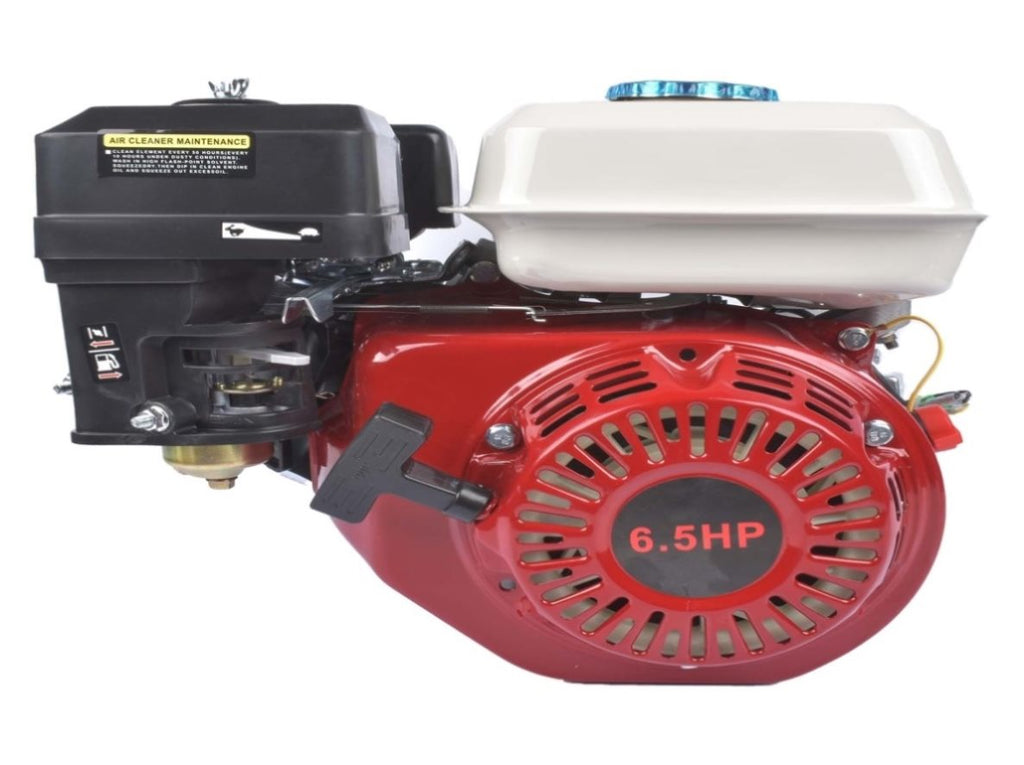

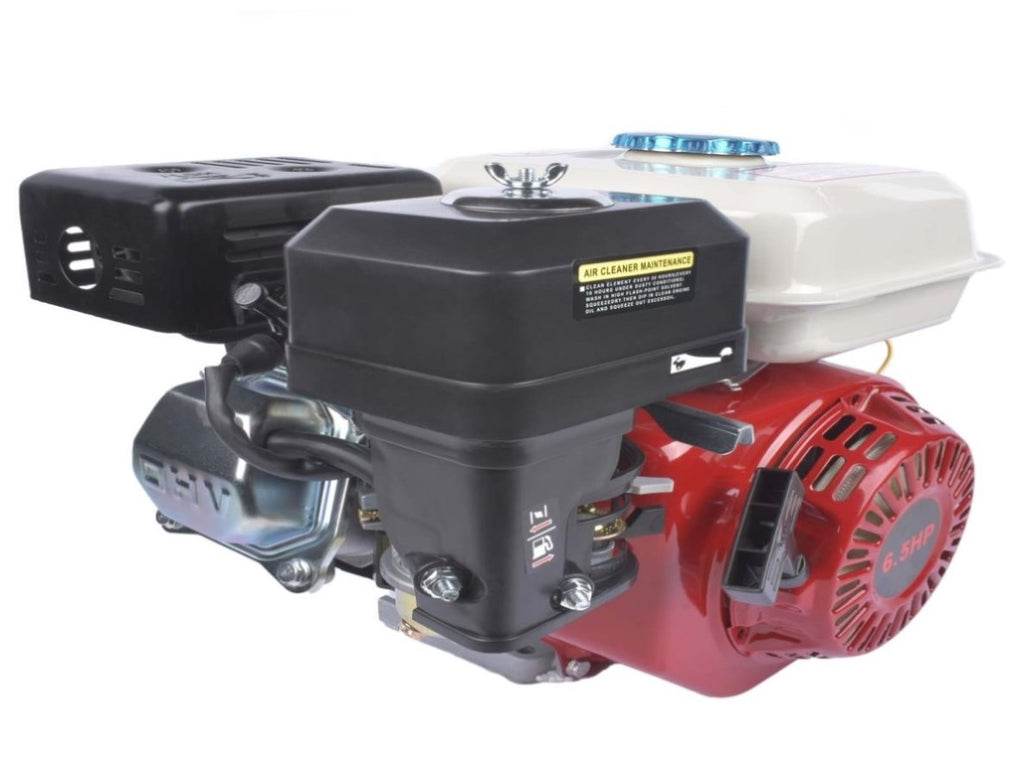

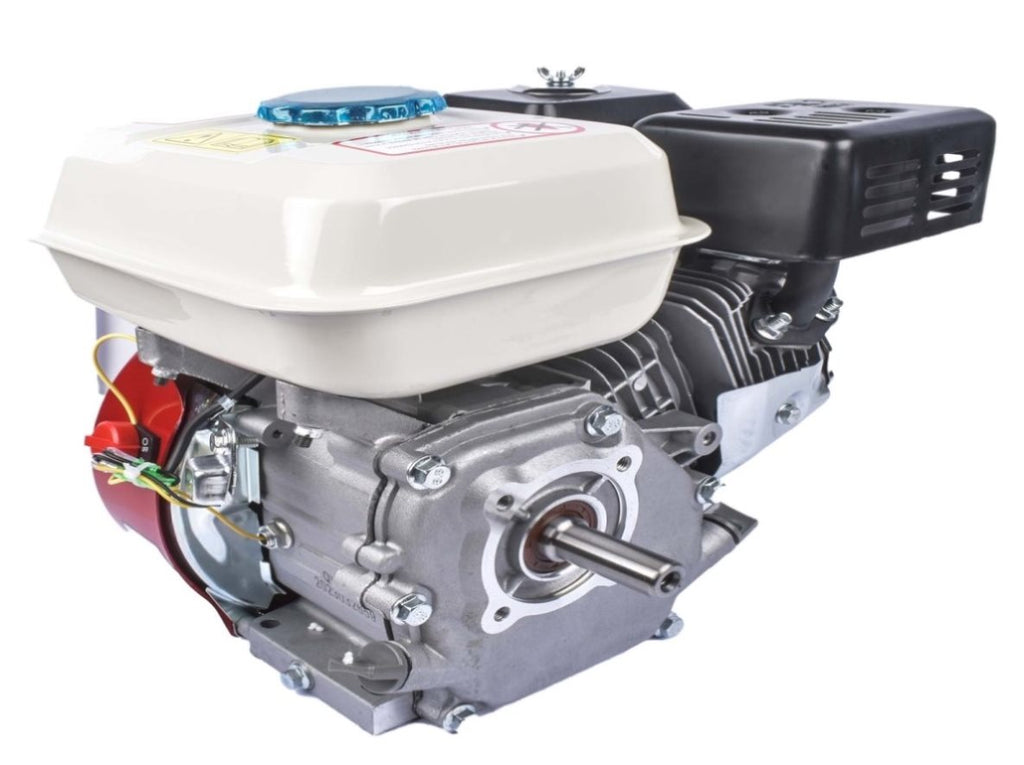

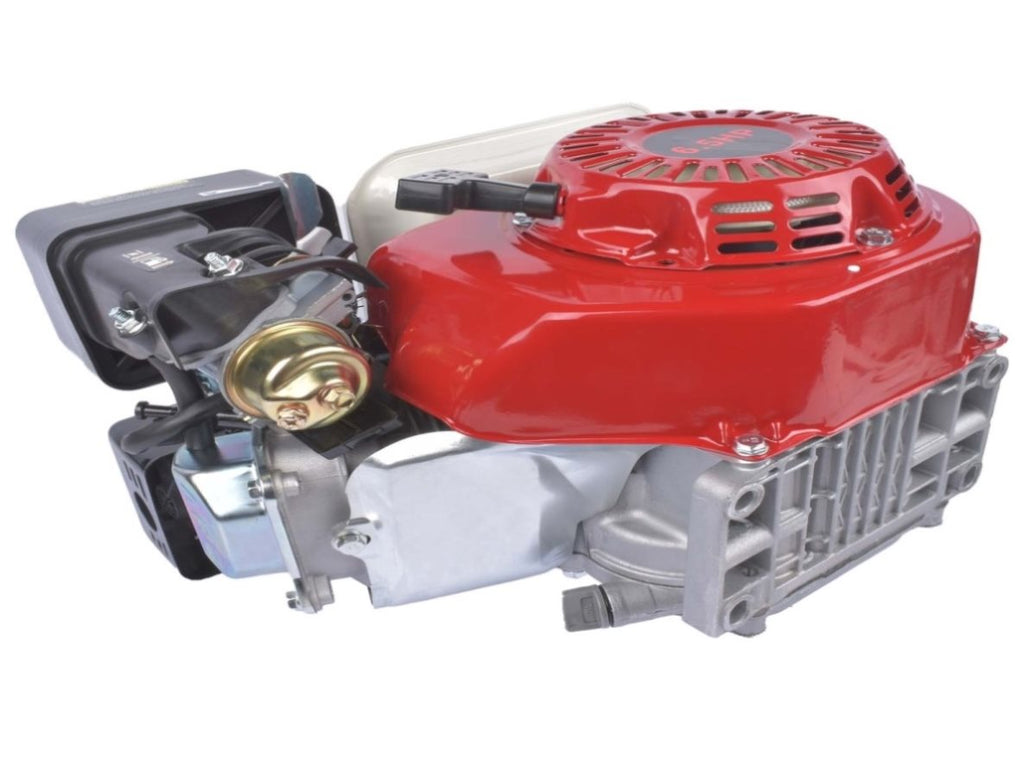

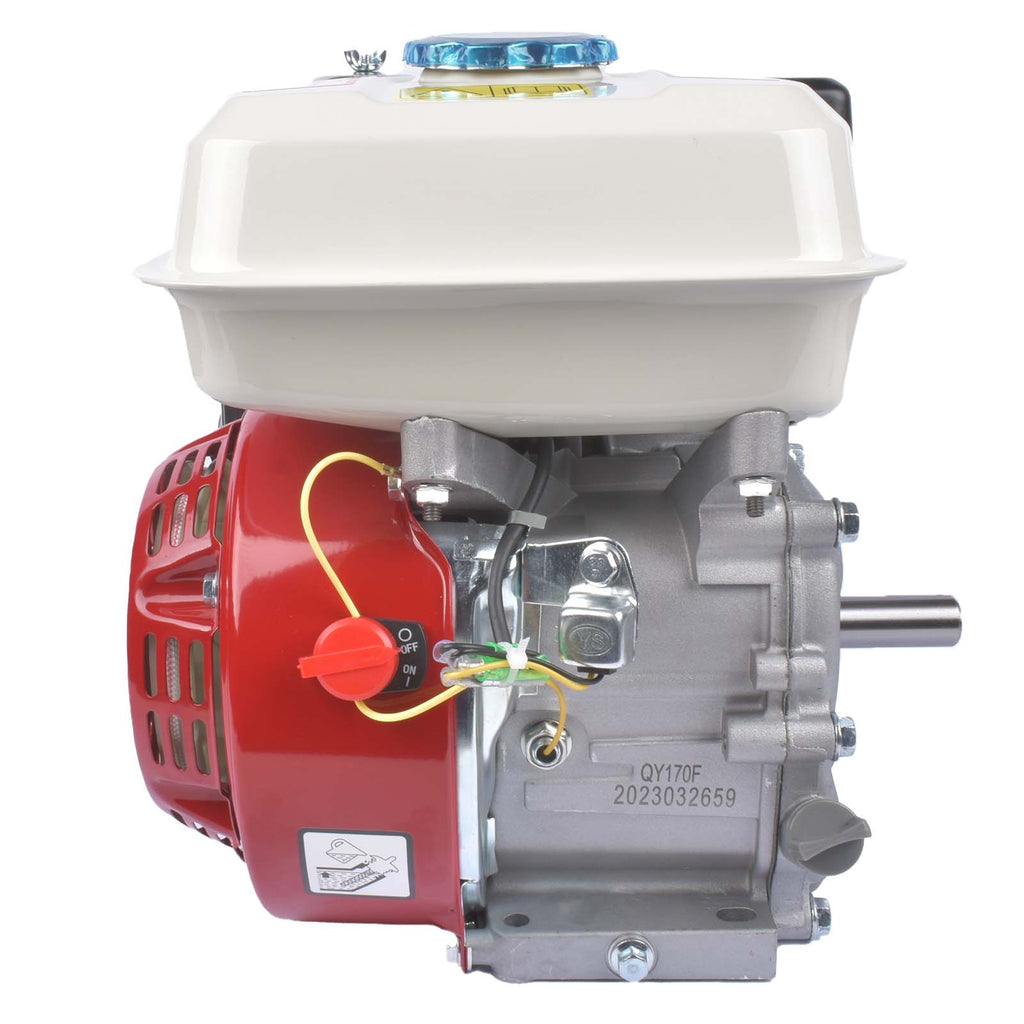

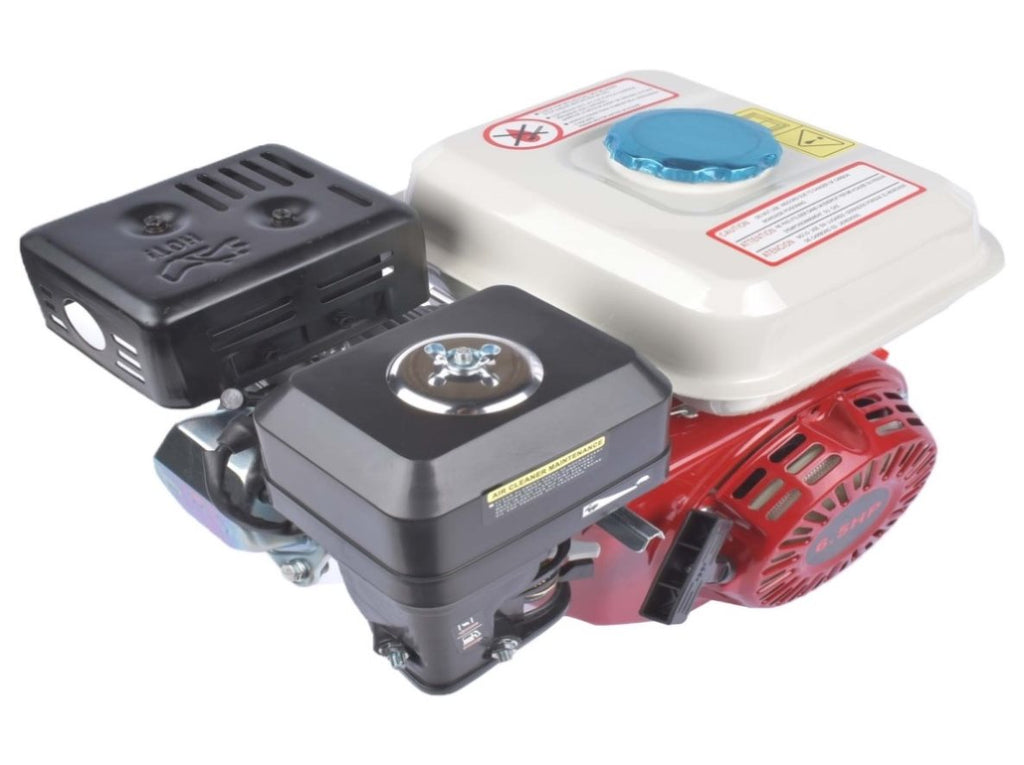

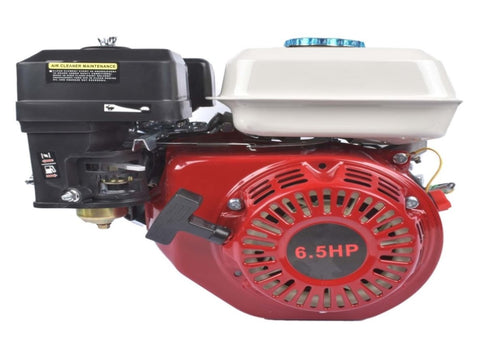

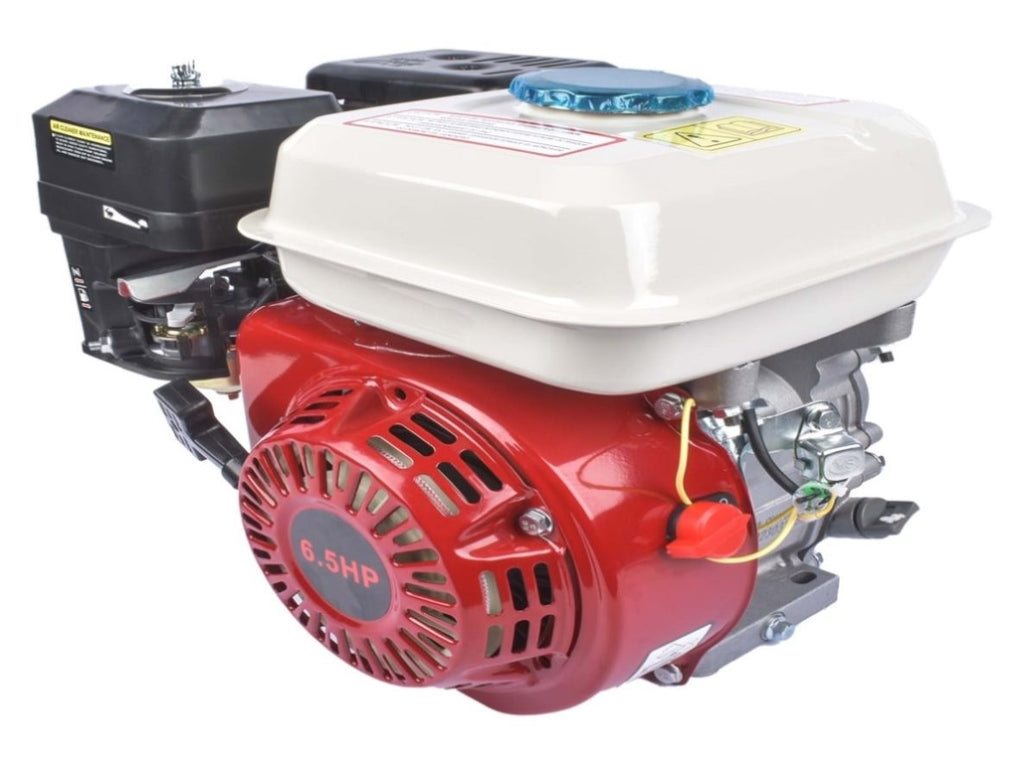

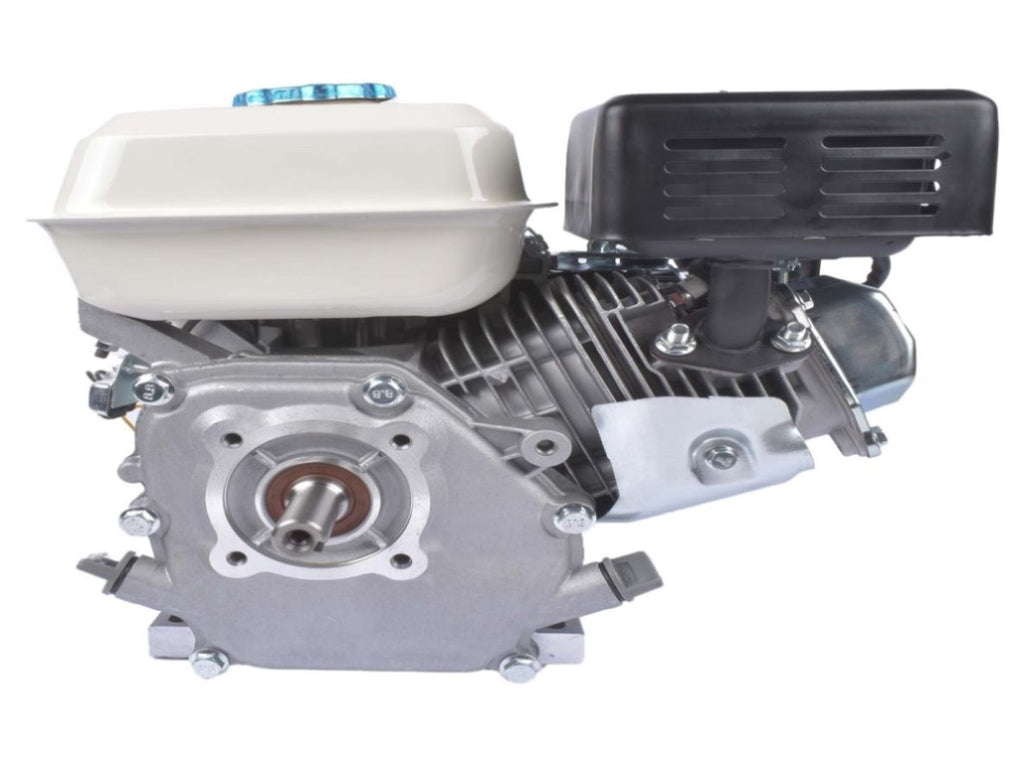

6.5HP 160cc Gasoline Engine Powering for Industrial & Agricultural Machines 30173070
Operation:
A. PRE-OPERATION CHECK
Engine oil level
1. Running the engine with insufficient oil can cause serious engine damage.（Please add 0.6L of oil before use and start.）
2. Be sure to check the engine on a level surface with the engine stopped.
3. Using nondetergent oil or 2-stroke engine oil could shorten the engine's service life.
B. STARTING THE ENGINE
1. Turn the fuel valve to the ON position.
2. Move the chock lever to the CLOSED position.
Note: Do not use the choke if the engine is warm or the air temperature is high.
3. Move the throttle control lever slightly to the left.
4. Start the engine with recoil starter: Turn the engine switch to the ON position.
C. OPERATION
1. As the engine warms up,gradually move the choke lever to the OPEN position.
2. Position the throttle control lever for the desired engine speed.
Features:
Overhead valve (OHV) design
Low fuel consumption, low operating temperature, high performance.
Low fuel consumption, low operating temperature, high performance.
Large capacity air filter
Improve air filtration performance and reduce wear.
Improve air filtration performance and reduce wear.
Metal cam, forged crankshaft
The whole machine adopts high-quality materials, with stronger performance and longer life.
The whole machine adopts high-quality materials, with stronger performance and longer life.
Cast iron cylinder liner
Easy to start，engine running more stable.
Easy to start，engine running more stable.
Specifications:
Fuel Type: Gasoline
Lube oil capacity: 0.6L
Fuel tank capacity: 3.6L
Max. Torque: 10.8N-m
Borexstroke: 68*45mm
Displacement: 160cc
Engine Type: Air Cooled, 4 Stroke Gasoline Engine, OHV, Single Cylinder
Horsepower: 6.5HP (4.8kw)
Speed: 3600rpm
Fuel consumption rate: 360g/kw.h
Starting system: Pull Start
Lube oil capacity: 0.6L
Fuel tank capacity: 3.6L
Max. Torque: 10.8N-m
Borexstroke: 68*45mm
Displacement: 160cc
Engine Type: Air Cooled, 4 Stroke Gasoline Engine, OHV, Single Cylinder
Horsepower: 6.5HP (4.8kw)
Speed: 3600rpm
Fuel consumption rate: 360g/kw.h
Starting system: Pull Start
Professional Installation is Highly Recommended.
Package Includes:
1x Gas Engine
