80mm 3 Jaw Rotary Axis Attachment 2-Phase Stepper Motor Fits for Fiber Laser Engraver Marker 24V 74399950

Features:

80mm 3 jaw rotary axis boasts 180° stepless angle adjustment and 360° smooth rotation for engraving around the complete inner or outer circumference of round objects, ideal for rings, bracelets, pens, cups, tubes, and more!

Our chuck rotary axis uses a NEMA 23 2-phase stepper motor to provide precise positioning and smooth motion for efficient operation; the aluminum and stainless steel construction ensures lasting corrosion resistance.

Our rotary laser marker and engraver attachment has 6 clamping jaws and a chuck key included to securely hold cylinders 0.08-2.5 inches (2-63 mm) in external diameter or 1-2.7 inches (25-70 mm) in inner diameter.

Specifications:

Type: Rotary Axis

Input Voltage: 24V

Clamping Jaw Slots: 3

Motor Type: NEMA 23 Stepper Motor

Chuck Diameter: 3.1 in (8 cm)

Jaw Length: 0.7 in (1.7 cm)

Max. Angle Adjustment: 180°

Max. Engraving Rotation: 360°

Inward Clamping Range: 0.08-2.5 in (2-63 mm)

Outward Tightening Range: 1-2.7 in (25-70 mm)

Material: Aluminum, Stainless Steel

Compatible Ring Sizes: All

Mounting Hole Size: M6

Package Includes:

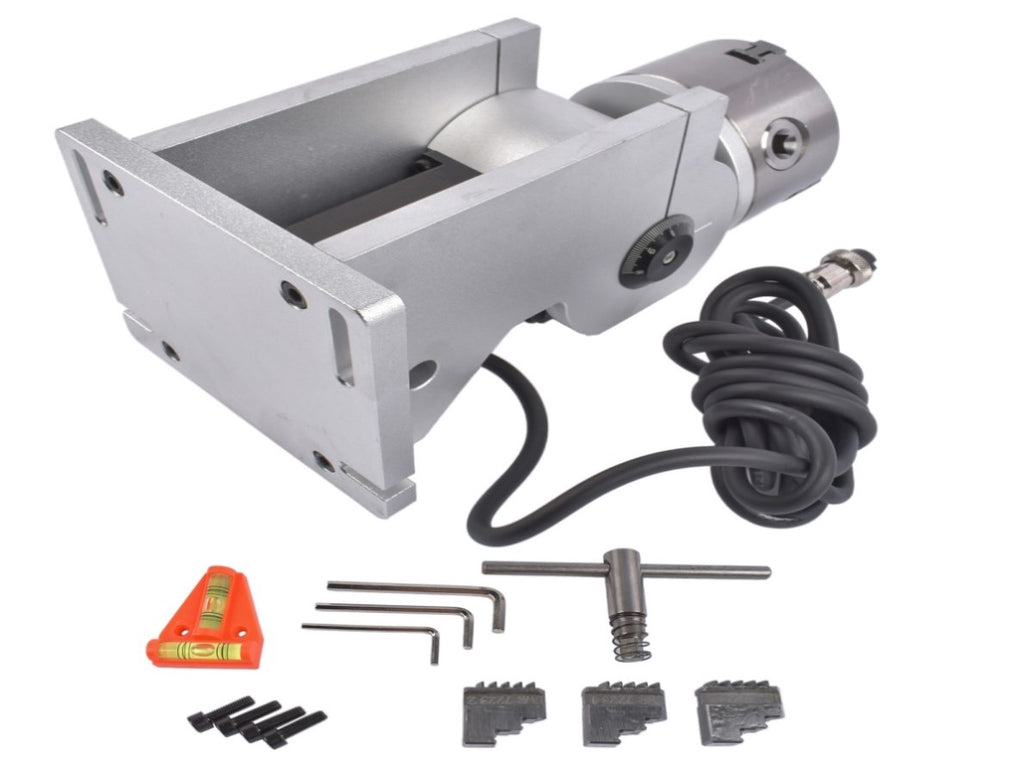

1x 3-Jaw D80 Rotary Axis
