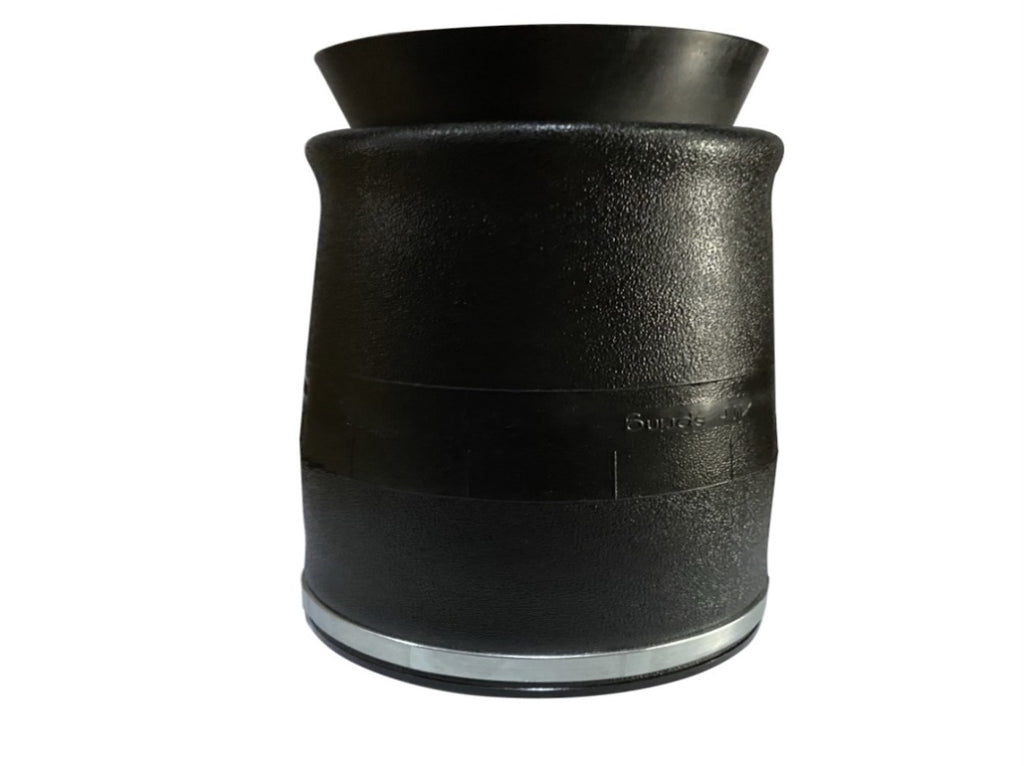

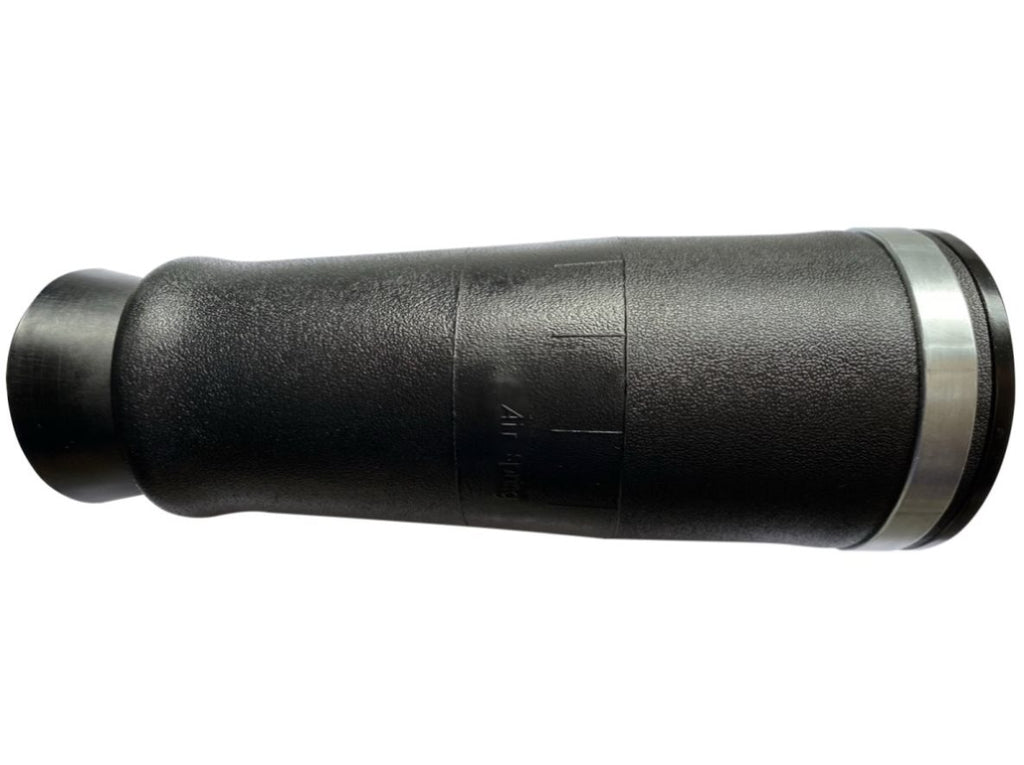

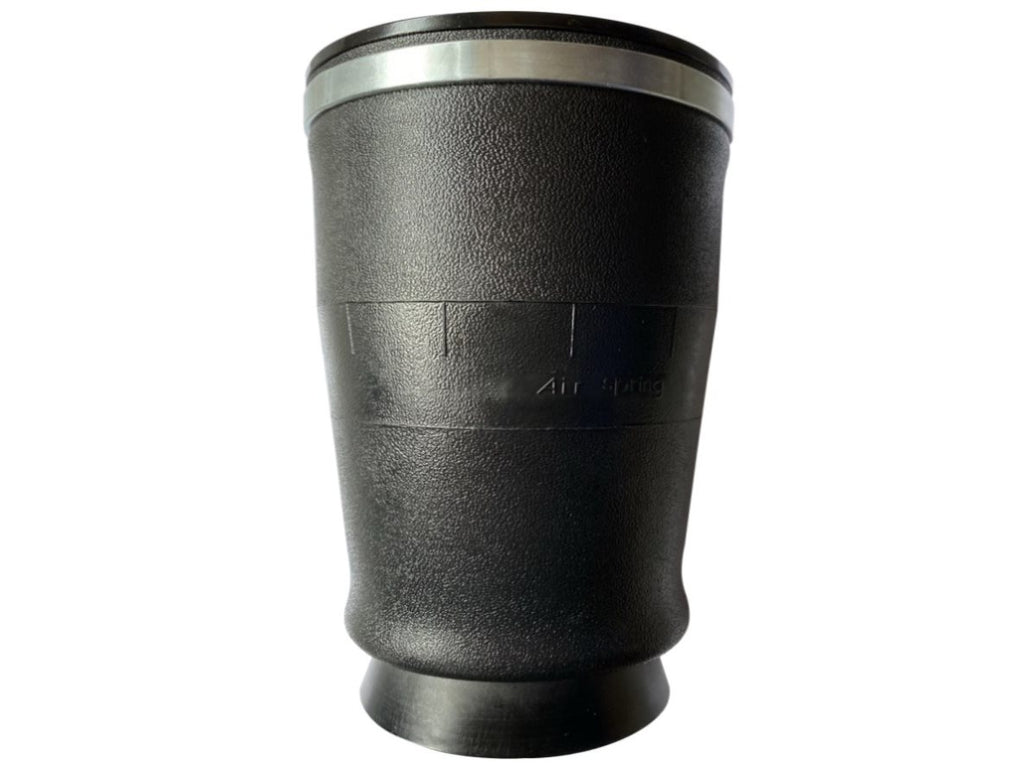

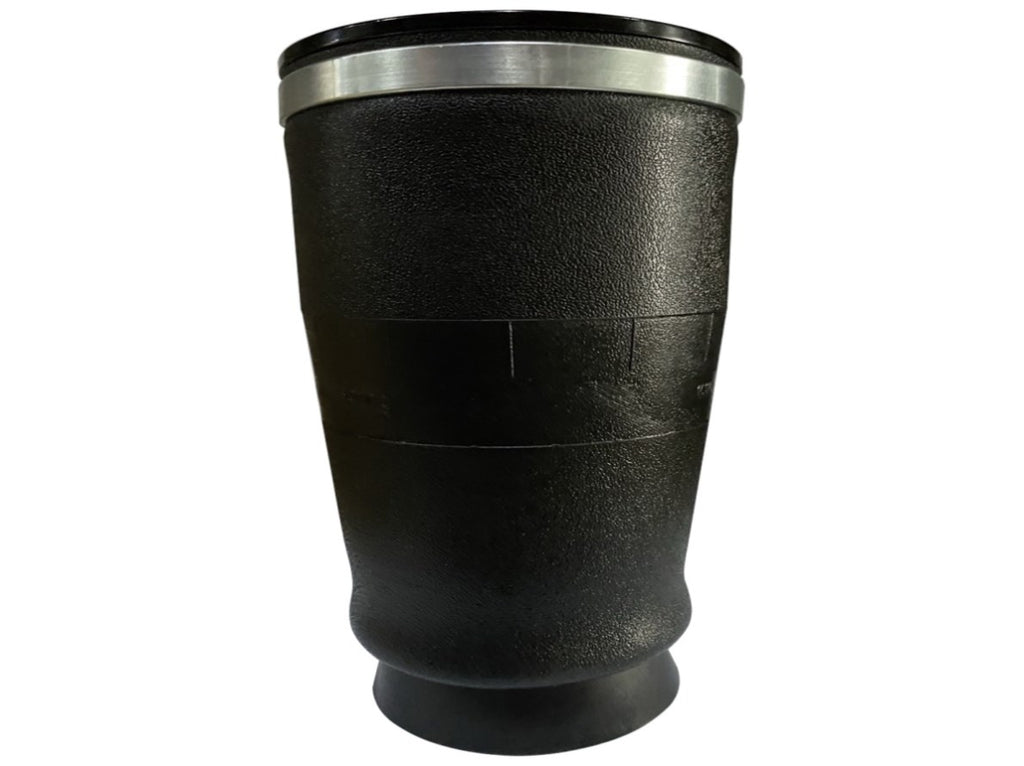

9000 1500lb Tapered Sleeve Air Bags Air Ride Bags Suspension - 2 Pack 42054296

Specifications:
1. Port Size: 1/4" Female NPT (Single on top side)
2. Minimum Height: 4.5" Collapsed
3. Maximum Height: 12-13" @100 PSI
4. Free Standing Height: 7-7.5" Without Air
5. Maximum Load Capacity: 1500 LBS per Bag (Will Vary depending upon vehicle)

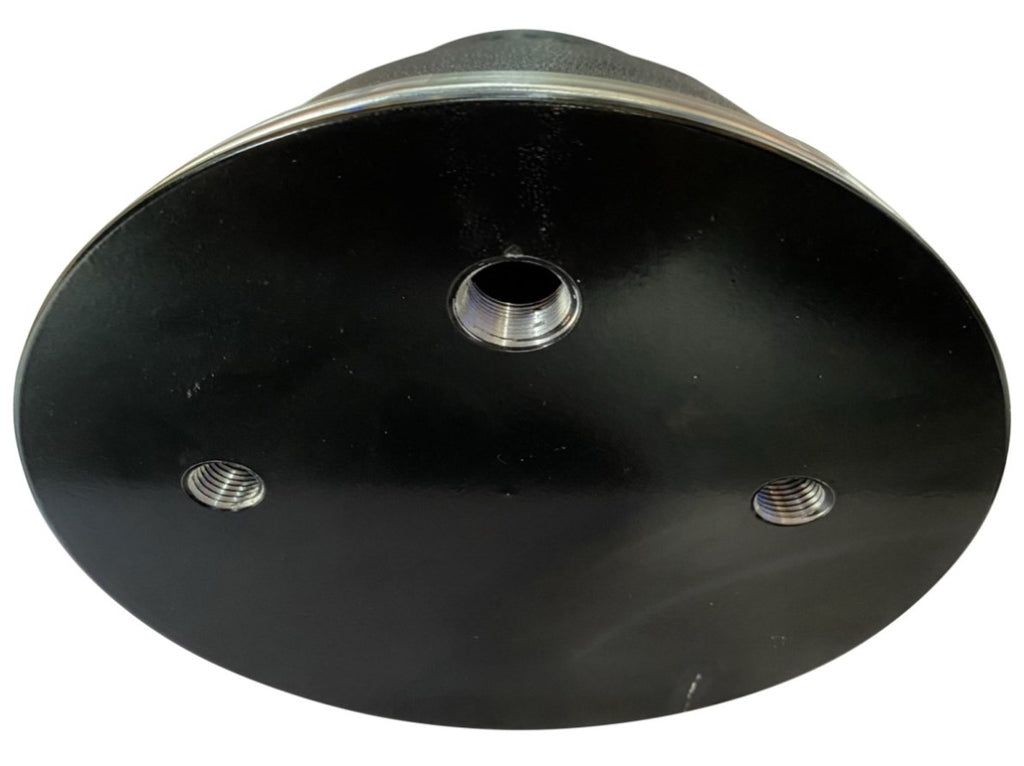

6. Top Mounting Holes: 2.75" Center to Center (Blind) Do not use very long bolts as they will puncture the top plate, bags will leak

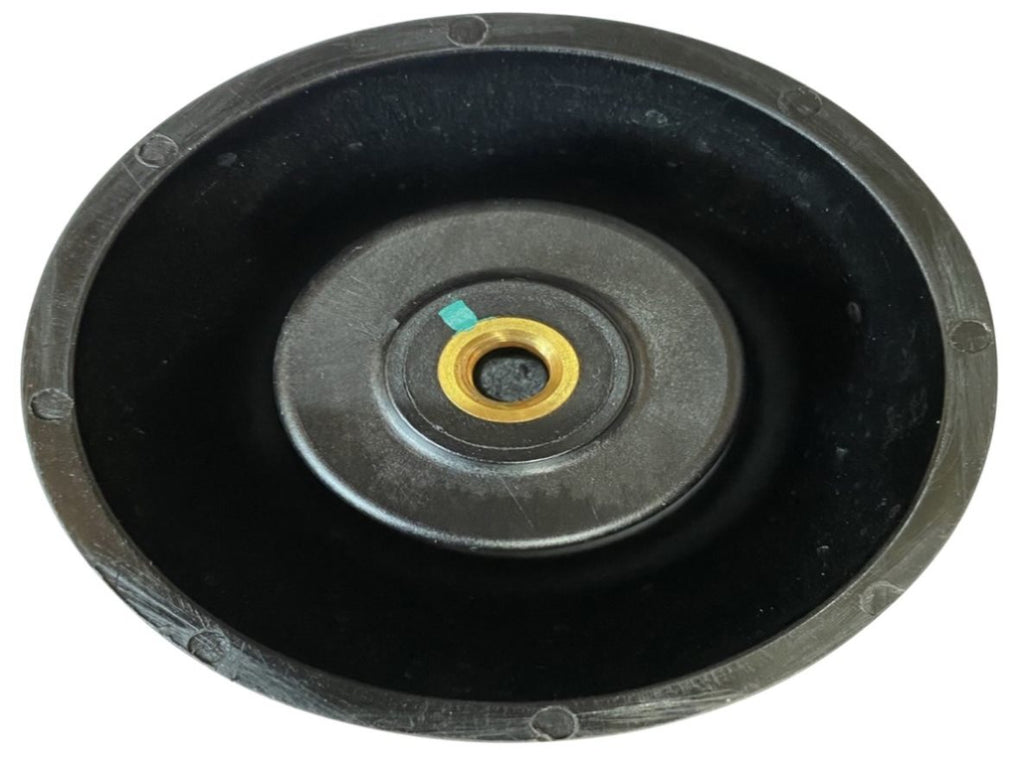

7. Bottom Hole: One ( Blind hole) in Center with Brass Bushing 3/8-16 UNC, Do not use too long bolts as it will crack the bottom plastic seat
8. Part Number:
W21-760-9000

Package Includes:
Tapered Sleeve Air Bags Air Ride Bags Suspension

Introductions:
Please double confirm the compatibility as well as the Part number before purchasing.
-Instruction is not included. Professional installation is recommended
-Contact us please for whatever we can help
