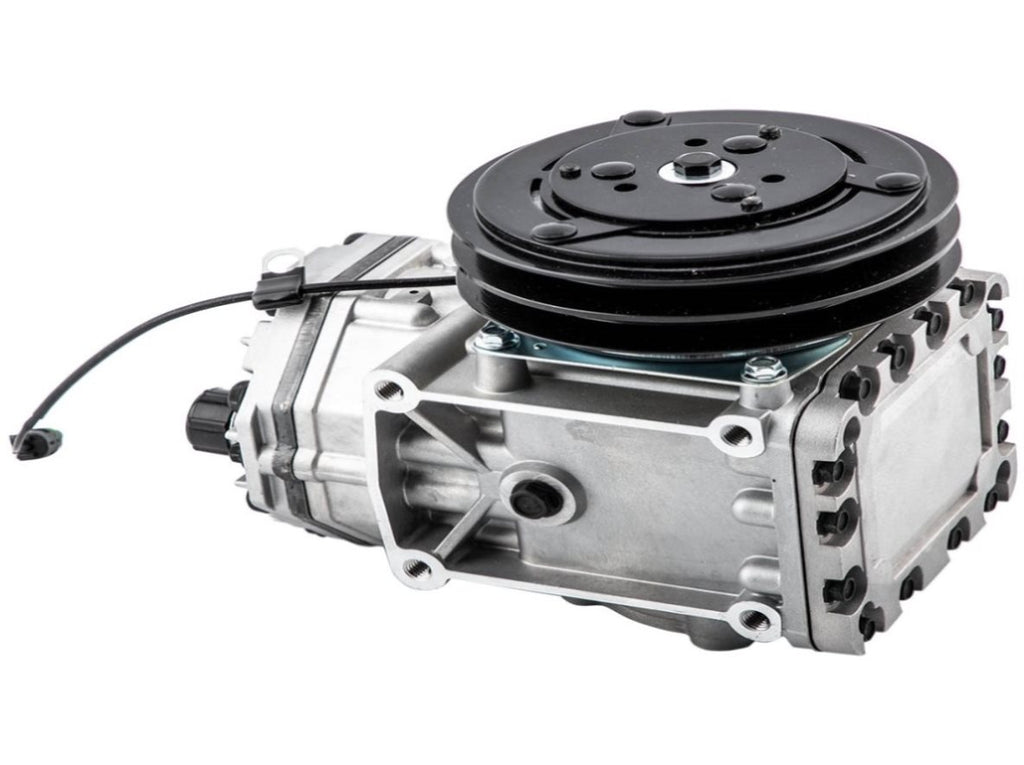

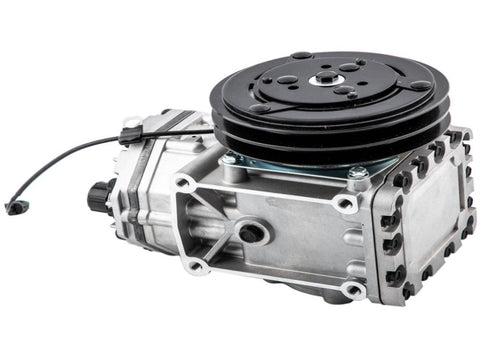

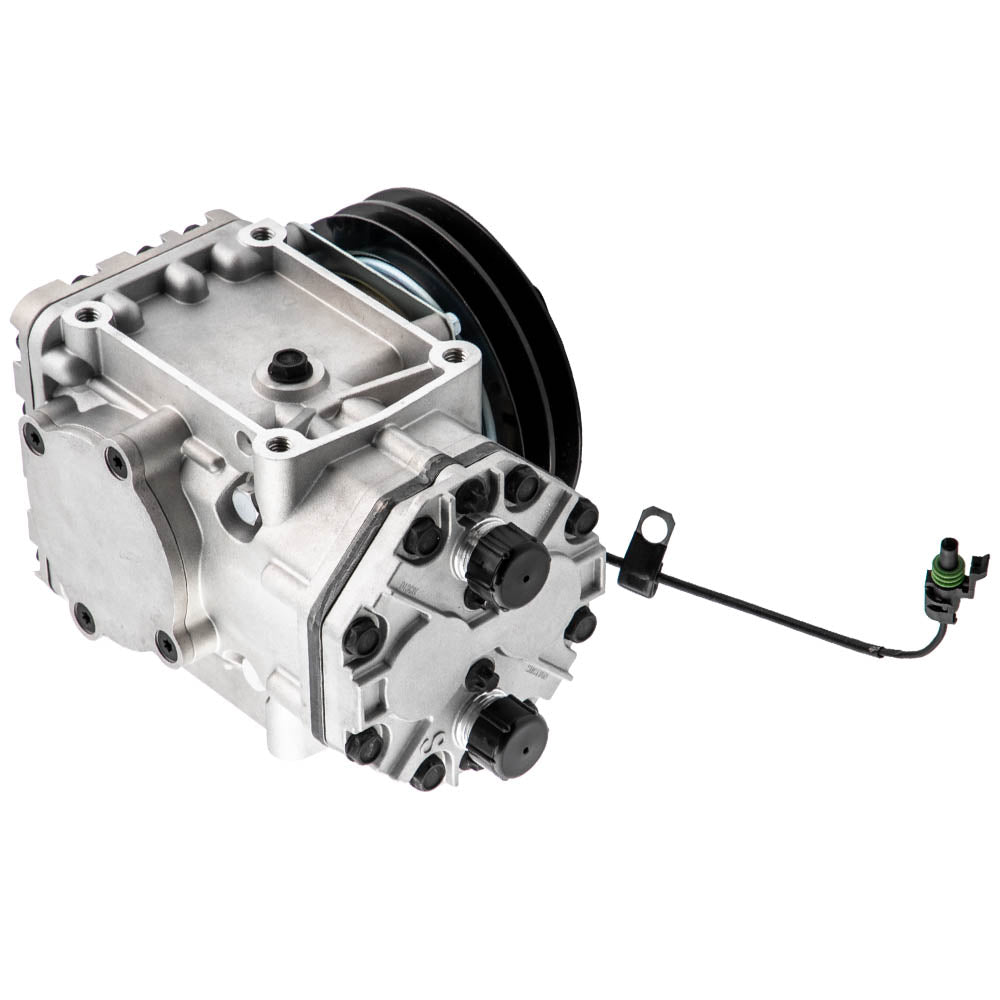

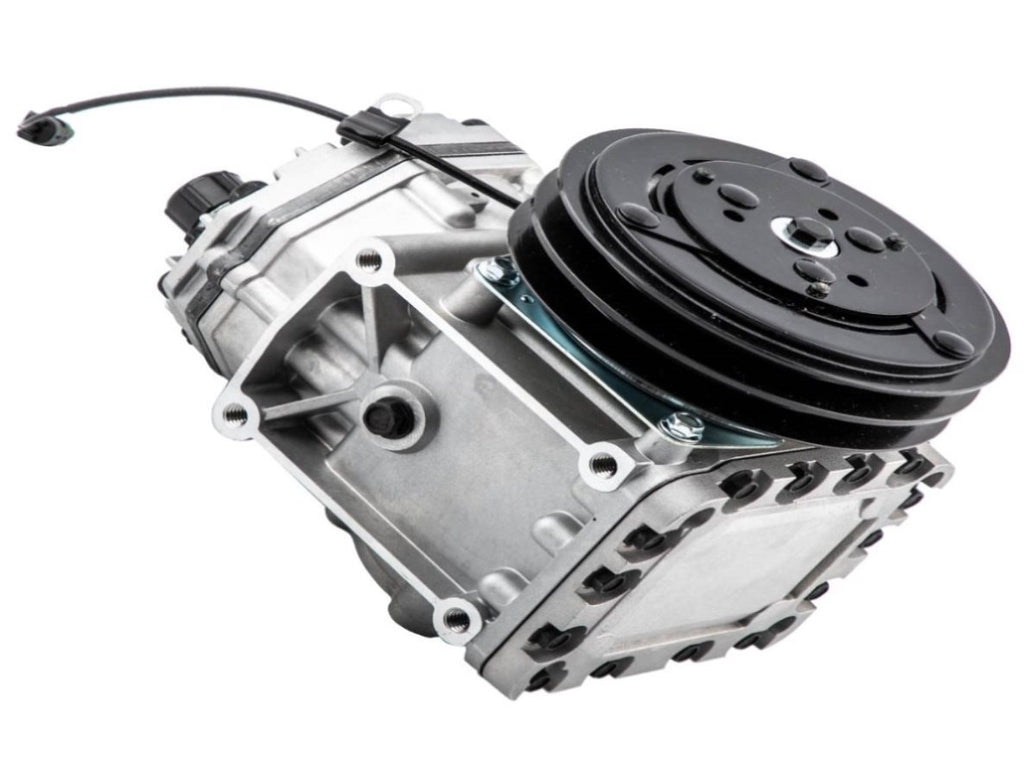

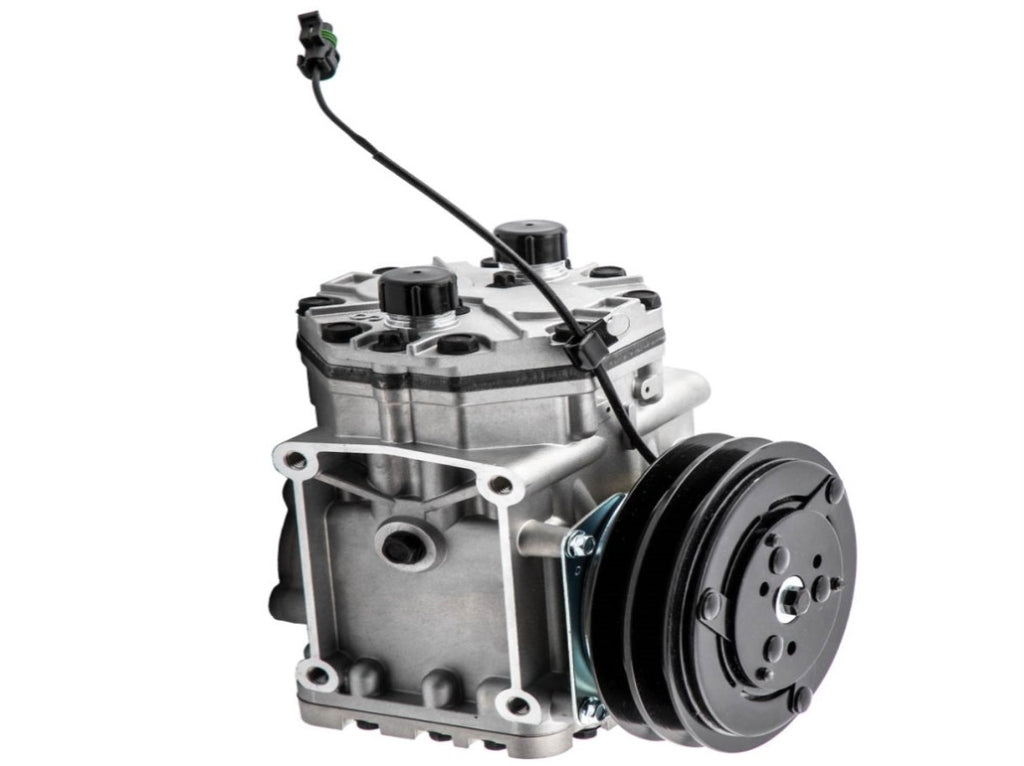

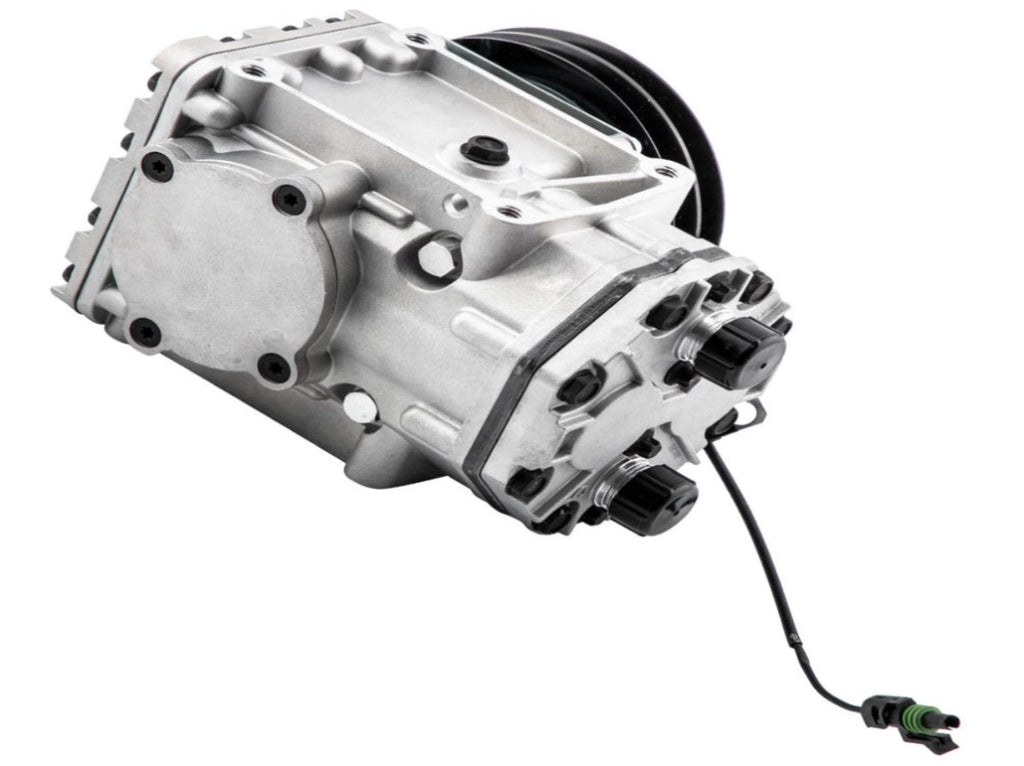

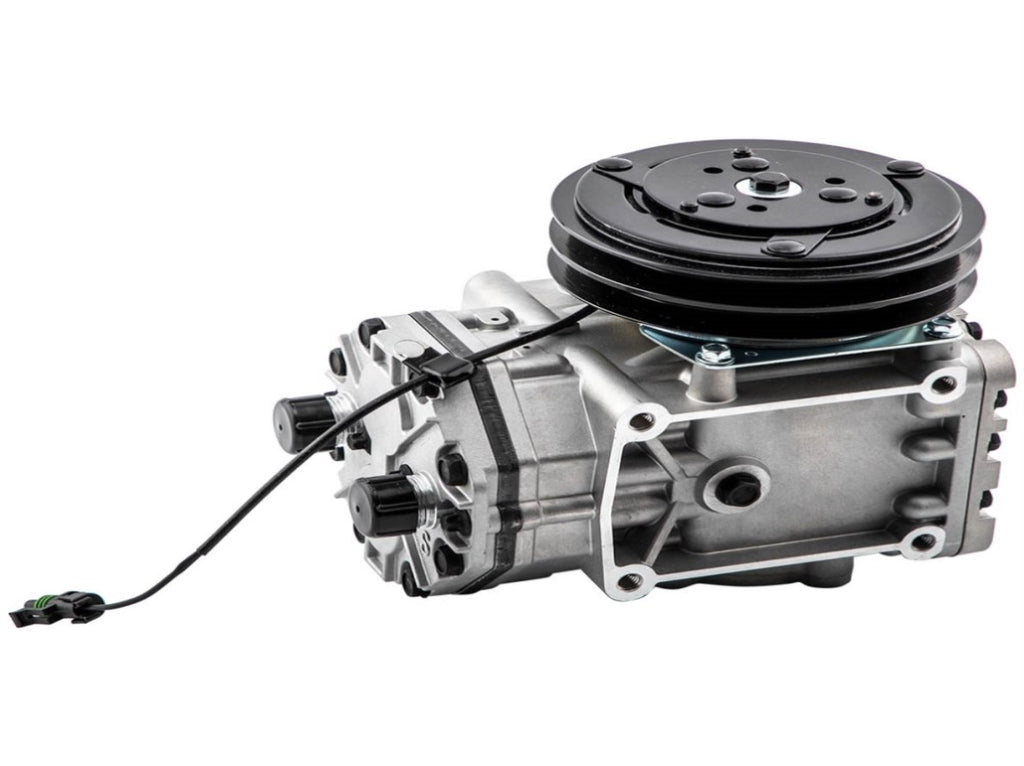

AC Air Compressor fit for Freightliner Freightliner Peterbilt T210L25240C TEM967028 25782080
Package Includes:
1 x AC Air Conditioner Compressor
1 x AC Air Conditioner Compressor
Fitment:
fit for Freightliner, 1998 1997, C112 Century Class, w/2 grv clutch 2 wire w/Det.55 series,12L;
fit for Kenworth, 2000 1996, All w/2 gr. 6" dia. 2 wire; w/ 3406B (C15) eng.;
fit for Peterbilt, 2000 1996, All w/2 gr. 6" dia. 2 wire; w/ 3406B (C15) eng.
fit for Kenworth, 2000 1996, All w/2 gr. 6" dia. 2 wire; w/ 3406B (C15) eng.;
fit for Peterbilt, 2000 1996, All w/2 gr. 6" dia. 2 wire; w/ 3406B (C15) eng.
Part Number:
T210L25240C, TEM967028, 5266, N83-304141T, N83304141T, ABPN83304141T, 4379RD5112180, 2509450C91, K3181376, K3553691, 75R7322, 688-21741, 688-21946C, CFC688-21589, ET210L-21887C, 488-25007C, 488-25053, 488-25070C, 5266 N83-304141T, ET210L25237C, RD5112180P, 3096305, 688-21589, 3949695, 1402005, 525845, 68821571, 8164893, 48825195, 48825248C, 2502459C91, ER210L25248C, ER210L21741C, ER210L21571C, ER210L21589,ET210L-25073C,ABPN83-304101,CFC688-21946C
Specifications:
Voltage: 12V
Rated Power: 45W
Current: 3.5A
Oil Oz: 237ml/10oz
Oil Type: Pag 100
Pulley Groove Quantity: 6
Gauge Line: 51
Type: A/C Compressor
Compressor Drive Type: Belt Driven
Material: Iron, Aluminum, Copper
Installation Position: Engine Compartment
Control Method: Automatic Adjustment
Grooves: 2 groove
Assembly Method: Closed
Rotation:CW/CCW
Belt Type:Two 1/2'' belts
No. Comp. Cylinders:2 cyl
Comp. Displacement (ci):10 c.i.
Factory Oil Charge:14 oz oil
Fitting Port Position:LH SUCTION
Fitting Style:Rotolock
A-B Distance:1-3/4'' X 2-1/4''
Head Type:ROTALOCK
Mounting Distance (mm):42
Suction Port (mm):20
Discharge Port (mm):20
Clutch Diameter (mm):147
OIL OZ:10oz
Oil Type:Pag 46
Cooling Type:R134a
Rated Power: 45W
Current: 3.5A
Oil Oz: 237ml/10oz
Oil Type: Pag 100
Pulley Groove Quantity: 6
Gauge Line: 51
Type: A/C Compressor
Compressor Drive Type: Belt Driven
Material: Iron, Aluminum, Copper
Installation Position: Engine Compartment
Control Method: Automatic Adjustment
Grooves: 2 groove
Assembly Method: Closed
Rotation:CW/CCW
Belt Type:Two 1/2'' belts
No. Comp. Cylinders:2 cyl
Comp. Displacement (ci):10 c.i.
Factory Oil Charge:14 oz oil
Fitting Port Position:LH SUCTION
Fitting Style:Rotolock
A-B Distance:1-3/4'' X 2-1/4''
Head Type:ROTALOCK
Mounting Distance (mm):42
Suction Port (mm):20
Discharge Port (mm):20
Clutch Diameter (mm):147
OIL OZ:10oz
Oil Type:Pag 46
Cooling Type:R134a
Condition: Brand New
Warranty: 1 Year warranty fit for any manufacture defect
Warranty: 1 Year warranty fit for any manufacture defect
Function: Improve the cooling effect: the air conditioning compressor is the core of automobile air conditioning refrigeration. Our high-quality AC compressor canprovide excellent cooling and make your driving process more comfortable.
Features:
Comfortable driving experience
Aluminum, corrosion-resistant and temperature-resistant, solid and durable
Rapid cooling
Low Noise
High Security
direct installation and replacement
Comfortable driving experience
Aluminum, corrosion-resistant and temperature-resistant, solid and durable
Rapid cooling
Low Noise
High Security
direct installation and replacement
Notice:
* Professional installation is highly recommended (No Instruction Included).
* fit for any needs please contact us.
* fit for any needs please contact us.
