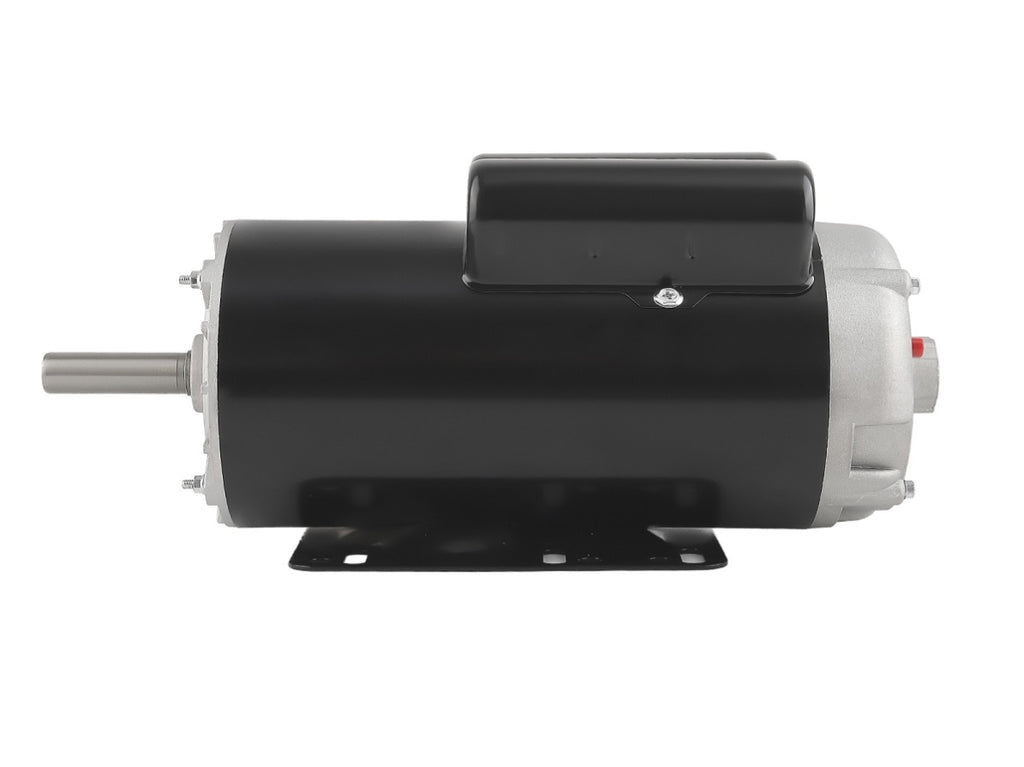

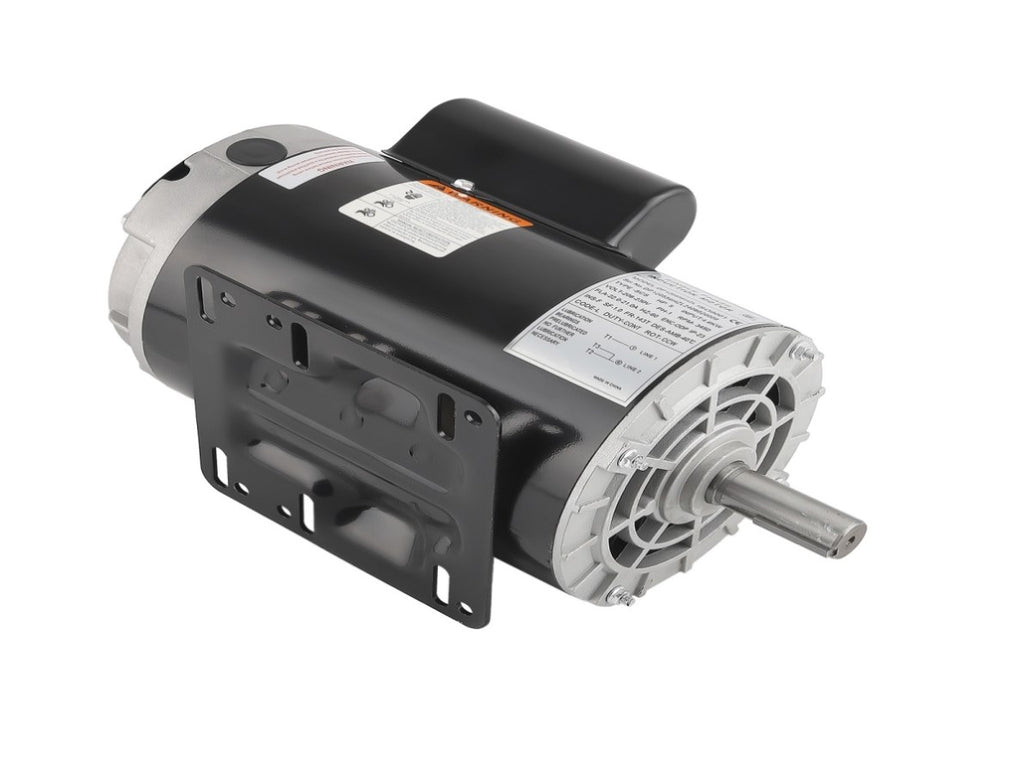

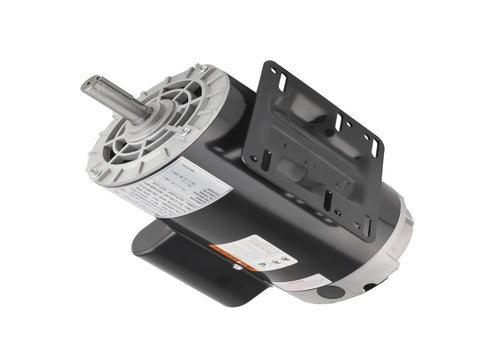

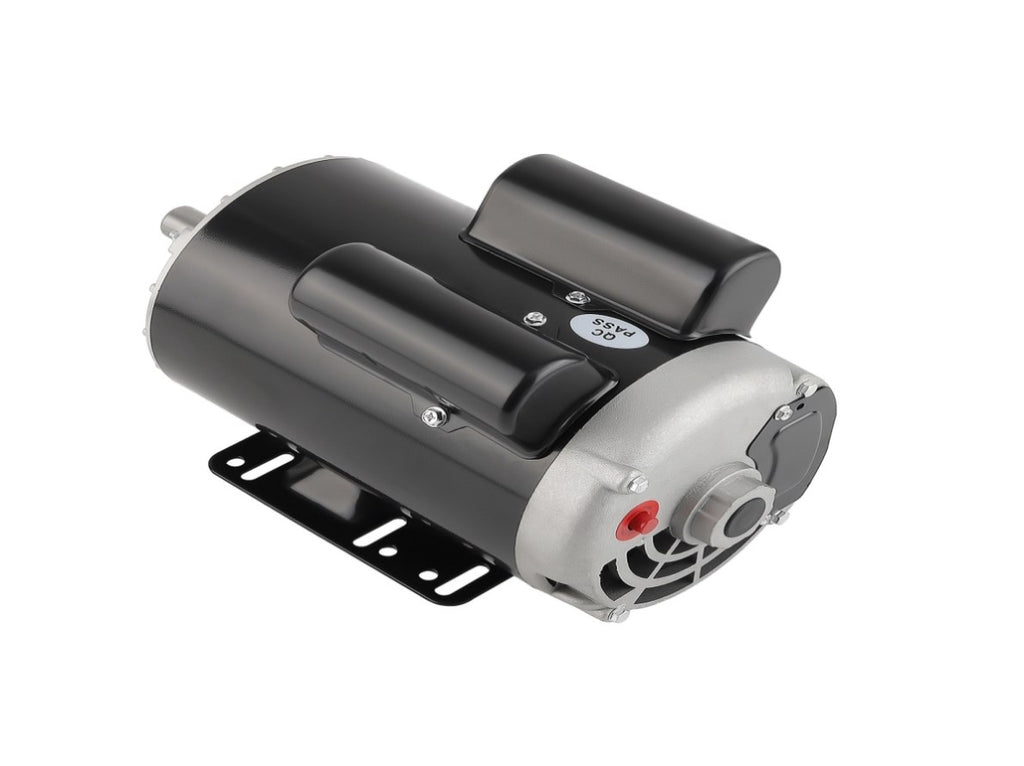

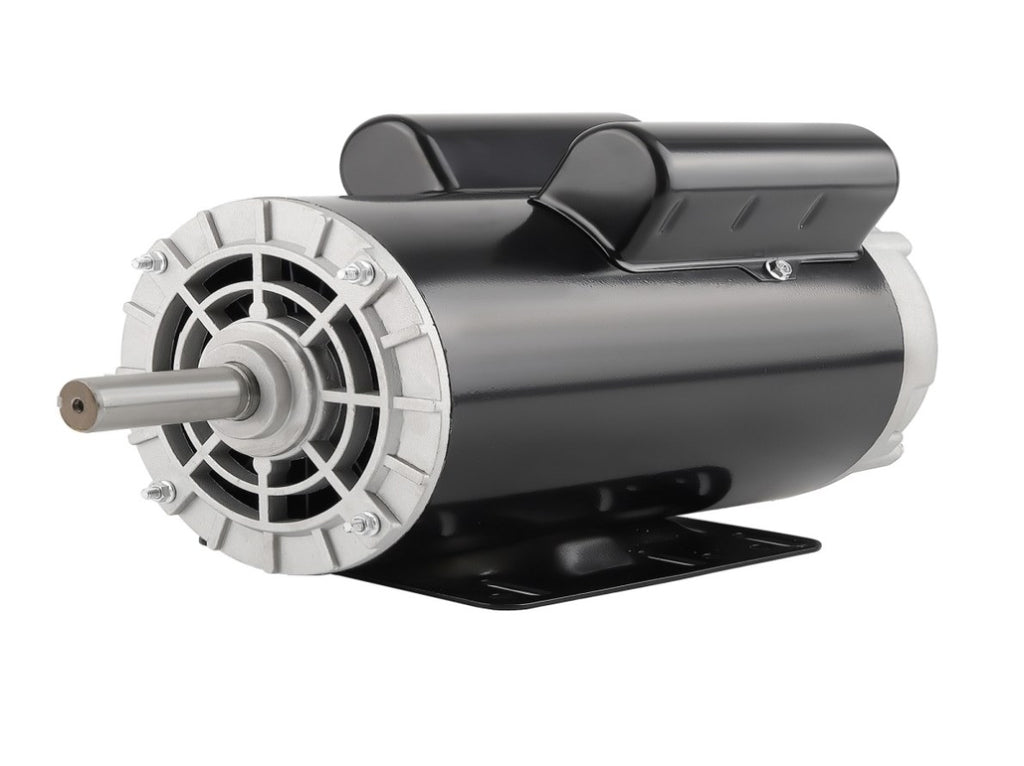

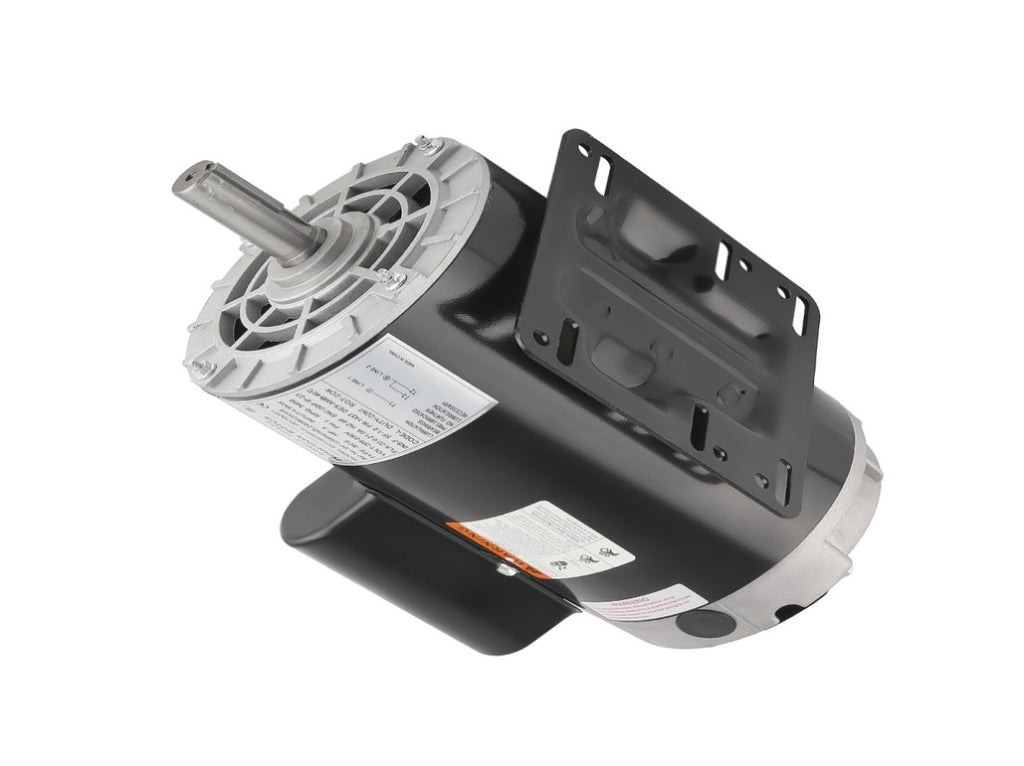

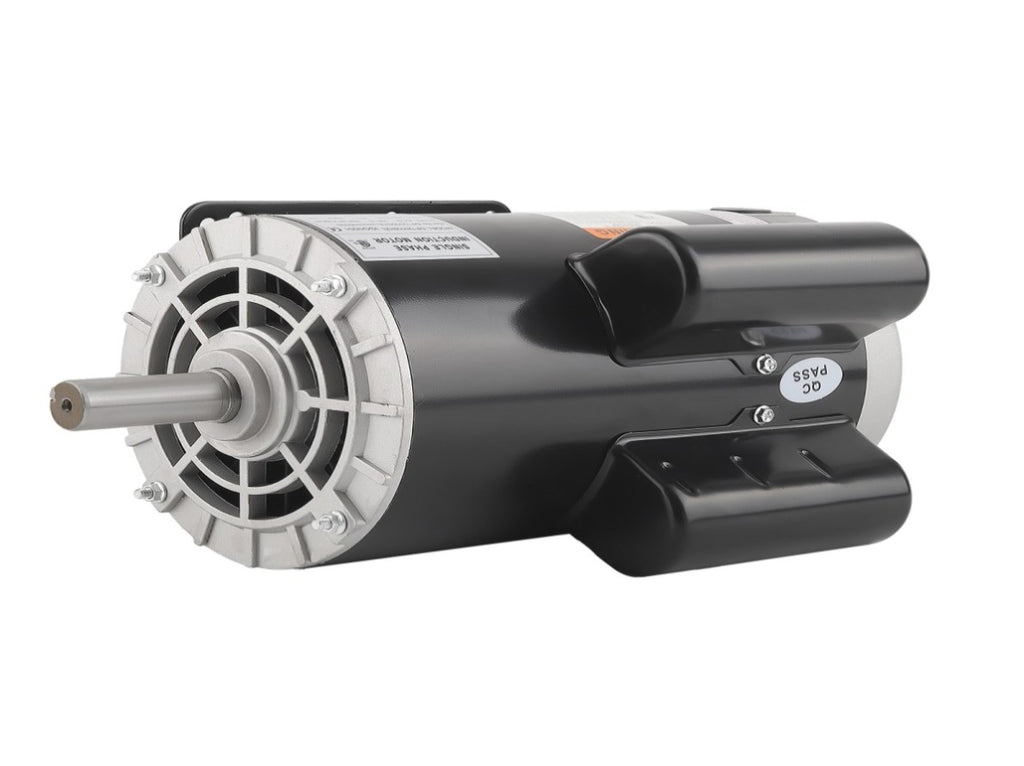

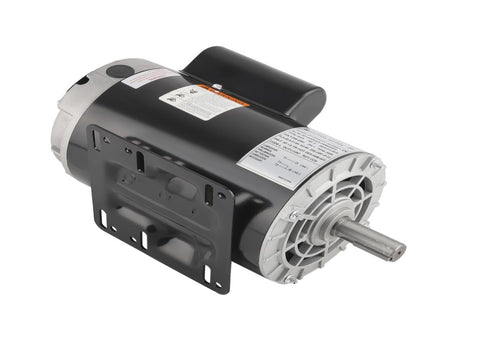

Air Compressor 5HP Compressor Duty Motor 7/8" Shaft 3450RPM 21A 56 Frame CCW 76644816

Application

Universal motors are suitable fit for common equipments. Please purchase motors according to specific parameter requirements.

Specification

Enclosure Type: ODP (Open Drip-Proof)
Model: 5 HP Motor
Current Type: AC
AC Phase: Single Phase
Frequency Rating: 60 Hz
Voltage: 230V
Horsepower: 5HP
Rotation Speed: 3450RPM
Frame Size: 56HZ
Rated Current/ Full Load amps: 21A
Shaft Length: 2.25"
Shaft Diameter: 7/8" Keyed Shaft
Shaft Type: Keyed
Rotation: CCW
Mounting Type: Base-Mounted
IP Rating :IP23
Insulation Class:F (Max 311°F)
Part Type: 5 HP Air Compressor


1. Air Compressor Motor: 5 Horse Power, 56 Frame, Open Drip-Proof, Rotation -CCW, Rated Speed - 3450RPM, Shaft Diameter - 7/8", Shaft Length: 2.25".
2. This Air Compressor Electric Motor is designed with an open drip-proof feature that ensures the motor's longevity by preventing water and dust from entering.
3. This electric motor features a reversible function fit for CCW, offering versatility and convenience fit for various applications.
4. Constructed with high-quality materials, this durable electric motor promises long-lasting use and excellent resistance to wear and tear.

Package Include

1 x Compressor Electric Motor

Note

- Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Please purchase motor according to the specific needs of the parameters.
