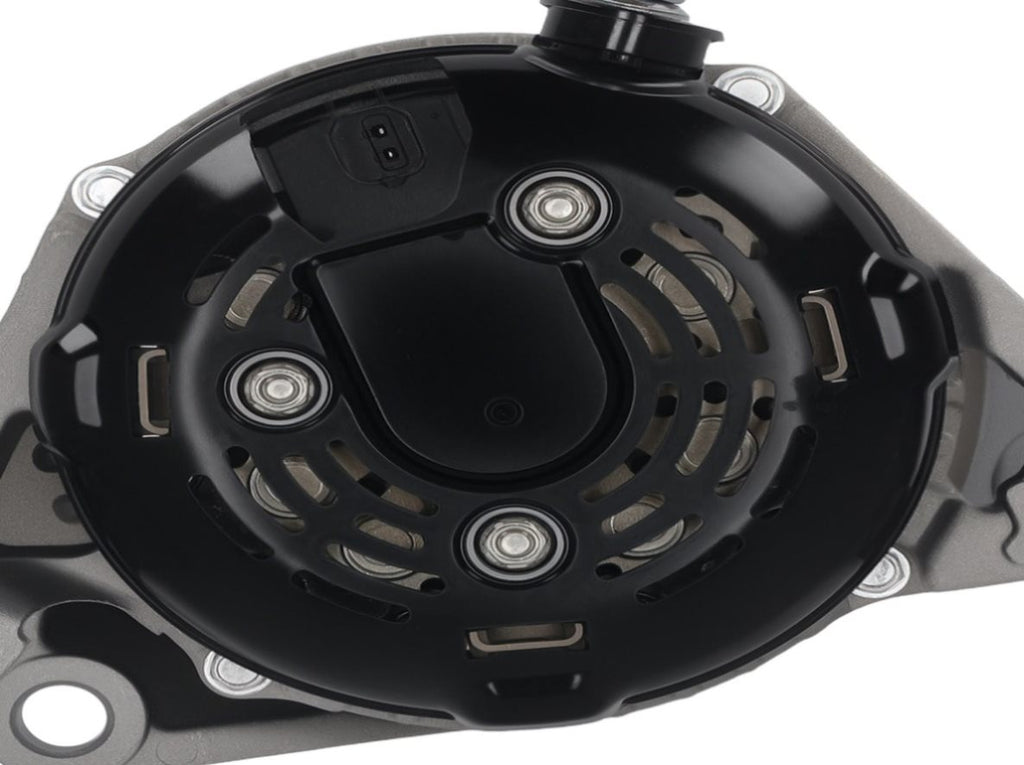

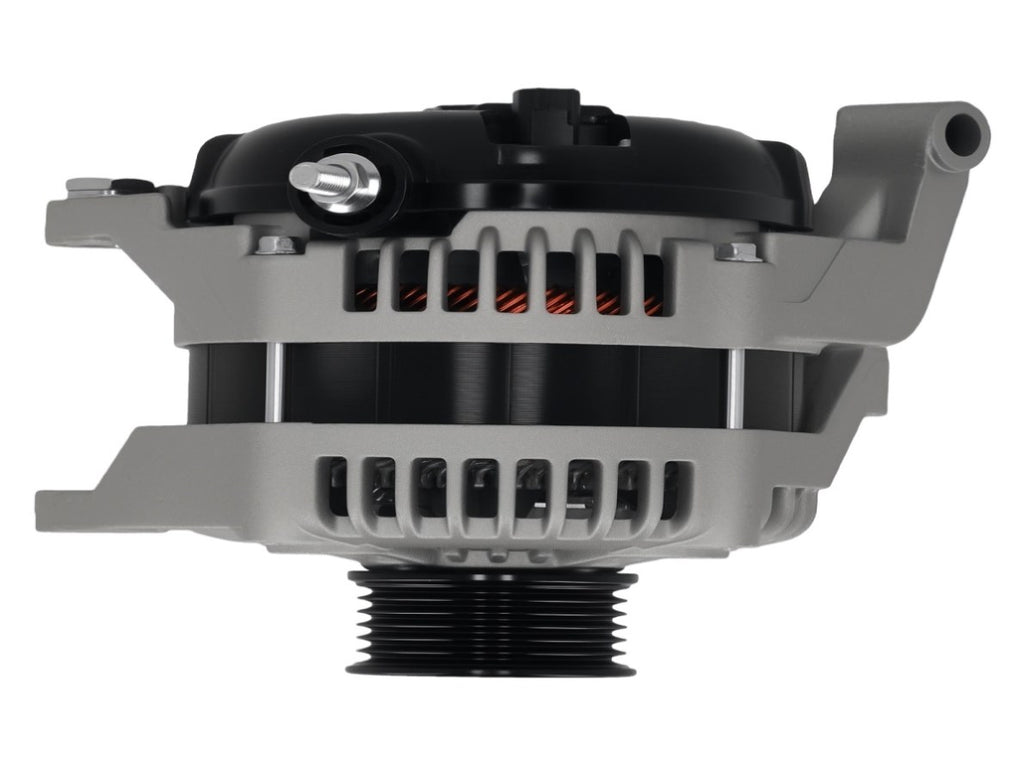

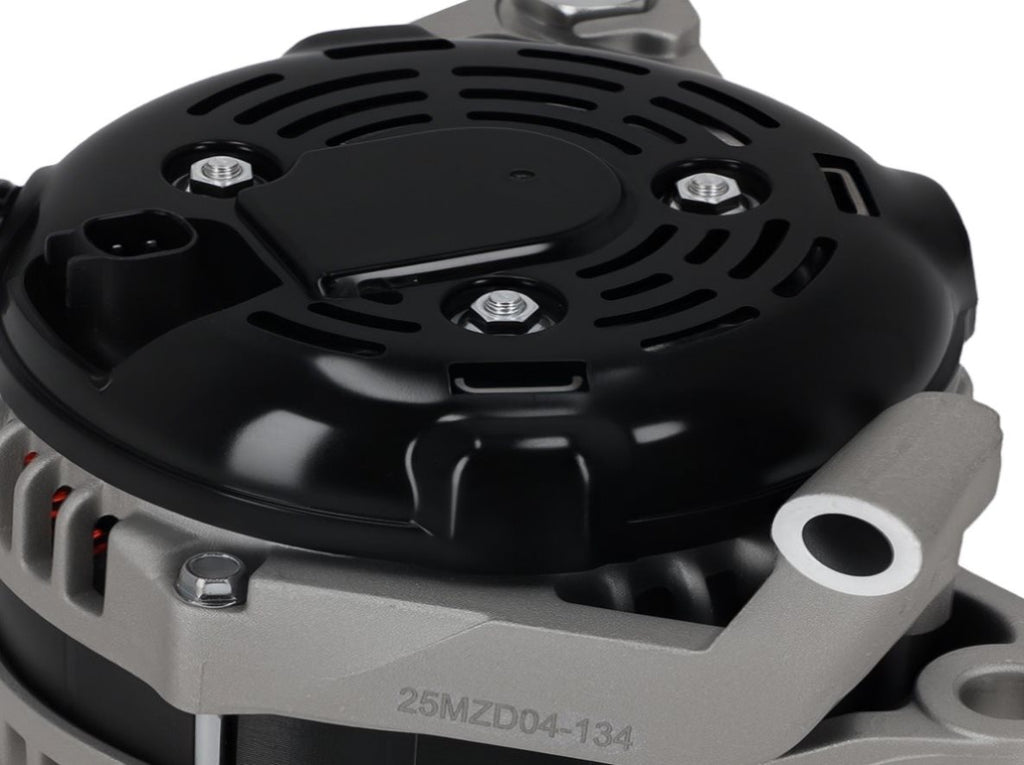

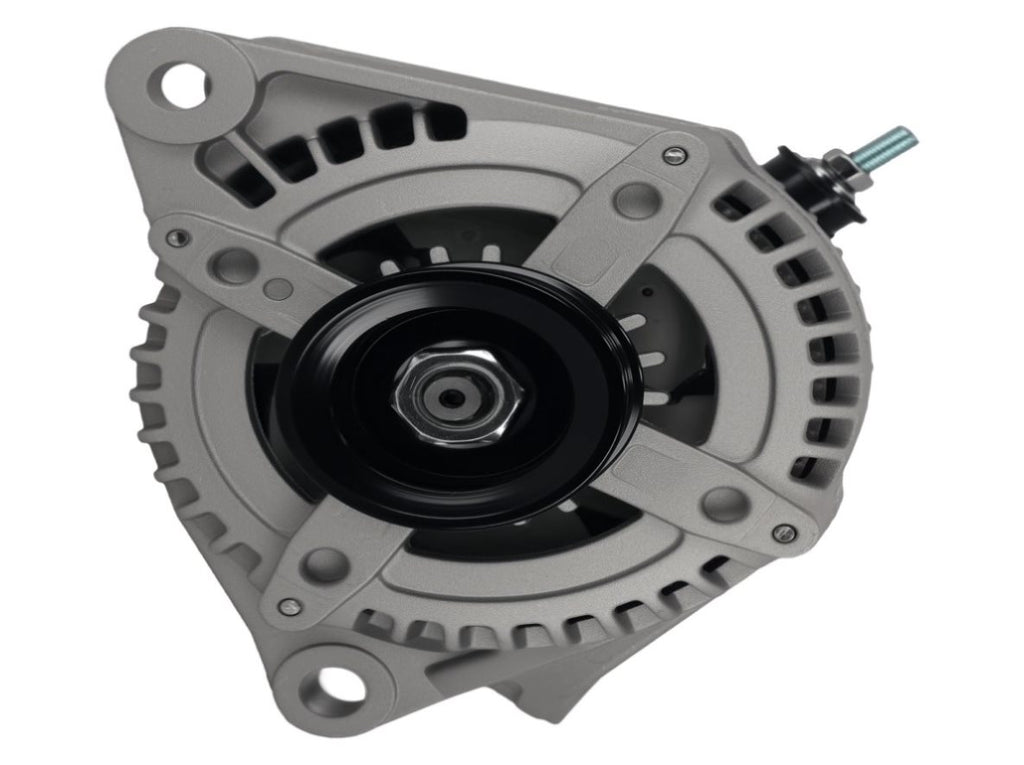

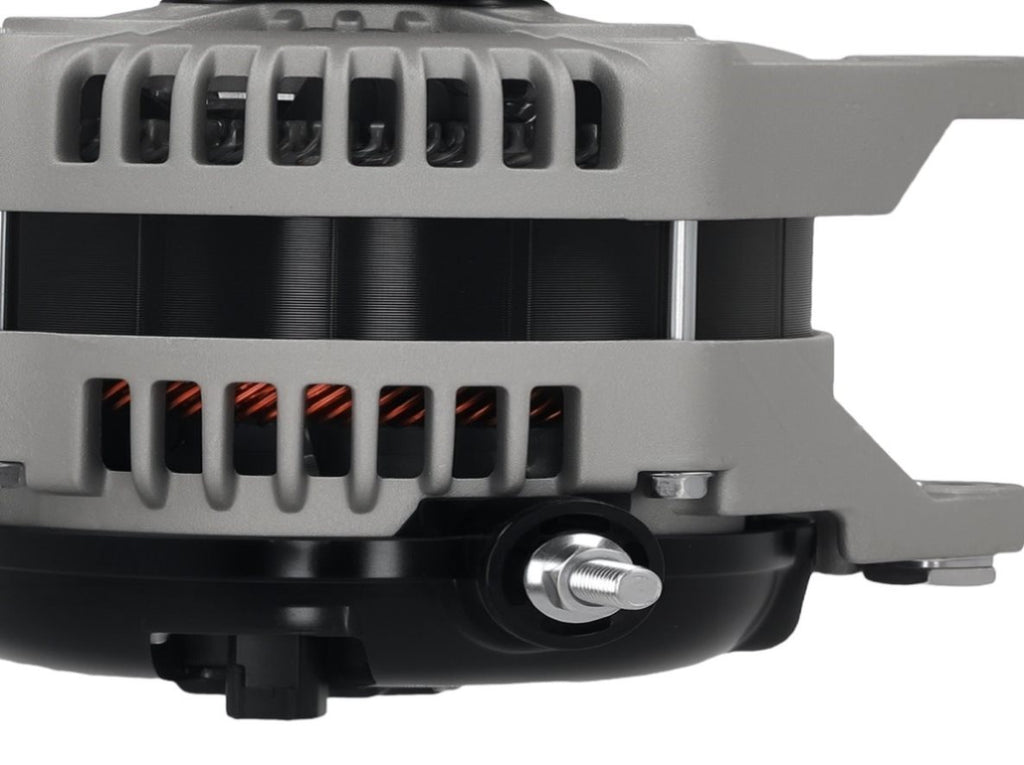

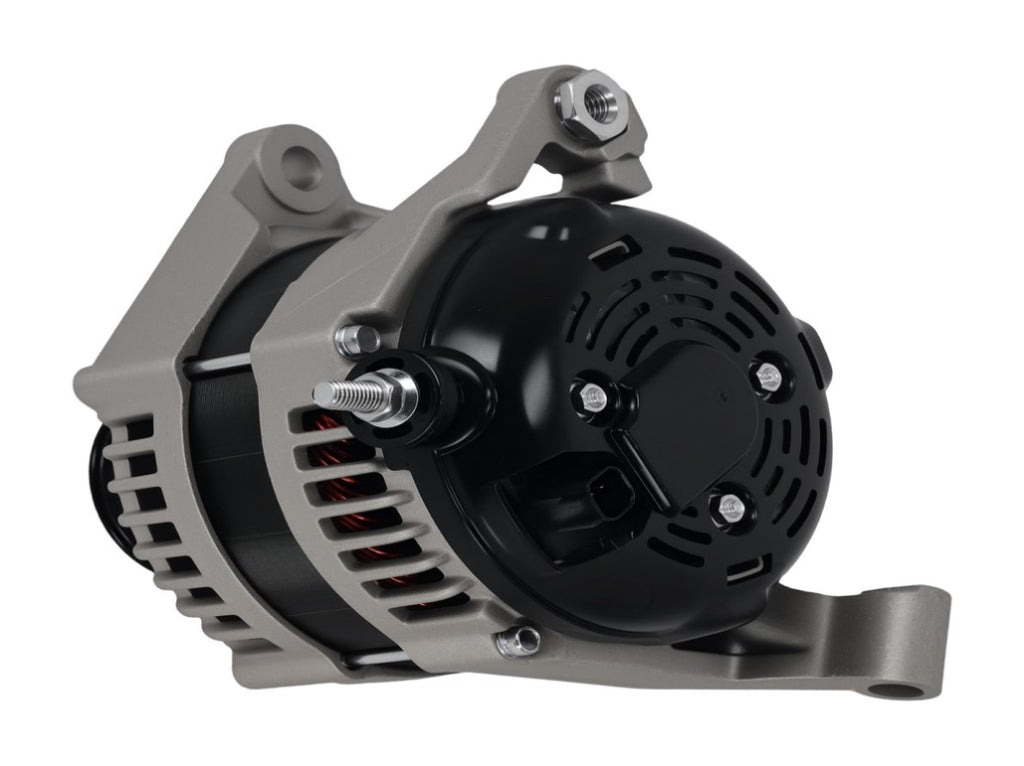

Alternator w/ 6 Grooves fit for Jeep Commander V6 3.7L 2007 160 A 12 V 56029914AD 61170936

Application

fit for Chrysler    Aspen     V8 4.7L   2007-2007
fit for Dodge    Durango      V8 4.7L 2007-2007
fit for Dodge    Nitro      V6 3.7L  2007-2010
fit for Dodge    Ram 1500  V6 3.7L  2009-2010
fit for Dodge    Ram 1500   V8 4.7L 2009-2010
fit for Jeep    Commander  V6 3.7L  2007-2007
fit for Jeep    Commander   V8 4.7L  2007-2007
fit for Jeep    Grand Cherokee    V6 3.7L    2007-2007
fit for Jeep    Grand Cherokee    V8 4.7L  2007-2007
fit for Jeep    Liberty      V6 3.7L 2007-2010
fit for Ram    1500    V6 3.7L   2011-2012
fit for Ram    1500     V8 4.7L   2011-2013

OE/Part Number
56029914AD, 4210000470, 11240, 11240N-6G1, 56029914A, TO11884101F
56029914AF, 56029914AL, 6602914AD, 4210000711, 1240N-6G1, 12836

Specification

Tem Type: Alternator
Condition: Brand New
Amp Rating: 160A
Plug Clock: 2:00
Pulley Section (Grooves): 6
Regulator: ER
Fan Type: IF
Rotation Direction: CW
Supply Voltage (V): 12V

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled fit for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are fit for compatibility reference only.
