Complete Impeller Water Pump Kit fit for Mercury 65-225HP 1970-1990 18-3517 49102871

Application:

fit for Mercruiser Pre-Alpha 1970-1983

fit for Mercruiser Alpha One 1983-1990

fit for Mercury 2-Stroke Outboards

fit for Mercury Outboard 65hp (Serial # 1542745-3293183) 4 Cyl

fit for Mercury Outboard 70hp (Serial # 1503959-1566239) 4 Cyl

fit for Mercury Outboard 75hp (Serial # 6432901 & Up) 4 Cyl

fit for Mercury Outboard 80hp (Serial # 2559001-6432900)

fit for Mercury Outboard 85hp (Serial # 1566240-4861998)

fit for Mercury Outboard 90hp (Serial # 1766824 & Up)

fit for Mercury Outboard 100hp SS (Serial # 1503332-2836018)

fit for Mercury Outboard 110hp (Serial # 1870204-2314955)

fit for Mercury Outboard 115hp (Serial # 2836019 & Up) 6 Cyl

fit for Mercury Outboard 125hp (Serial # 2314956-2839368)

fit for Mercury Outboard 135hp (Serial # 2839369-3293233)

fit for Mercury Outboard 140hp (Serial # 3293234 & Up)

fit for Mercury Outboard 150hp (Serial # 3502806 & Up)

fit for Mercury Outboard 175hp (Serial # 4301235 & Up)

fit for Mercury Outboard 200hp (Serial # 4839034 & Up) not including V-200 DFI 3.0L

fit for Mercury Outboard 220hp (Serial # OB117316 & Up)

OE/Part number:

18-3517,46-96148A5, 46-96148A8, 46-78400A2, 46-73804A3, 46-73802A3, 46-69222A3, 46-64141A11, 46-60367A4, 46-58618A4, 46-57234A3, 46-48747A3, 46-42579A4, 46-44292A4, 46-32437A1,18-3319,18-3314,18-3316,46-96148Q8,9-48311

Specification:

Type：Outboard Water Pump Impeller Kit

Motor & Engine Type：fit for Mercury 65-225 HP Outboards

Material：Rubber+Stainless Steel+Plastic

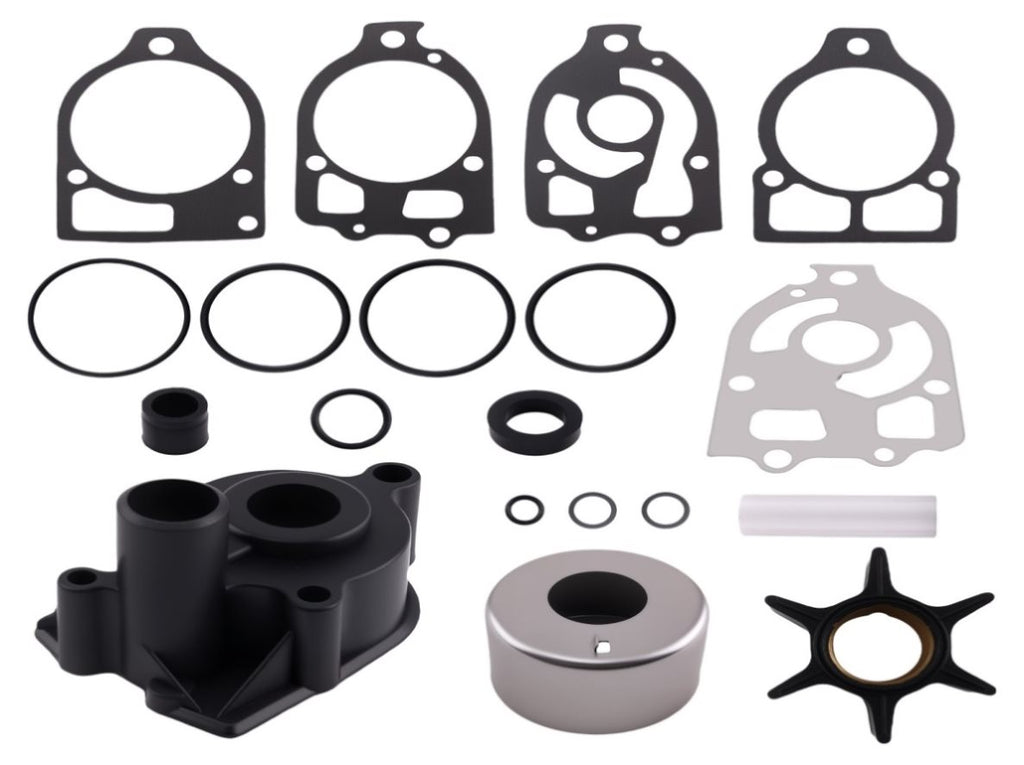

Package included:

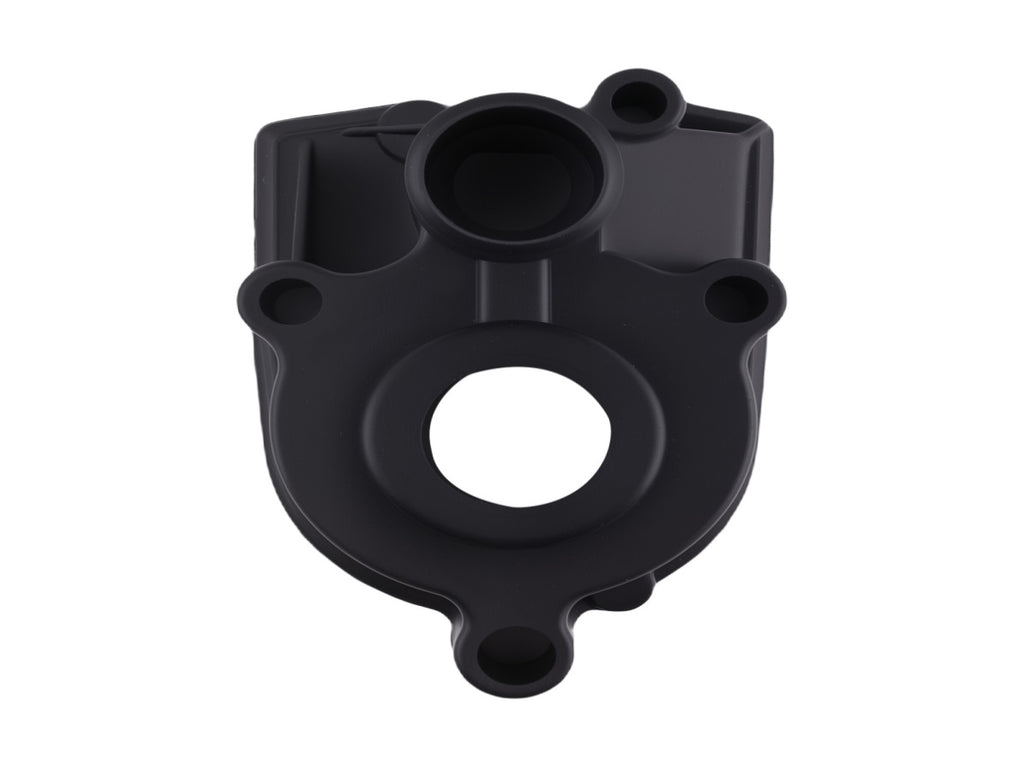

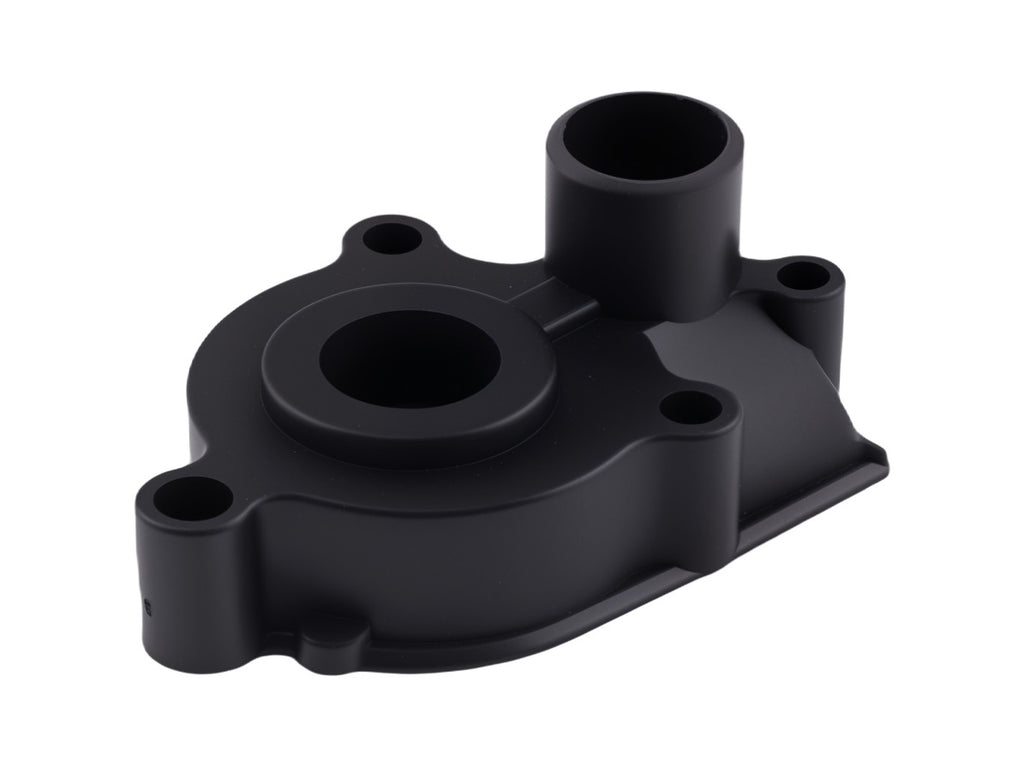

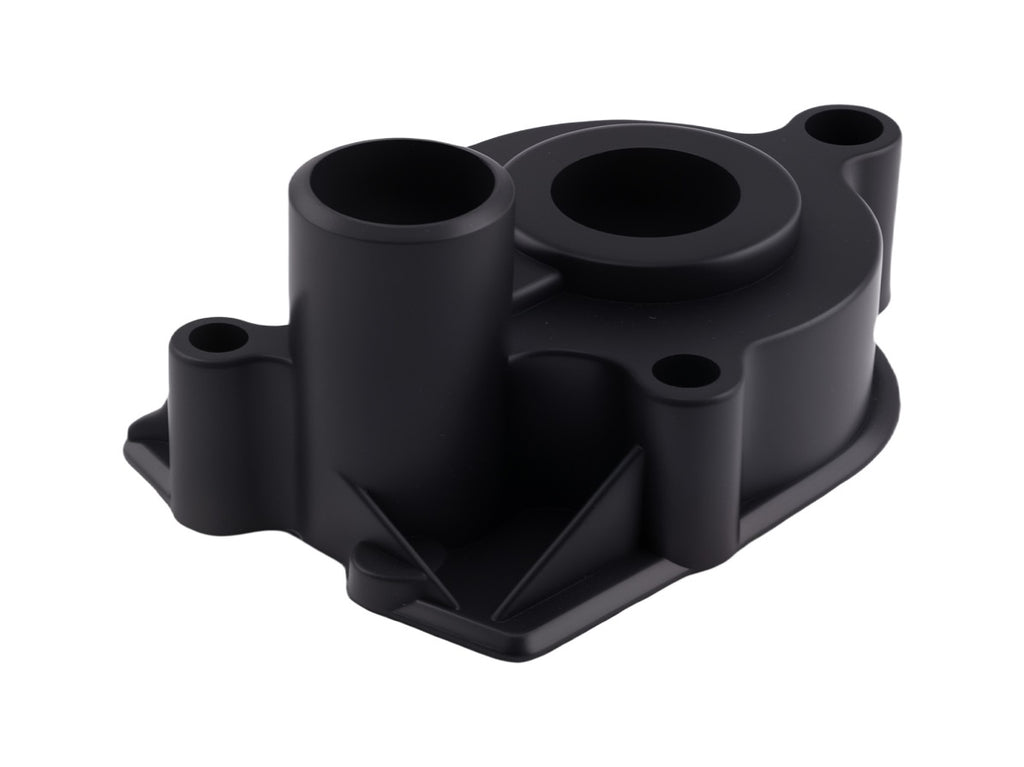

1*Water Pump Housing 46-96148A1

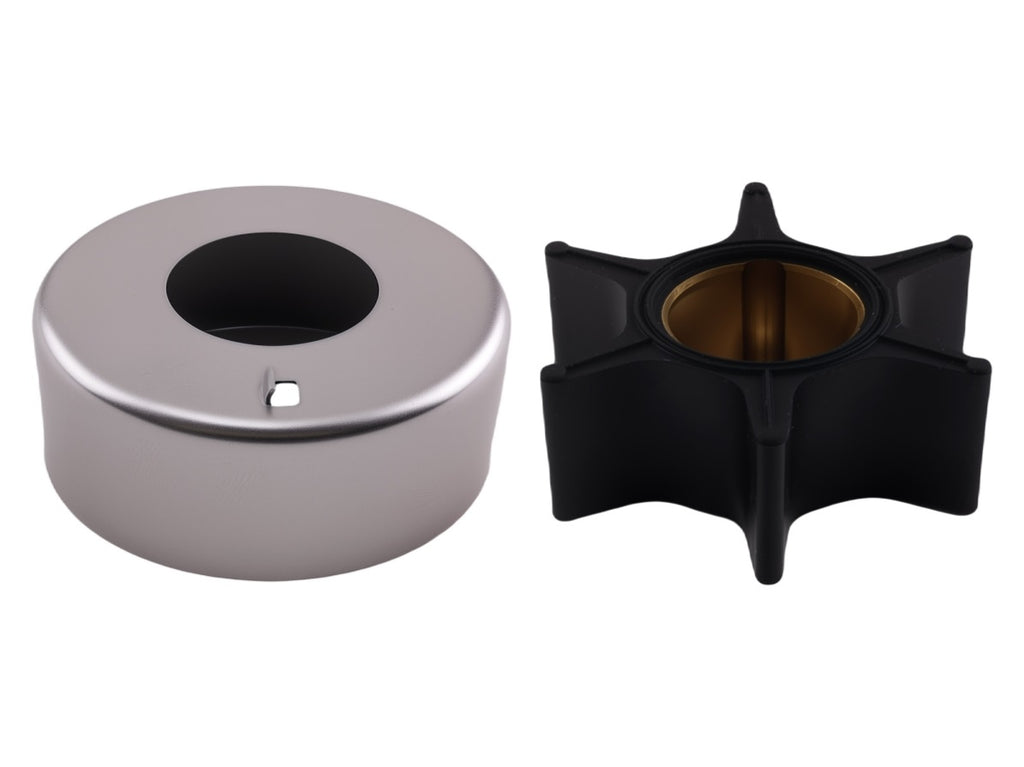

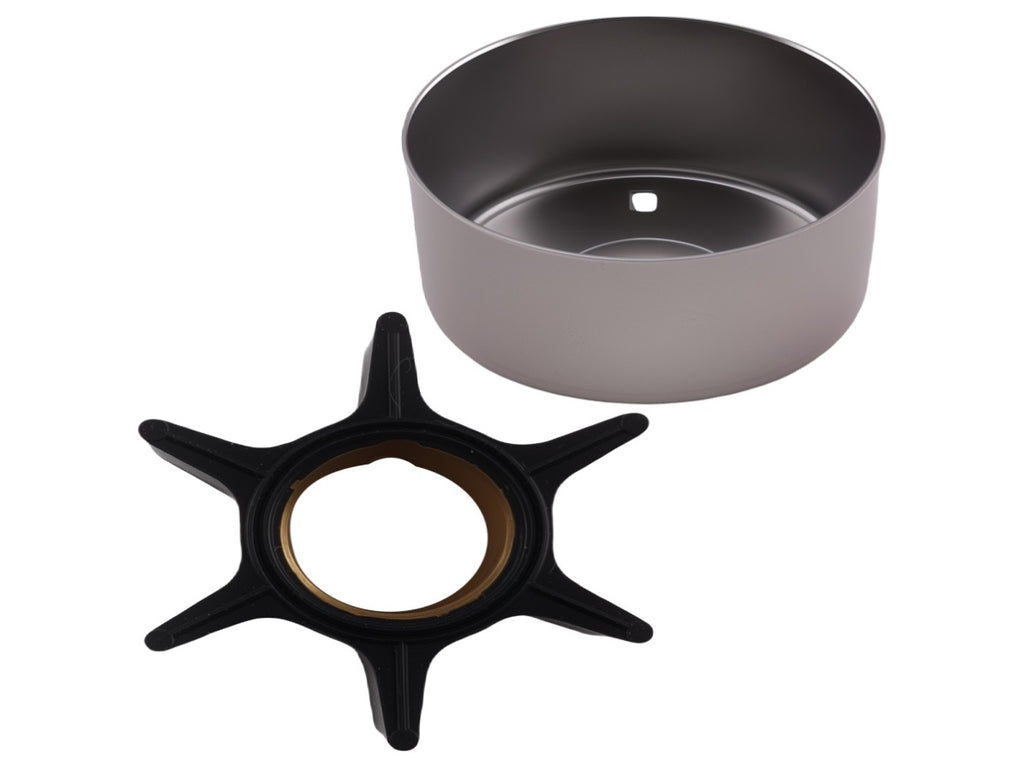

1*Water Pump Impeller 46-89984, 47-89984, 47-899842, 47-89984T3, 47-89984T4, 47-899844, 47-30221, 47-65960, 47-8546065

1*Water Tube Guide 23-29804

1*Pump Base to Gear Housing Gasket 27-42631-1

1*Pump Base to Gear Housing Gasket 27-85610-1

1*Pump Base to Gear Housing Gasket 27-32438

1*Impeller Wear Plate 32435

1*Wear Plate Gasket - Lower 27-85608-1

1*Wear Plate Gasket - Upper 27-85609-1

1*Water Tube Grommet 26-38970

1*Oil Passage Seal 26-45577

2*Drain Screw Gaskets 12-19183

1*O-Ring 25-30613

1*O-Ring 25-33145

1*O-Ring 25-30224

1*O-Ring 25-90011

1*O-Ring 25-38099

1*O-Ring 25-30271

(It same to the picture shown )
