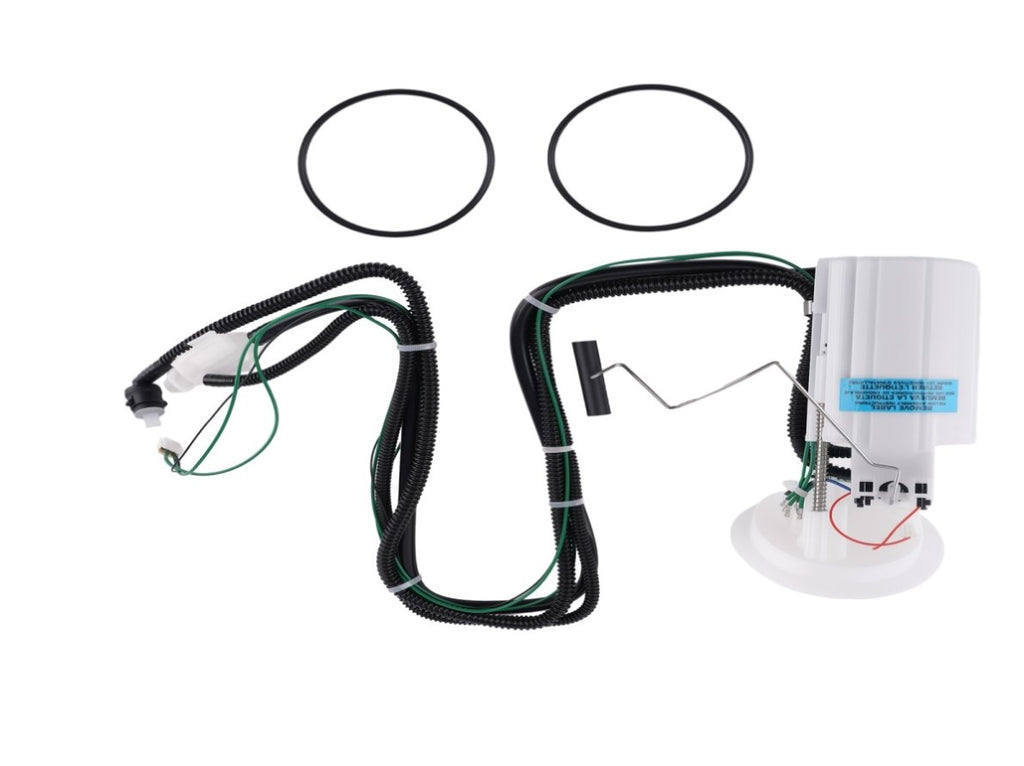

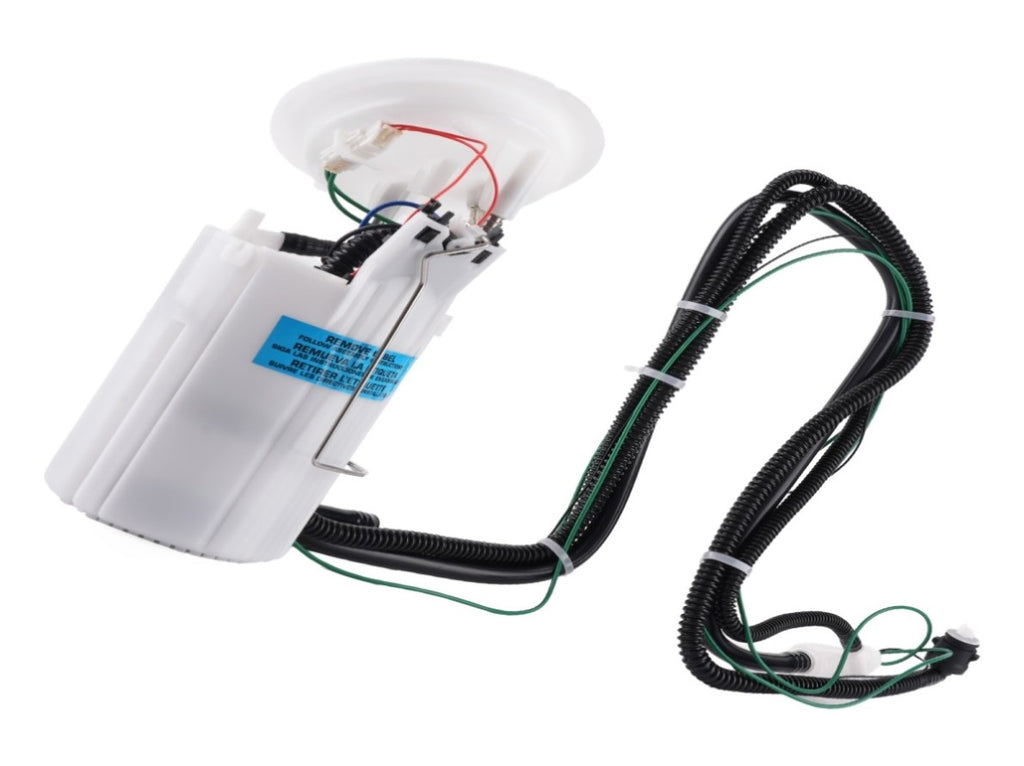

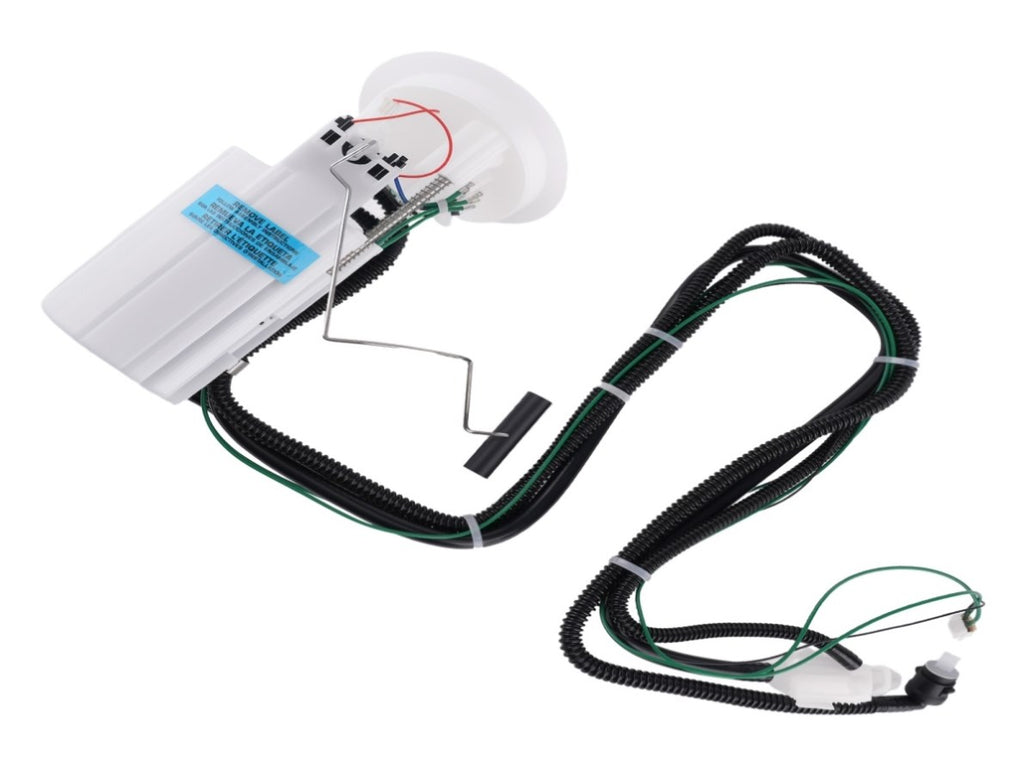

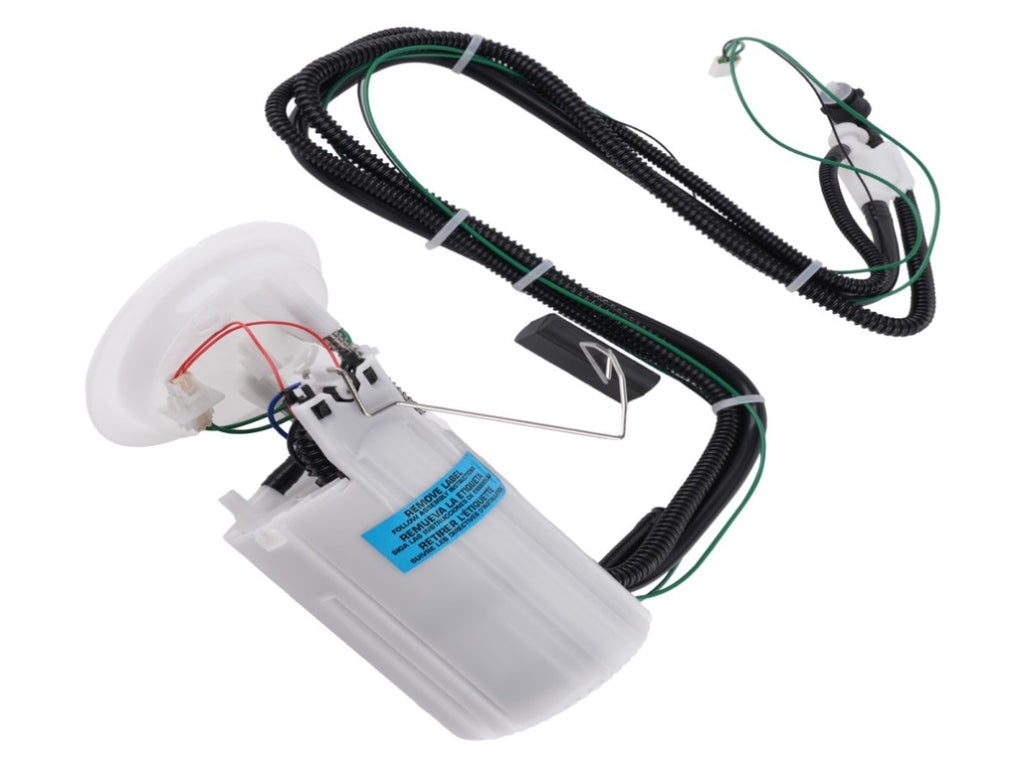

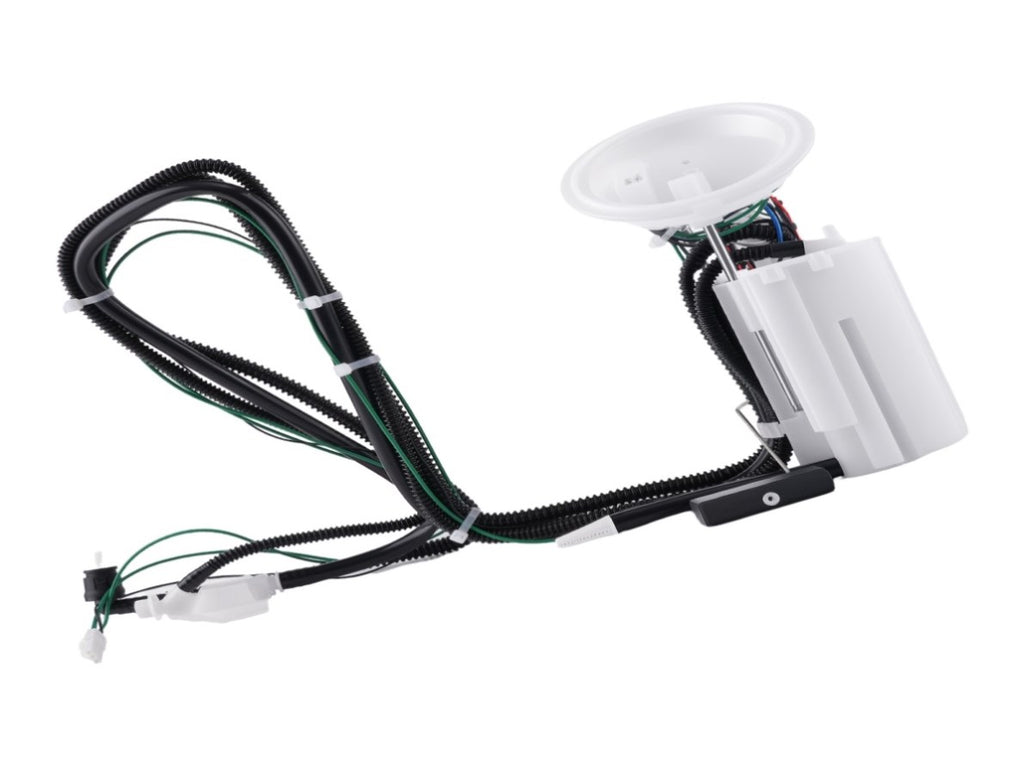

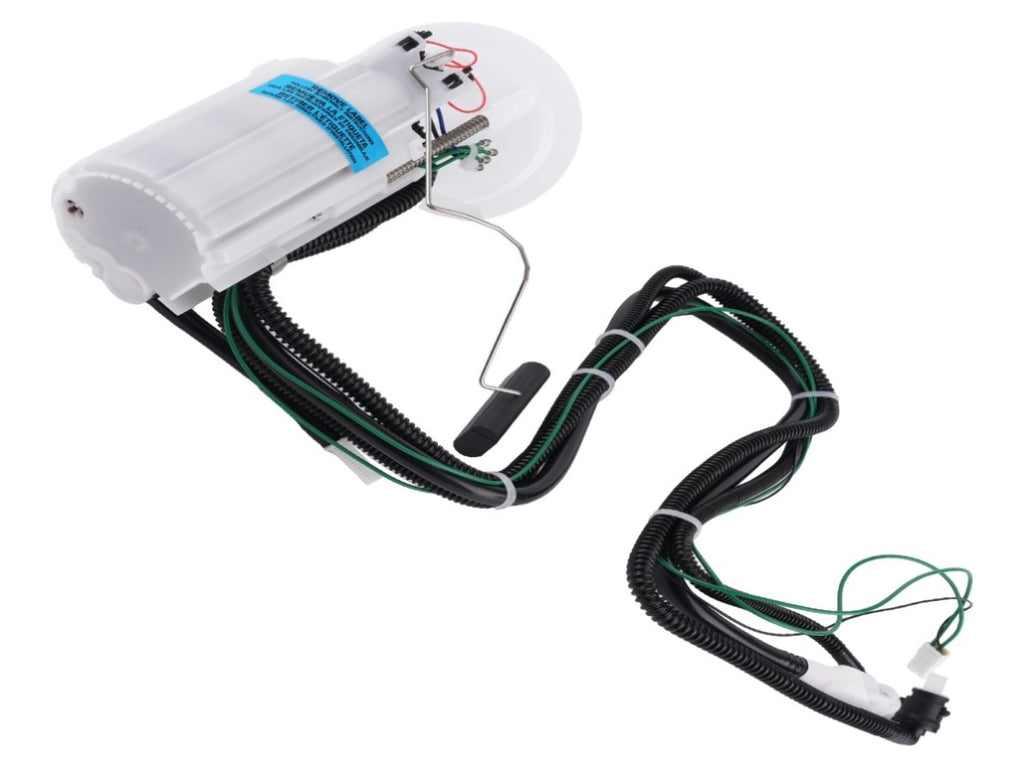

Electric Fuel Pump Module Assembly fit for BMW 525i 528i 530i E60 2006-2010 3.0L 26100864

Application:

fit for BMW 525i E60 L6 3.0L 2006-2007

fit for BMW 525xi E60 L6 3.0L 2006-2007

fit for BMW 528i E60 L6 3.0L 2008-2010

fit for BMW 528i xDrive E60 L6 3.0L 2009-2010

fit for BMW 528xi E60 L6 3.0L 2008

fit for BMW 530i E60 L6 3.0L 2006-2007

fit for BMW 530xi E60 L6 3.0L 2006-2007

fit for BMW 550i E60 V8 4.8L 2008-2010

OE/Part number:

16117373503
16146766150
E8687M
FG1177
SP5093M

Specification:

Drive Type: Electrical

Fuel Type: Gasoline

Voltage: 12V

Flow Rate(Gallons/Hour): ≥60.72

Pressure(MPa): 0.3MPa

Weight(kg): 0.9575

Inlet Type: Strainer

Inlet Quantity: 1

Outlet Type: Quick Conncet

Outlet Quantity: 1

Material: POM+Steel

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

Seal Ring Included: Yes

Internal Or External Strainer: Internal

Placement on Vehicle: Rear

Package included:

1x Fuel Pump Module Assembly
