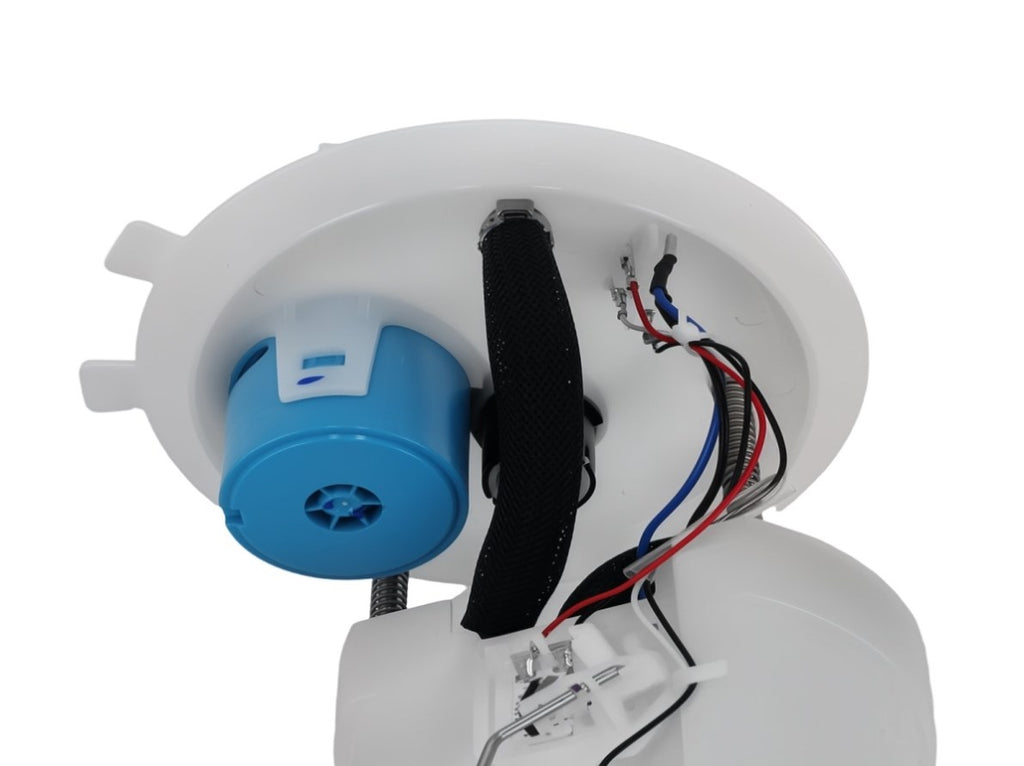

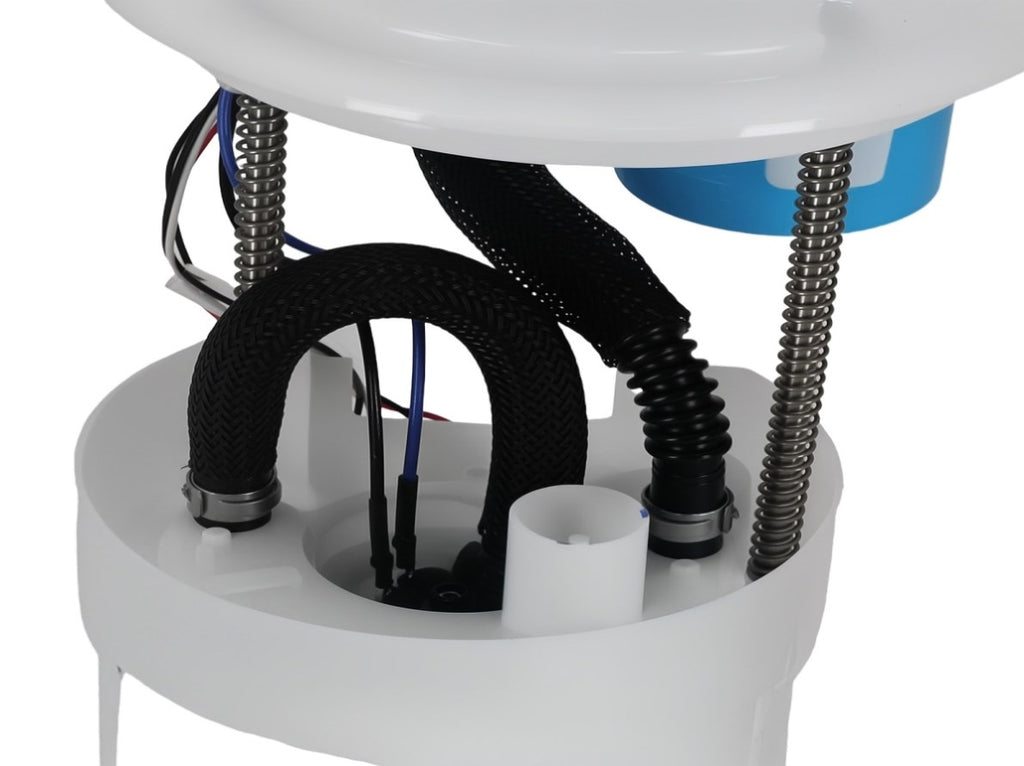

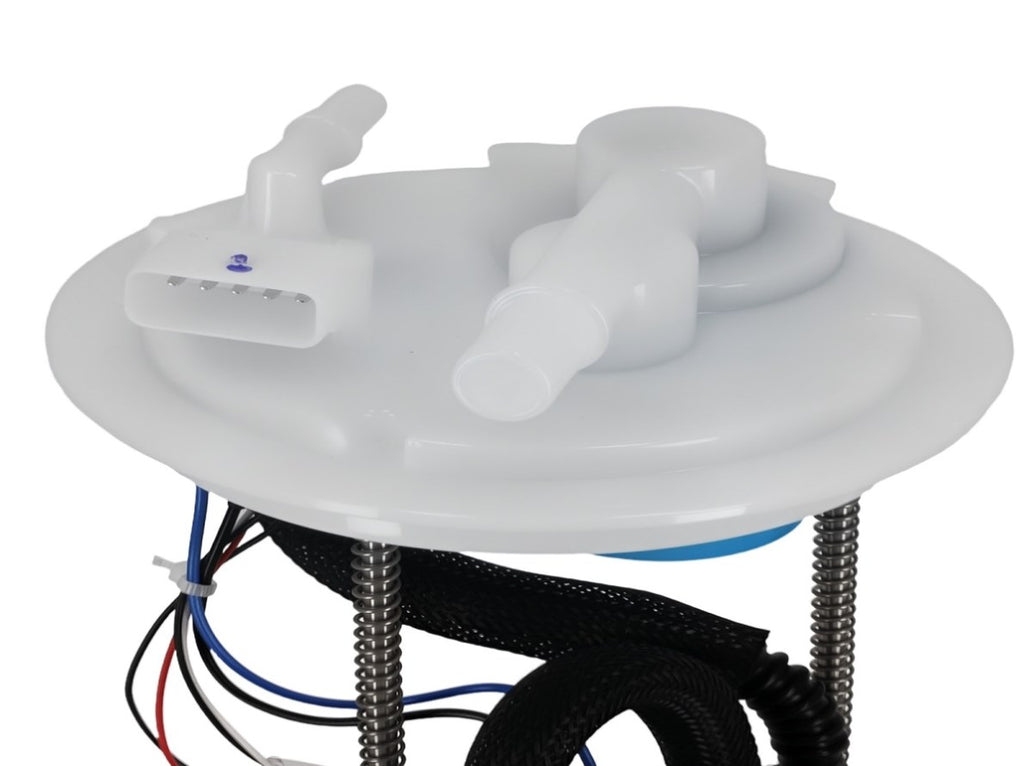

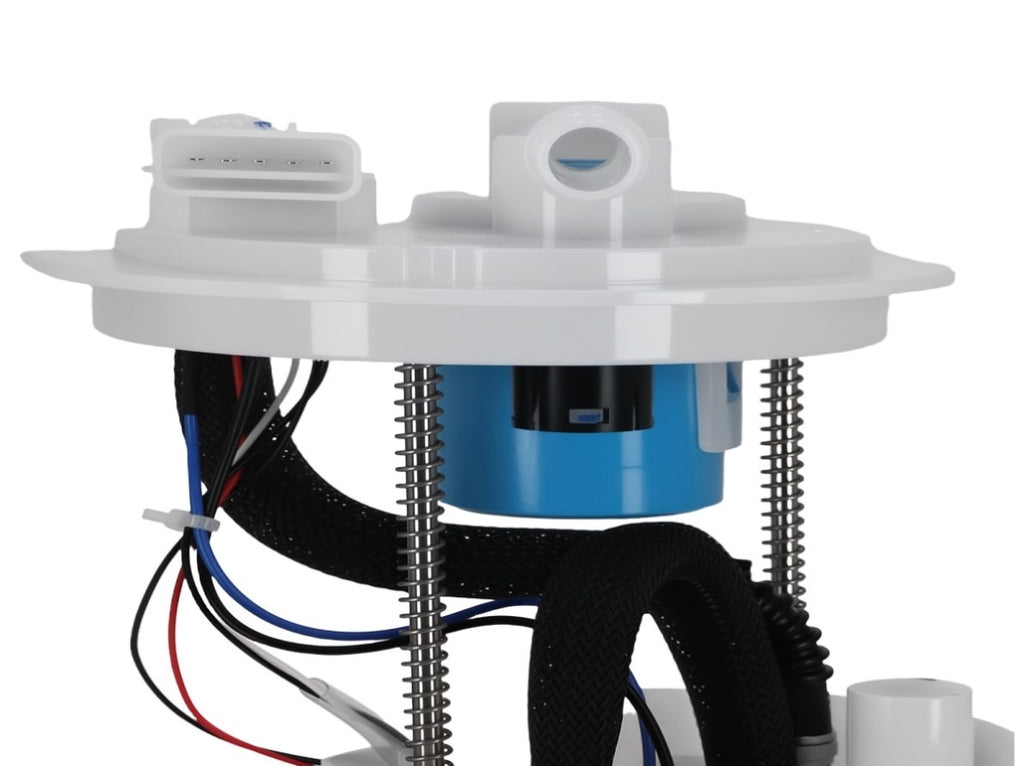

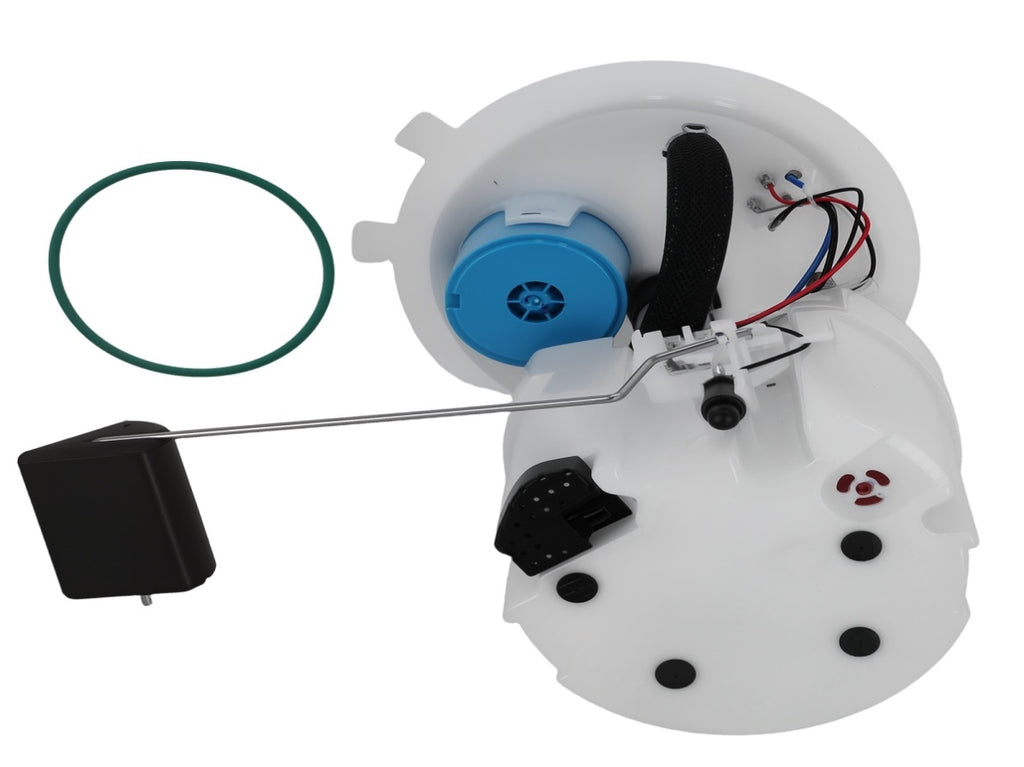

Electric Fuel Pump Module Assembly fit for Nissan Versa 2012-18 170403AN0C 58934441

Application:

fit for Nissan Versa L4 1.6L 2012-2018

fit for Nissan Versa Note L4 1.6L 2014-2018

OE/Part number:

170403AN0A, 17040-3AN0A
170403AN0C, 17040-3AN0C
170403AN0E, 17040-3AN0E
E9100M
FG1538
P77040M
SP4094M

Specification:

Drive Type: Electrical

Fuel Type: Gasoline

Voltage(V): 12

Flow Rate(Gallons/Hour): ≥39G/H

Pressure(MPa): 0.36±0.01

Weight(kg): 1.52

Inlet Type: SAE J2044 2009

Inlet Quantity: 1

Outlet Type: SAE J2044 2009

Outlet Quantity: 1

Material: Plastic(POM)

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

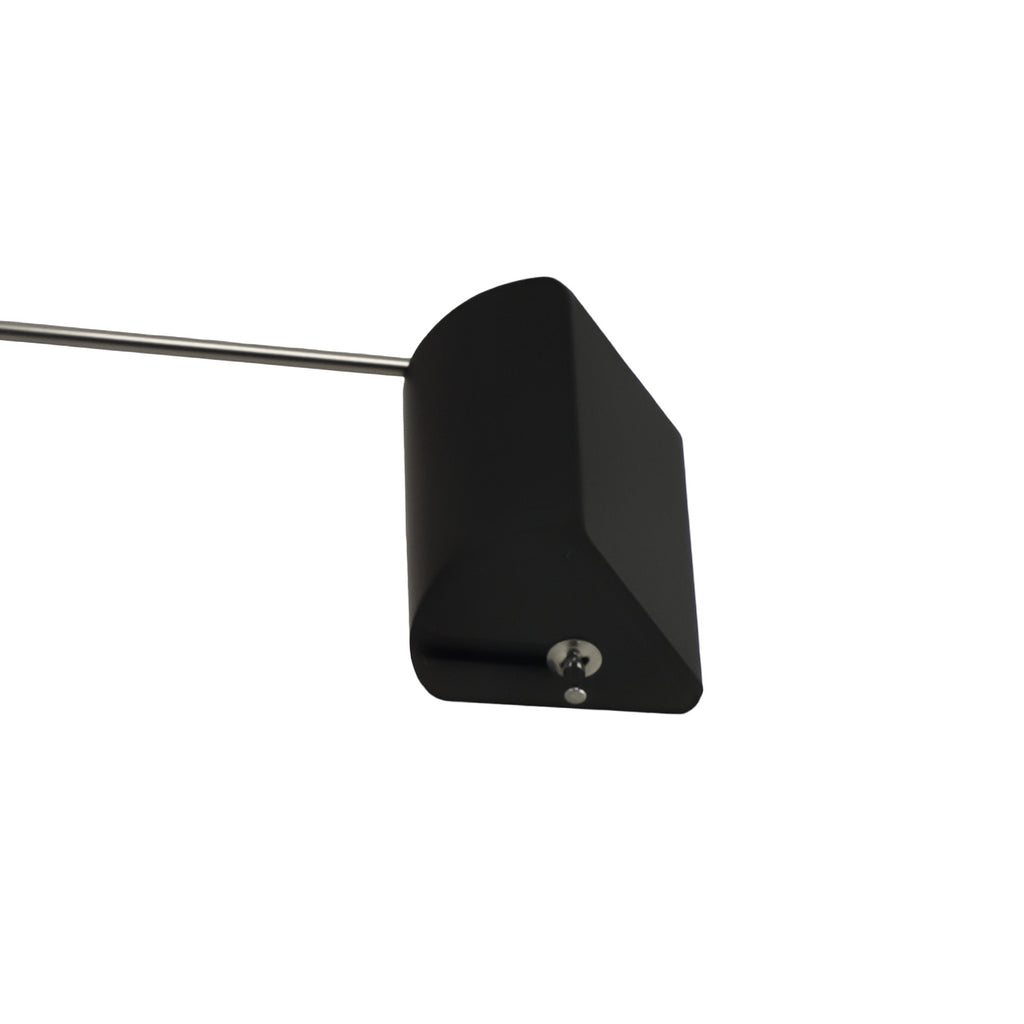

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

Seal Ring Included : Yes

Internal Or External Strainer: Internal

Package included:

1x Fuel Pump Module Assembly
