Electric Fuel Pump Module fit for Chrysler 300 Dodge Charger 2005-2010 5136021AG 18067416

Application

fit for Chrysler 300 2005-2010

fit for Dodge Charger 2006-2010

fit for Dodge Challenger 2008-2010

fit for Dodge Magnum 2005-2008

OE/Part number

E7241M,SP7029M,SP7048M,FG1052,FG0593,P76270M,E7264A,5136021AB,5136021AD,5136021AF,5136021AG,68041407AB,RL136021AG,68051910AB,F3252A,FG0593,BS2141N,P76240M,E7193M,323-01929L,2202-510484

Specification

Drive Type: Electrical

Fuel Type: Gasoline

Voltage(V): 12

Flow Rate(Gallons/Hour): ≥42.24

Pressure(MPa): 0.3

Weight(kg): 0.9532

Inlet Type: /

Inlet Quantity: /

Outlet Type: Quick connect

Outlet Quantity: 1

Material: Plastic(POM)+Steel(Q235)

Housing Material: Plastic

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

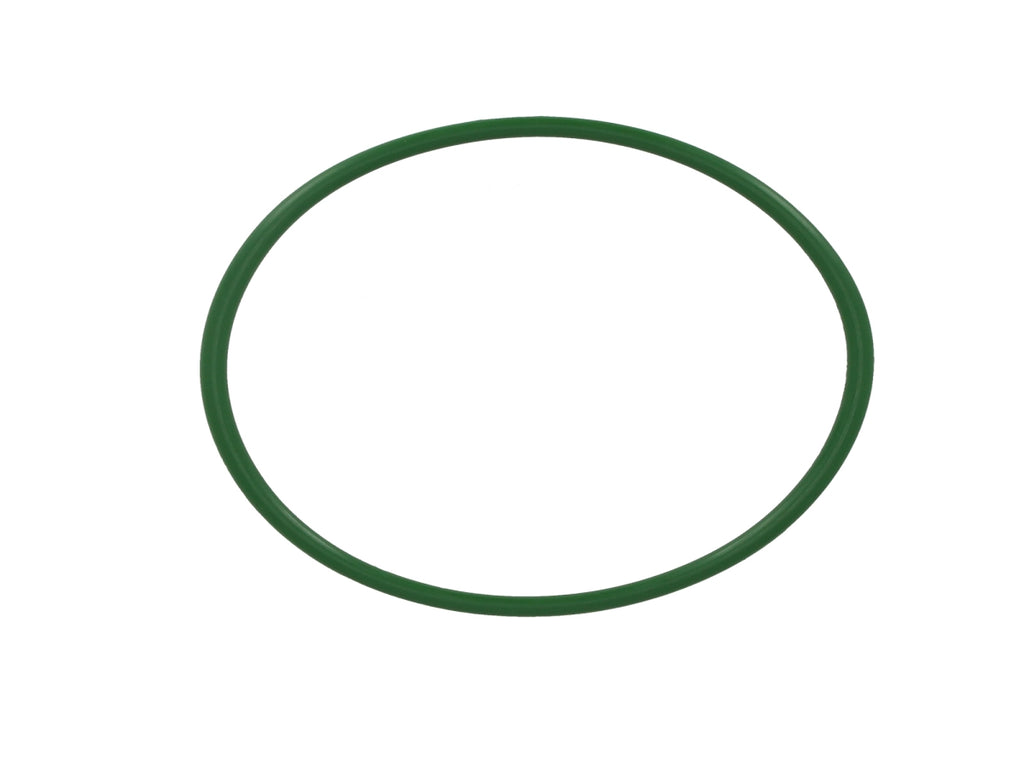

Seal Ring Included : Yes

Placement on Vehicle: Rear (Fuel Tank)

Package included

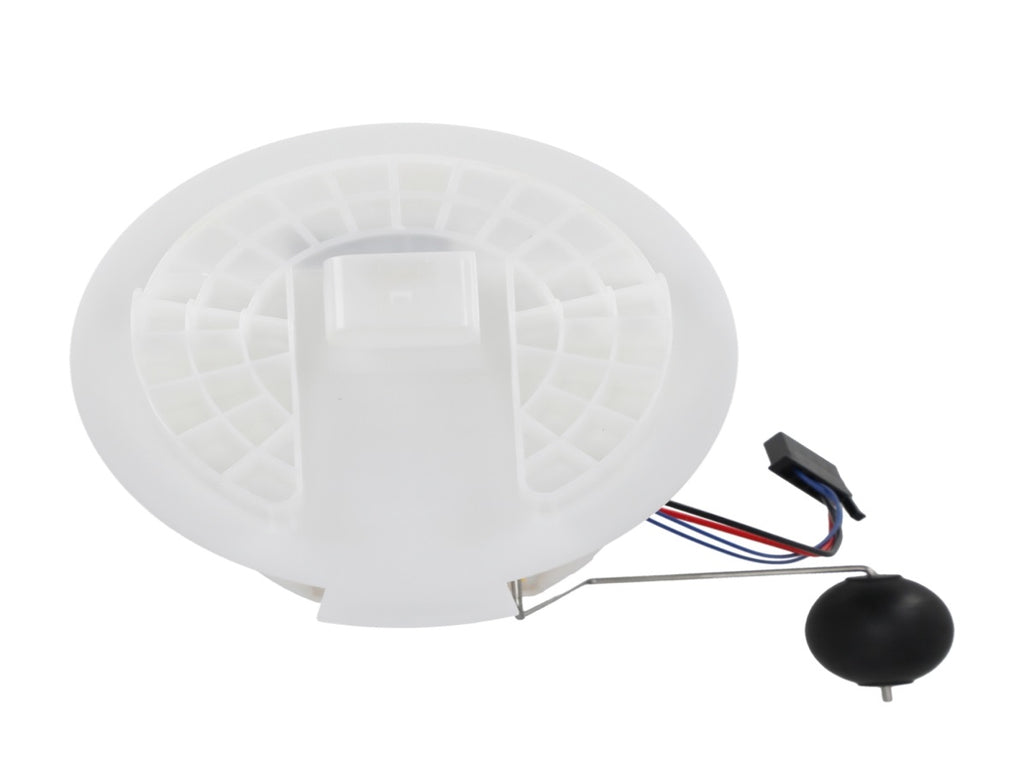

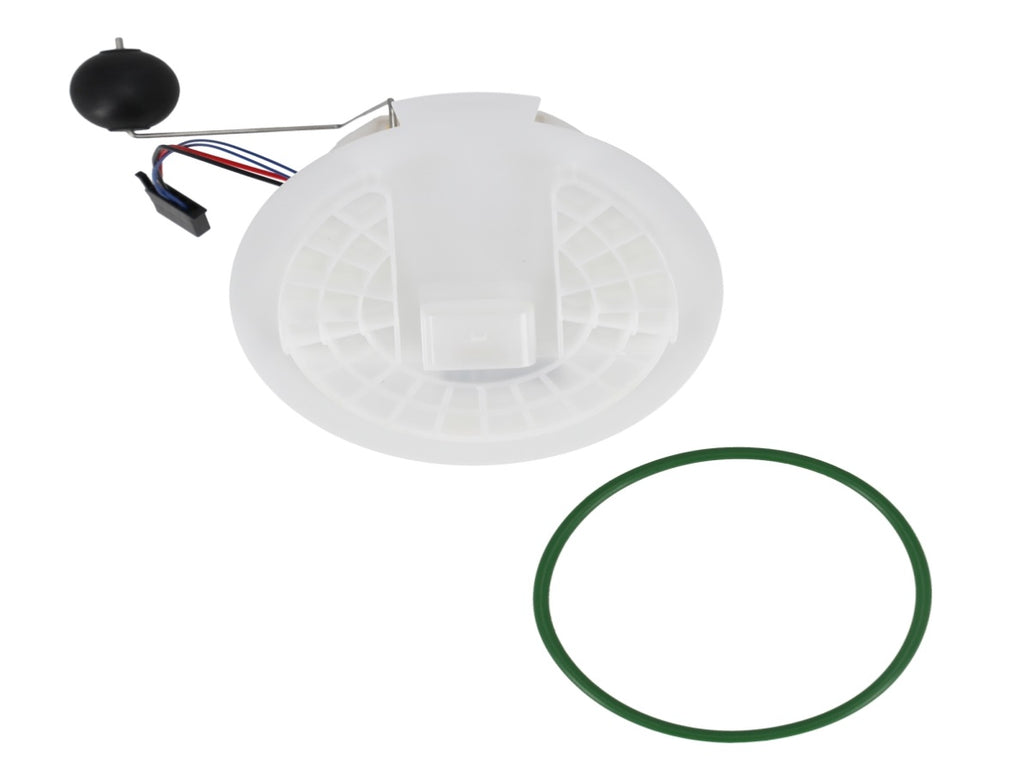

1X Fuel Pump Module Assembly (as shown in the picture)

Feature

1.Raw Material fit for key parts from same supplier as OE

2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times

3.Pressure Valve Durability Test ≥ 500,000 times

4.High temperature durability testing≥ 600 hours(60℃)

5.100% test

Note

1. Attached installation manual.

2.Professional Installation Is Highly Recommended.

3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
