Electric Gas Fuel Pump fit for VW CC Passat L4 V6 2006-2018 3AA8919051A 91401655

Compatibility

fit for Volkswagen CC L4 2.0L 2009-2017
fit for Volkswagen CC V6 3.6L 2009-2010
fit for Volkswagen CC V6 3.6L 2013
fit for Volkswagen Passat L4 1.8L 2014-2017
fit for Volkswagen Passat L4 2.0L 2006-2010
fit for Volkswagen Passat L4 2.0L 2018
fit for Volkswagen Passat V6 3.6L 2006-2008
fit for Volkswagen Passat V6 3.6L 2012-2018

OE Part Number

E8738M,FG1268, P77038M,P77039M,CFG1268

M3520973, A33233, SP5099M,SP5122M,FP77039M

3AA8919051A,3AA919051C,3AA919051L, 3C8919051A

3C0919051AE, 3C0919051AK,3C0919051G, 3C0919051P

Technical Data

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥36.96
Pressure(MPa): 0.55
Weight(kg): 1.1851
Inlet Type: /
Inlet Quantity: /
Outlet Type: Quick Connect
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: No
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes
Seal Ring Included : No
Placement on Vehicle: Rear (Fuel Tank)

Package included:

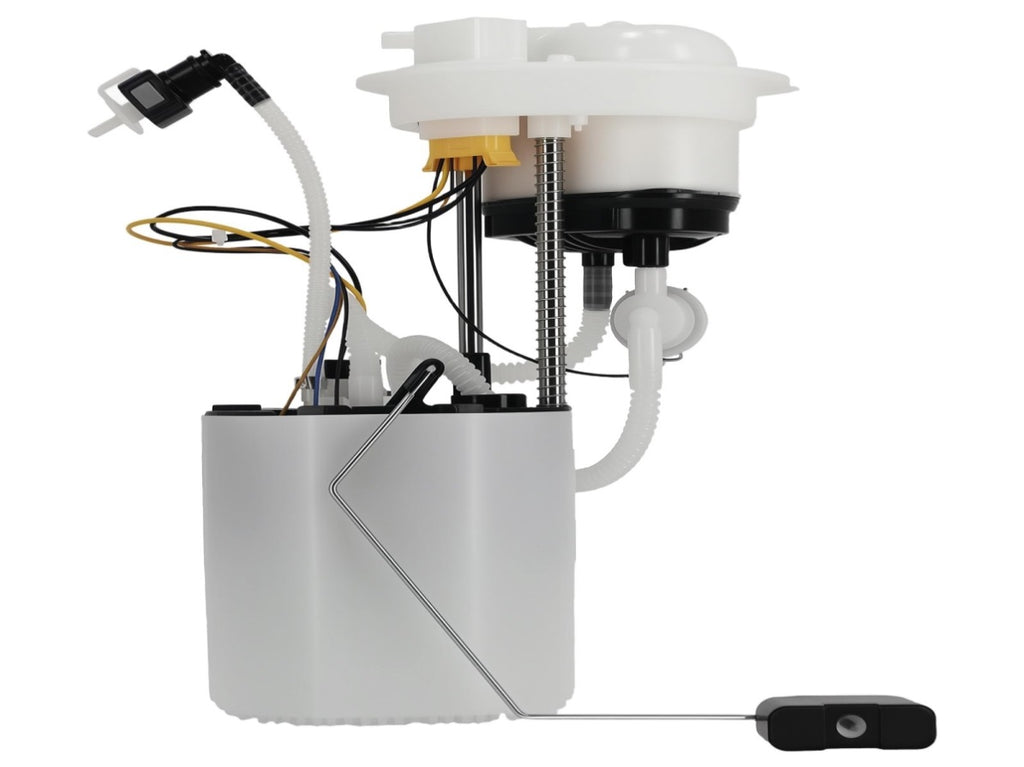

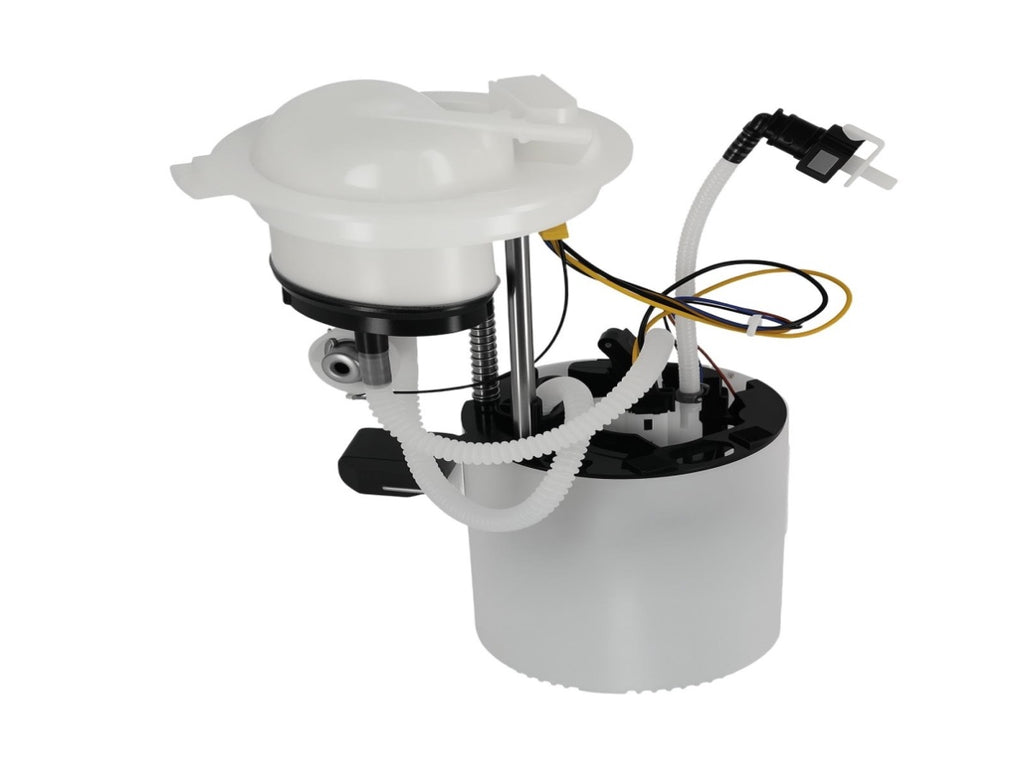

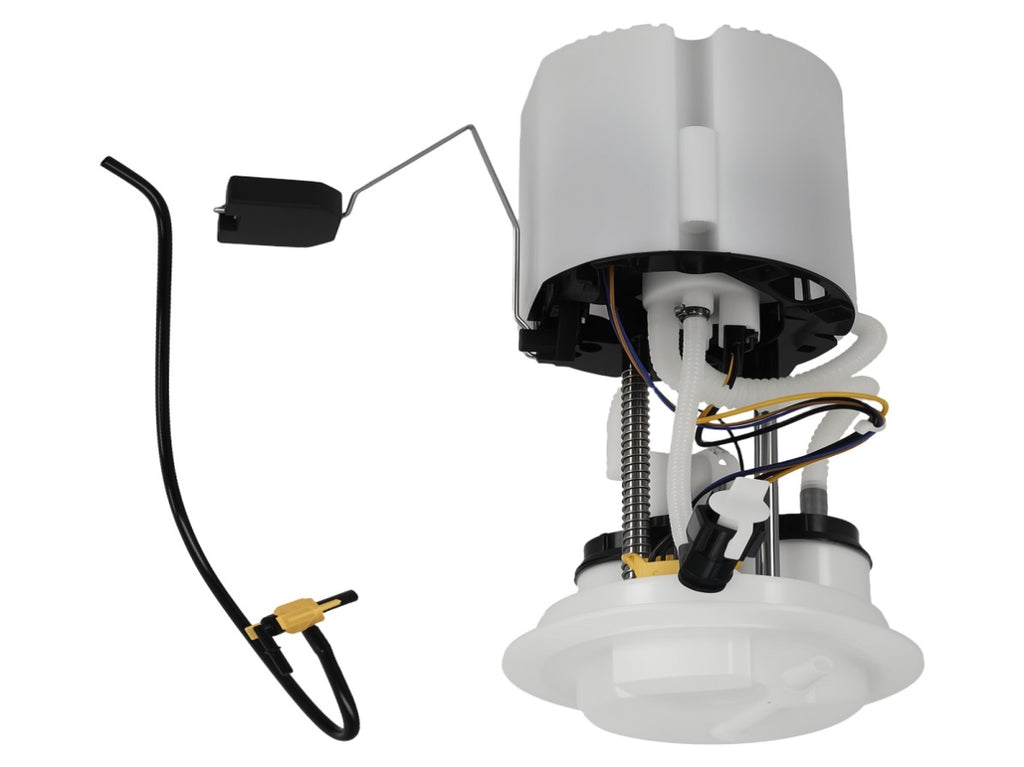

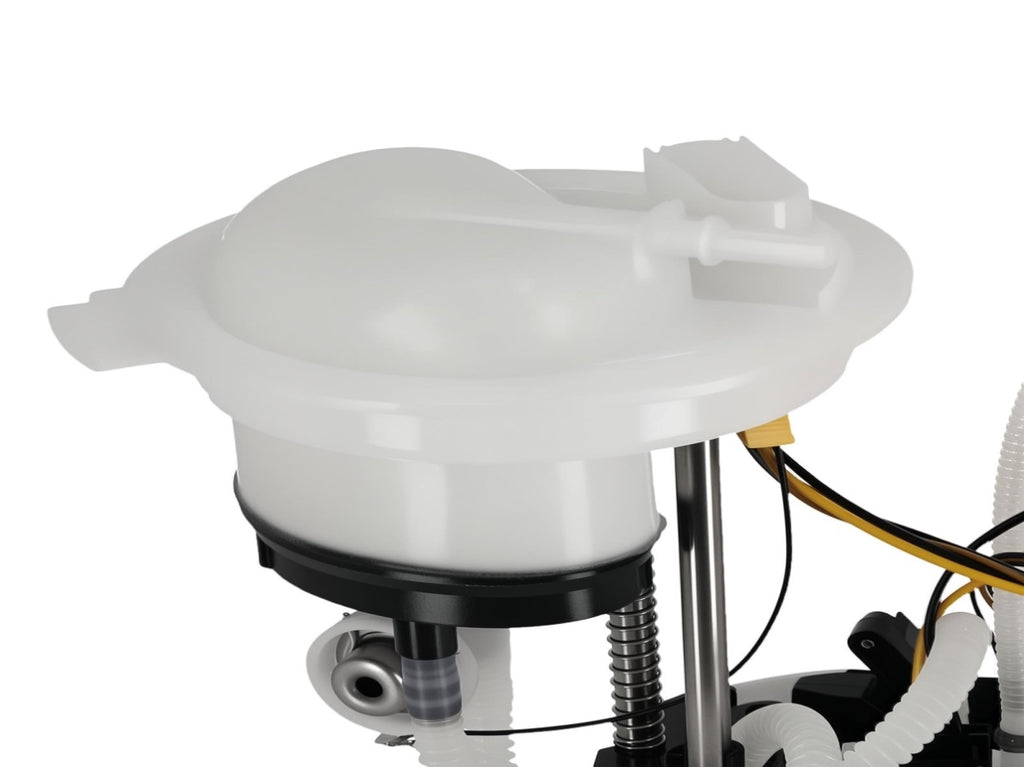

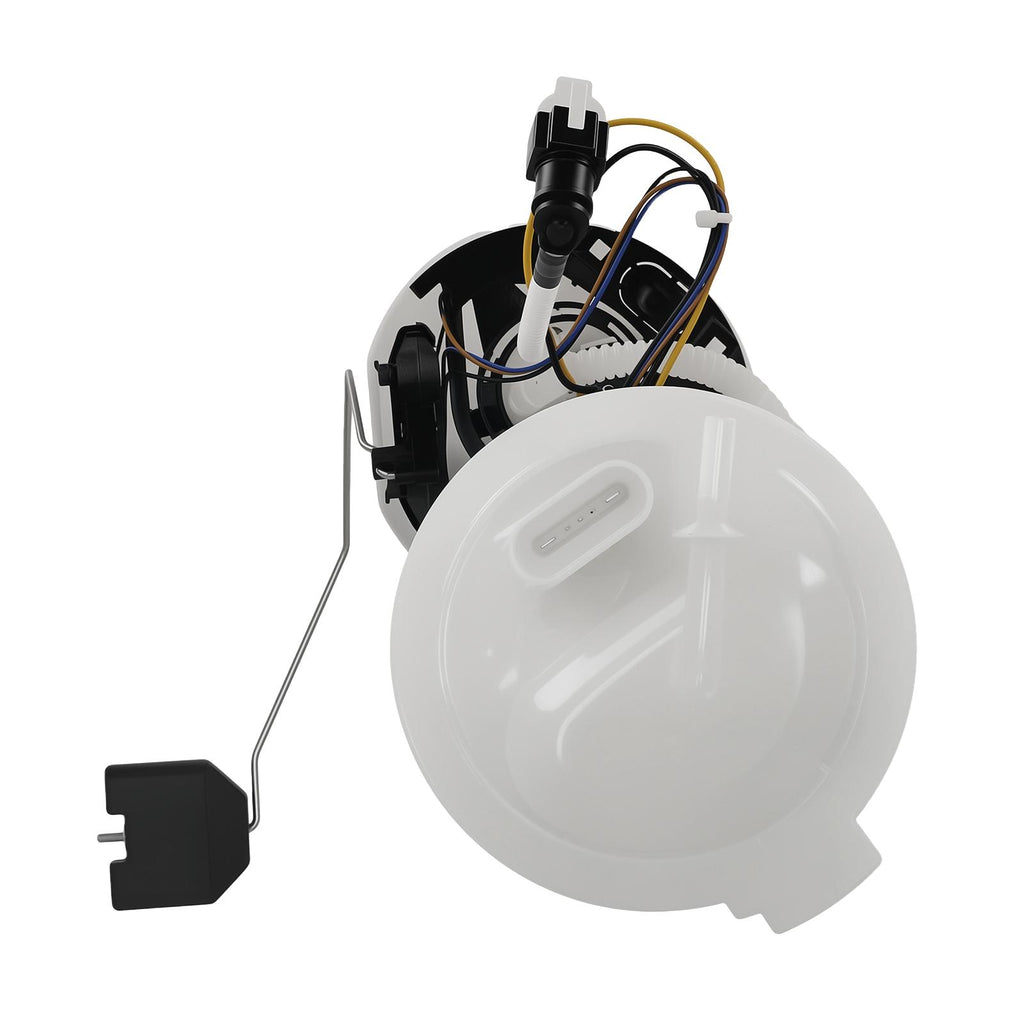

1X Fuel Pump Module Assembly  (as shown in the picture)

Feature:

1.Raw Material fit for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note:

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
