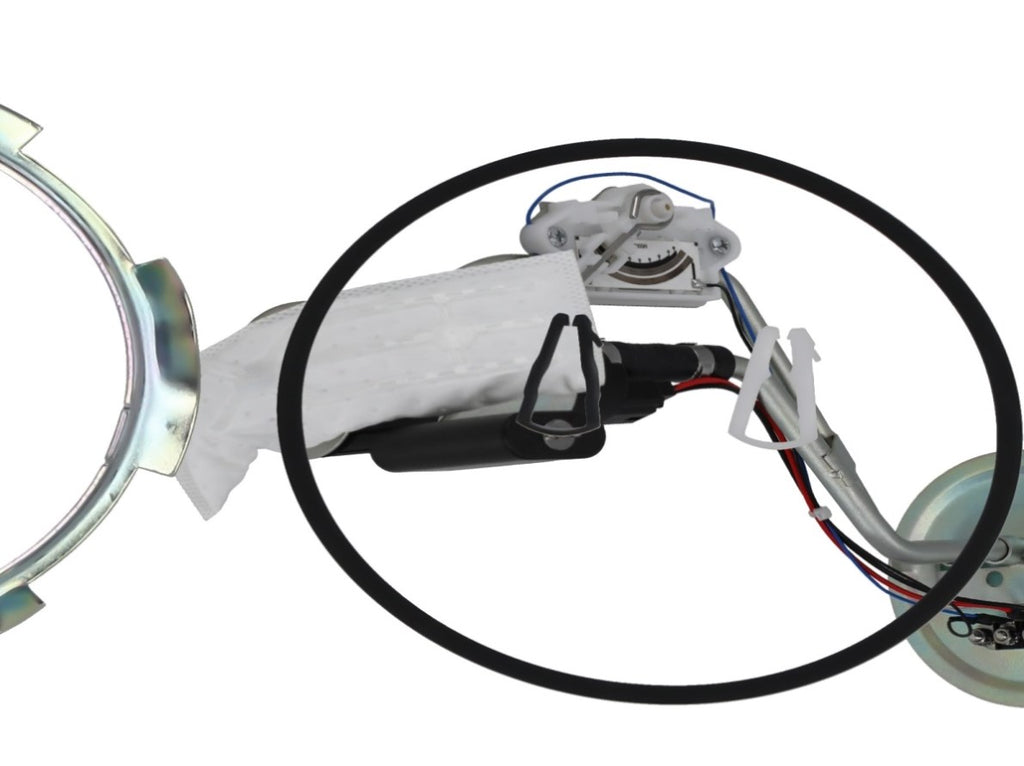

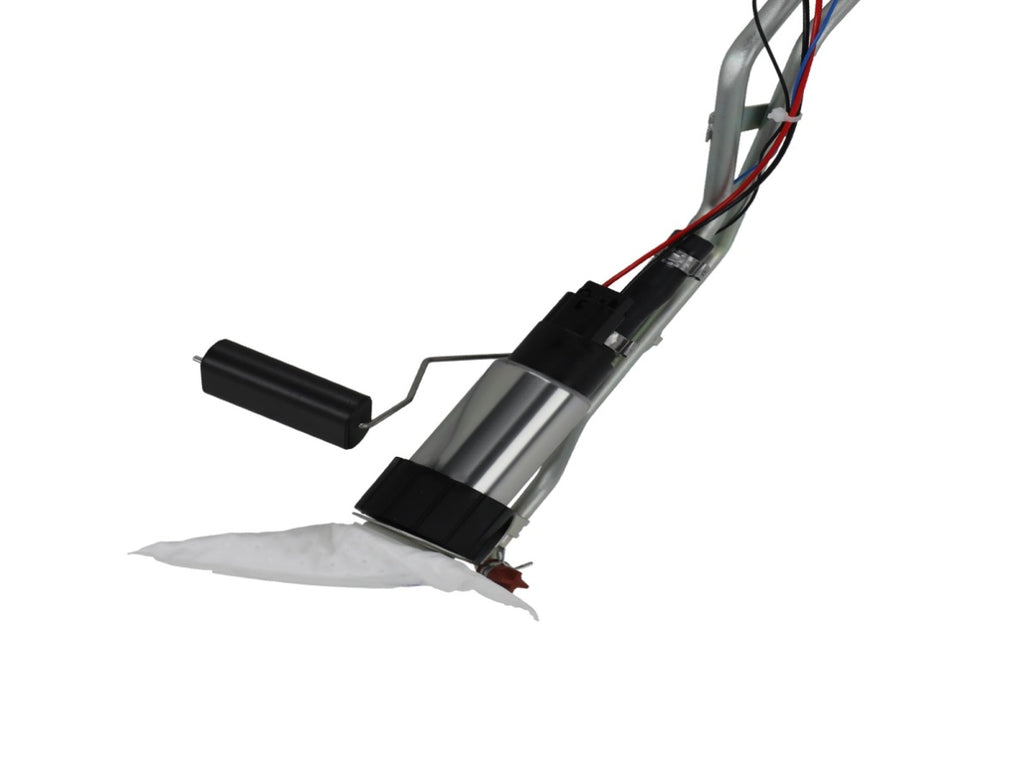

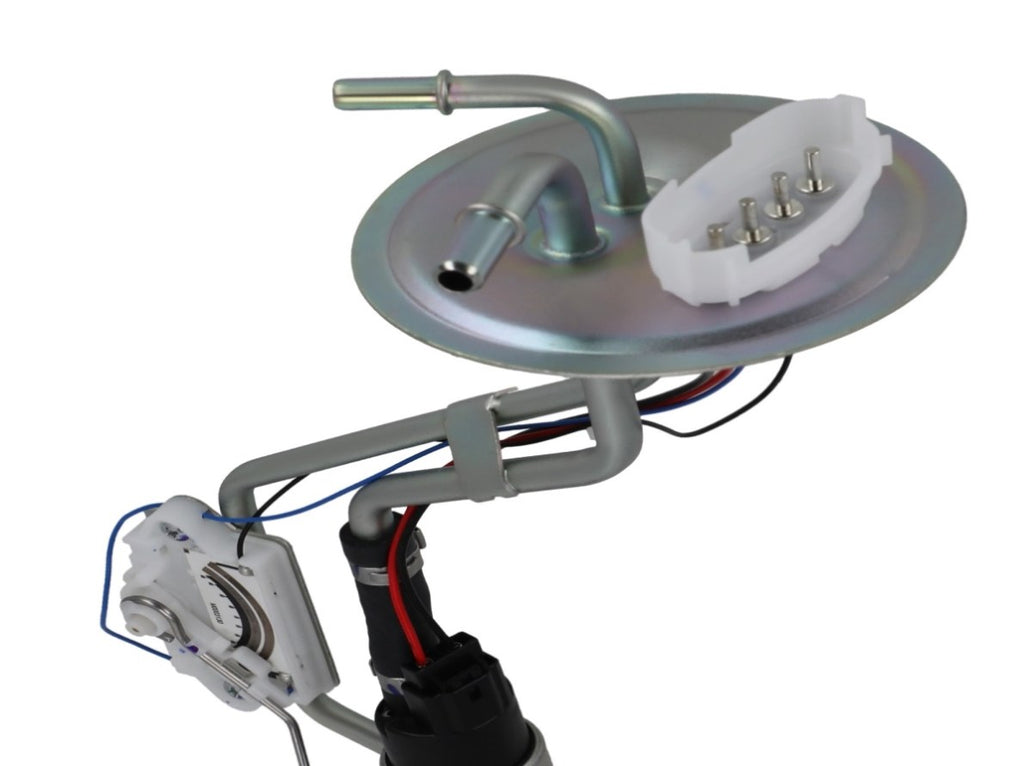

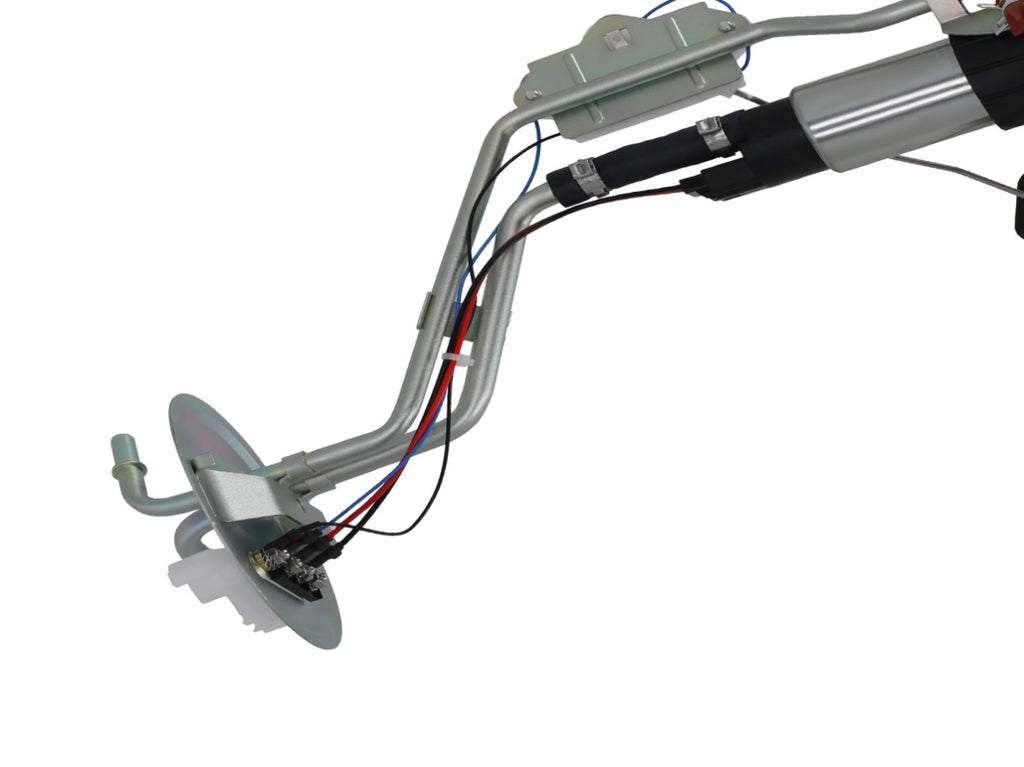

Electrical Fuel pump Module Assembly fit for Ford Ranger 2.9L 3.0L 4.0L V6 89-97 80556047

Application

fit for Ford Ranger L4 2.3L 1989-1997
fit for Ford Ranger V6 2.9L 1989-1992
fit for Ford Ranger V6 3.0L 1991-1997
fit for Ford Ranger V6 4.0L 1990-1997
fit for Mazda B2300 L4 2.3L 1994-1997
fit for Mazda B3000 V6 3.0L 1994-1995
fit for Mazda B3000 V6 3.0L 1997
fit for Mazda B4000 V6 4.0L 1994-1997

OEM / Part Number

E9TZ9H307B, E9TZ-9H307B
F1TZ9H307D, F1TZ-9H307D
F57Z9H307E, F57Z-9H307E
F57Z9H307EA, F57Z-9H307EA
F57Z9H307FA, F57Z-9H307FA
ZZM513350A, ZZM5-13-350A
E2078S
E2106S
FG113A
P74528S
SP333H
SP37A1H

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥22G/H
Pressure(MPa): 0.55~0.75
Inlet Type: SAE J2044 2009
Inlet Quantity: 1
Outlet Type: SAE J2044 2009
Outlet Quantity: 1
Material: Plastic(POM)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes

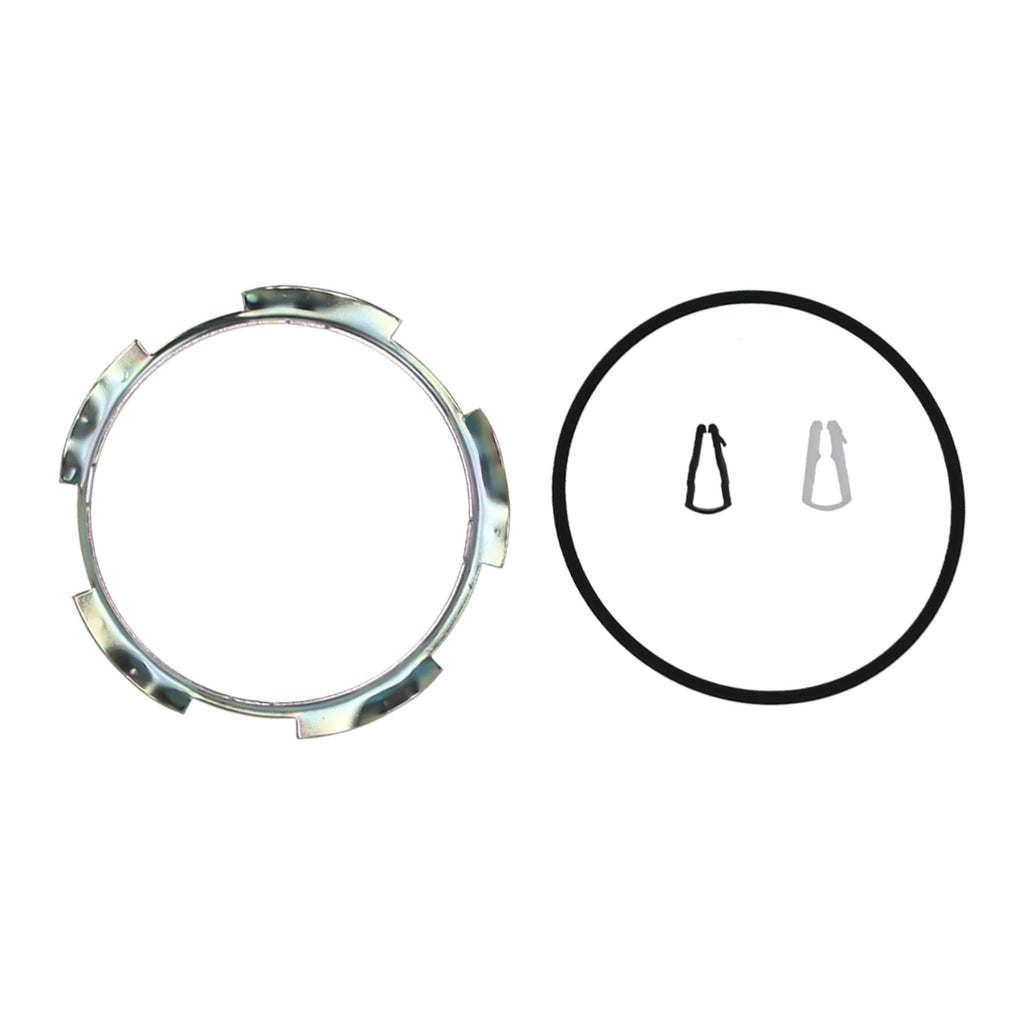

Seal Ring Included : Yes
Internal Or External Strainer: External

Package Includes

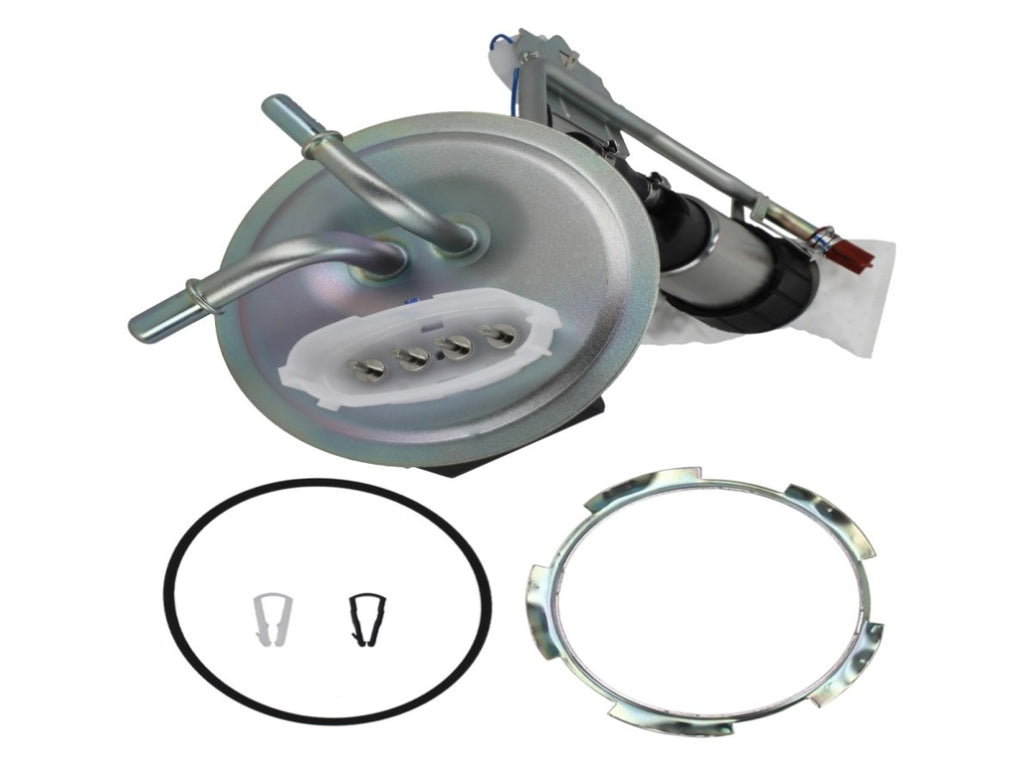

1x Fuel Pump Module Assembly
