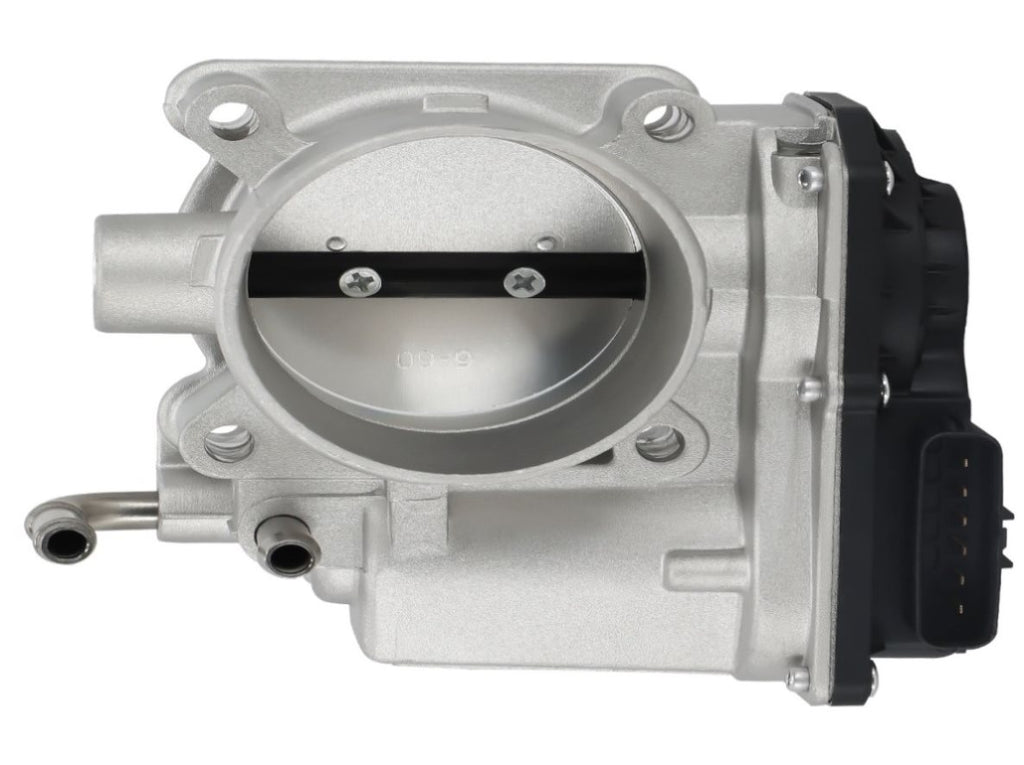

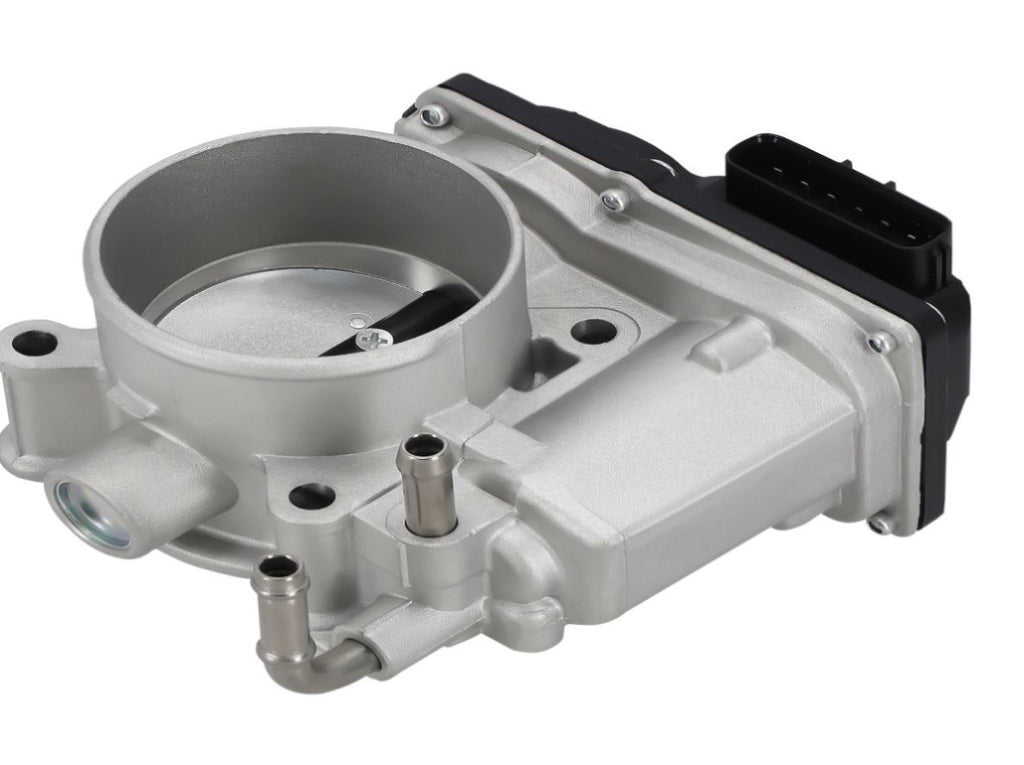

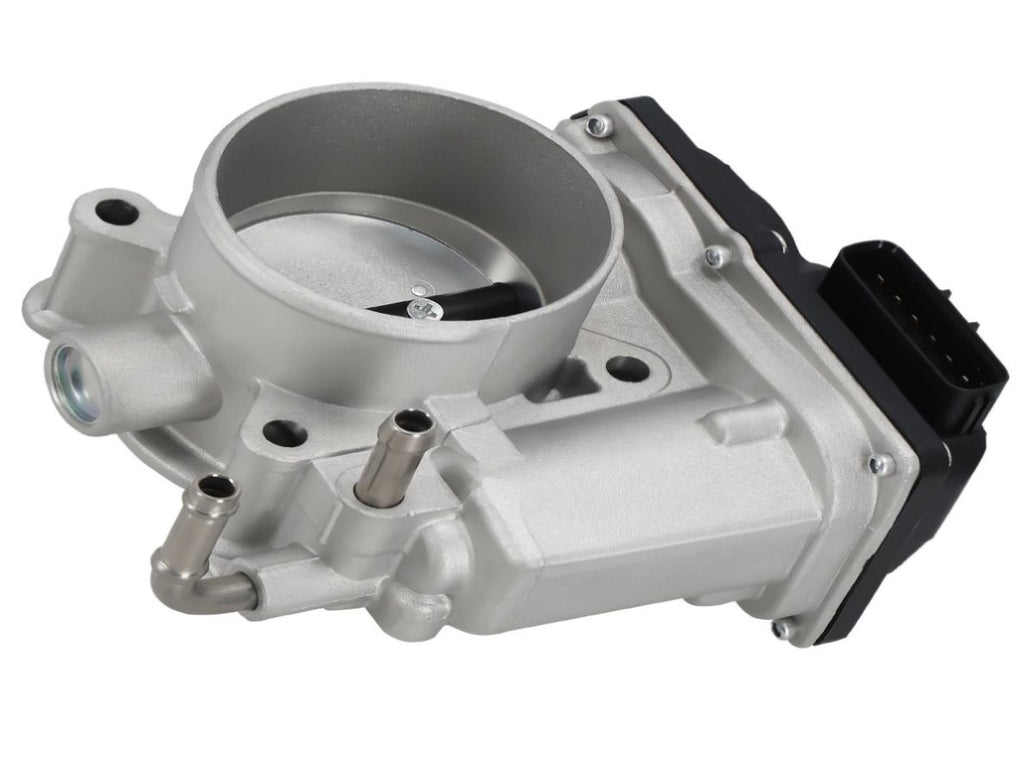

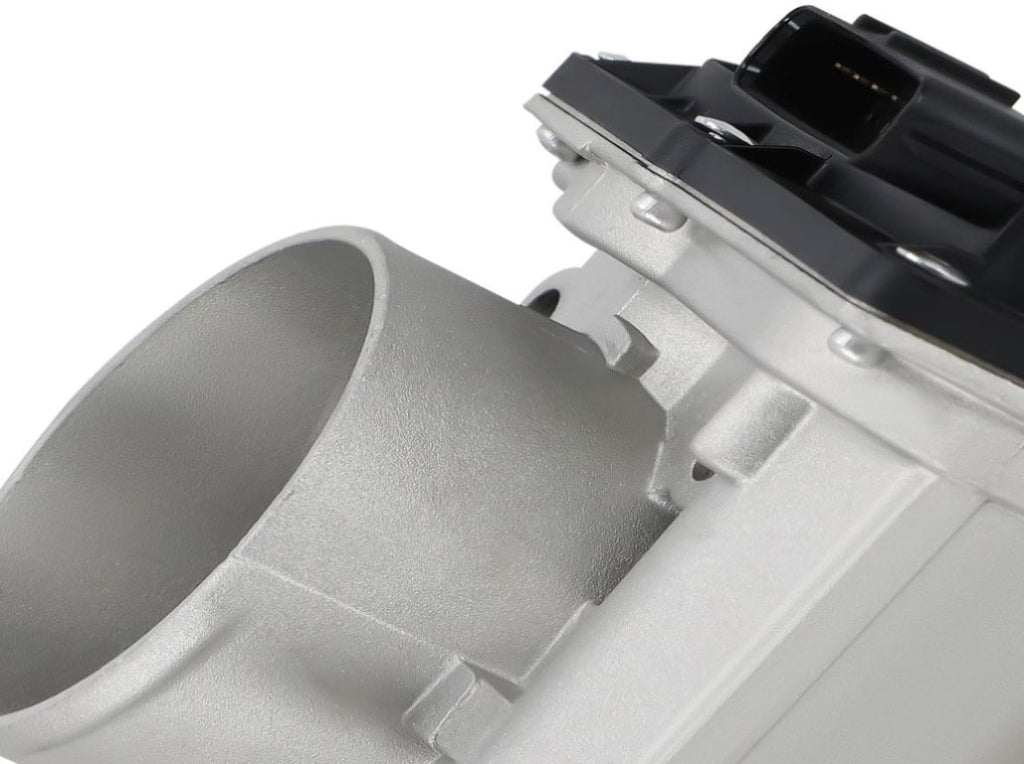

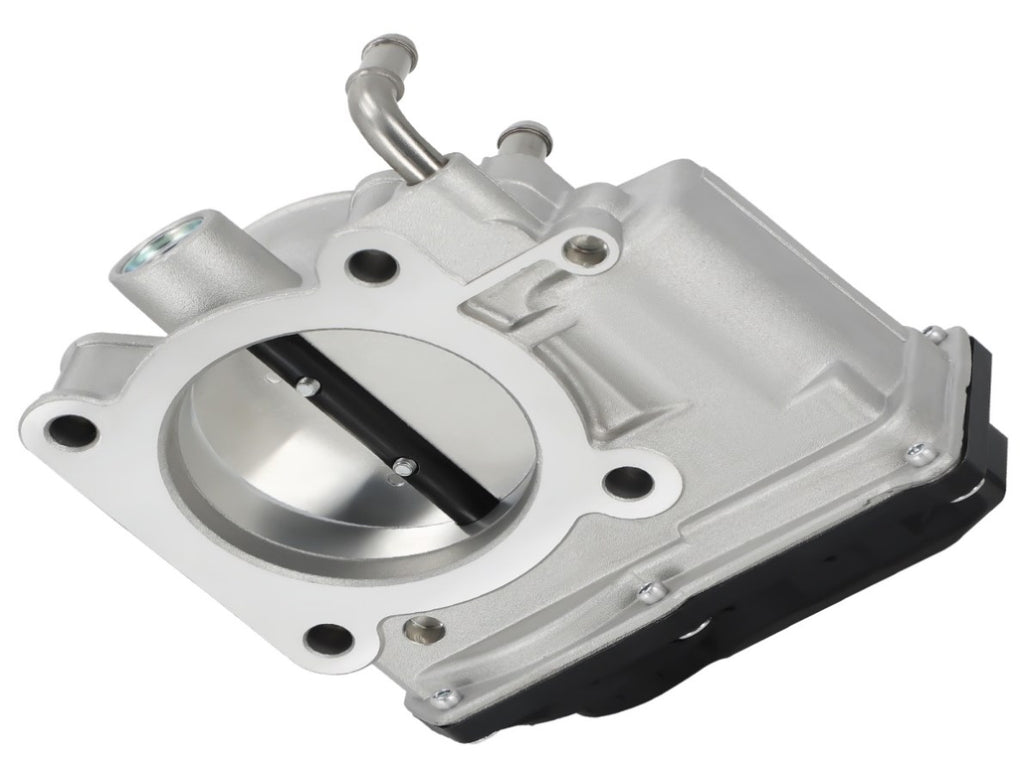

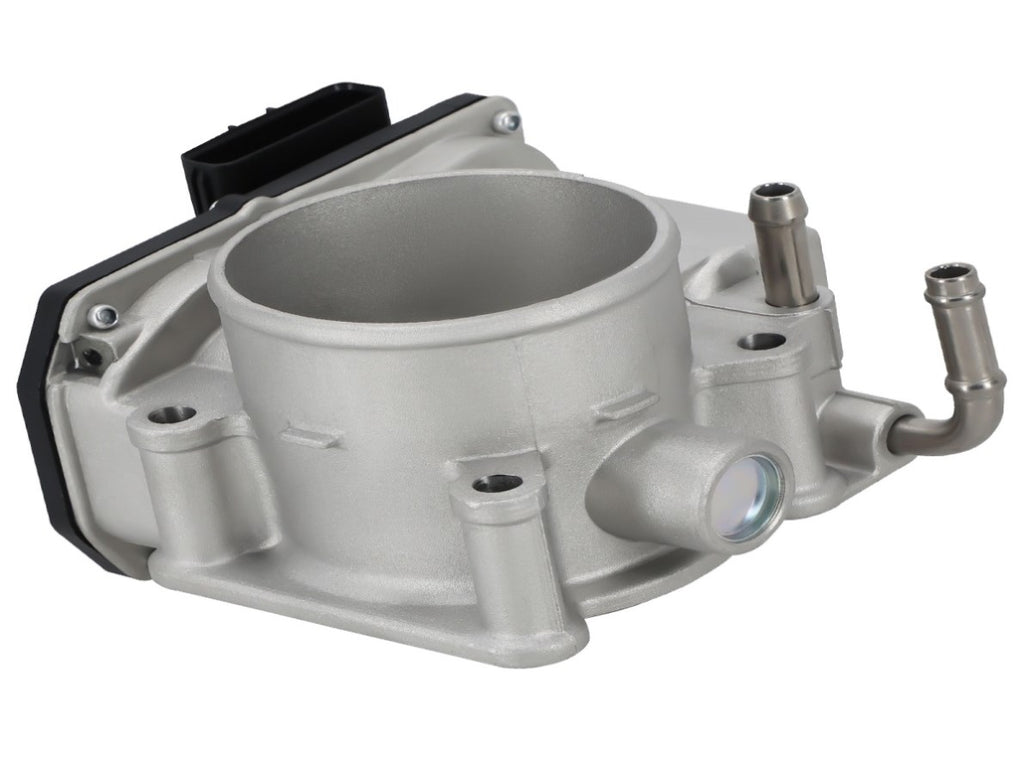

Electrical Throttle Body Valve fit for Nissan Altima Rogue NP300 X-Trail 2.5L S20179 45729873
Application:
fit for Nissan Altima 2.5L 2013-2018fit for Nissan Rogue 2.5L 2014-2019
fit for Nissan Rogue Select 2.5L 2014-2015
fit for Nissan NP300 2.5L 2014-2018
fit for Nissan NP300 Frontier 2.5L 2016-2018
fit for Nissan X-Trail 2.5L 2014-2019
Part Number:
977-325, 977-321, TB1152, TB1151, S20183, S20179, 67-0015, 088436, TBN-006
16119-3TA0A, 161193TA0A, 16119-EA000, 16119-EA00A, 16119-EA00B, 16119-EA00C, 16119-EA00D
Specification:
Type: Throttle Body
Bore Diameter: 60mm
Air Intake Port Maximum Diameter (in): 2-13/16
Main Port Inside Diameter (in): 2-3/8
Throttle Plate Diameter (in): 2-3/8
Material: Aluminum
Connector Quantity: 1
Mount Hole Quantity: 4
Terminal QTY: 6
Connector Type: Blade
Fuel System Type: FI
Housing Length (in): 5-5/8
Housing Width (in): 5-1/16
Bore Diameter: 60mm
Air Intake Port Maximum Diameter (in): 2-13/16
Main Port Inside Diameter (in): 2-3/8
Throttle Plate Diameter (in): 2-3/8
Material: Aluminum
Connector Quantity: 1
Mount Hole Quantity: 4
Terminal QTY: 6
Connector Type: Blade
Fuel System Type: FI
Housing Length (in): 5-5/8
Housing Width (in): 5-1/16
Package Included:
1x Throttle Body (As Picture Shown)
Features:
>> High Strength Corrosion Resistance
The Throttle Body is a high-quality product that offers High Strength Corrosion Resistance, ensuring durability and longevity in various conditions.
>> Adjusts the Intake Air Volume Precisely
Equipped with advanced technology, it Adjusts the Intake Air Volume Precisely, optimizing your engine's performance and fuel efficiency.
>> Faster Response
Designed fit for Faster Response, this Throttle Body significantly improves acceleration, providing a smoother and more responsive driving experience.
>> Stable Idling
It also ensures Stable Idling, reducing engine vibration and noise fit for a comfortable and quiet ride.
>> Direct Replacement
The Throttle Body is easy to install.
Signs of damage to the throttle body:
When your car cannot start, or step on the throttle after starting, the throttle will not return.
Smoke, fuel consumption.
High idle speed and uneven acceleration.
If the above issues occur, there may be a problem with the throttle body of your vehicle
Note:
-It Fits Aftermarket Intake Manifold that is Bigger than Stock Size. Otherwise a Spacer is Needed to be able to Fully Open the Butterfly.
- Professional Installation is Highly Recommended
- No Instruction Included
- Professional Installation is Highly Recommended
- No Instruction Included
