Electrical Throttle Body Valve fit for Nissan Altima Sentra 2.5L 02-2006 16119-AE013 20027698
Application:
fit for Nissan Altima 2.5L 2002-2006fit for Nissan Sentra 2.5L 2002-2006
fit for Nissan X-Trail 2.5L 2002-2008
Part Number:
S20053, 14243009, TB1002, ETB0003, ETB0009
16119AE01C, 16119-AE01C, 16119JF00B, 16119-JF00B
Specification:
Type：Throttle Body
Bore Diameter：60mm
Main Port Inside Diameter(in)：2-1/2
Air Intake Port Maximum Diameter (in)：2-13/16
Throttle Plate Diameter (in)：2-3/8
Material：Aluminum
Housing Length (in)：5-1/8
Housing Width (in)：4-5/8
Mount Hole Quantity: 4
Connector Quantity: 1
Terminal QTY: 6
Bore Diameter：60mm
Main Port Inside Diameter(in)：2-1/2
Air Intake Port Maximum Diameter (in)：2-13/16
Throttle Plate Diameter (in)：2-3/8
Material：Aluminum
Housing Length (in)：5-1/8
Housing Width (in)：4-5/8
Mount Hole Quantity: 4
Connector Quantity: 1
Terminal QTY: 6
Package Included:

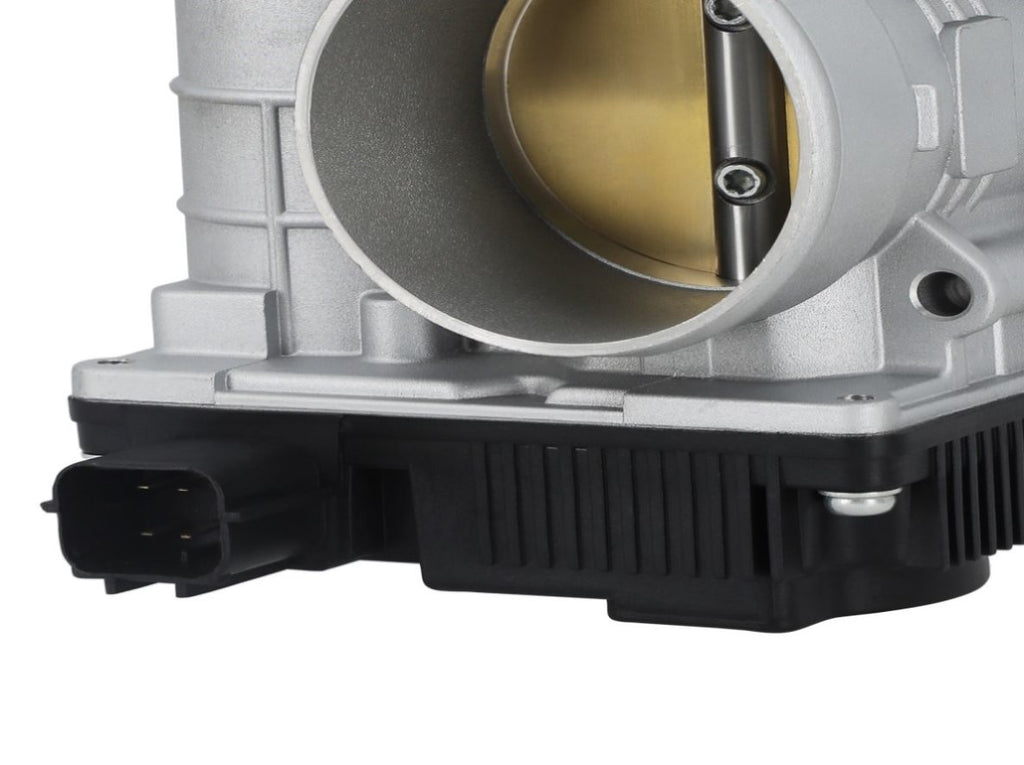

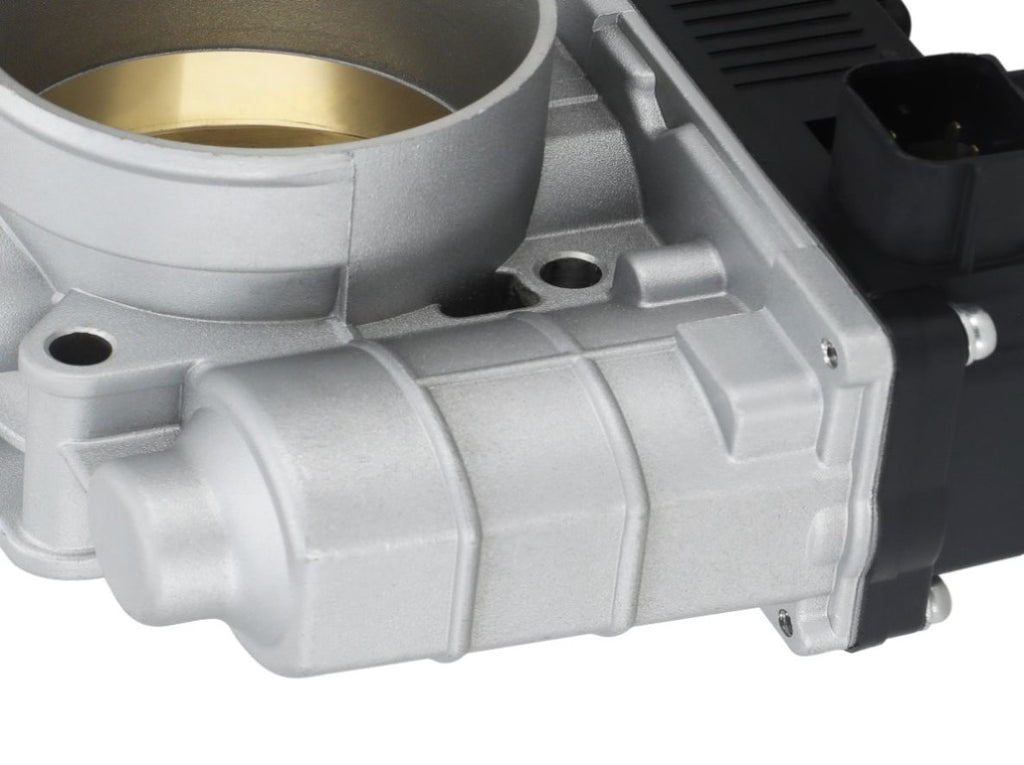

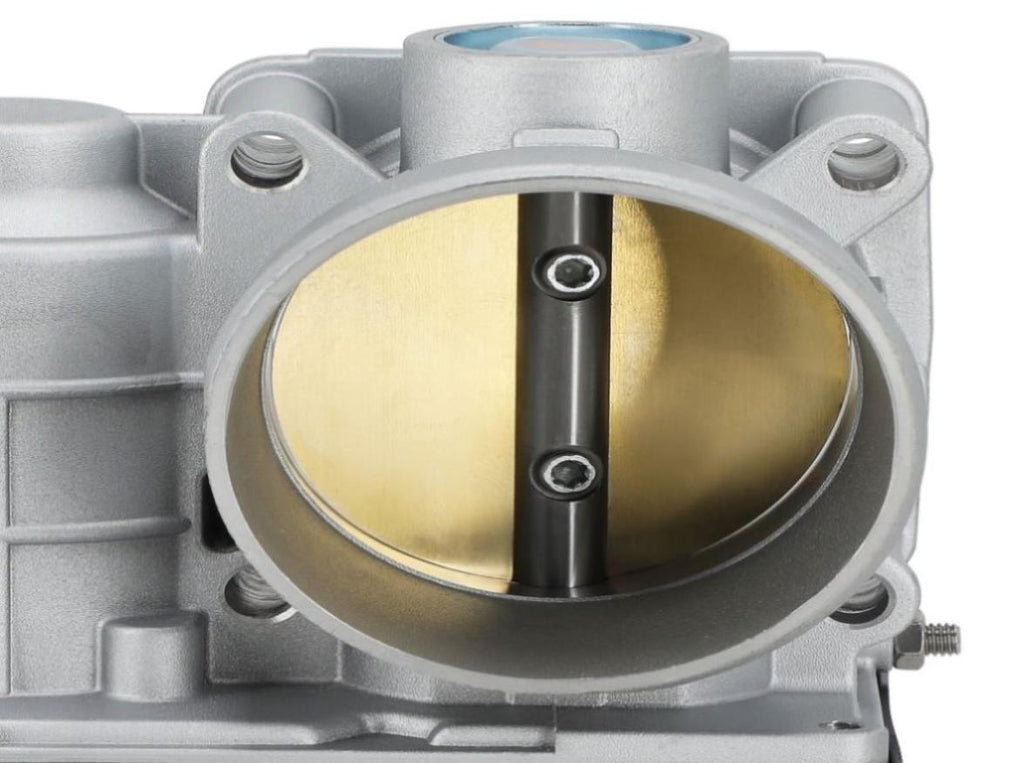

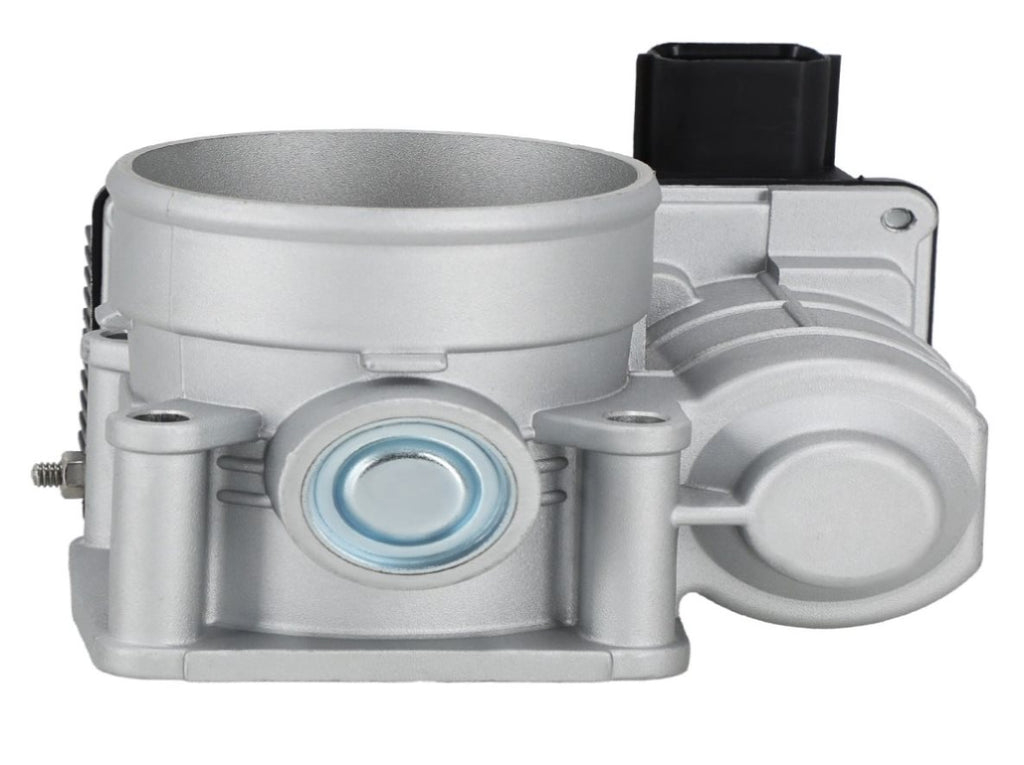

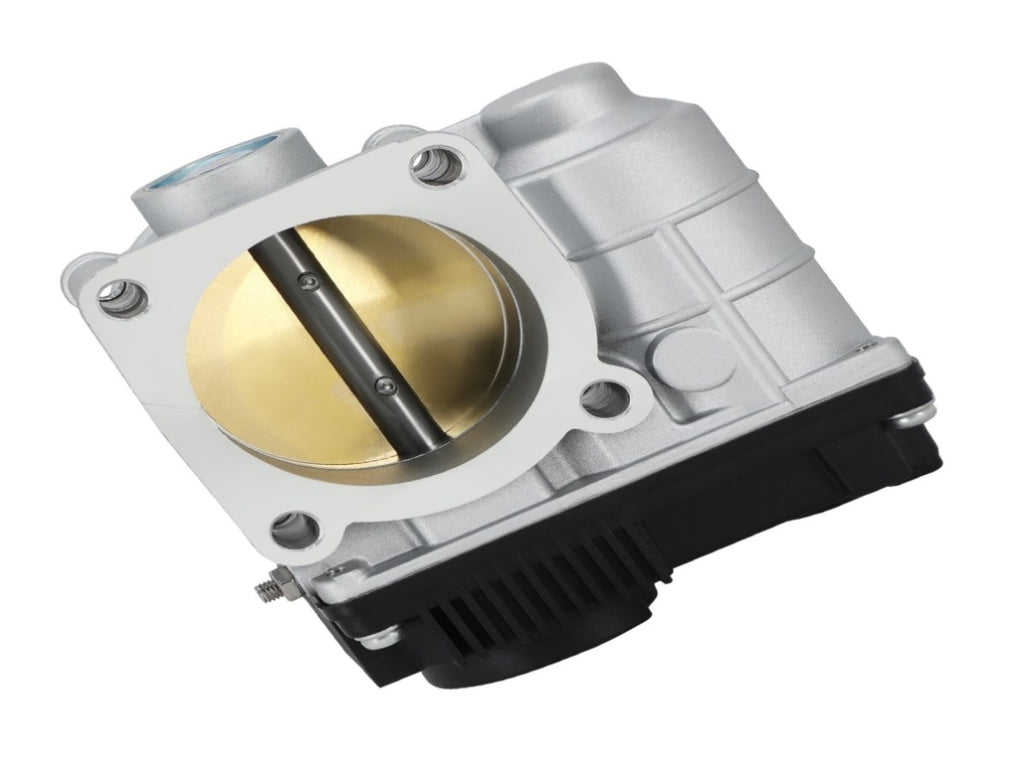

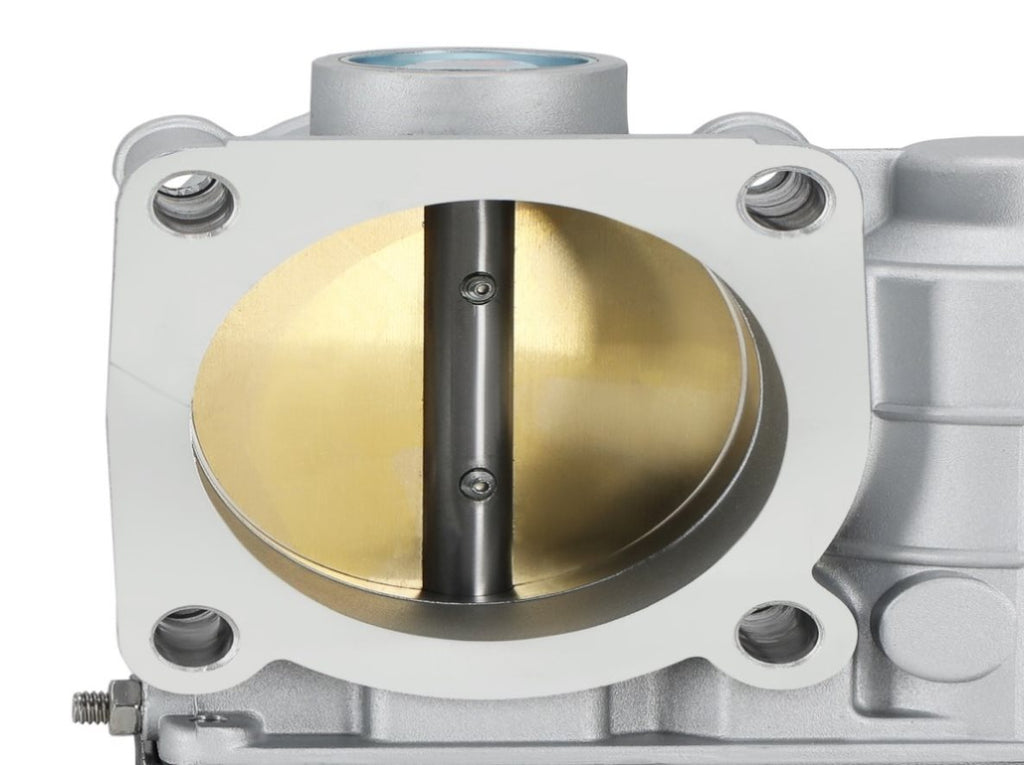

1x Throttle Body (As Picture Shown)
Features:
>> Optimized Engine Performance
Play a crucial role in maintaining the overall performance of the car engine by providing airflow that matches the demand while driving. This helps in the optimization of engine power, throttle response, and driver comfort.
>> Enhanced Fuel Efficiency
By controlling airflow, the throttle body helps to create efficient combustion conditions, which can improve fuel use efficiency. This is important fit for optimizing fuel consumption and reducing unwanted exhaust emissions.
>>Responsive Acceleration
Directly influence the power output by regulating the airflow into the engine. A responsive and well-maintained throttle body ensures quick acceleration and efficient power delivery.
Signs of damage to the throttle body:
When your car cannot start, or step on the throttle after starting, the throttle will not return.
Smoke, fuel consumption.
High idle speed and uneven acceleration.
If the above issues occur, there may be a problem with the throttle body of your vehicle
Note:
-It Fits Aftermarket Intake Manifold that is Bigger than Stock Size. Otherwise a Spacer is Needed to be able to Fully Open the Butterfly.
- Professional Installation is Highly Recommended
- No Instruction Included
- Professional Installation is Highly Recommended
- No Instruction Included
