Engine Camshaft Crankshaft Timing Tool fit for VW Beetle Audi A3 4 5 6 Q5 T40011 77814438

Applicable Vehicle Include:

fit for Audi A3 A4 A5 A6 Q5 TT/ TT Quattro 2.0T
fit for VW Beetle fit for EOS GTI Jetta fit for Passat B6 Tiguan CC Skoda SEAT Magotan 2.0T
fit for Audi A3 2008-2018 2.0T
fit for Audi A3 quattro 2009-2018 2.0T
fit for Audi A4 2009-2018 2.0T
fit for Audi A4 quattro 2009-2018 2.0T
fit for Audi A5 2010-2018 2.0T
fit for Audi A5 quattro 2010-2018 2.0T
fit for Audi A6 2012-2018 2.0T
fit for Audi A6 quattro 2013-2018 2.0T
fit for Audi TT 2009 2.0T
fit for VW Beetle fit for EOS GTI Jetta fit for Passat B6 Tiguan CC Skoda SEAT Magotan 2.0T
fit for Audi TT Quattro 2009-2018 2.0T
fit for Audi Q5 2011-2018 2.0T
fit for Audi Allroad  2013-2018 2.0T
fit for VW Beetle 2012-2018 2.0T
fit for VW fit for EOS 2009-2018 2.0T
fit for VW GTI 2008-2018 2.0T
fit for VW Jetta 2008-2018 2.0T
fit for  VW fit for Passat B6 2008-2018 2.0T
fit for VW Tiguan 2009-2018 2.0T
fit for VW CC 2009-2018 2.0T
The applicable vehicle models include (some models not listed).

Specification:

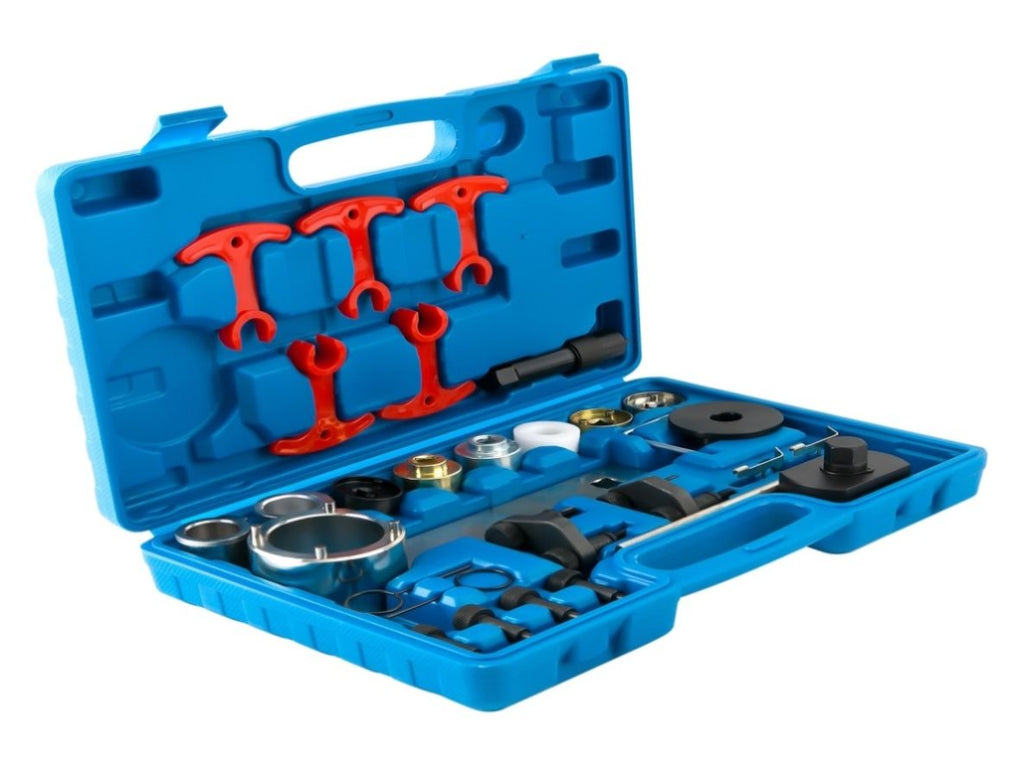

   29-piece tool kit includes timing tools and camshaft locking tools, suitable fit for 2006-2018 TSI TFSI EA888 1.8 2.0 engines. Compatible with most fit for Audi A3 A4 A5 A6 Q5 TT/TT Quattro 2.0T, and suitable fit for Volkswagen Beetle Jetta fit for Passat B6 Tiguan  CC  Skoda fit for EOS  Passat 2.0T.

Equivalent OEM part numbers: T10352-1/2/3/4/5, T40191, T40266, T40196, T40267, T10060, T40271, T10368, T40011, T10354, T10355, T40265, along with camshaft intake and exhaust adjustment tools


Engine codes compatible with:

BYT, BZB, CABA, CABB, CABD, CADA, CAEA, CAEB, CAWA, CAWB, CBFA, CCTA, CCZA, CCZB, CCZC,

CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDND, CESA, CETA, CFKA, CGYA, CJEB, CJBA, CJBB.


Kit inclede:
1. Camshaft Control Valve Removal Tool   T10352

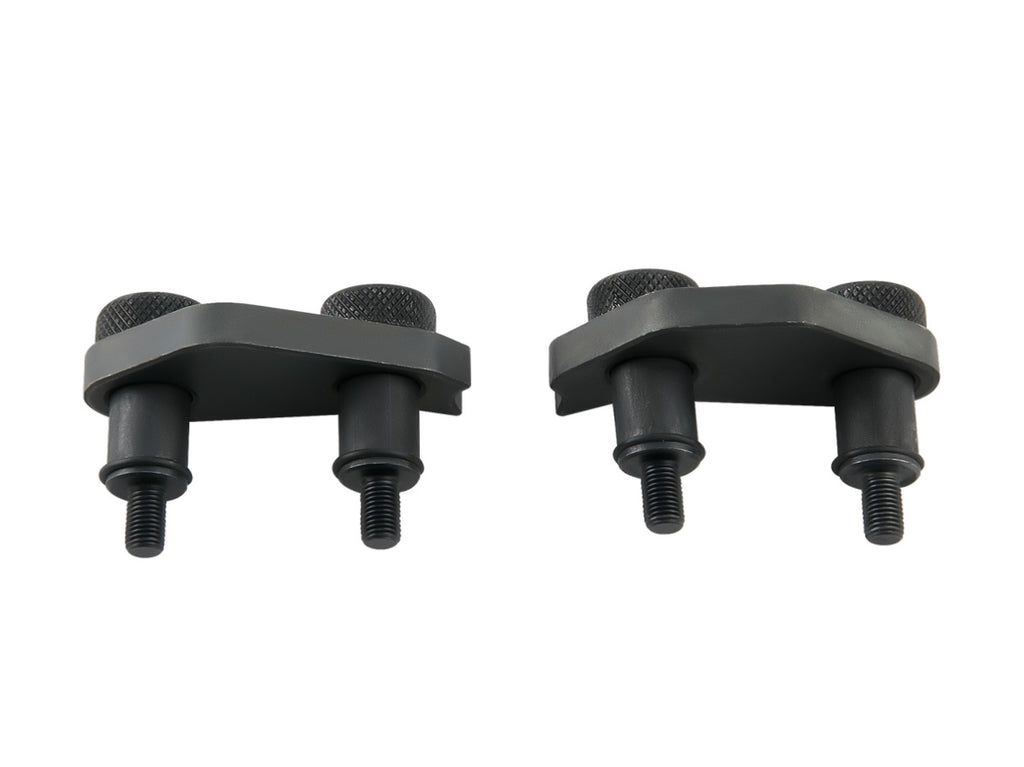

2. Camshaft Lock(Exhaust)   T40271
3. Camshaft Lock (Inlet)   T40271
4. Chain Tensioner Locking Tool   T40265
5. Tensioner Locking Pin(1.4mm)   T40011
6. Chain Tensioner Locking Shim   T40267
7. Crankshaft Seal   T10354
8. Camshaft Adapter Socket   T40266
9. Crank Counter Hold Tool   T10355
10. Crankshaft Thrust Piece   T10368
11. Crankshaft Locking Pin   T40196
12. Tensioner Locking Pin(4mm)   T10060A

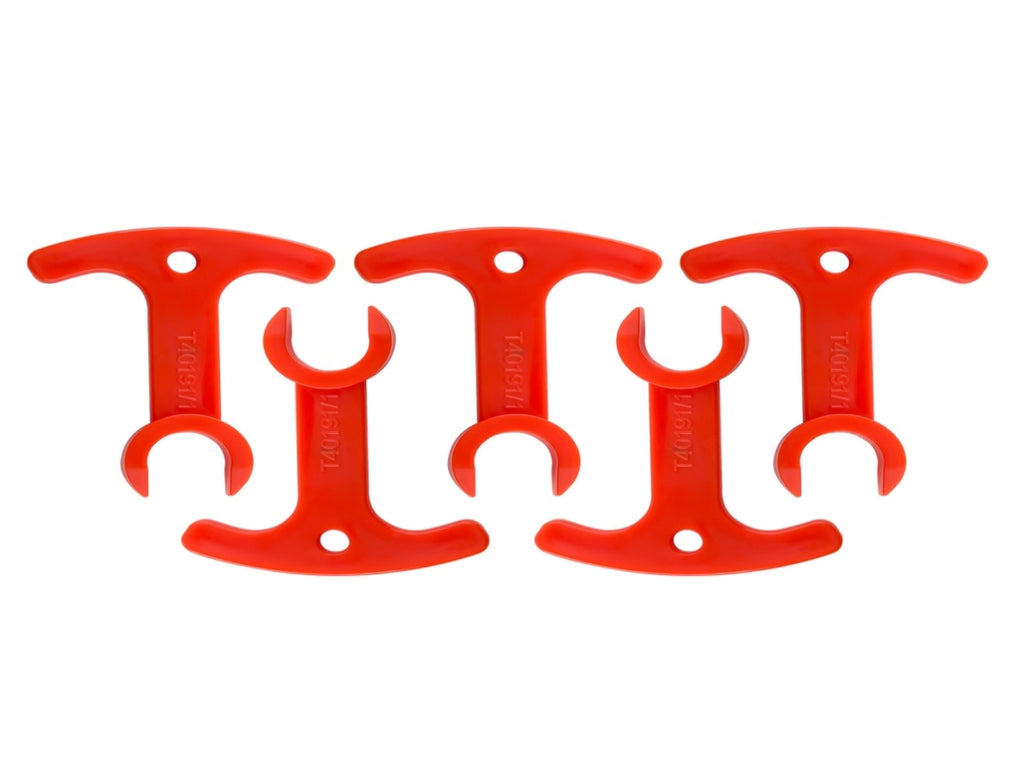

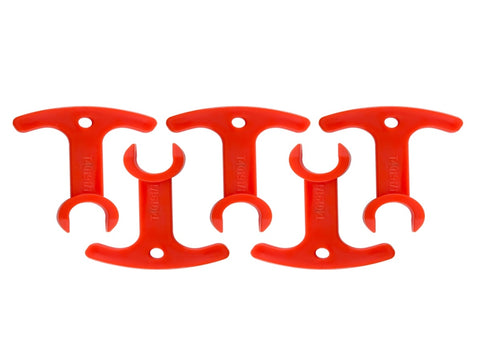

13. Engine Camshaft Sliding Pieces Spacer Tool   T40191
14. Intake Fixing Tool
15. Exhaust Fixing Tool

NOTE:
* The list of all suitable models is not complete.
* fit for any questions pleasemessageus.
