Engine Rebuild Kit w/ Balance Shaft Timing Chain fit for Toyota Tacoma 2.7L 3RZ-FE 27399145
Application:
Engine: 3RZ-FE
fit for Toyota 4Runner 2.7L 2694CC l4 DOHC, (16 Valve) Eng. Code "3RZFE" 1996 - 2000
fit for Toyota T100 2.7L 2694CC l4 DOHC, (16 Valve) Eng. Code "3RZFE" 1994 - 1998
fit for Toyota Tacoma 2.7L 2694CC l4 DOHC, (16 Valve) Eng. Code "3RZFE" 1995 - 2004
OE/Part number:
Crankshaft Part Number:
13411-75901，13411-75020
1341175901，1341175020
Pistons w/ Rings Part Number:
13103-75041，13101-75041
1310375041，1310175041
Connecting Rod Part Number:
13201-79205，13201-79466
1320179205，1320179466
Main & Rod Bearing Set Part Number:
11701-75022-01，11701-75022-02，11701-75022-03
13041-75010，11011-75020
Gasket Seals & Head Bolts Set Part Number:
ES72182,HS9465PT-2,HS9465PT-3
Intake & Exhaust Valve Kit Part Number
13711-75060，13711-75050
13715-75050，13715-75040
Timing Chain Kit Part Number:
13507-75010, 13506-75020, 13550-75010, 13540-75020, 13563-75010,
13559-75020, 13554-75010, 13562-75010, 13561-75020, 13523-75010, 13597-75010
CTKTO38, TK939, 9-4196S, 94196S, 3-3SRH106, 029-0131, 9-2645
Specification:
Condition：New
Fitment Type: Direct Replacement
Placement on Vehicle：Front
Material: Metal，Multiple Layers Steel (MLS) Head Gasket
Standard Bore Diameter: 95.00mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 4.00mm

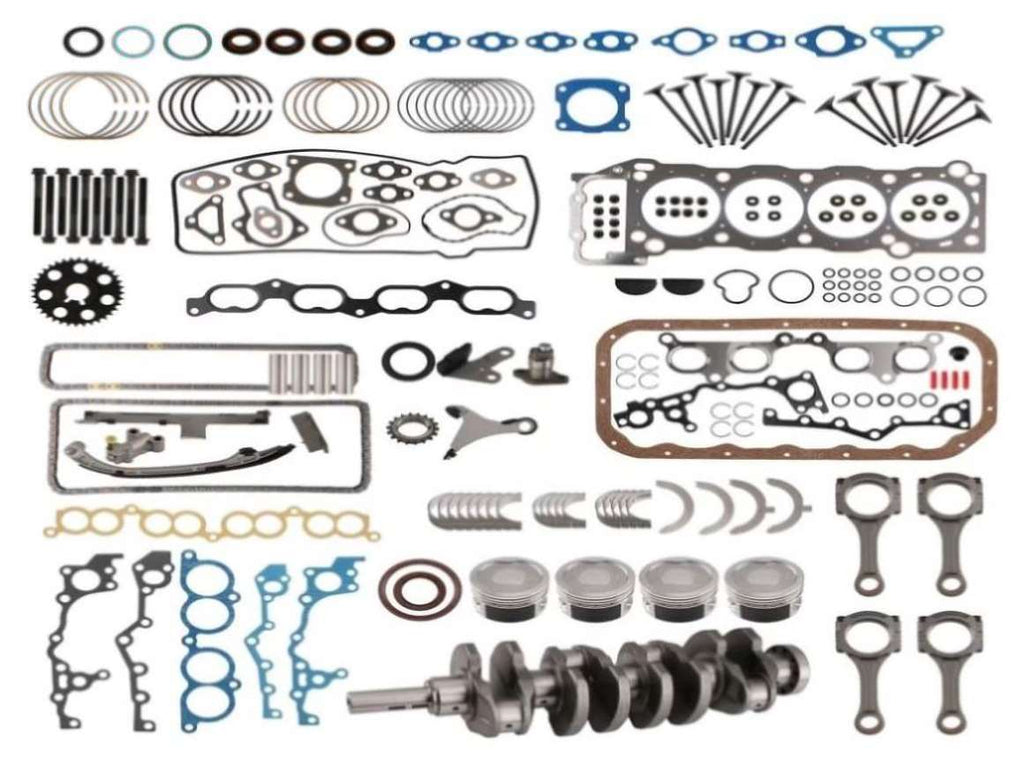

Package included:

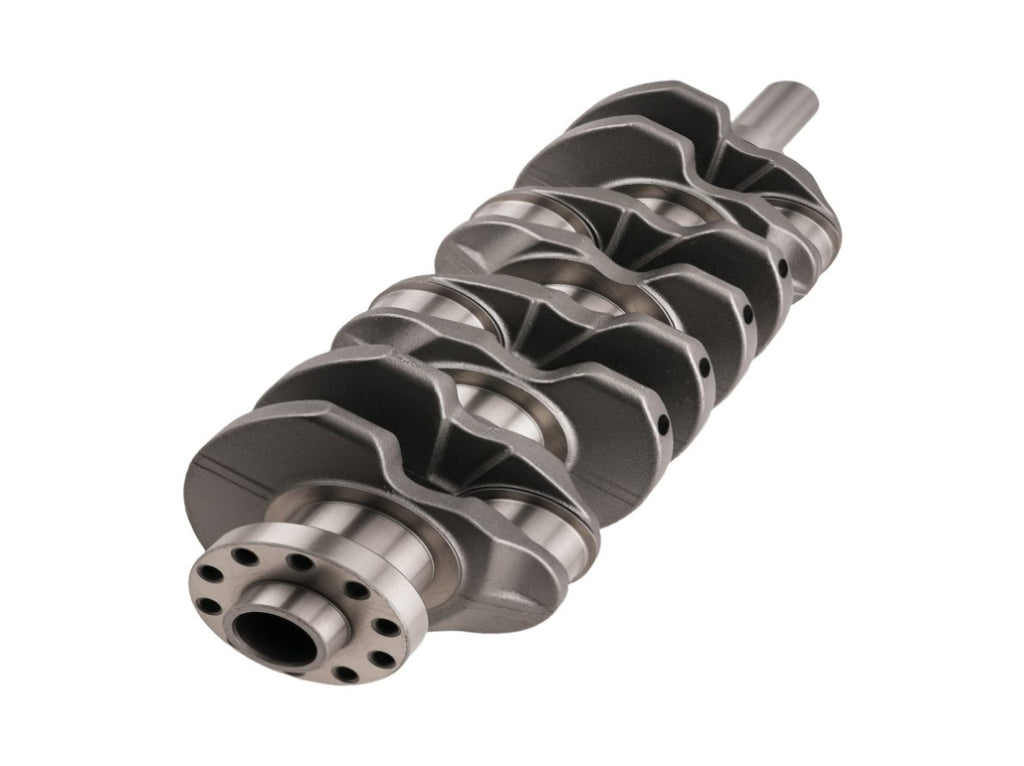

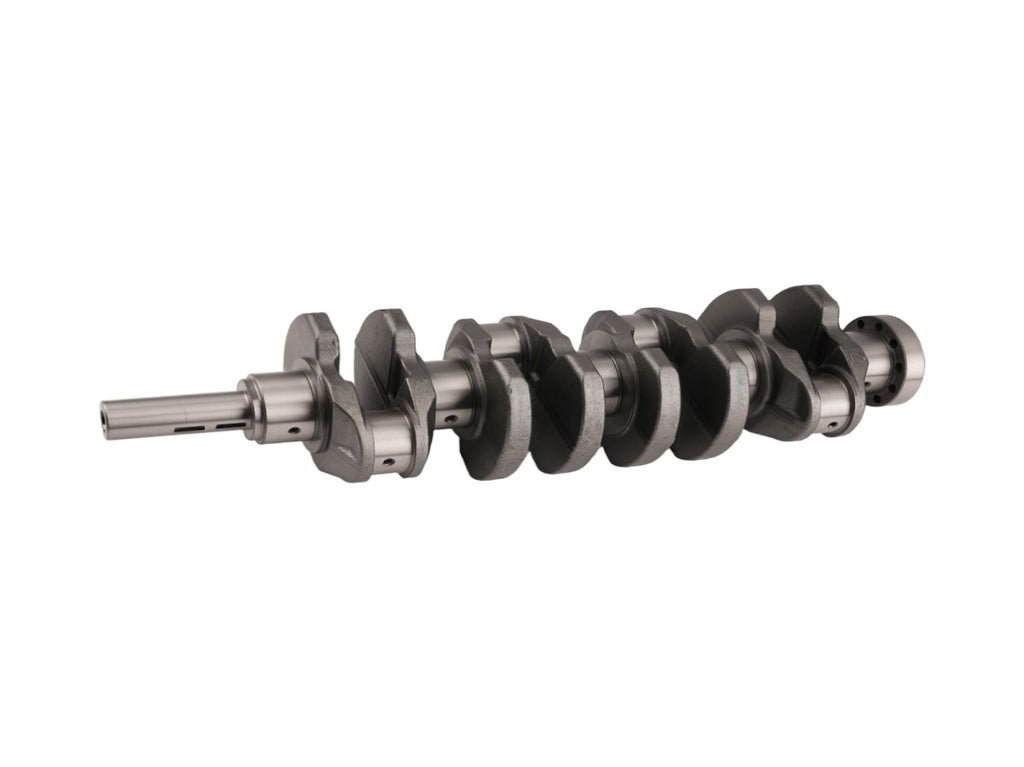

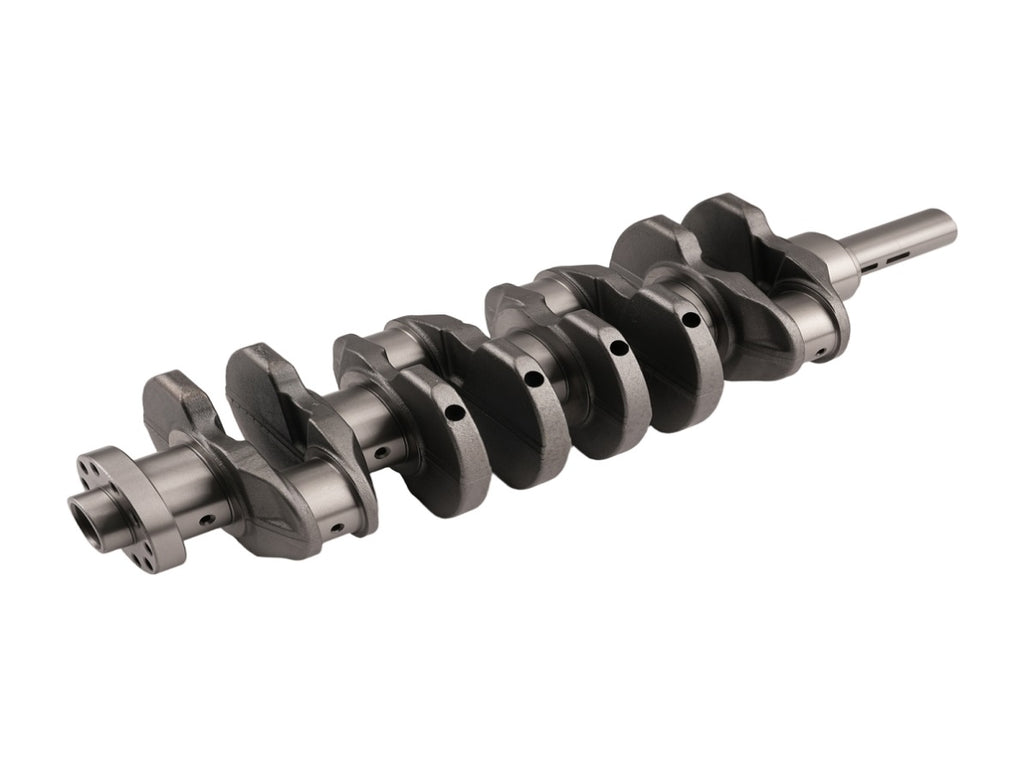

1x Crankshaft
4x Connecting Rods
1x Pistons & Rings Set
1x Main & Rod Bearings Set w/ 4pcs Thrust Washers
1x Intake & Exhaust Valve Kit
1x Timing Chain Kit w/ VVT Gear Set：

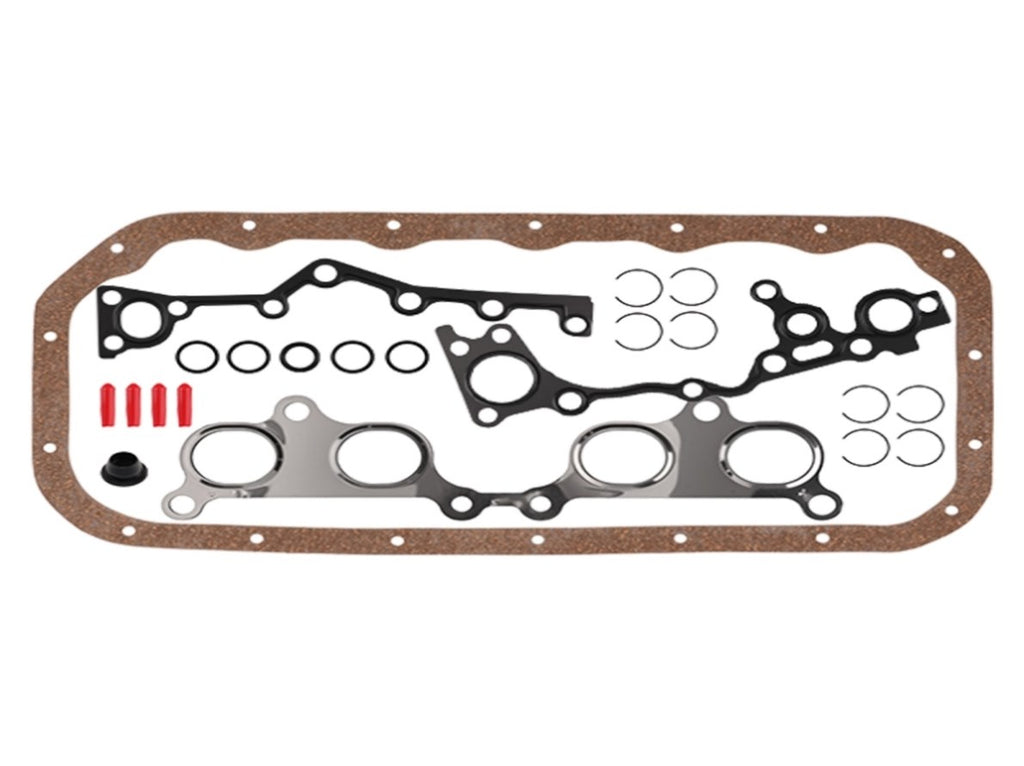

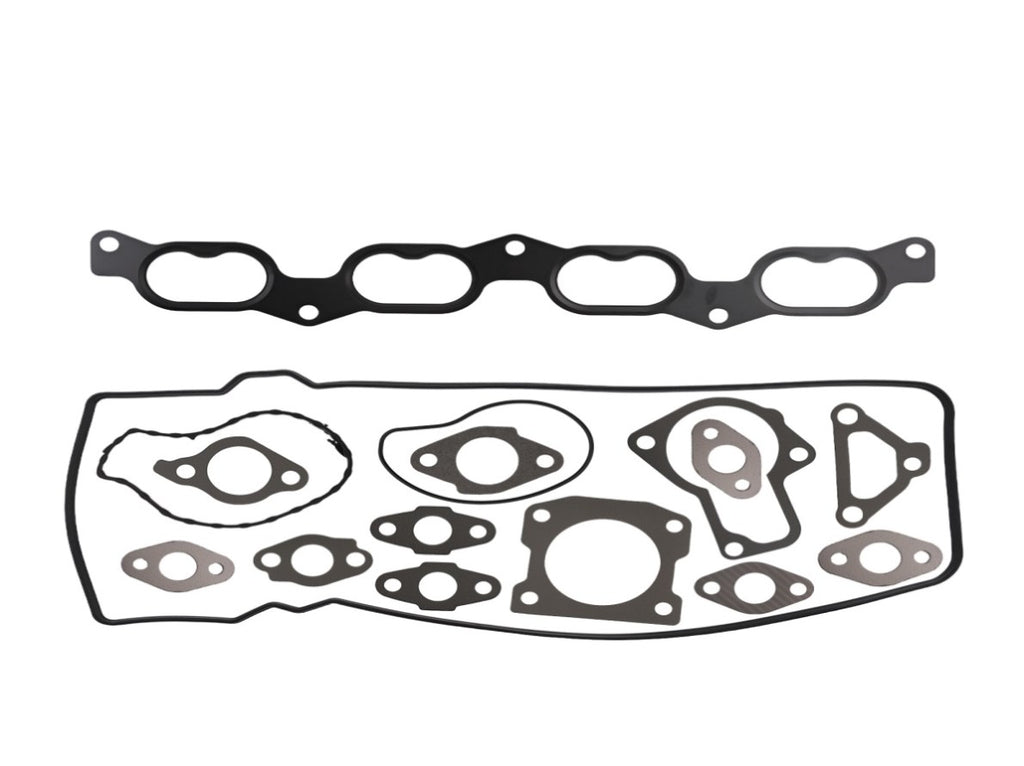

1x Head Gasket Seals & Head Bolts Set：
Conponent:
Graphite Head Gasket
Valve Cover Gasket
Valve Stem Seals
Intake Manifold Gasket
Exhaust Manifold Gasket
Front Camshaft Seal
O-rings
Other Small Gaskets
10 Cylinder Head Bolts
(Showing as the picture)
Timing Chain Kit w/ VVT Gear Set：
1 Timing Chain (106 links)
1 Cam Sprocket (36 teeth)
1 Crank Sprocket (18 teeth)
1 Guide Rail (fixed - straight)
1 Guide Rail (curved)
1 Tensioner
1 Timing Chain - balance shaft (82 links)
1 Guide Rail - balance shaft (upper rail)
1 Guide Rail - balance shaft (center left rail)
1 Guide Rail - balance shaft (lower rail)
1 Tensioner - balance shaft
Feature:
1. Built to strict quality control standards
2. High quality Metal and constructed fit for Antirust and Anticorrosion
3. High quality and durable fit for stable performance and long time use.
Note:
1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
2. No Instruction Included, professional installation is highly recommended.
