FR Adjustable Alignment Kit fit for Acura TL TSX 2009-2014 Camber Traction Toe Arms 47760174

Application:

fit for Honda Accord 2008-2012

fit for Acura TL 2009-2014

fit for Acura TSX 2009-2014

Specification:

1. Material:

1) Steel

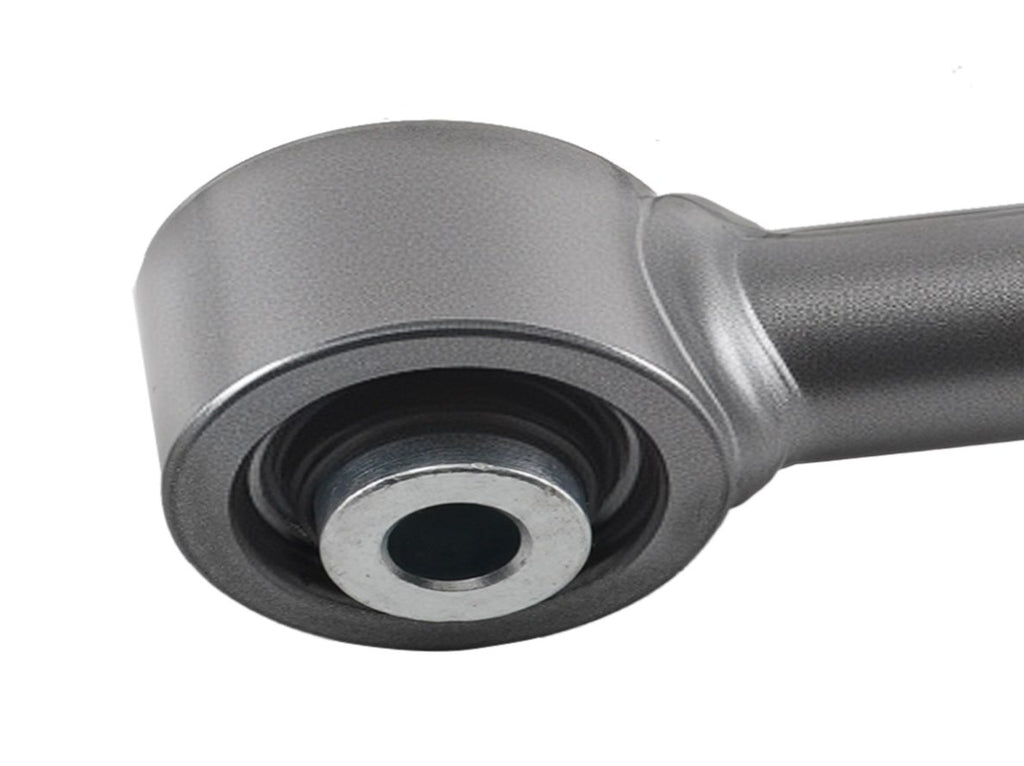

2) Spherical Bearings

2. Surface finish: Powder coated

3. Overall Length Adjustable Range:

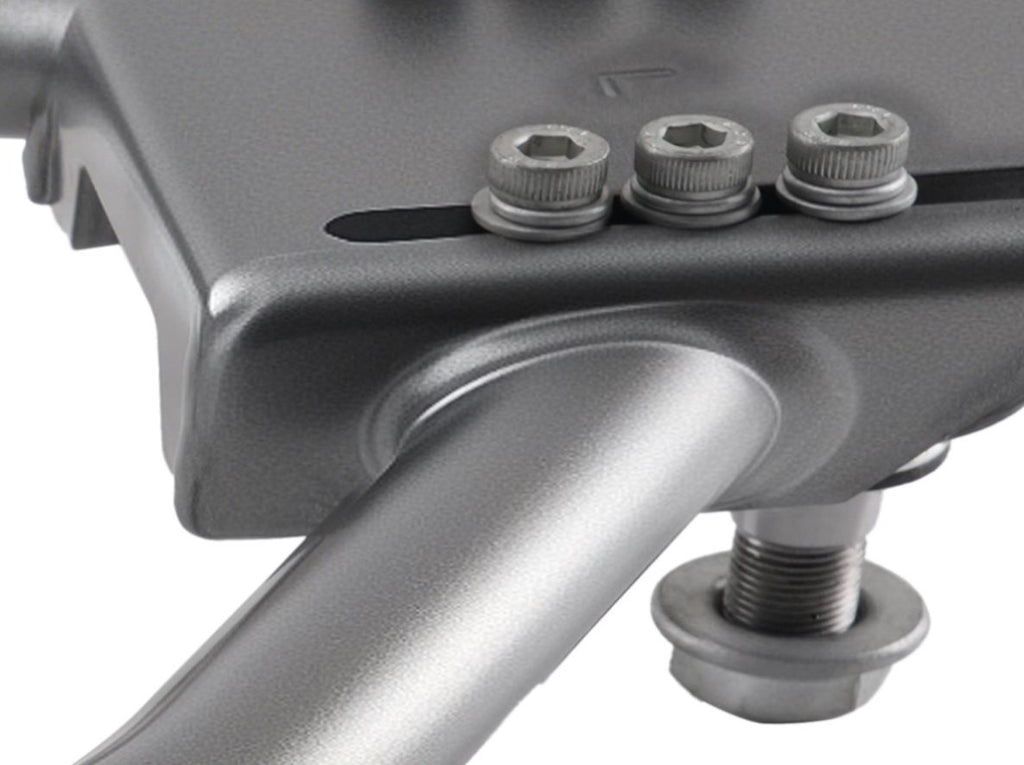

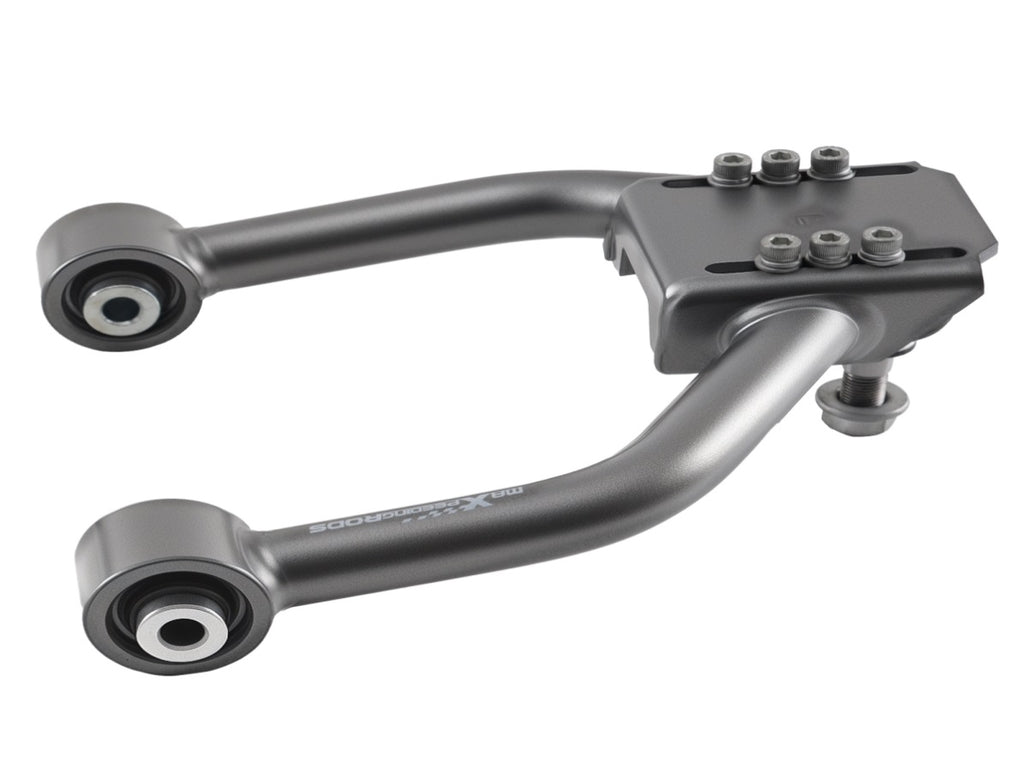

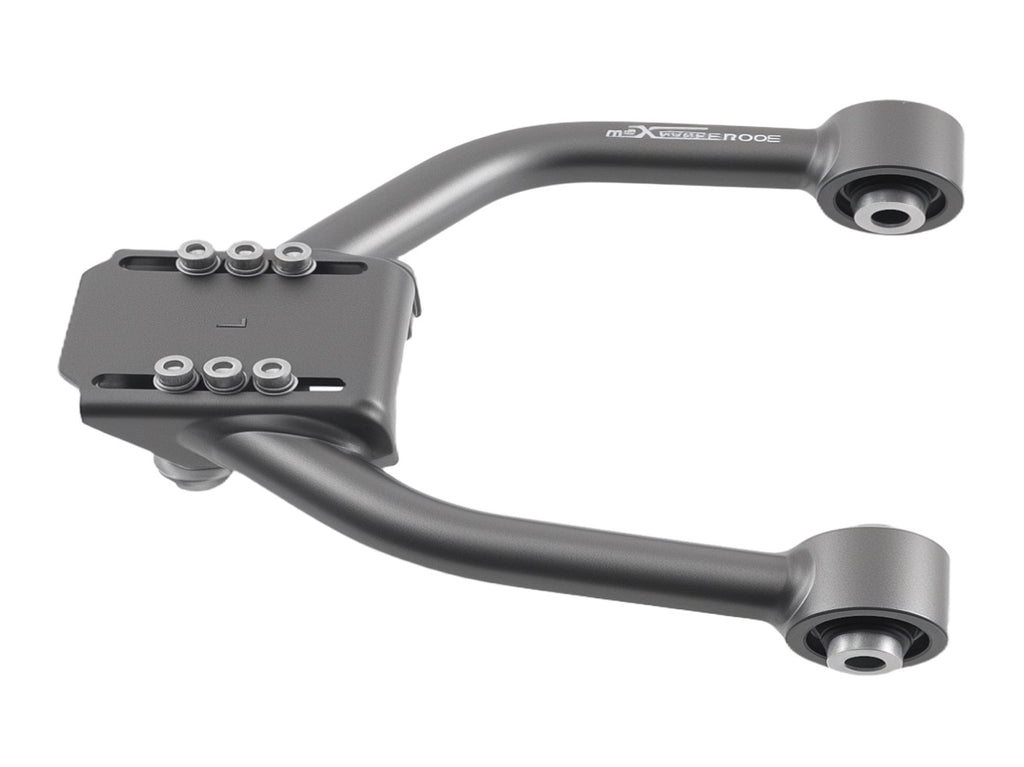

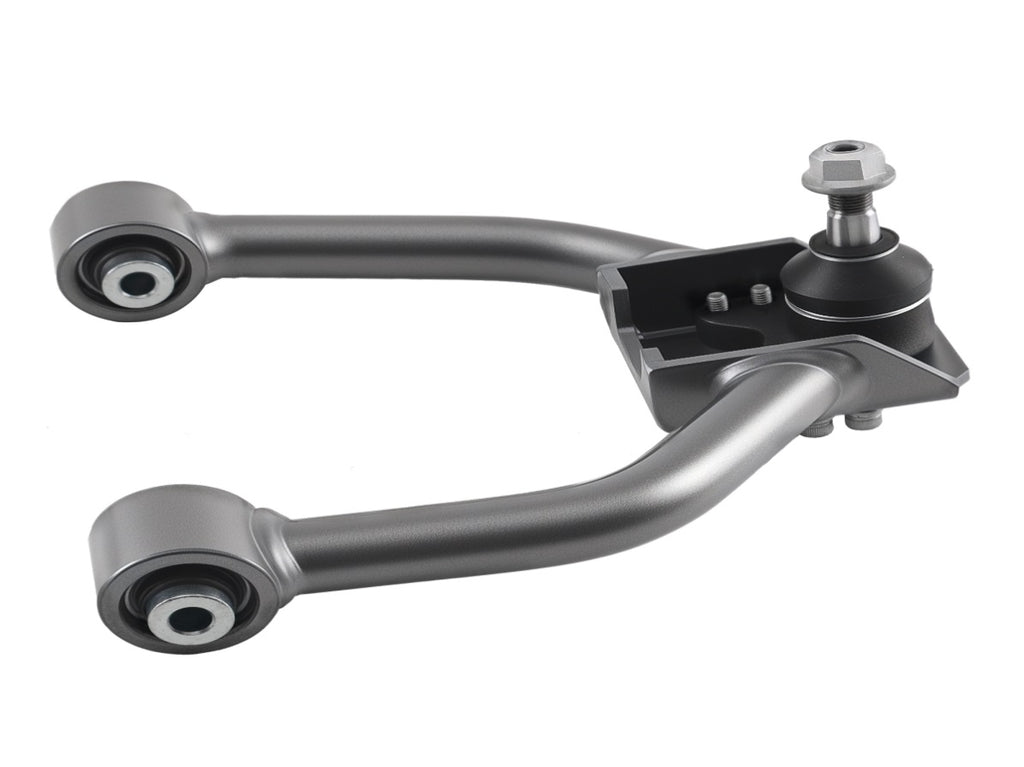

Front Upper Camber Arm: 165-220 mm / 6.5-8.7 inch

Rear Camber Arm: 456-501 mm / 18.0-19.7 inch

Rear Traction Arm: 409-439 mm / 16.1-17.3 inch

Rear Toe Arm: 275-297 mm / 10.8-11.7 inch

4. Eye-to-eye Length Range:

Front Upper Camber Arm: 145-200 mm / 5.7-7.9 inch

Rear Camber Arm: 410-455 mm / 16.1-17.9 inch

Rear Traction Arm: 370-400 mm / 14.6-15.7 inch

Rear Toe Arm: 238-260 mm / 9.4-10.2 inch

5. Front Outer Diameter & Thick Wall: 25mm/6mm

6. Rear Outer Diameter & Thick Wall: Solid

7. Camber/Toe  Adjustment: +/- 3 degrees

8. Placement on Vehicle: Front, Left, Rear, Right

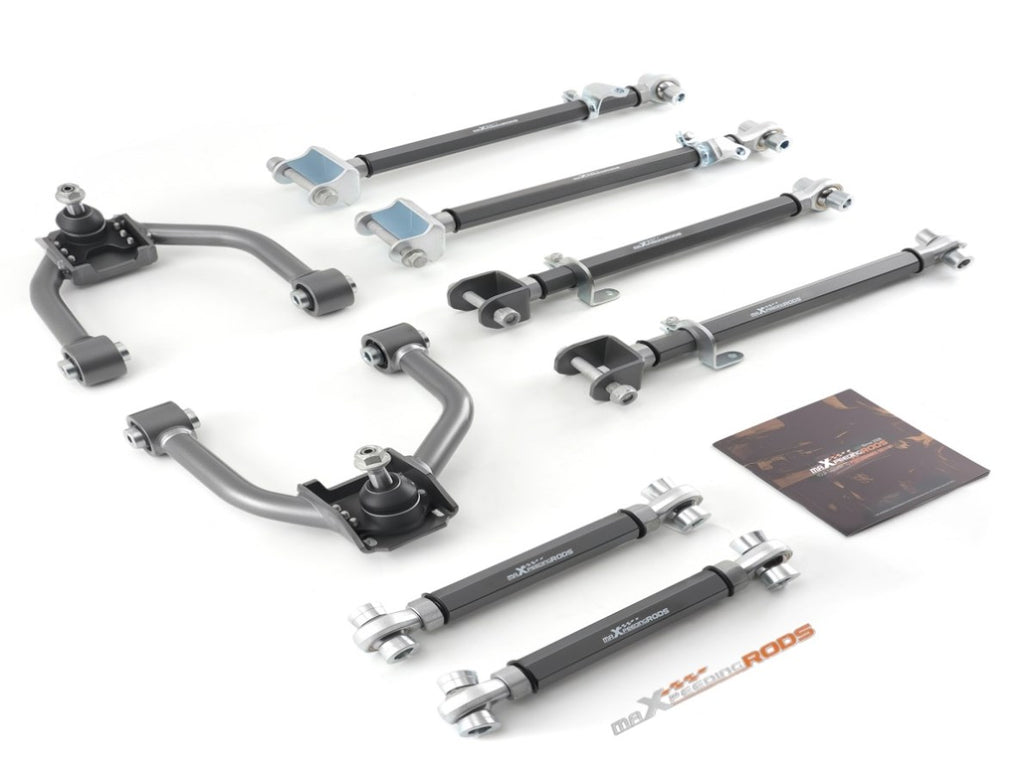

Package included:

2*Front Upper Camber Arm

2*Rear Camber Arm

2*Rear Traction Arm

2*Rear Toe Arm

Feature:

1.Made by high strength steel and durable Powder-Coated Finish, heat-resistant Spherical Bearings that are designed to withstand weather conditions.

2. Improves Suspension, Handling, Predictable Response and even Prevents Premature Tire Wearing and reduce bump steer

3.Design fit for Street, Track or Drift Racing Precise Adjustments with Long Service Life

4.Our control arms are meticulously engineered to deliver top-notch alignment, customizable ride height, and exceptional handling fit for your vehicle.
