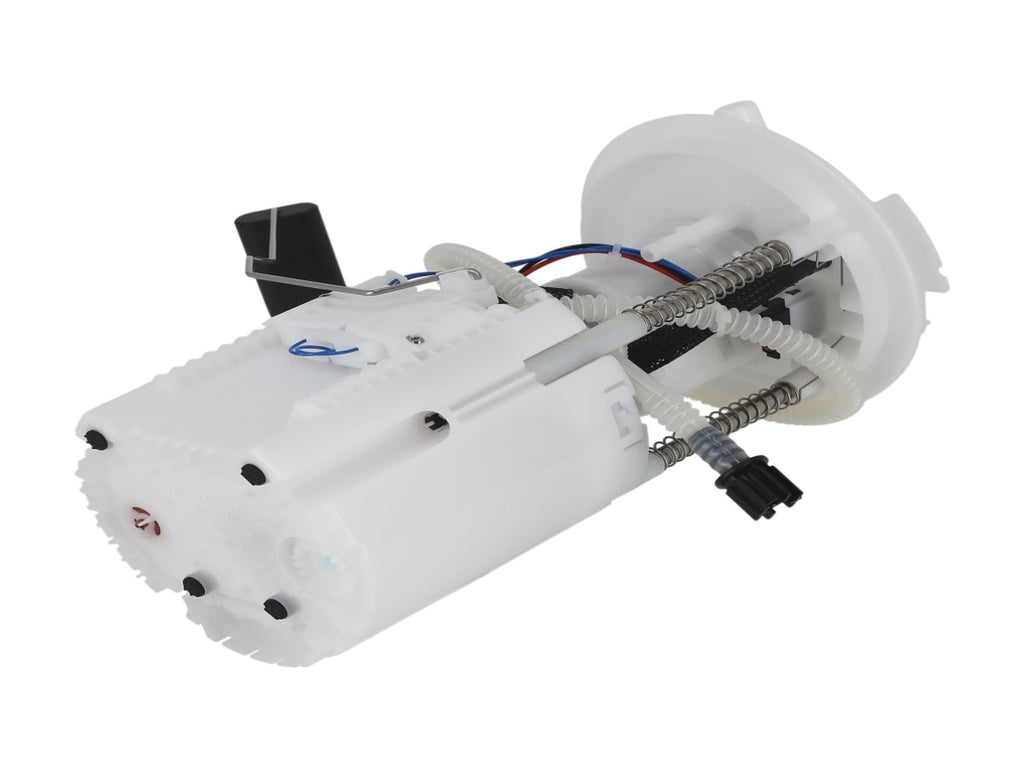

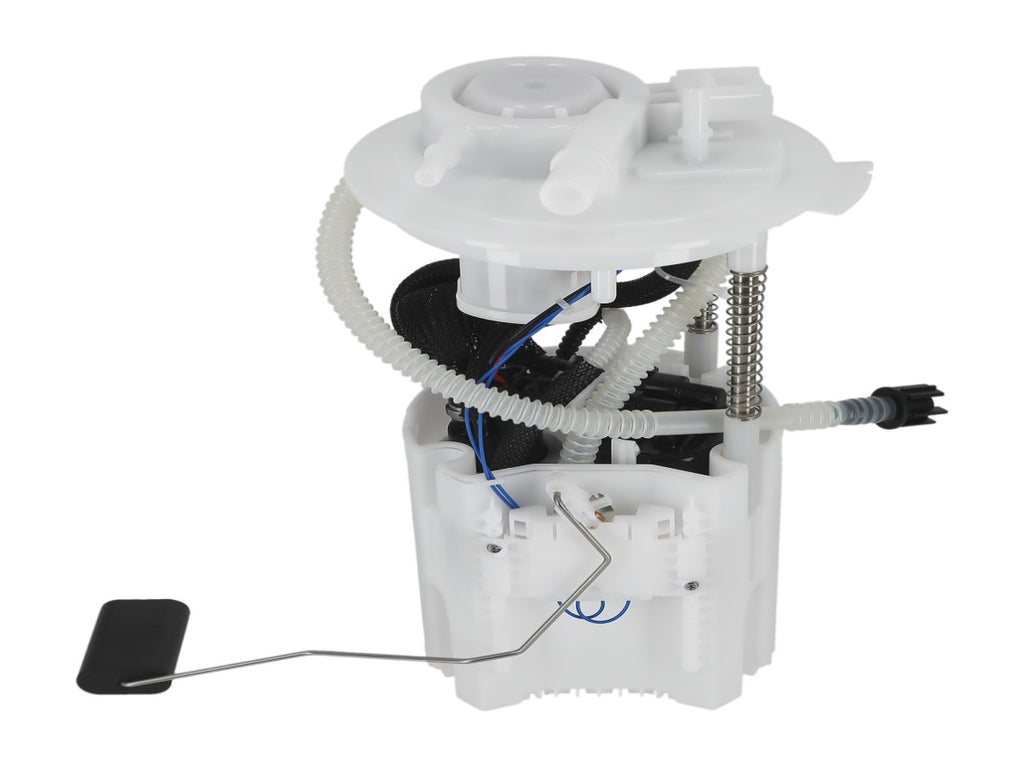

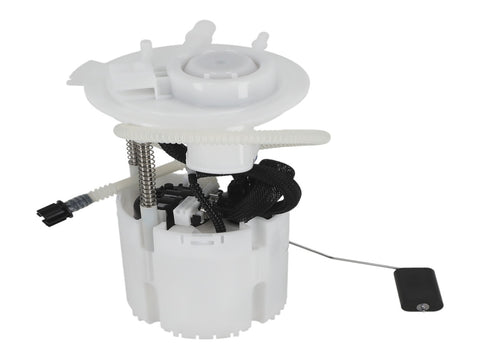

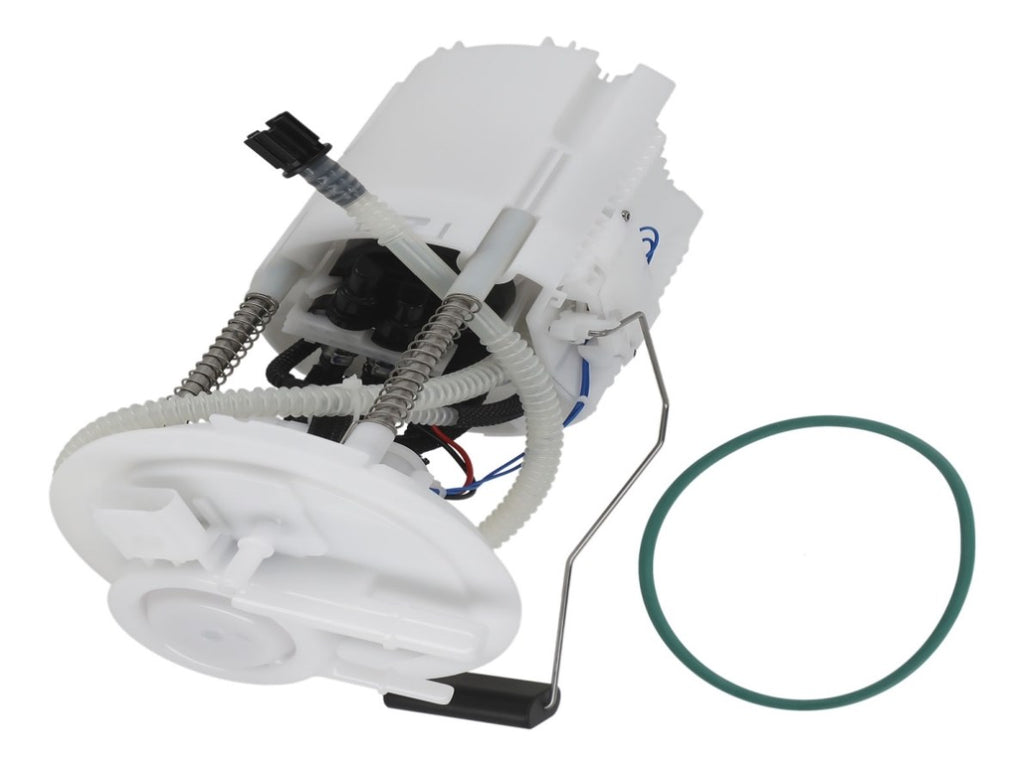

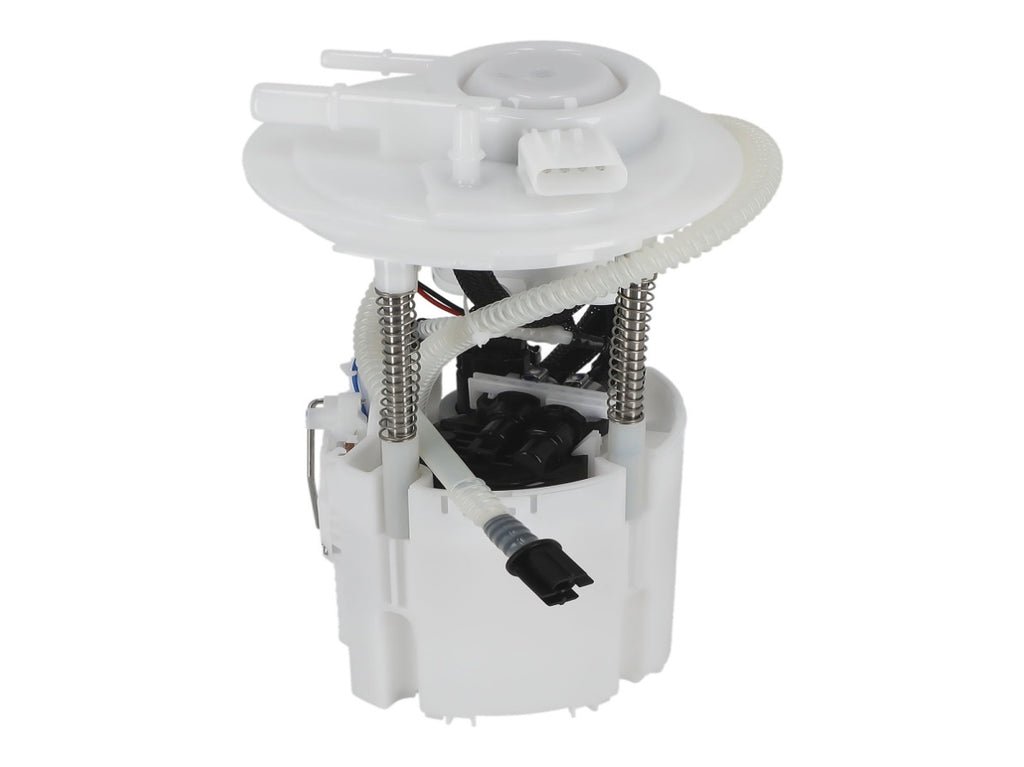

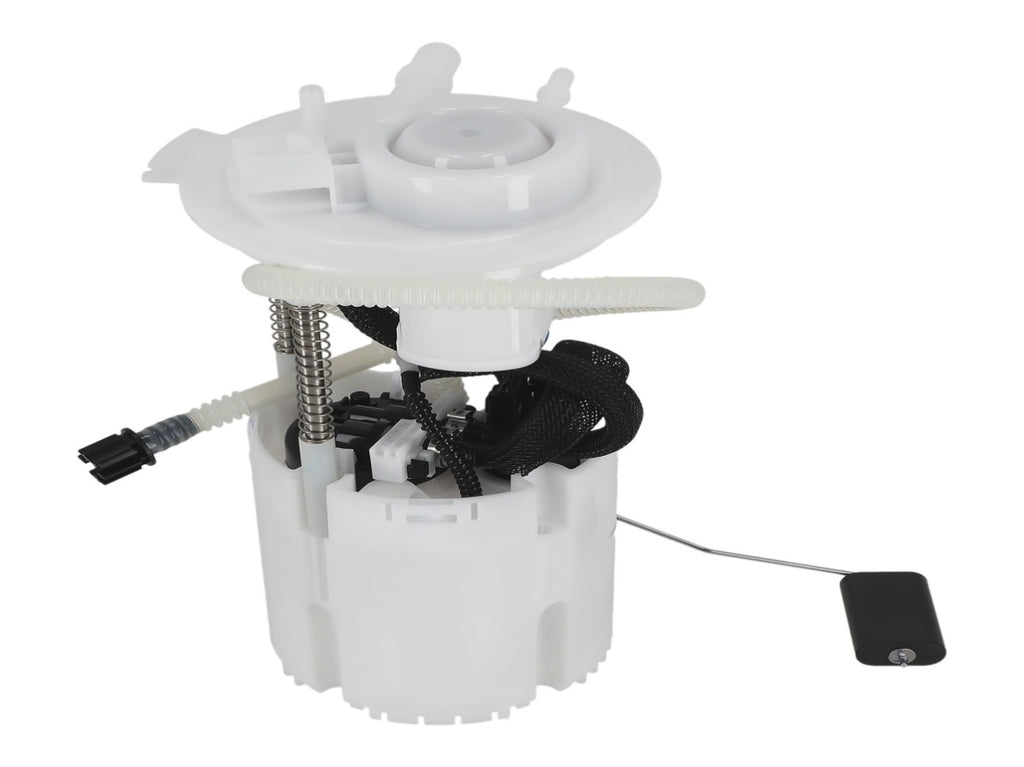

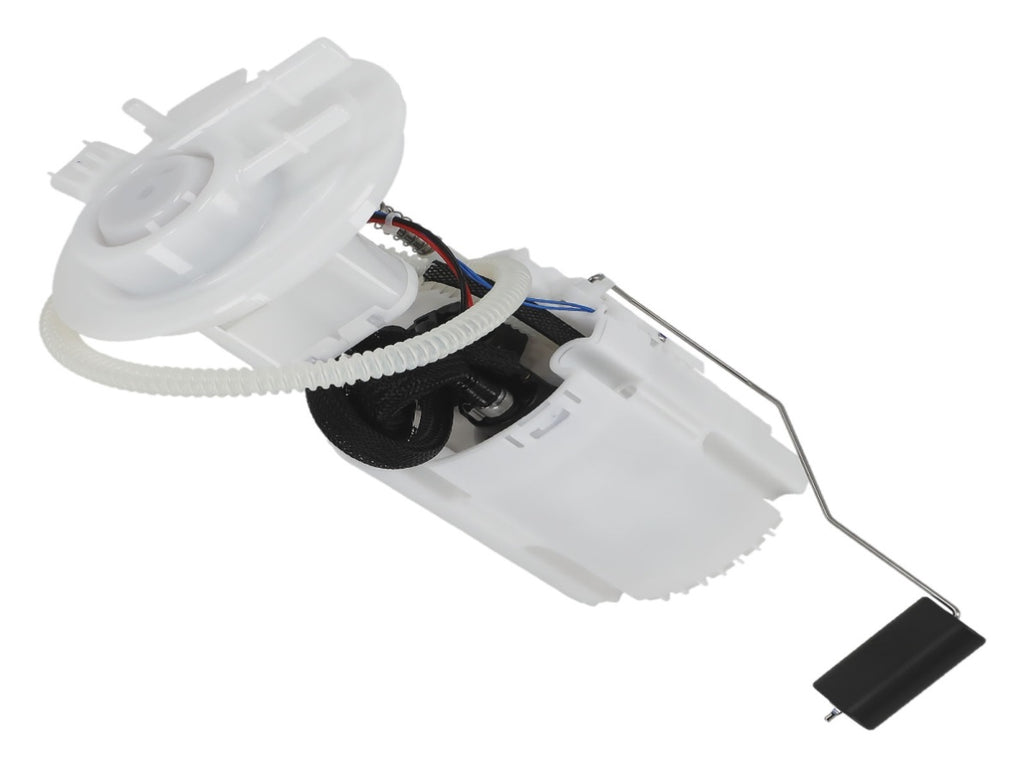

Fuel Pump Module fit for 2014-2018 Jeep Cherokee 2.4L 3.2L 68231311AB w/ Strainer 18913935

Fitment

fit for Jeep Cherokee KL 2.4L L4  2014-2018

fit for Jeep Cherokee KL 3.2L V6  2014-2015

OE/Part Number

68231311AA

68231311AB

68231311AC

A30484

E7360M

FG1863

FG1968

P77025M

SP7247M

SP7254M

Technical Data

Drive Type: Electrical
Voltage: 12V
Fuel Type:  Gasoline
Flow Rate: ≥40.95 GPH
Weight: 1.40 KG
Inlet Type: SAE J2044 2009
Inlet Quantity: 1
Outlet Type:  SAE J2044 2009
Outlet Quantity: 1
Housing Material: Plastic
Fuel Sending Unit Included:  Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included:  Yes
Seal Ring Included: Yes
Strainer Included: Yes
Connector Gender: Female
Connector Shape: Rectangle
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade

Package Included

1x Fuel Pump Module Assembly

Feature

1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
