Fuel Pump Module fit for Chevy Avalanche 5.3L V8 2008-2013 19206481 w/Level Sensor 89263506

Compatibility

fit for Cadillac Escalade ESV V8 6.2L  2009-2014
fit for Cadillac EscaladeESV  V8 6.2L 2009-2014
fit for Cadillac EscaladeEXT  V8 6.2L 2009-2013
fit for Cadillac EscaladeEXT  V8 6.2L 2009-2013
fit for Chevrolet Avalanche  V8 5.3L 2008-2013
fit for Chevrolet Suburban1500  V8 5.3L 2008-2014
fit for Chevrolet Suburban1500 V8 5.3L  2009-2013
fit for GMC YukonXL1500  V8 5.3L  2008-2014
fit for GMC YukonXL1500 V8 6.0L  2009
fit for GMC YukonXL1500  V8 6.2L  2010-2014

OE Part Number

P76699M,P76292M,FG1055,

E3797M,SP6631M,FG1055,

M100063,19206481,P76292M,

M100063,M10133,M10205,

19259394,SP6090M,

2202-496213,19206478

Technical Data

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥36.96
Pressure(MPa): 0.5
Weight(kg): 1.5581
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: POM+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: No
Fuel Pressure Sensor Included: Yes
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: Yes
Fuel Strainer Included: Yes

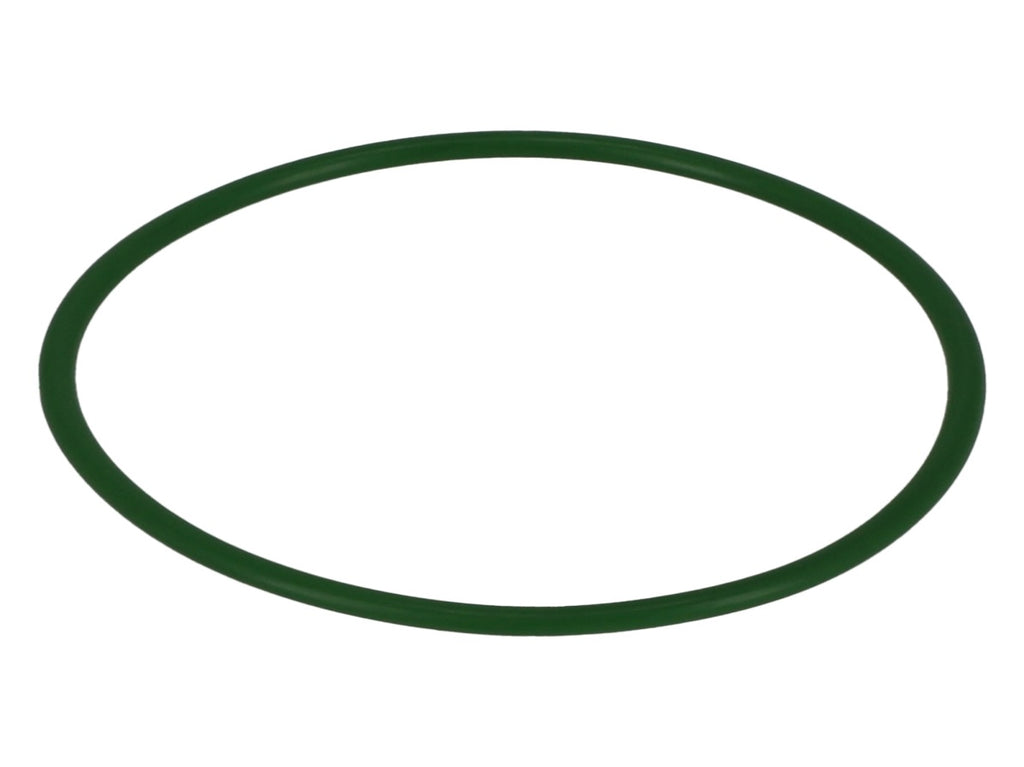

Seal Ring Included : Yes
Placement on Vehicle: Rear

Package included

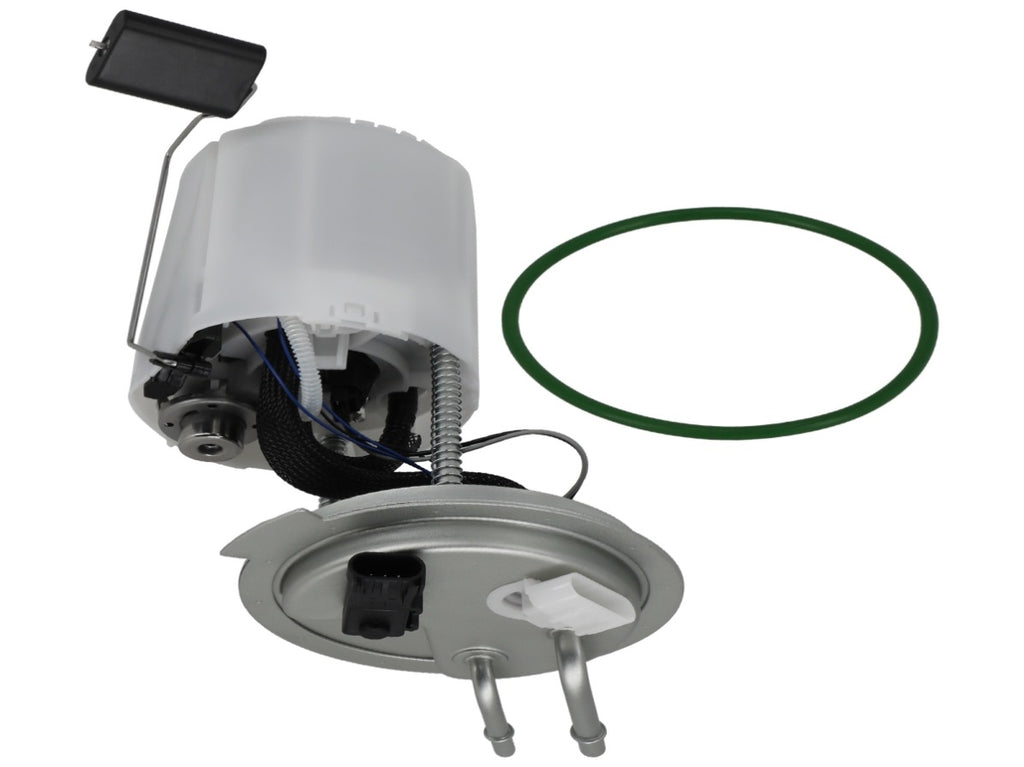

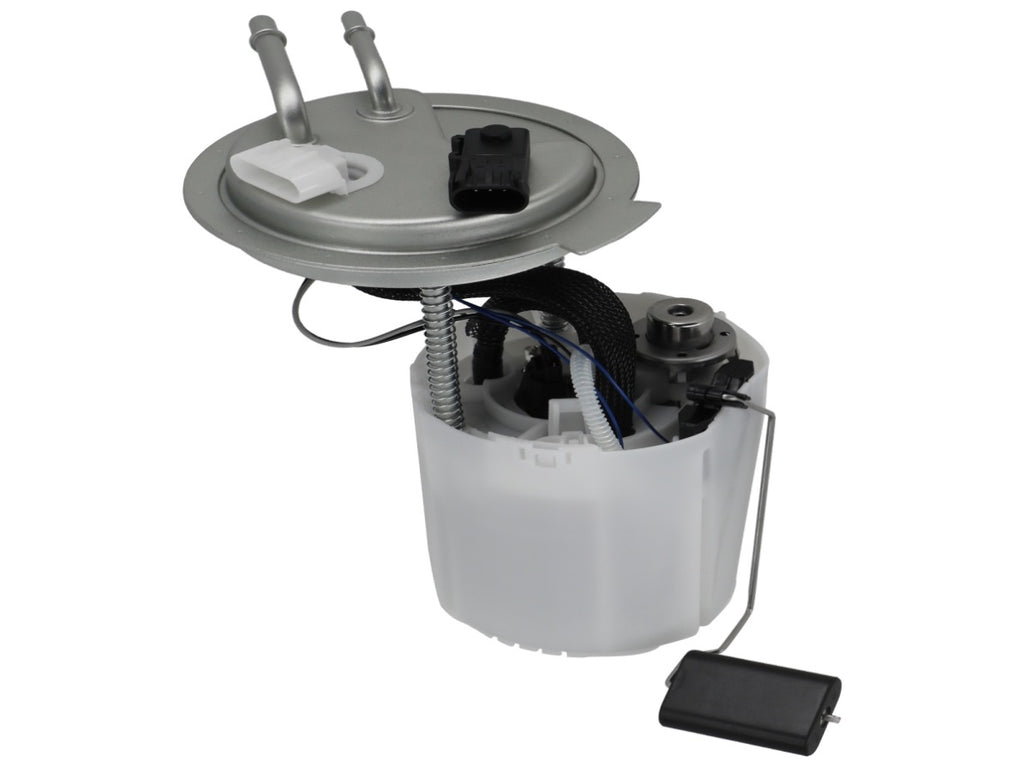

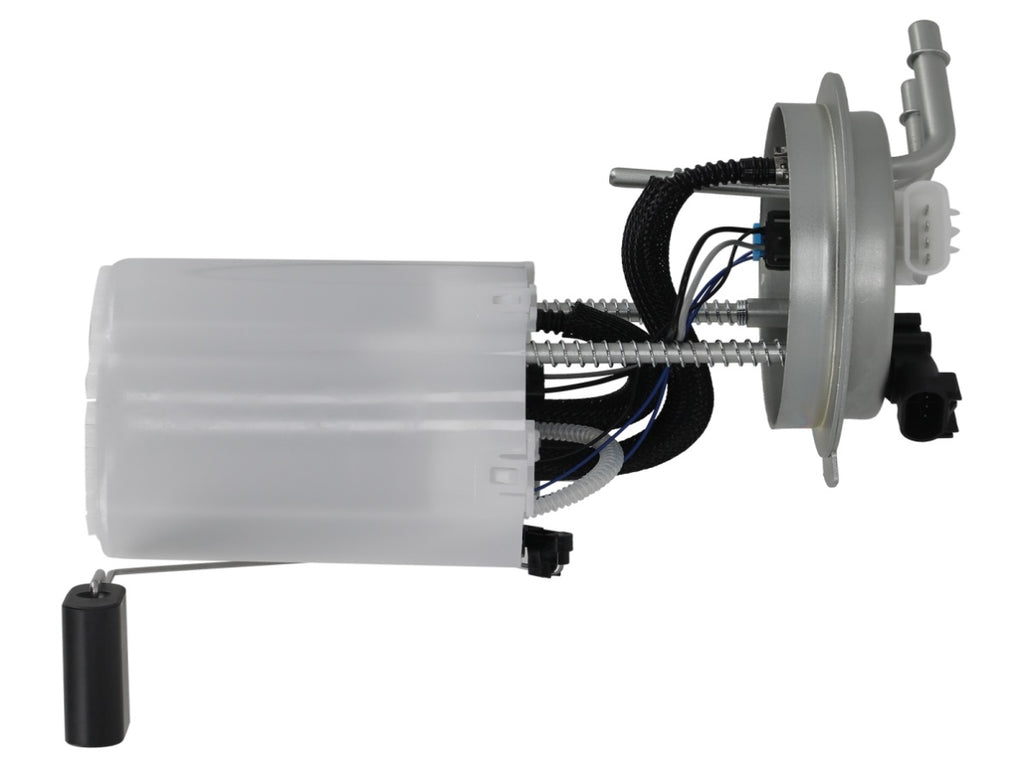

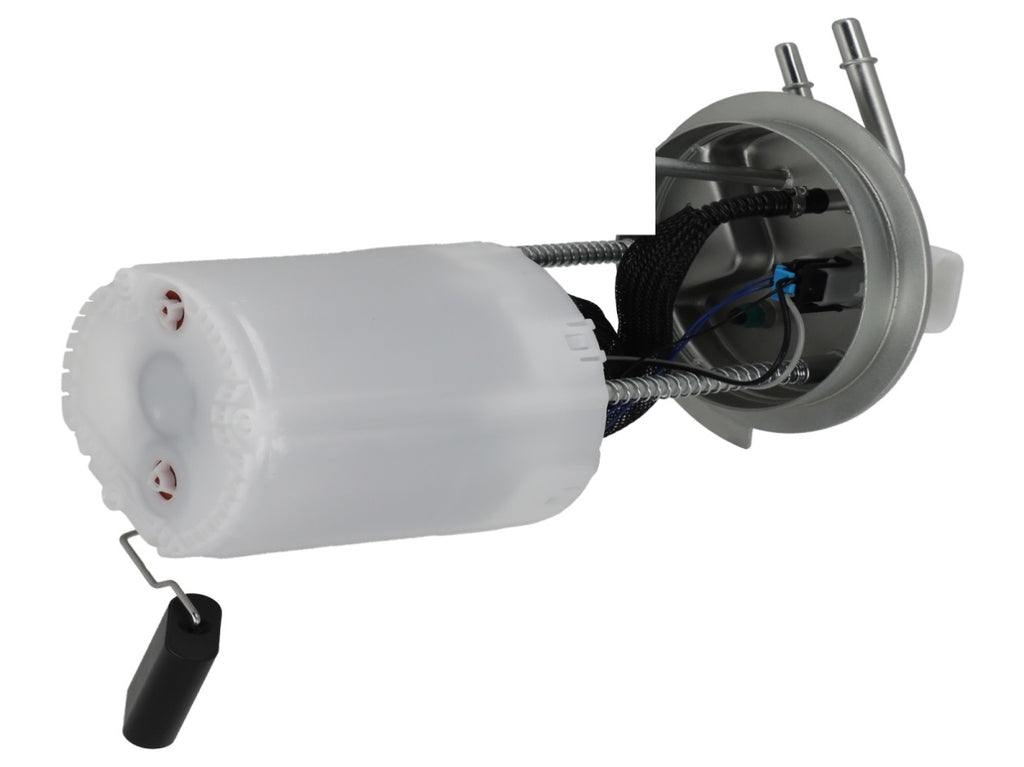

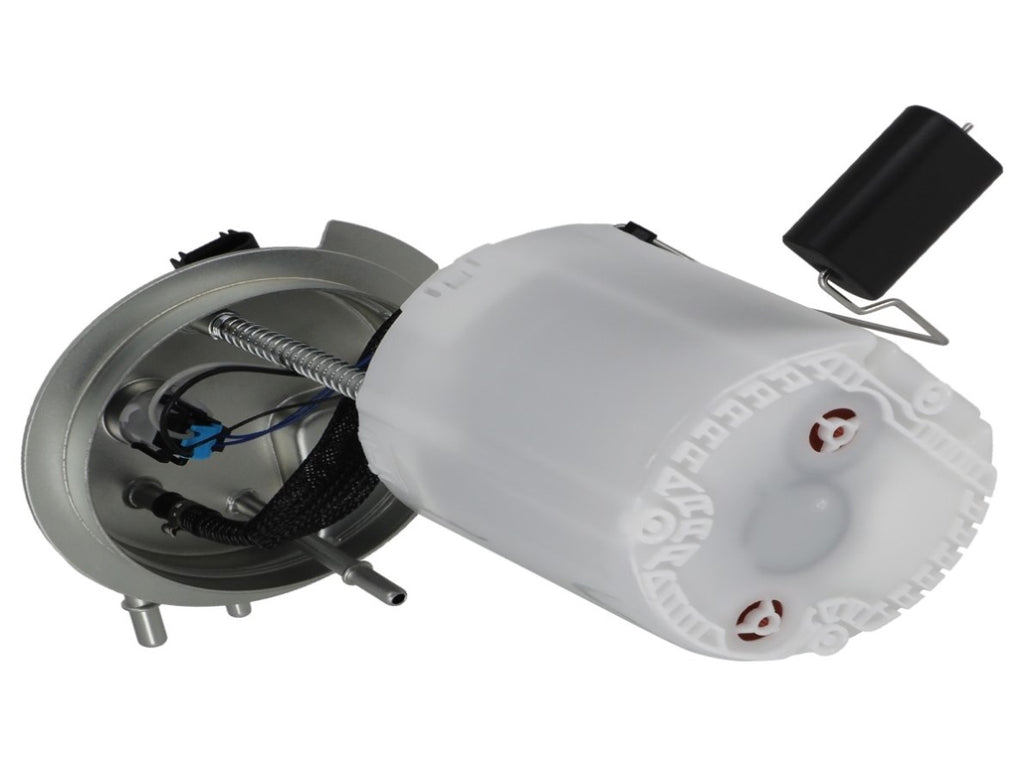

1X Fuel Pump Module Assembly

(as shown in the picture)

Feature

1.Raw Material fit for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
