Head Gasket Timing Chain Water Pump Kit fit for 07-10 Ford Edge Taurus Lincoln 3.5L 12770648

Application:

fit for Ford Edge 3.5L 2007-2010

fit for Ford Flex 3.5L 2009-2012

fit for Ford Flex 3.5L  2010-2012

fit for Ford Fusion 3.5L 2010-2012

fit for Ford Taurus 3.5L 2008-2012

fit for Ford Taurus 3.5L  2010-2012

fit for Ford Taurus X 3.5L  2008-2009

fit for Lincoln MKZ 3.5L  2007-2012

fit for Mazda CX-9 3.5L  2007-2007



OE/Part number:

HS26437PT, ES71320,7T4Z-6K254-BA,AT4Z-6K297-A, AT4Z-6K297-B,AT4Z-6306-A, 7T4Z-6256-A, 7T4Z-6268-CA, AT4Z-6268-C



Specification:

Item Type:Head Gasket

Condition: New

Placement on Vehicle: Front

Fitment Type: Direct Replacement

Material: Multiple Layers Steel (MLS) Head Gasket

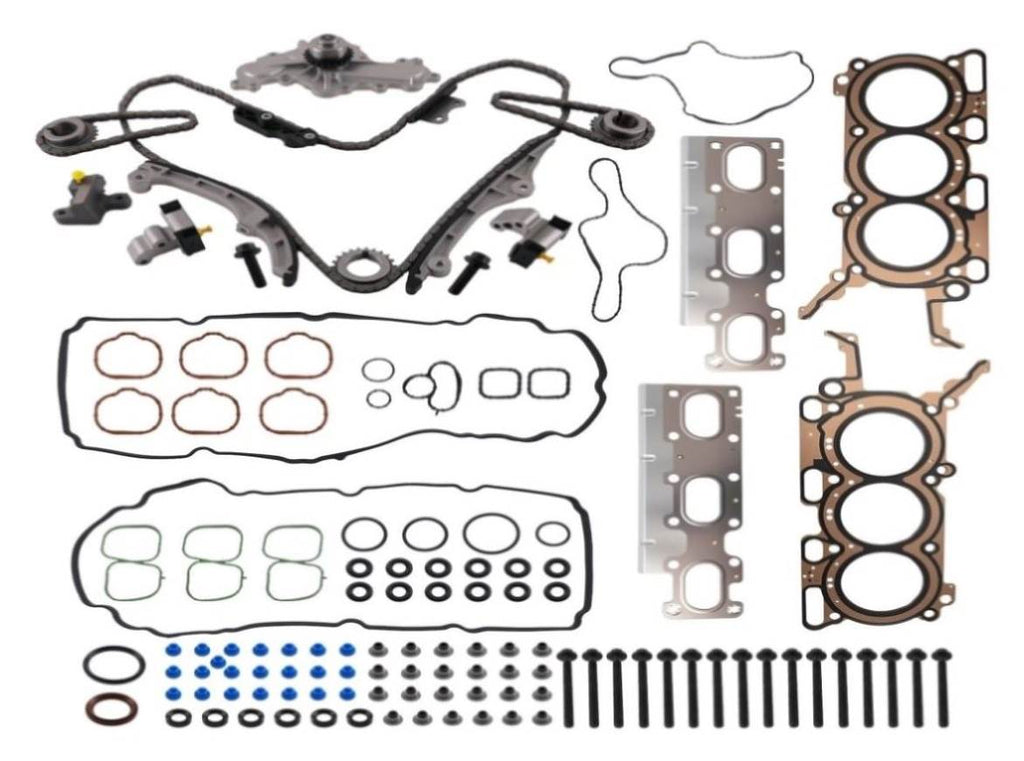

Package included:

Gasket Set







Multiple Layers Steel (MLS) Head Gasket



Valve Cover Gasket



Valve Stem Seals



Intake Manifold Gasket



Exhaust Manifold Gasket



Front Camshaft Seal



O-rings



Other Small Gaskets



RTV Silicone



16 Cylinder Head Bolts

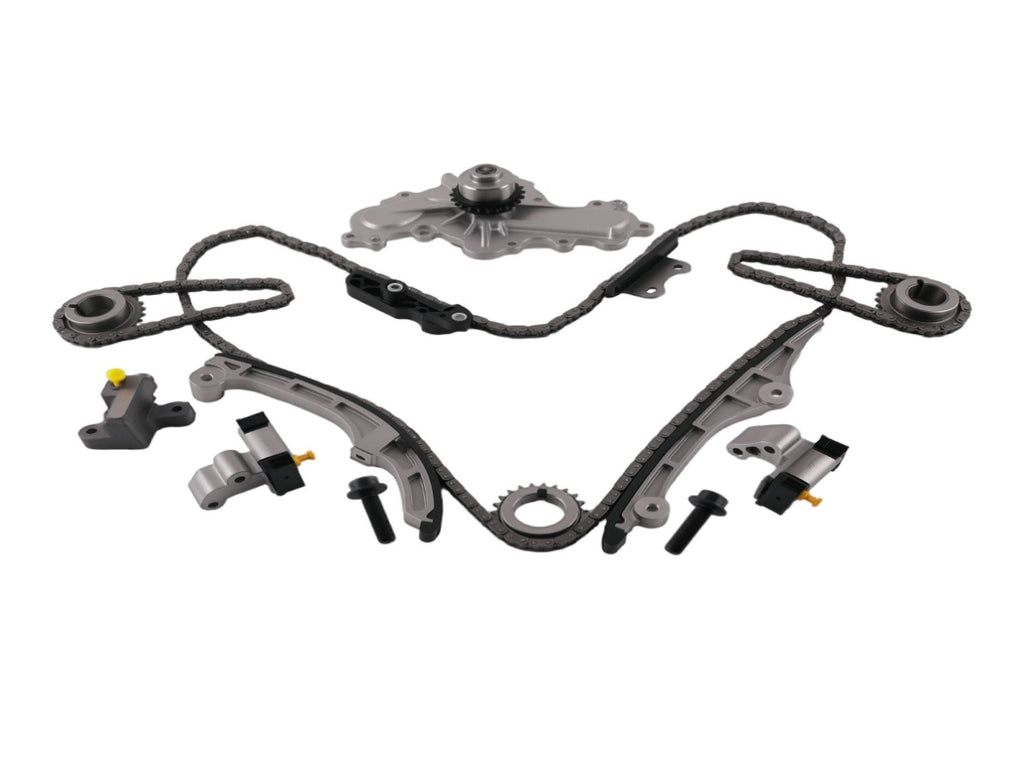

Timing chain kit







1 Timing Chain (primary lower 202 links)



1 Timing Chain upper (cam to cam 2 req)



1 Tensioner primary (lower tensioner)



1 Tensioner right (RH upper chain tensioner)



1 Tensioner left (LH upper chain tensioner)

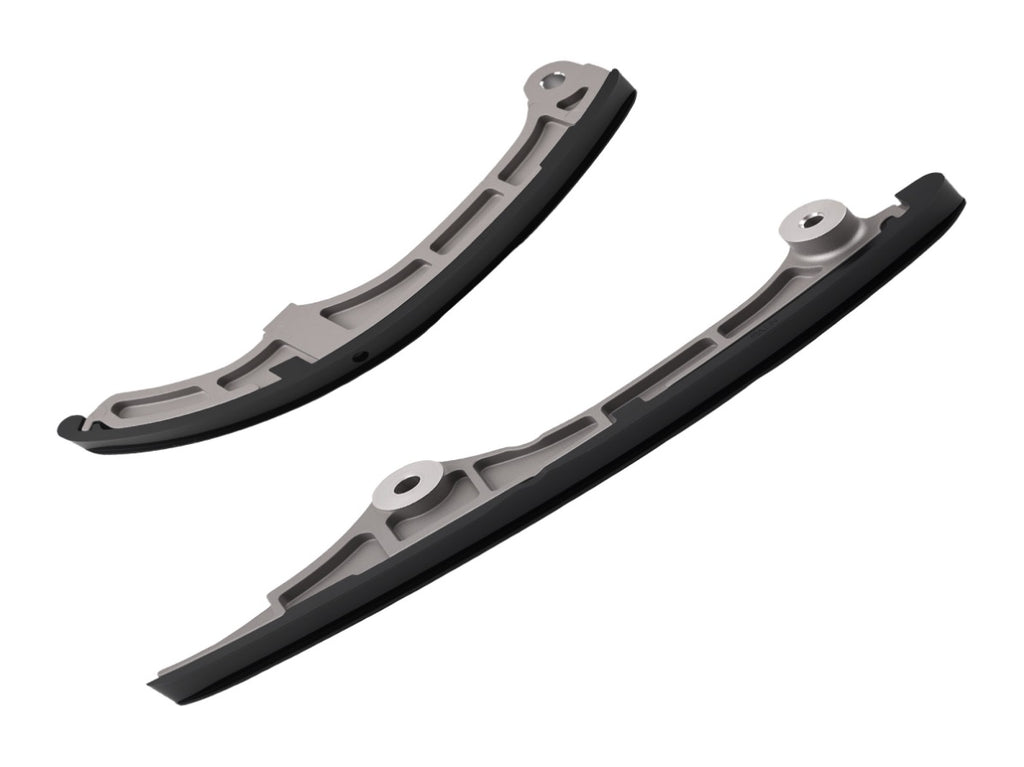

1 Guide Rail righ (fixed short rail)



1 Guide Rail left (fixed short rail)



1 Guide Rail right (tensioner rail)



1 Guide Rail lef (fixed long rail)



1 Cam Sprocket intake (right actuator) - not included



1 Cam Sprocket intake (left, except Taurus) - not included

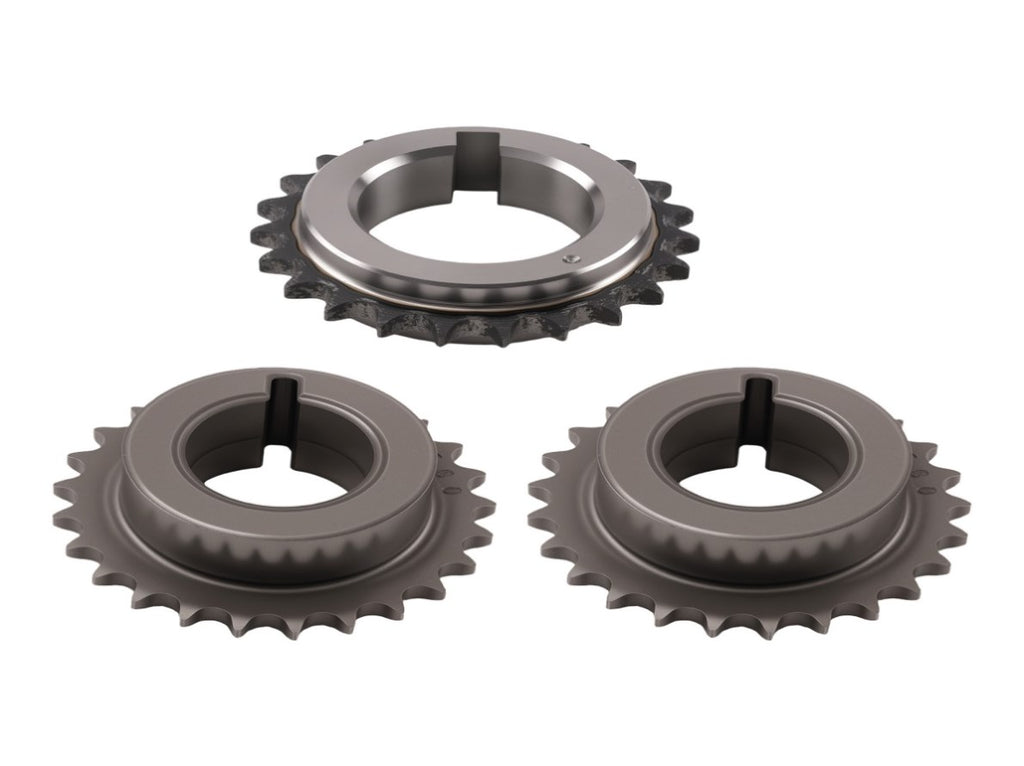

2 Cam Sprocket exhaust (25 teeth 2 req.)



1 Crank Sprocket (23 teeth)

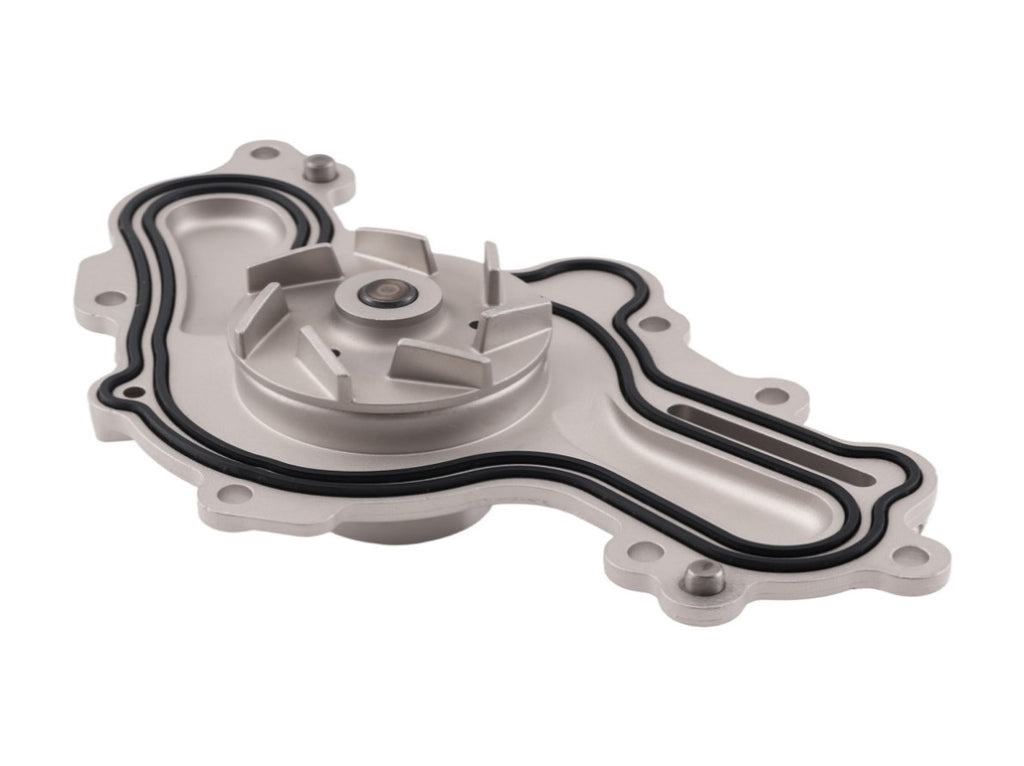

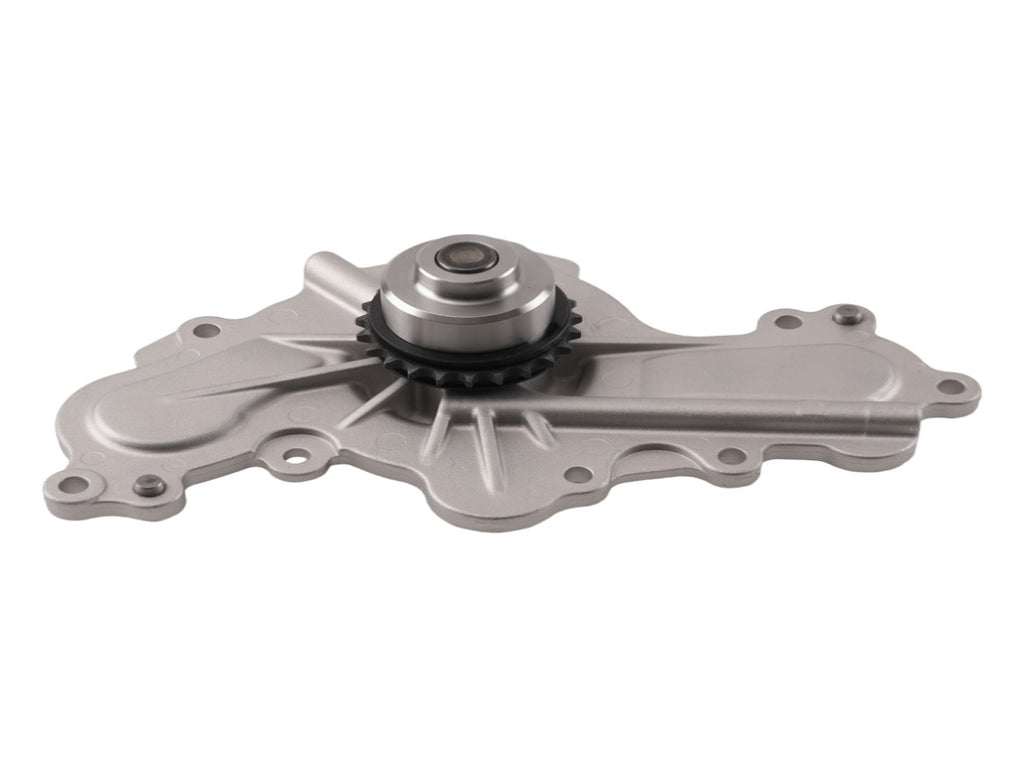

1 Water Pump w/ Gasket



As pictures shown



Feature:

1.High quality Metal and constructed fit for Anti-rust and Anti-corrosion.

2.Fully tested under extreme condition fit for stable performance and long time use.

3.High quality Metal and rubber material fit for high wear resistance and heat resistance.

4.Engineered and manufactured specifically fit for aftermarket repairs.



Note:

1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.

2. No Instruction Included, professional installation is highly recommended.
