Intercooler / Charge Air Cooler fit for Chevrolet Cruze 2016 2017 2018 2019 39116550 83301894

Application:

fit for Chevrolet Cruze LT 1.4L L4 2016
fit for Chevrolet Cruze Premier 1.4L L4 2017-2019
fit for Chevrolet Cruze Premier LT LS L 1.4L L4 2016-2019

Part Number:

13356681, 39116550, 18088, 96140, GM3012110

Specification:

Type: Turbo Intercooler
Color: Silver
Material: Aluminum, Plastic
Engine Type: Turbocharged
Core Size: 23.62" x 4.25" x 3.15"
Core Length (IN): 23.62
Core Height (IN): 4.25
Core Thickness (IN): 3.15
Inlet Diameter (IN): 2.2
Outlet Diameter (IN): 2.2
Placement on Vehicle: Front
Condition: 100% Brand New
Warranty: 2 Years fit for any manufacture defects

Features:

1. Helps to reduce the intake air temperature of the engine.
2. Rugged aluminum core ensures durability while providing excellent heat transfer performance.
3. Compact tube and fin structure ensures better air flow and larger surfaces fit for increased heat exchange and improved heat dissipation efficiency.
4. Plastic tank is equipped with reinforced inner crossbars, reinforced inlets and outlets, and specially designed side panels to resist the stresses caused by high temperatures and mechanical tension.
5. Perfect fit and easy installation.

Installation Notes:

1. Align the installation holes with the fixed positions and use standard bolts fit for fastening.
2. When connecting the inlet and outlet ports with the engine hoses, they should be tight and there should be no air leakage.
3. Fix the pipelines and pipelines, and complete the installation.
Attention: During the installation of the intercooler, please do not damage the diffuser (fin) and damage the intercooler to ensure the heat dissipation capacity and sealing.

Package Includes:

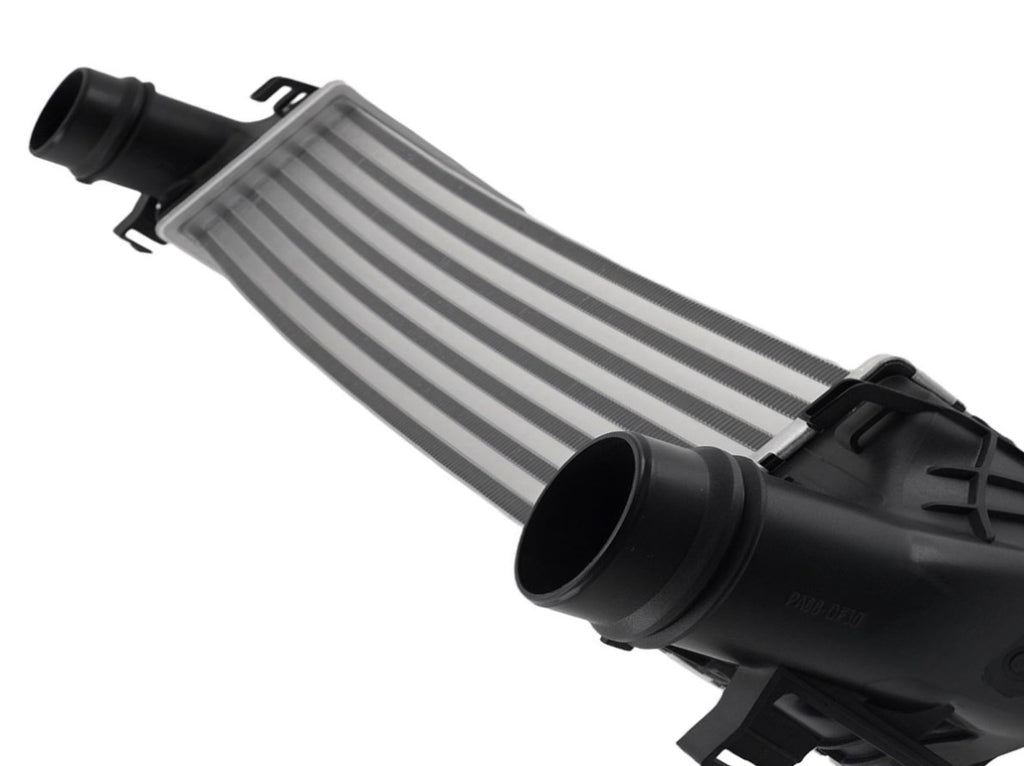

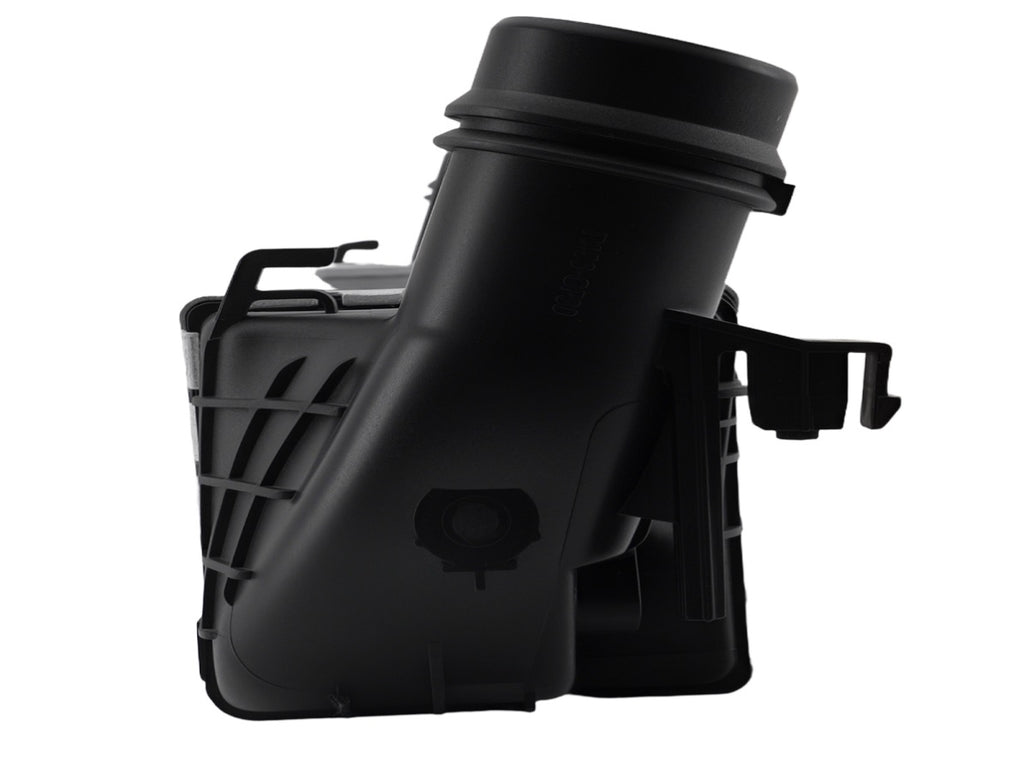

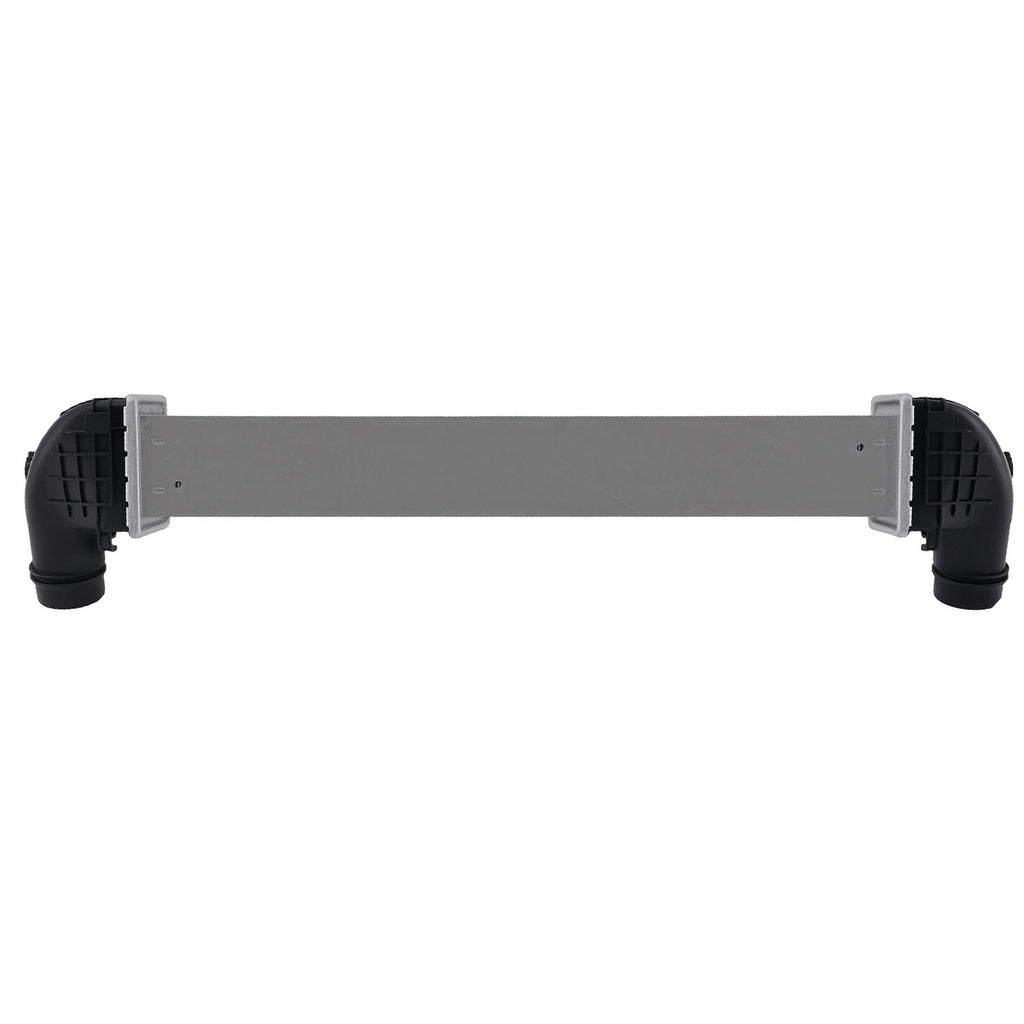

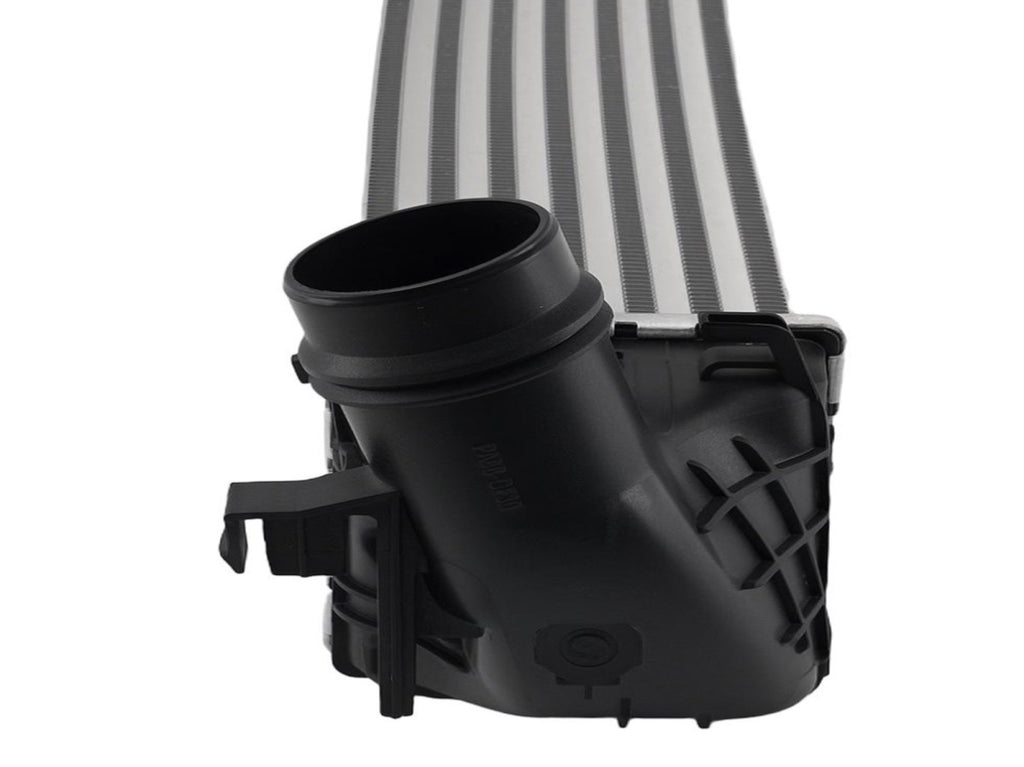

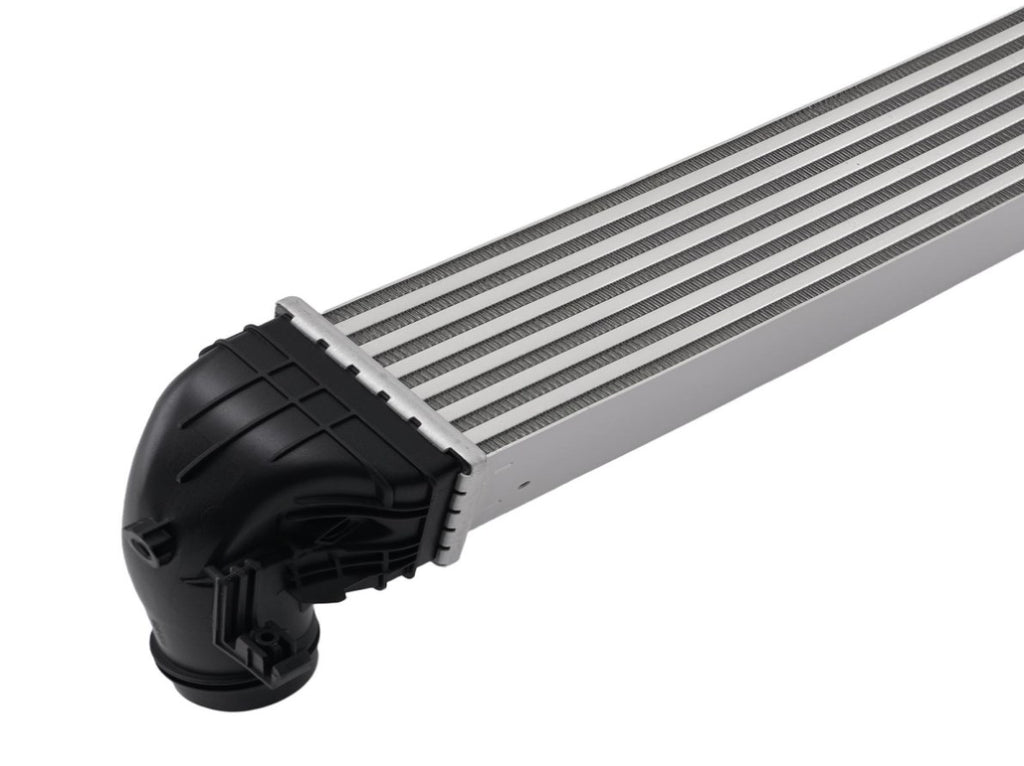

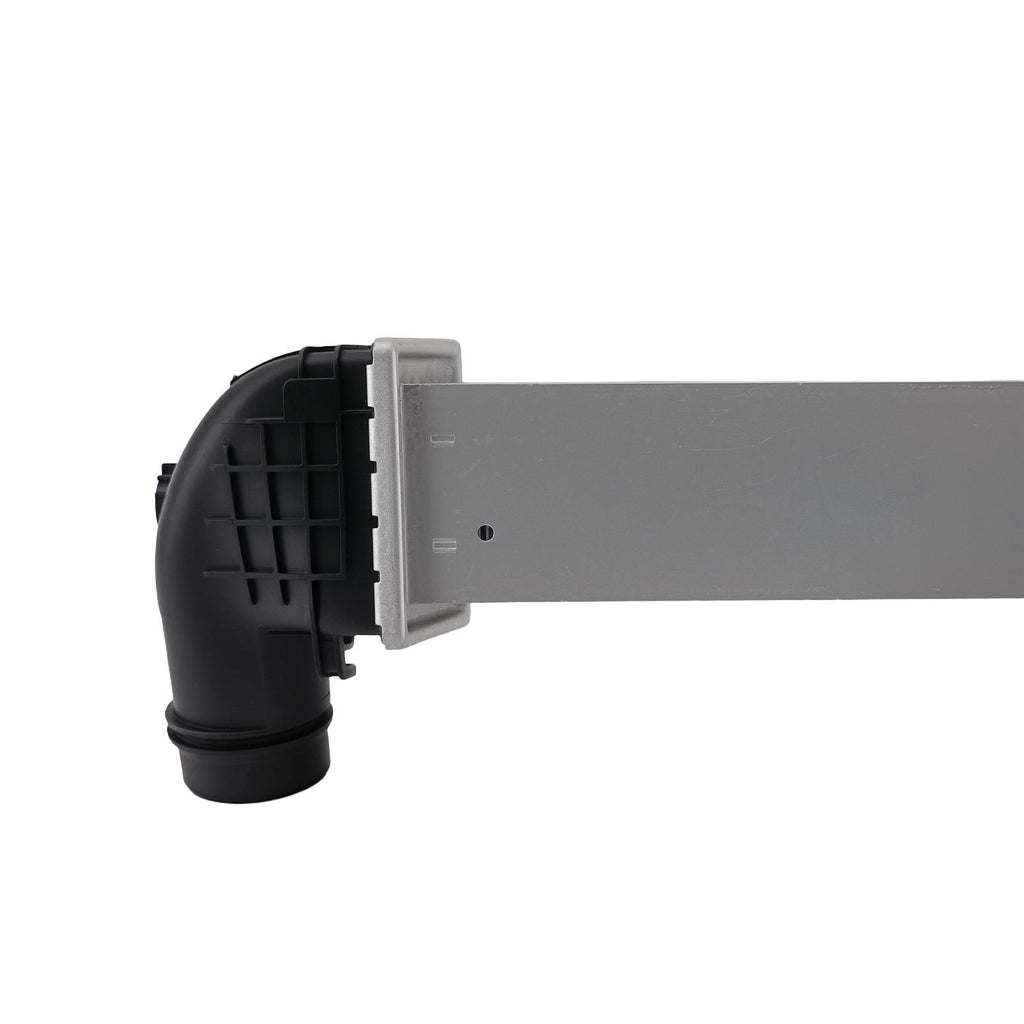

1 x Intercooler (Showing as the picture)

Notes:

* Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
* No Instruction Included, professional installation is highly recommended.
