P80000S 12V Fuel Pump Assemby Gasoline fit for GMC C1500 C2500 C3500 HP10000 44896366
Application
fit for Chevy C1500 V8 7.4L 1990-1993
fit for Chevy C1500 V8 5.7L 1988-1995
fit for Chevy C1500 V8 5.0L 1988-1995
fit for Chevy C1500 V6 4.3L 1988-1995
fit for Chevy C2500 V8 7.4L 1991-1993
fit for Chevy C2500 V8 5.7L 1988-1995
fit for Chevy C2500 V8 5.0L 1988-1995
fit for Chevy C2500 V6 4.3L 1988-1995
fit for Chevy C3500 V8 7.4L 1988-1993
fit for Chevy C3500 V8 5.7L 1988-1995
fit for Chevy K1500 V8 5.7L 1988-1995
fit for Chevy K1500 V8 5.0L 1988-1995
fit for Chevy K1500 V6 4.3L 1988-1995
fit for Chevy K2500 V8 7.4L 1991-1993
fit for Chevy K2500 V8 5.7L 1988-1995
fit for Chevy K2500 V8 5.0L1988-1995
fit for Chevy K2500 V6 4.3L 1988-1995
fit for Chevy K3500 V8 7.4L 1988-1993
fit for Chevy K3500 V8 5.7L 1988-1995
fit for GMC C1500 V8 5.7L 1988-1995
fit for GMC C1500 V8 5.0L 1988-1995
fit for GMC C1500 V6 4.3L 1988-1995
fit for GMC C2500 V8 7.4L 1991-1993
fit for GMC C2500 V8 5.7L 1988-1995
fit for GMC C2500 V8 5.0L 1988-1995
fit for GMC C2500 V6 4.3L 1988-1995
fit for GMC C3500 V8 7.4L 1988-1993
OE/Part number
E3621S,FLS1015,HP10000,P80000S,SP01A1HA,66300A,P80000S-7
402P3621S,19111396,25028499,25028611,SP9031M,66300
HP10022,HP10025,P1607H,E3902,25028499,25168719
Specification
Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥21.12
Pressure(MPa): 0.08
Weight(kg): 0.7964
Inlet Type: Threaded
Inlet Quantity: 1
Outlet Type: Threaded
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes

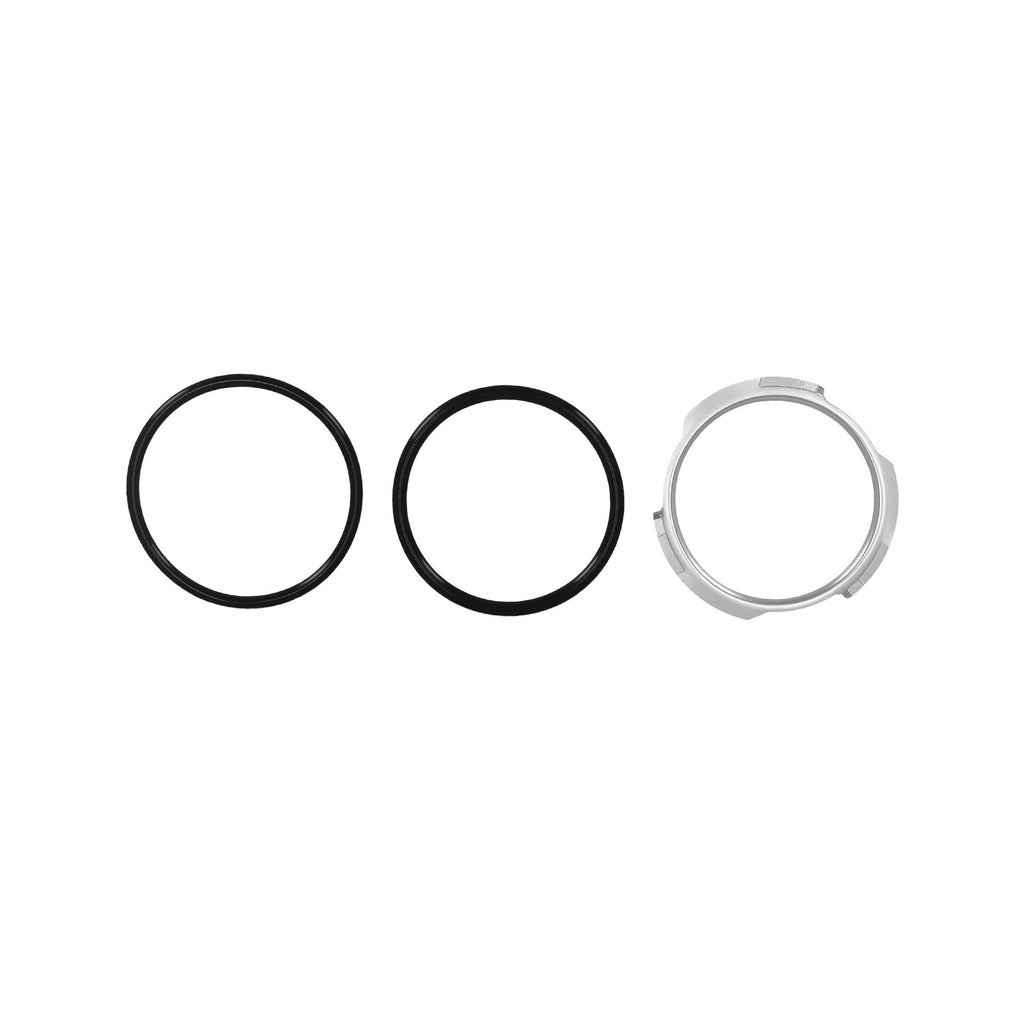

Seal Ring Included : Yes
Placement on Vehicle: Rear
Package included

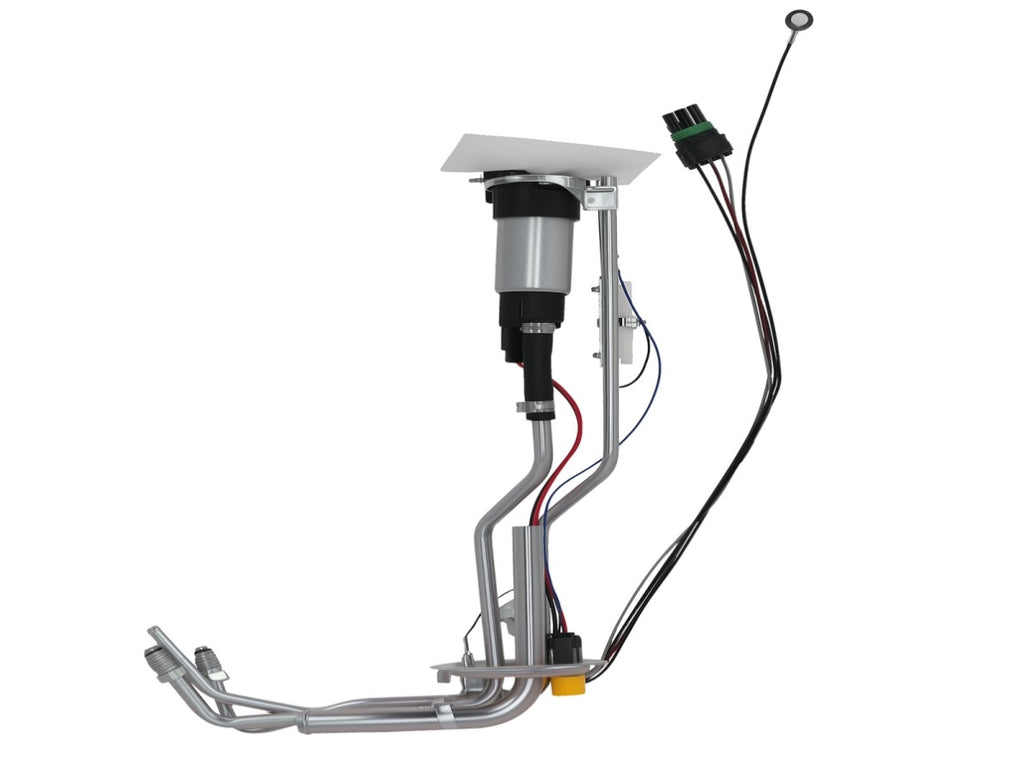

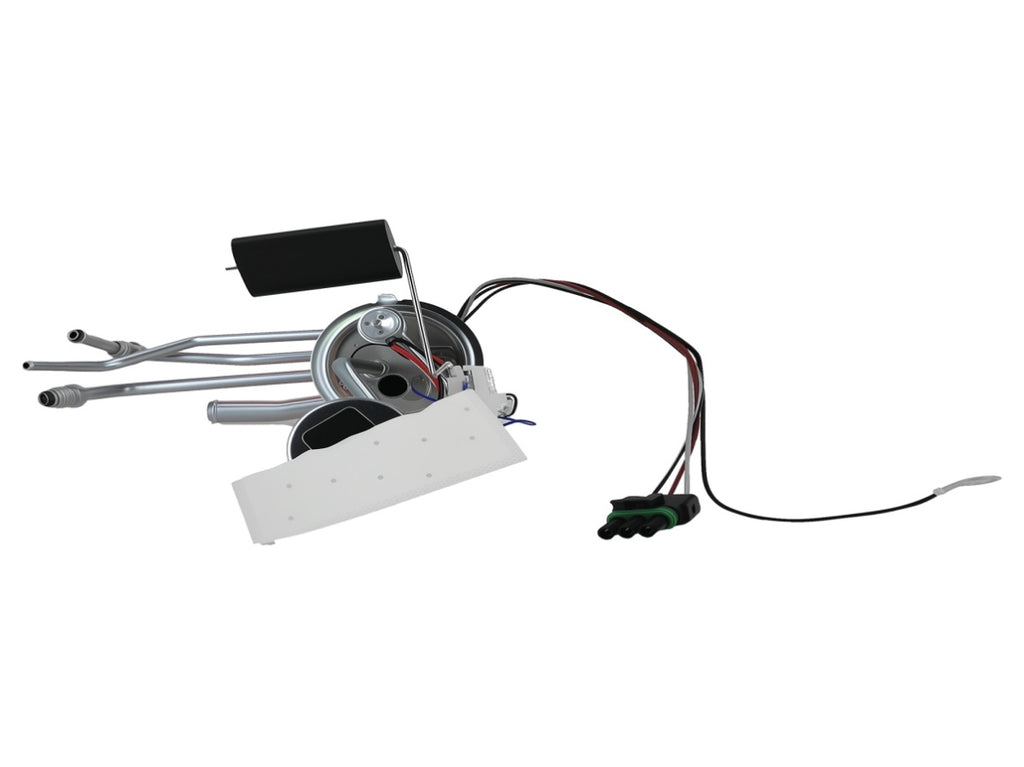

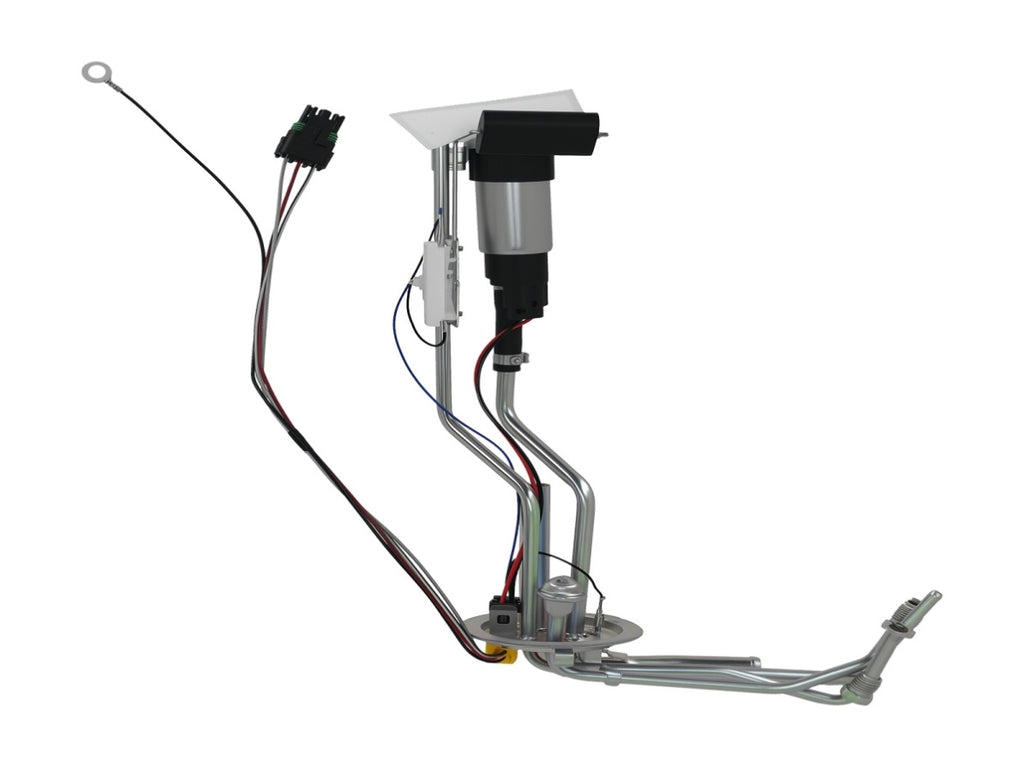

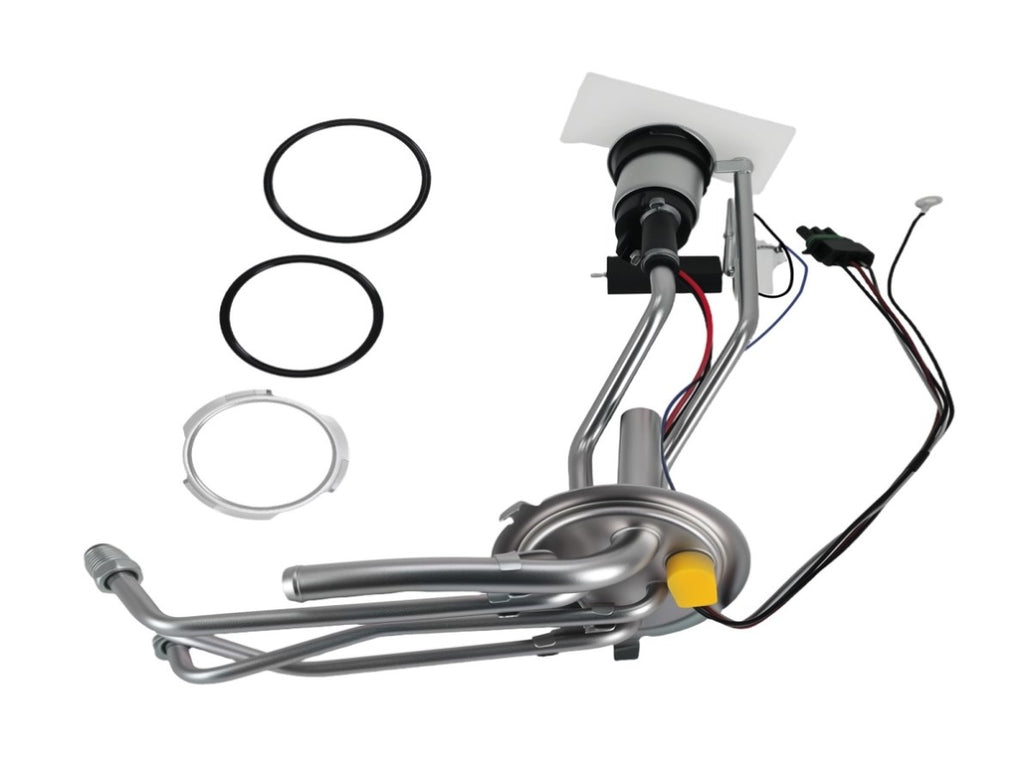

1X Fuel Pump Module Assembly (as shown in the picture)
Feature
1.Raw Material fit for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test
Notice:
1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
