Piston Cylinder Gasket Top End Kit 12-19 fit for Honda TRX500 Foreman 12100-HR0-F00 41912221

Application:
fit for Honda TRX500 Foreman 500 2012-2019
​fit for Honda TRX500 Foreman Rubicon 500 2012-2019
​fit for Honda TRX500 FM/FE/FPE/FPM Fourtrax Foreman 500 4x4 2012-2019
fit for Honda TRX500 FA/FM Foreman Rubicon 500 4x4 2015-2019
​​fit for Honda SXS500M2 Pioneer 500 2015-2020

​​​​​​Replacement Part Number:
Cylinder: 12100-HR0-F00
Piston: 13101-HR0-F00
Cylinder Base Gasket: 12191-HR0-F01
Cylinder Head Gasket: 12251-HR0-F01
Cylinder Head Cover Gasket: 12315-HR0-F01
Ring Set: 13010-HP0-A01
Piston Pin: 13111-HP5-600
Circlips, Piston: 13112-MAT-000
​​12100-HR0-F00, 13101-HR0-F00, 12191-HR0-F01, 12251-HR0-F01
12315-HR0-F01, 13010-HP0-A01, 13111-HP5-600, 13112-MAT-000
12100HR0F00, 13101HR0F00, 12191HR0F01, 12251HR0F01
​12315HR0F01, 13010HP0A01, 13111HP5600, 13112MAT000

​​​​​​Specification:
Type: Cylinder Piston Kit
Material：Aluminum
Cylinder Displacement: 475cc
Bore Size: 91mm
Piston Height：55.1 mm
Cylinder Height: 120.5 mm
Cylinder Length: 167.3 mm

Feature:
* Heavy duty aluminum construction.
* If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, the Cylinder Piston Kit is exactly the right choice fit for you.
* The Piston is anodized fit for superior heat resistance and longer life.
* These gaskets are made of performance materials to increase durability and provide greater reliability.
* Cylinder Displacement 475cc

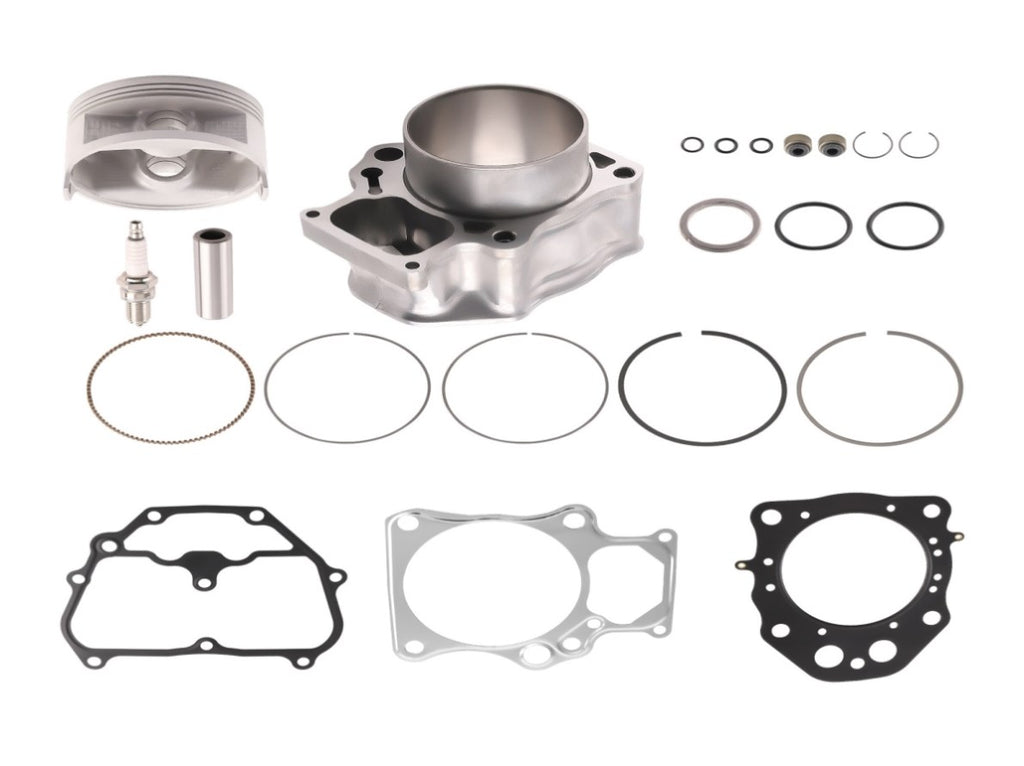

Package includes:
1x Cylinder

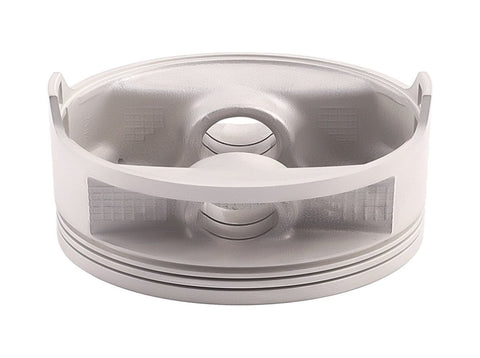

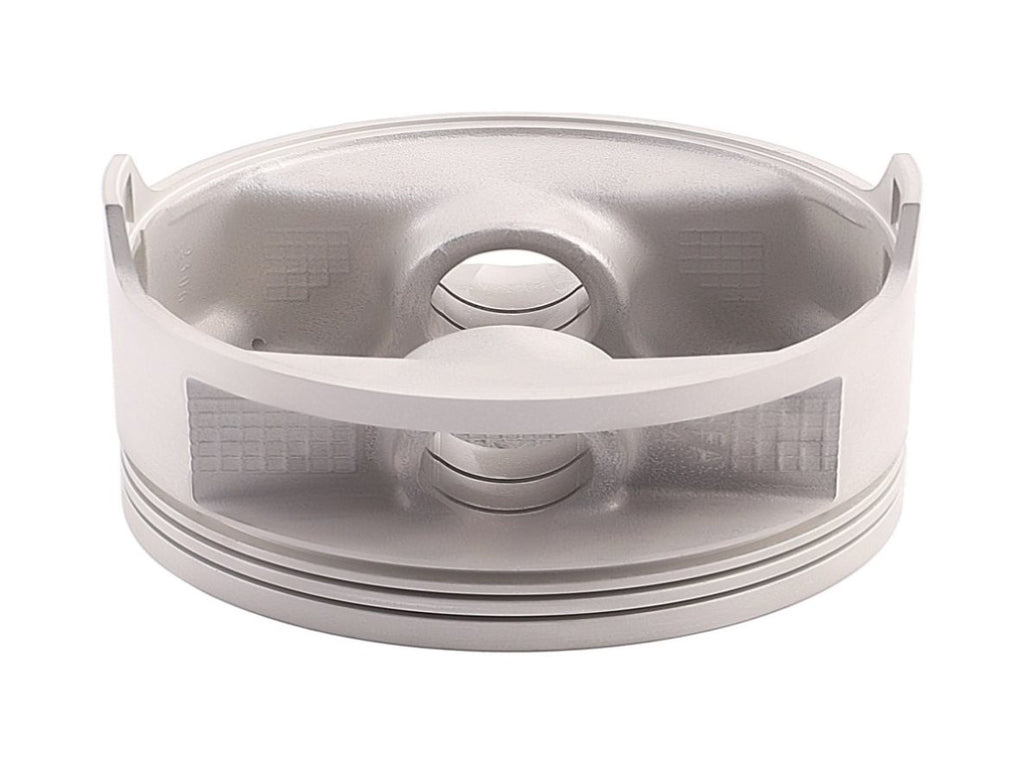

1x Piston

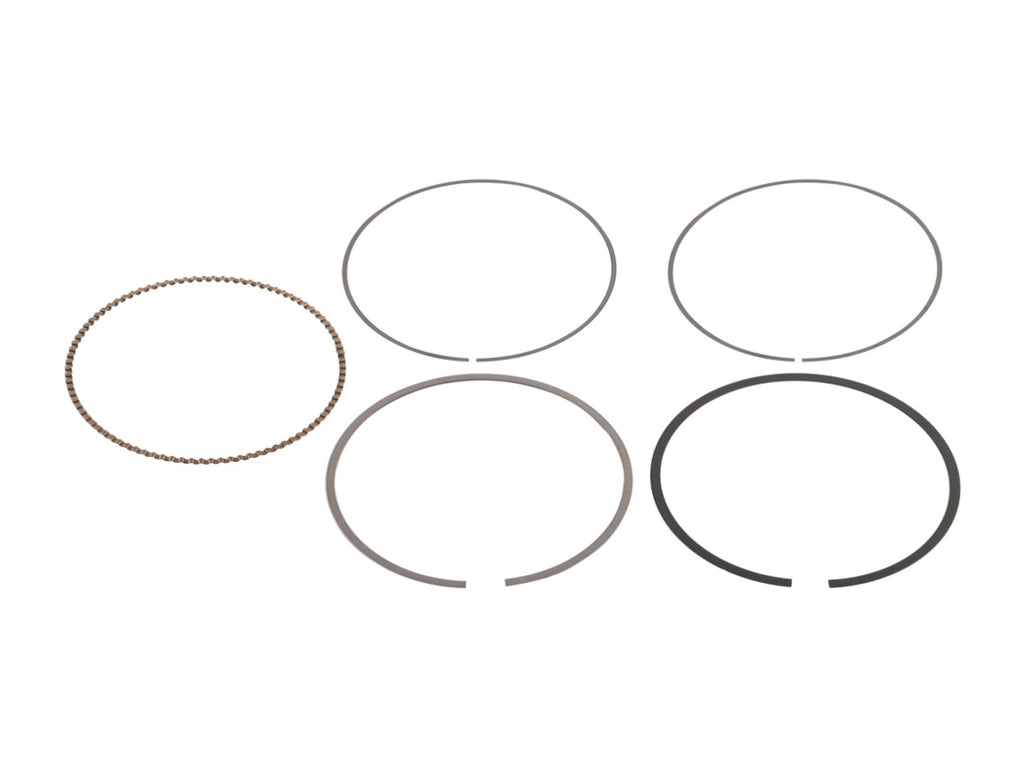

1x Piston Ring Set
1x Wristpin
2x Circlip

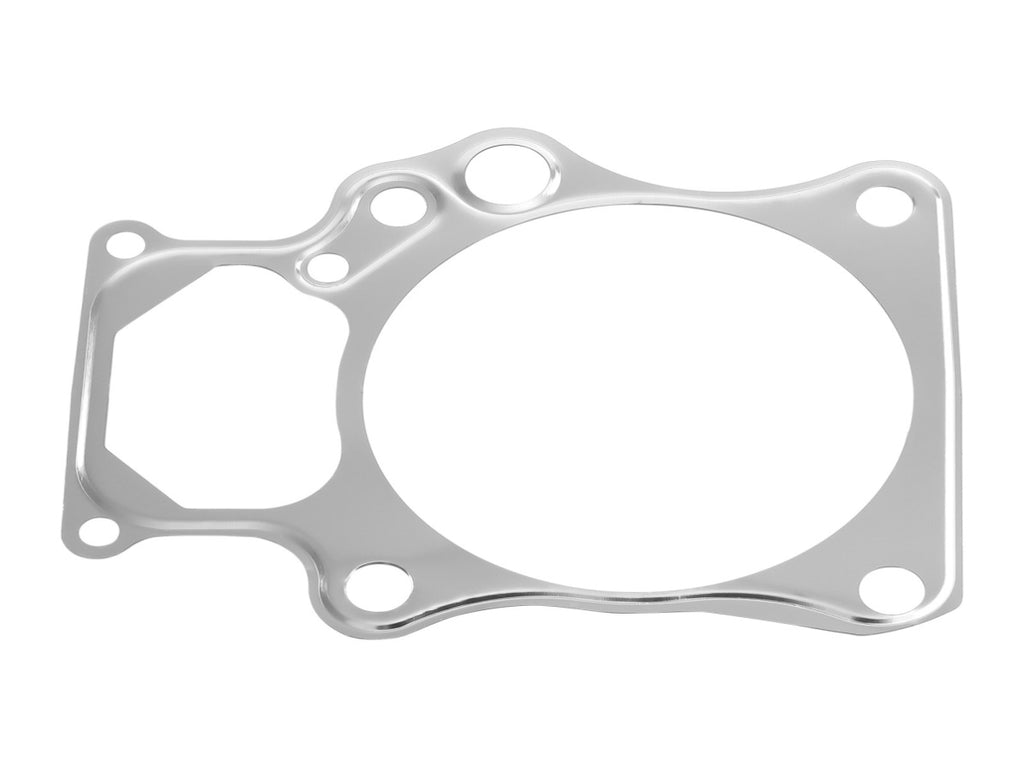

1x Cylinder Base Gasket

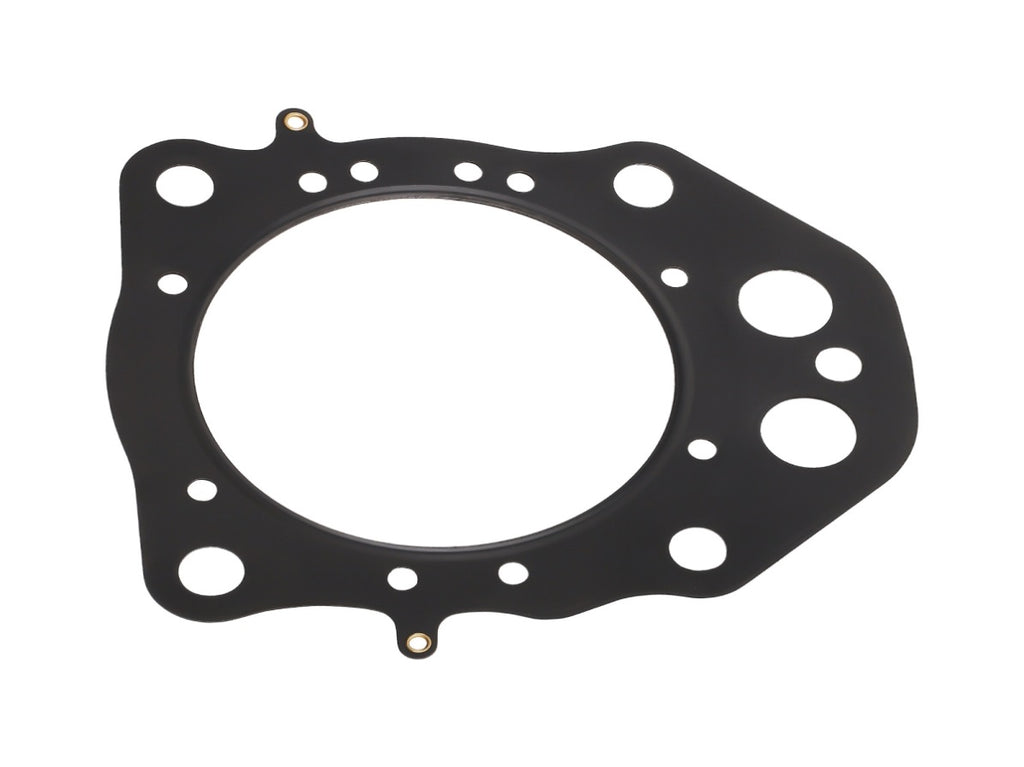

1x Cylinder Head Gasket

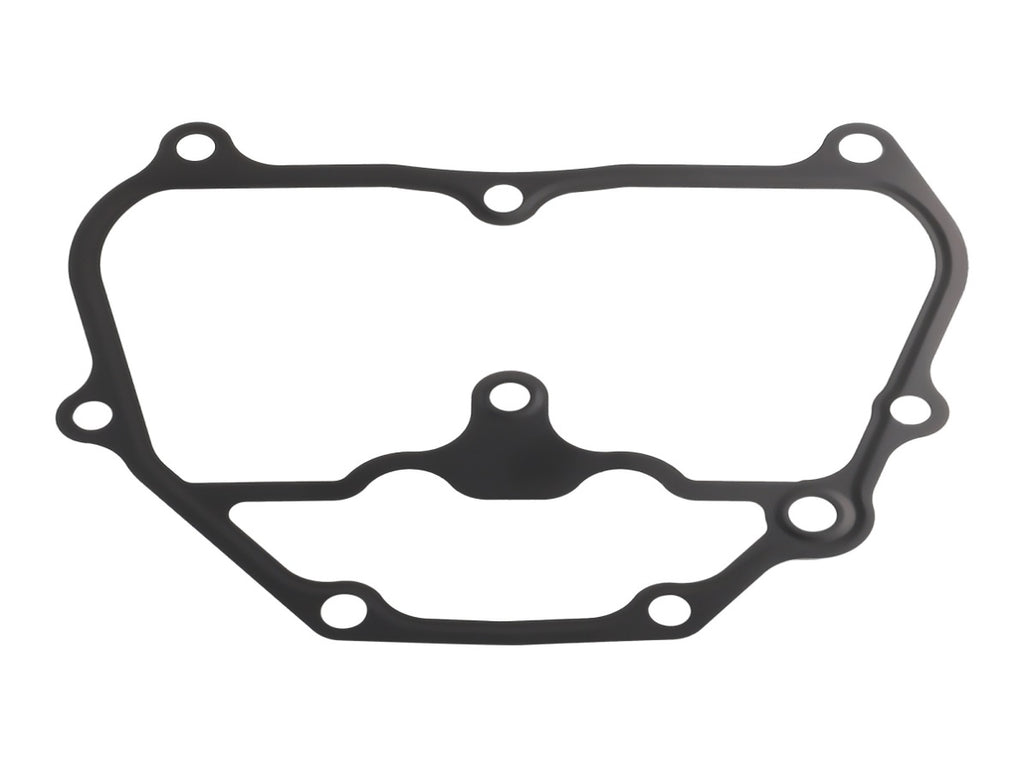

1x Cylinder Head Cover Gasket
1x Spark Plug；
As showing in the picture

Note:
- Please confirm the model number before purchase
- Not Included installation instructions
