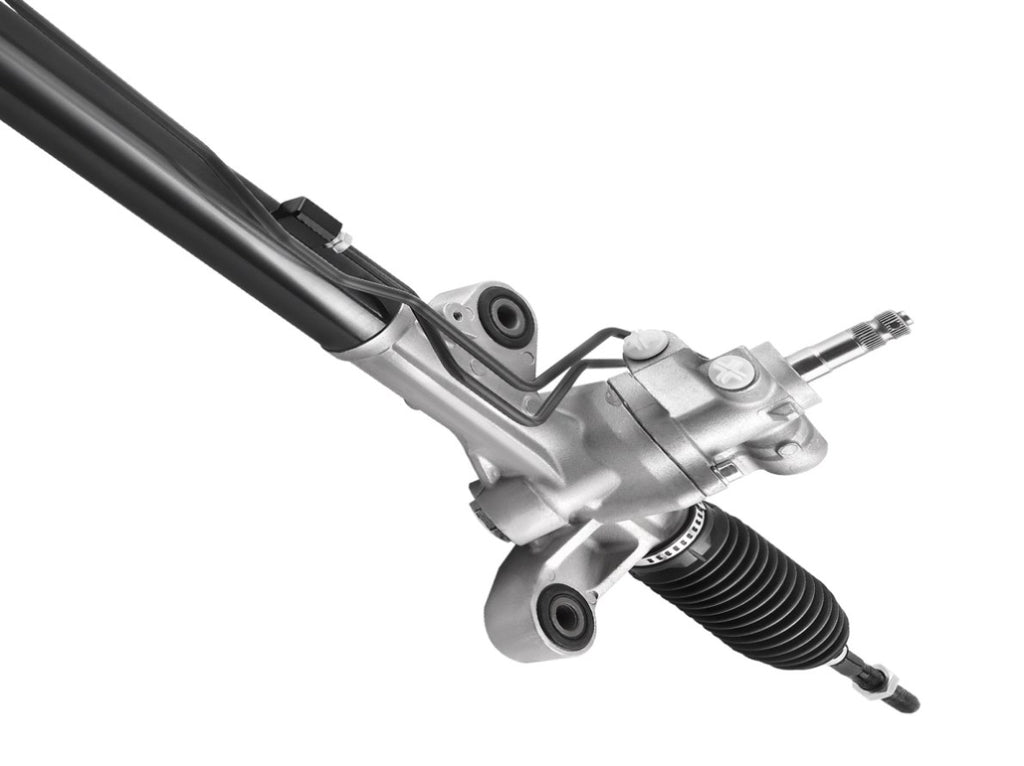

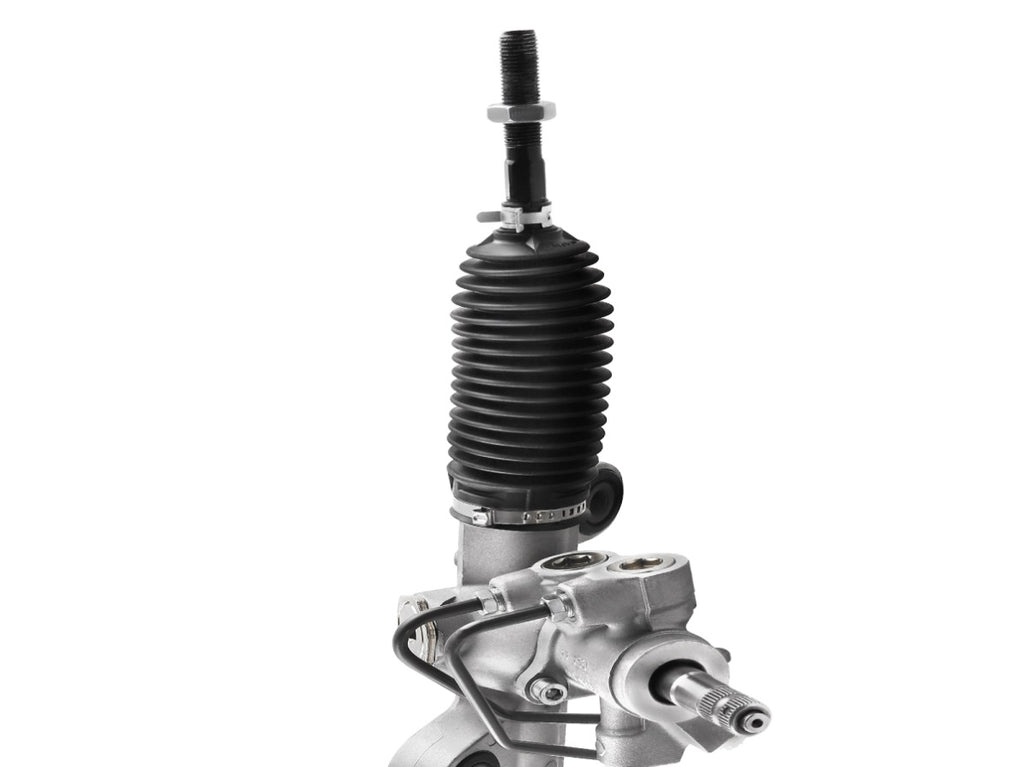

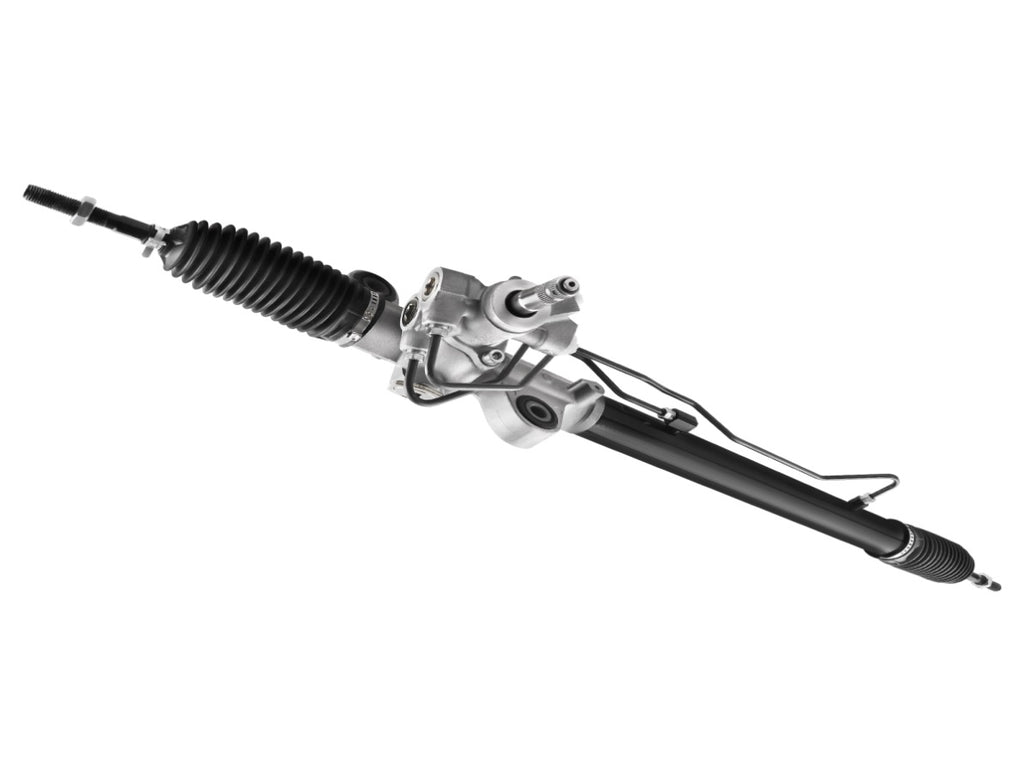

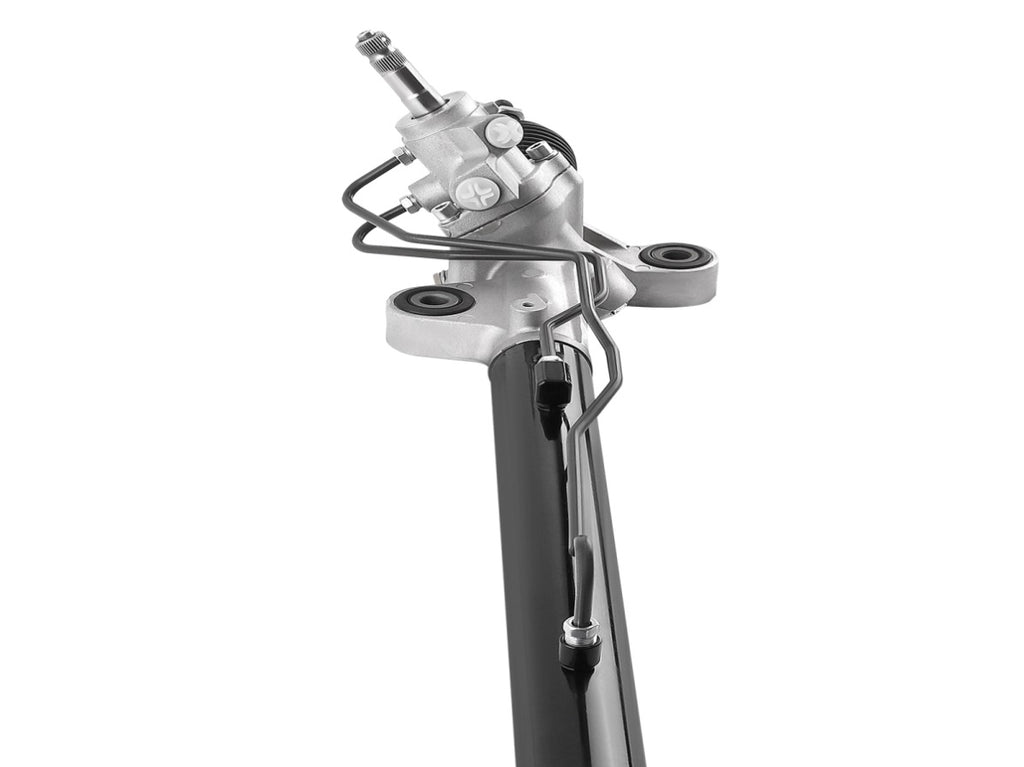

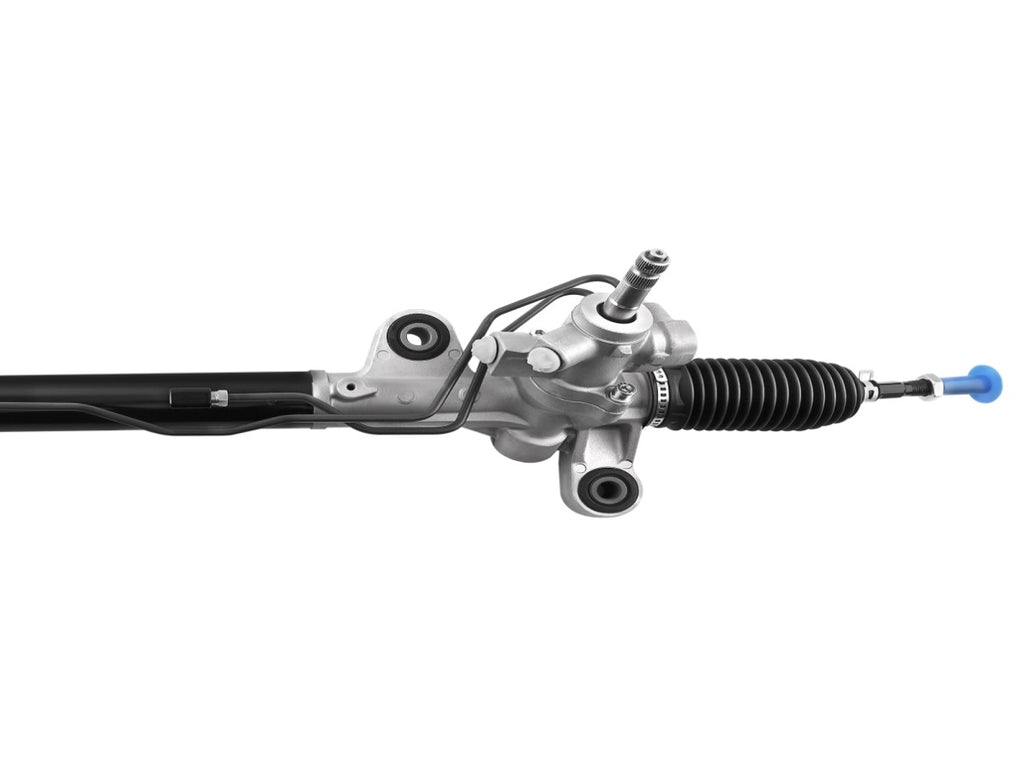

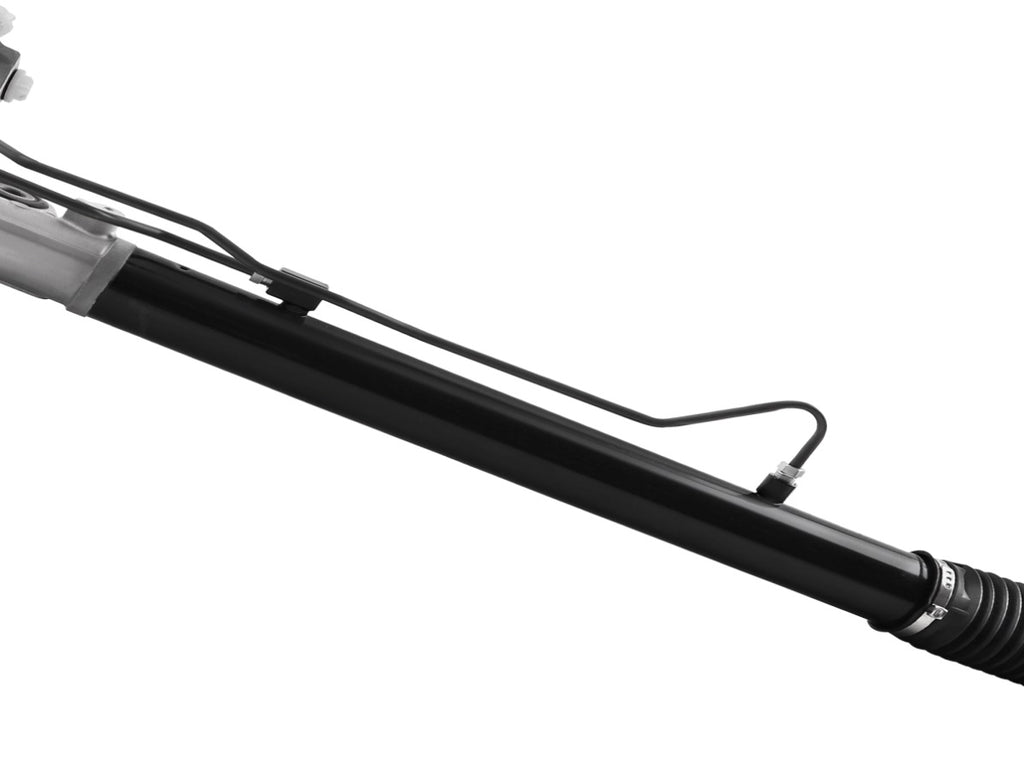

Power Steering Rack and Pinion Assembly fit for Honda Accord 2.4L 3.5L L4 2008-2012 10914469

Application:

fit for Honda Accord 2008-2012 L4 2.4L
fit for Honda Accord 2008-2012 V6 3.5L

Part Number:

53601TA5A02, 53601TA6A02, 53601TE0A02, 53601TE1A02, 26-2746

Features:

Built to strict quality control standards 100% factory tested.

High Performance:The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.

2 in 1 Function:Conversion of the steering wheel's rotationalmotion into the linear motion needed fit for thevehicle's wheels to turn

Reduction of gears, which makes it easierfor the steering wheel to turn the wheels.

Premium Material:With the premium material and construction, this steering rack assembly has a great anti-rust and anti-corrosive quality fit for its long service life.

We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.

Humanized Design:Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.

Specification:

Steering Wheel Position:LHD
Come with inner tie rod ends:YES
Outer Tie Rods：NO
Input Shaft Diameter(MM):17.3

Pressure Port Thread Size:M16*1.5

Return Port Thread Size:M18*1.5

Number of Mounting Holes:2

Rack Length(MM):1106

Package Include:1x Power Steering Rack and Pinion Assembly

If the following situation occurs, the steering rack needs to be replaced

1.Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.

2.Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.

3.Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.

4.Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.

5.Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.

6.Dead center: When turning, if the steering wheel needs to be rotated fit for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.

Note:

* Please confirm your original part number or oem numbr can matche up with one of the part numbers above.
* Professional installation is highly recommended (No Instruction Included).
* fit for whatever we can help,please feel free to contact us via ebay message. We are always here fit for you.
