Rear Air Ride Suspension Kit fit for Harley Touring Electra Street Glide 1994-2023 39430546

Fitment:

• fit for Harley all touring models 1994-2025

(NOT Fit fit for Electra Glide Ultra Classic Limited Low; NOT Fit fit for CVO Tri Glide)

Feature:

• 1. 100% Air Tightiness testing
• 2. 24 hours air tightness test ≤0.02MPa
• 3. Sturdy & Durable Material
• 4. Built to strict quality control standards
• 5. CNC Machined Components

Specification:

• Condition: Brand New
• Placement on Vehicle: Rear left and right

Air shock:

• Stroke: 100mm=3.9 inch
• Max. Extended: 400mm=15.7inch
• Min. Compressed: 300mm=11.8inch
• Fisheye: Ø13mm
• Air line inside dia: 4 mm
• Operating Pressure: ≤2.0Mpa
• Temperature range: ≤+70°, ≥-40°

Air pump:

• Power: 168W
• Output Voltage: DC-12V
• Maximum current: 14A
• Maximum Working Voltage: 130PSI(9.1KG/c㎡)

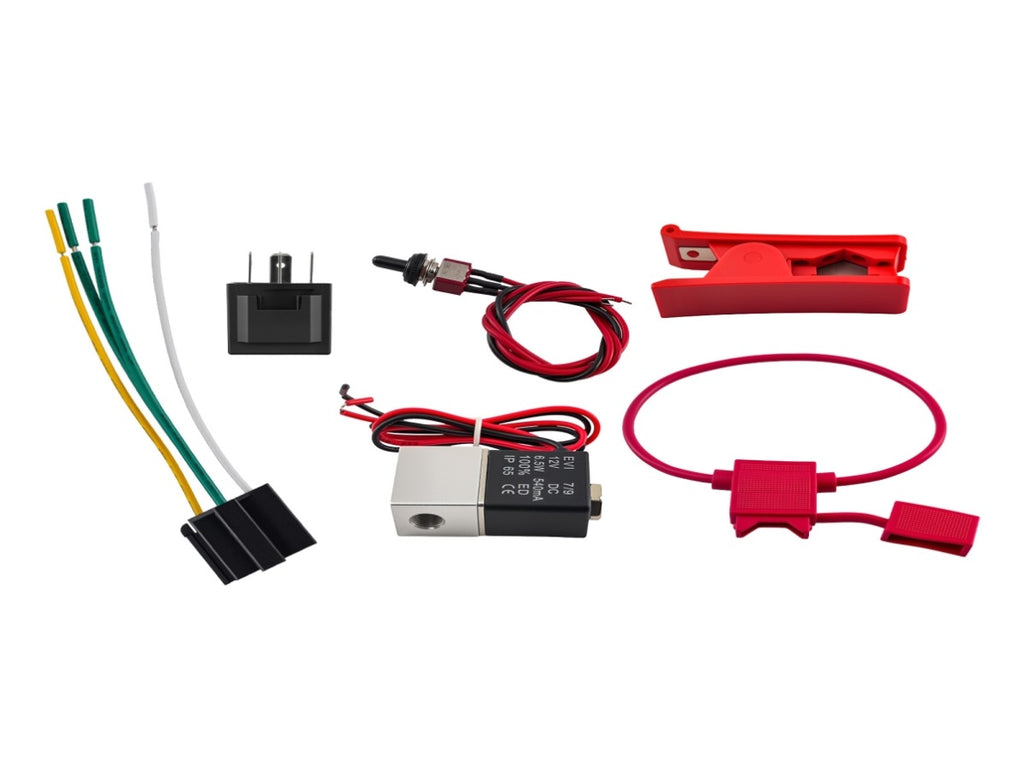

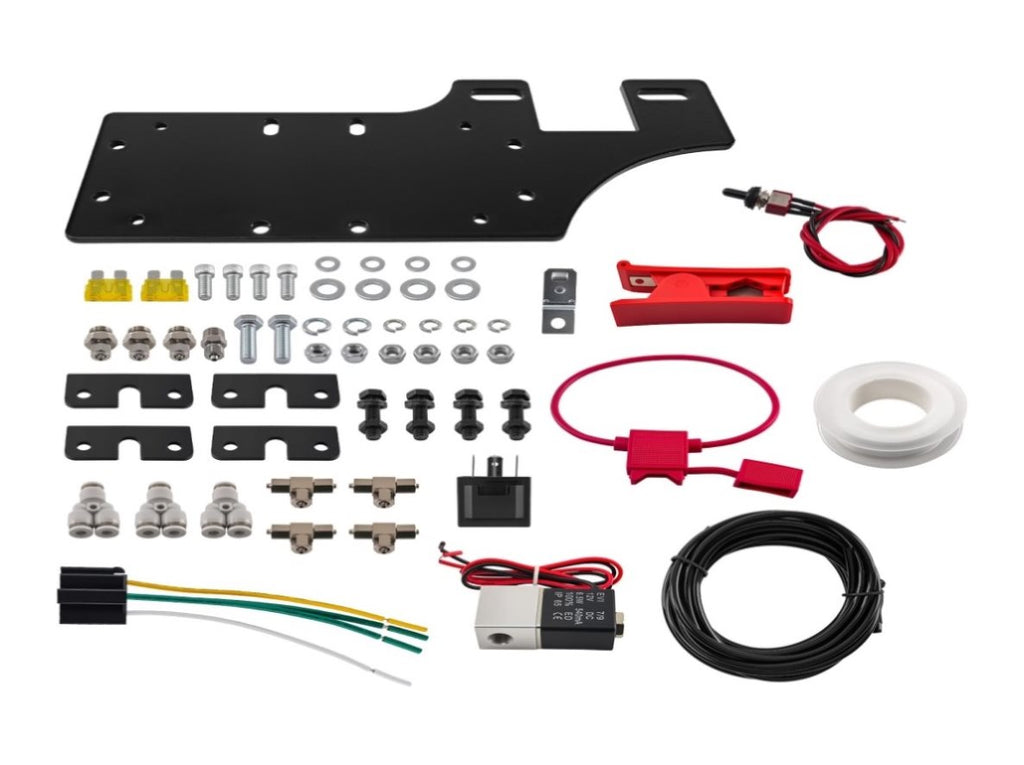

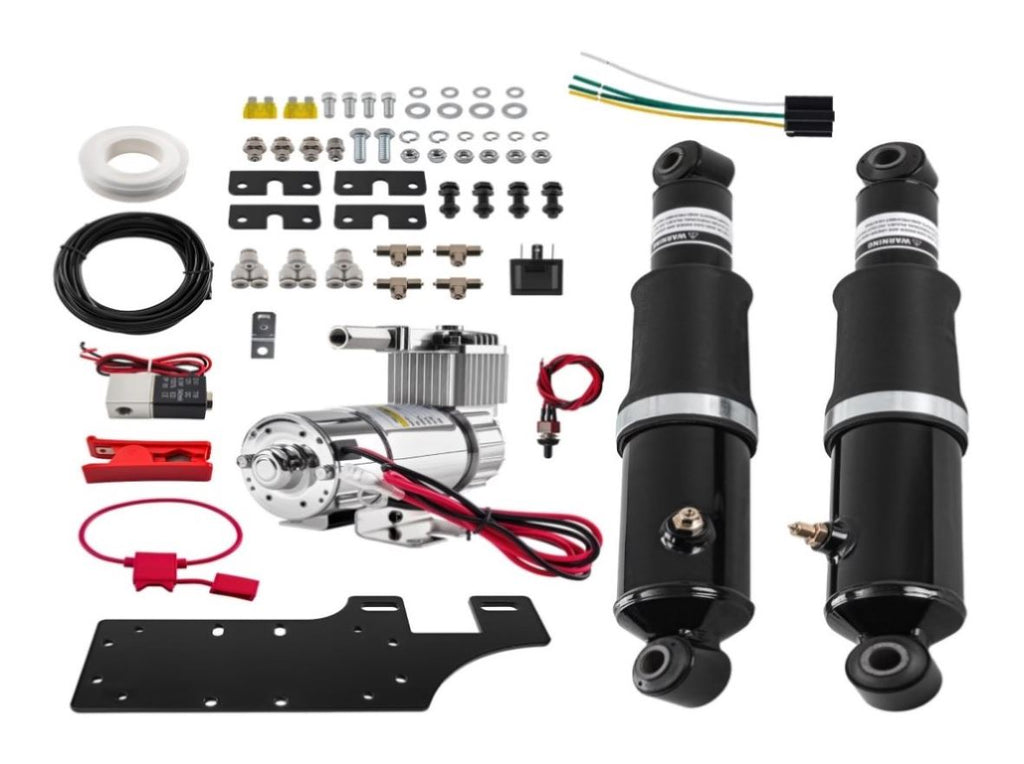

Package Includes(as the picture shows):

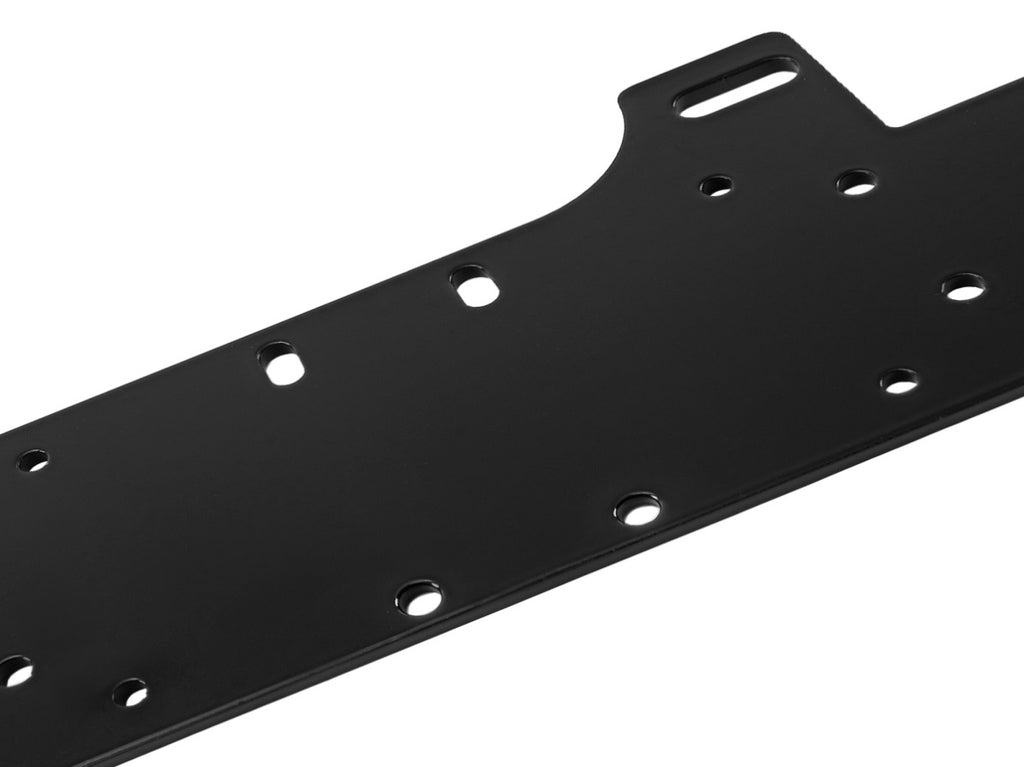

• 1x Air pump with mounting bracket
• 1x Relay
• 1x Solenoid valve
• 2x Air shock

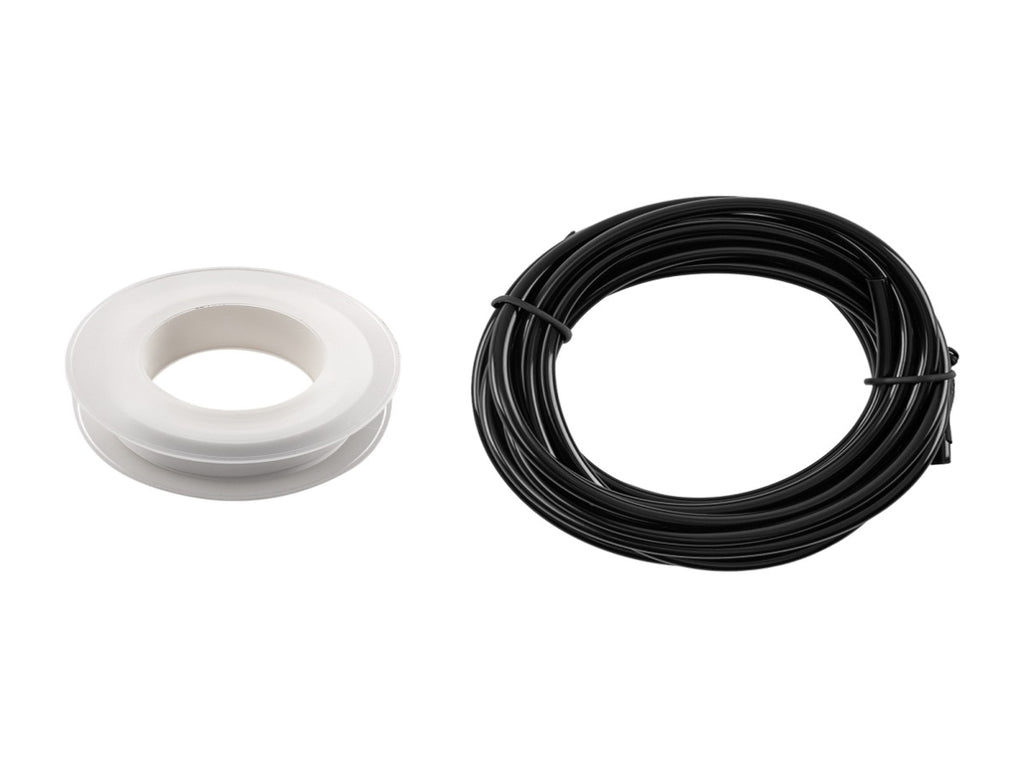

• 1x Air line
• 1x Air Line Hose Cutter
• 1x Switch
• 1x Insurance seat
• 1x 20A Fuse

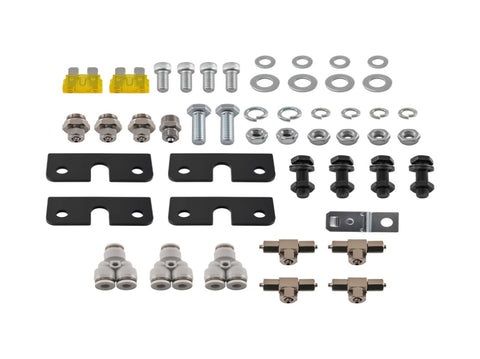

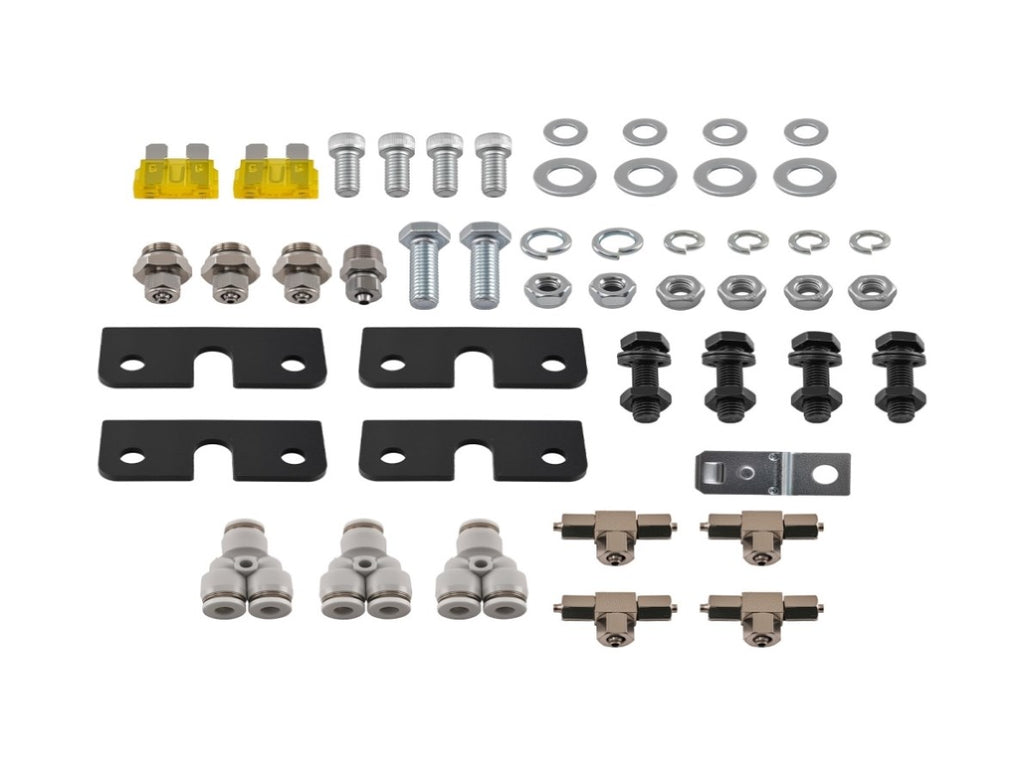

• Install bolts and nuts
• Other Accessories

Notice:

• 1. Will lower 2 to 3 inches with all of the air released. After being inflated, Restore the stock ride height to ensure smooth driving.
• 2. Please double confim the compatibility before purchasing.
• 3. Professional installation is recommended.
