Suspension Lift Level Kit 2.5" fit for Jeep Wrangler JK Unlimited 2007-2018 30525584

Introduction:

• The suspension lift kit designed to increase the ground clearance of the suspension, allowing the installation of larger tires and enhancing the off-road performance of the car.
• High-pressure nitrogen-filled shocks that provide a wonderful blend of off-road action and smooth on-road ride quality.
• Featuring natural rubber bushings and corrosion resistant metallic silver paint.

Fitment:

• fit for Jeep Wrangler JK Unlimited 2WD 2007-2010
• fit for Jeep Wrangler JK Unlimited 4WD 2007-2018
• Fits 4DR

Feature:

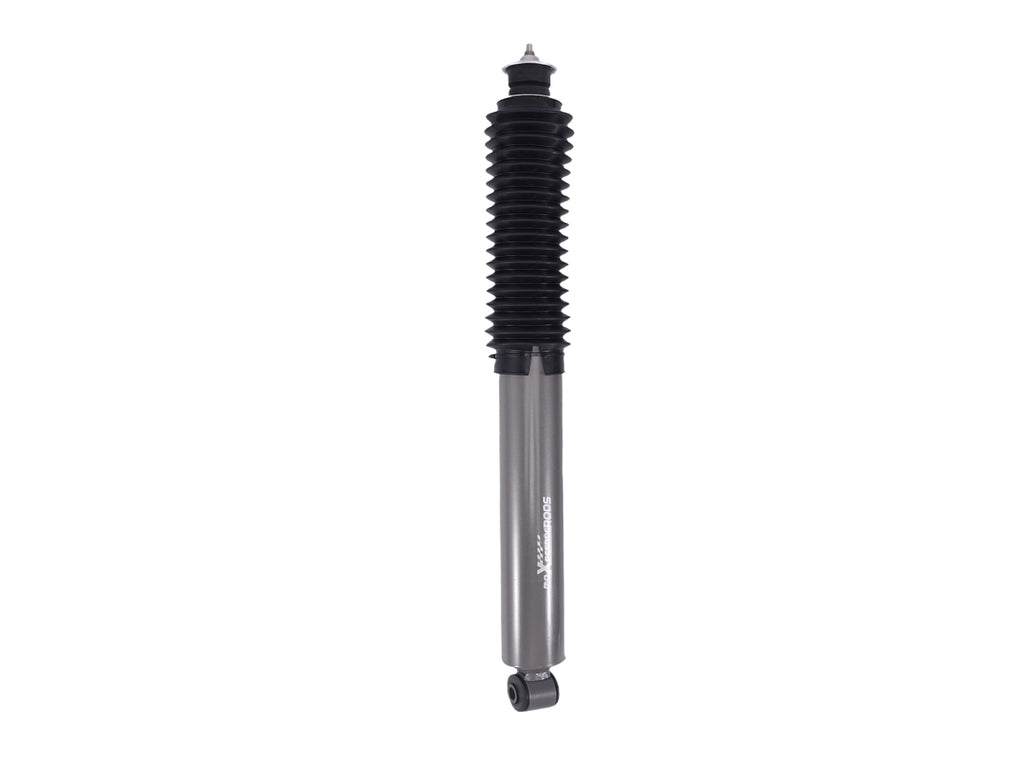

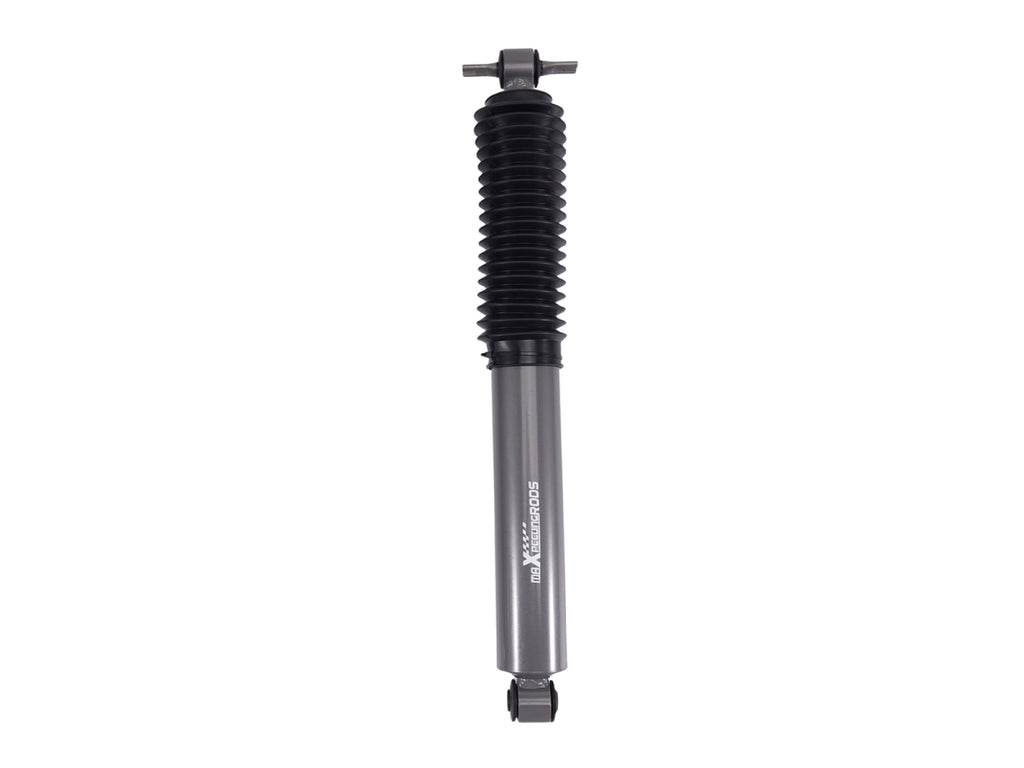

• High-pressure nitrogen charged twin-tube shock absorber with high durability.
• Rubber bushings fit for better absorption.
• 18mm Chromed Hardened Piston Rod.
• 35mm Diameter Sintered Iron Piston.
• 54mm body diameter fit for better heat dissipation
• 36KN Tensile Strength.
• Dust cover included prevent the shaft rod and oil seal from damaging.
• Precision Welding.
• Improve your off-road ride.

Specification:

• type: Lift leveling kit
• lift height: 2.5" level the front with the rear
• Finish: Powder coated
• Bushing material: Rubber
• Diameter of piston rod: F&R 18mm/0.70"
• Piston diameter：F&R 35mm/1.38"
• Outer cylinder diameter: F&R 54mm/2.13"
• Travel: F: 250mm/9.84"    R:  243mm/9.57"
• extended length: F: 710mm/27.95" R: 645mm/25.39"
• collapsed length:F: 460mm/18.11"   R: 402mm/15.83"
• Nitrogen charged：yes
• dust cover equipped: yes
• spring rate: F 3kg/mm (167.992lbs/inch)          R   4kg/mm(223.99 lbs/inch)
• spring length:  F 500mm/19.68"
• R 400mm/15.74"
• Tire Info:
  285/75R17 Factory 17 5x5.0
  33x12.50R17 17x9 5x5.0 +0
  33x12.50R17 17x9 5x5.0 +1
  33x12.50R17 17x9 5x5.0 12
  33x12.50R18 18x9 5x5.0 +0
  33x12.50R18 18x9 5x5.0 +1
  33x12.50R18 18x9 5x5.0 12
  33x12.50R20 20x9 5x5.0 +0
  33x12.50R20 20x9 5x5.0 +1
  33x12.50R20 20x9 5x5.0 12
  35x12.50R17 17x9 5x5.0 +0
  35x12.50R17 17x9 5x5.0 +1
  35x12.50R18 18x9 5x5.0 +0
  35x12.50R18 18x9 5x5.0 +1
  35x12.50R20 20x9 5x5.0 +0
  35x12.50R20 20x9 5x5.0 +1
  If you run factory wheels, you will need to add 1.5in wheel spacers

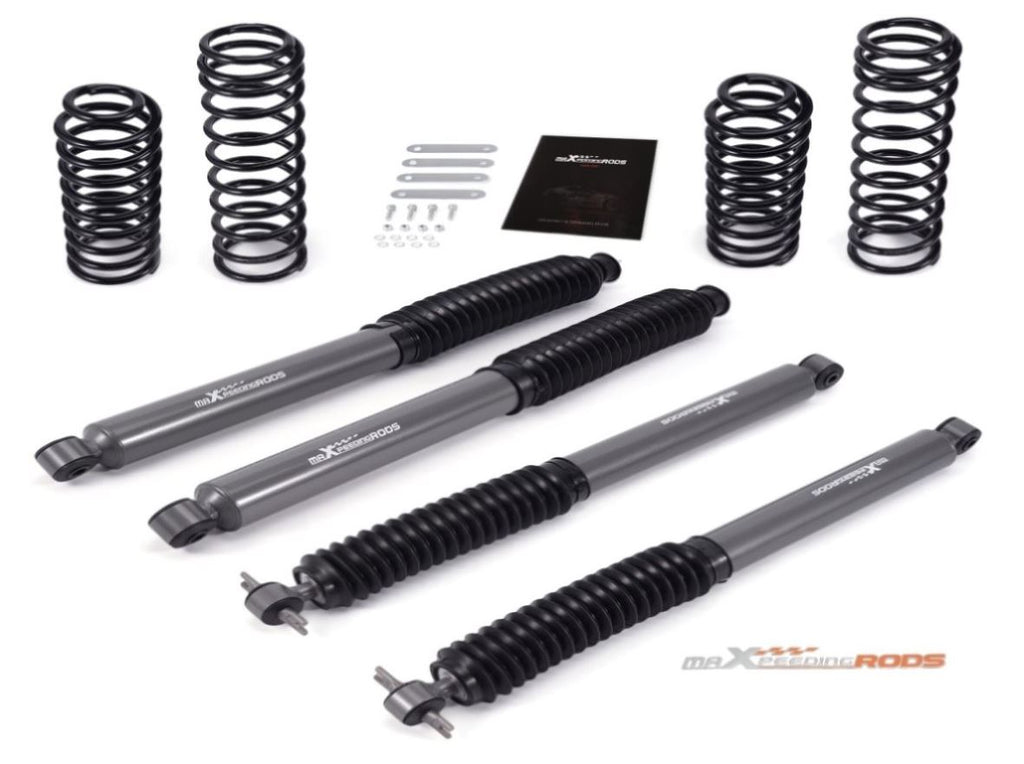

Package Includes:

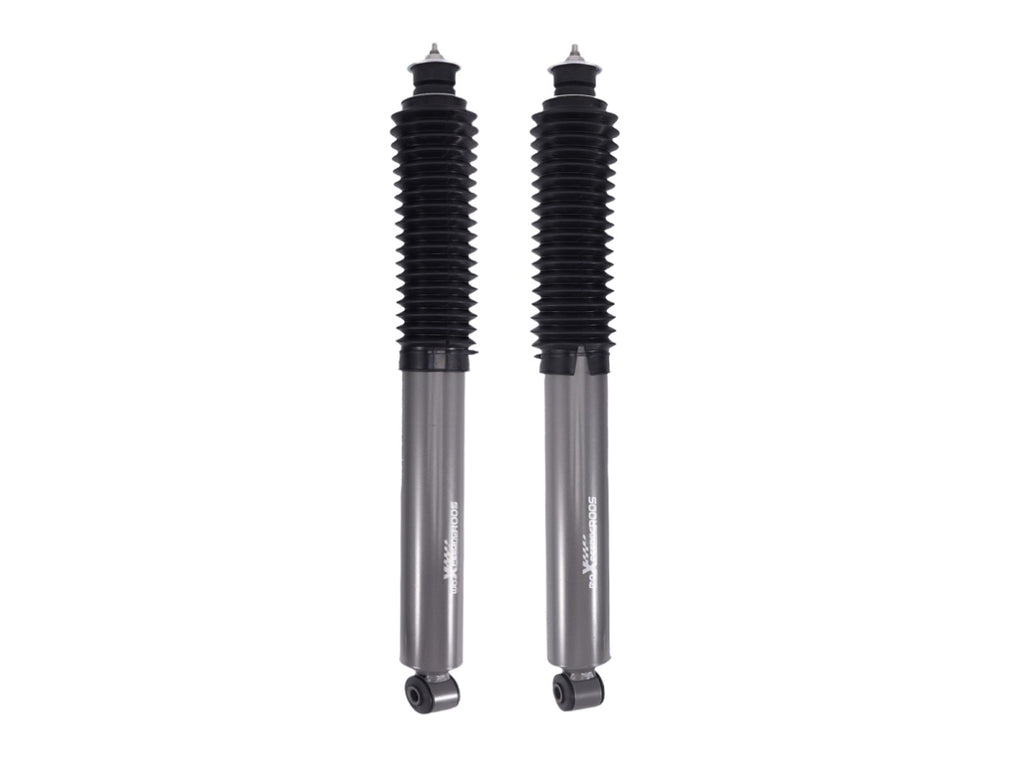

• 2x front shocks

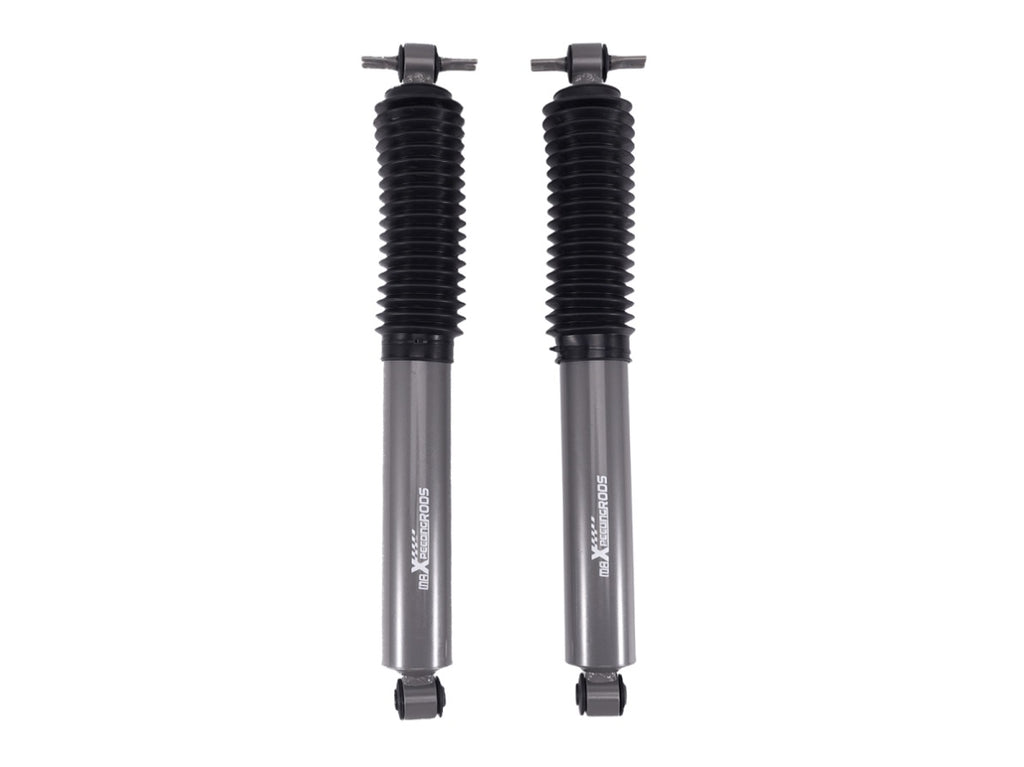

  2x rear shocks

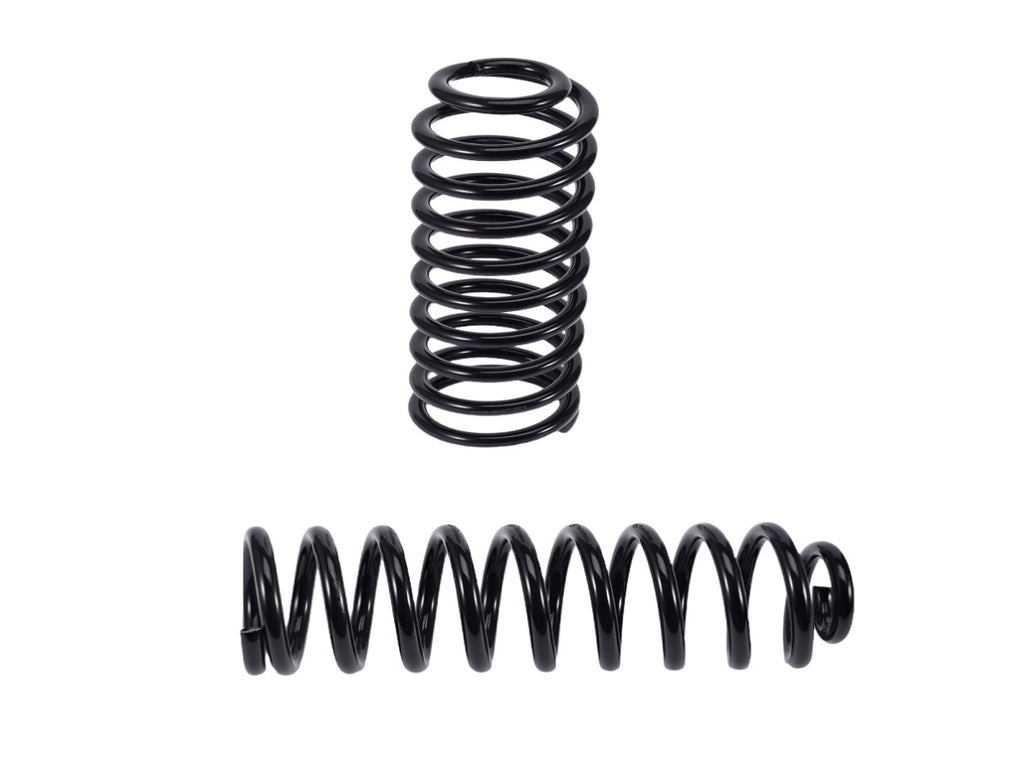

  2x front coils
  2x rear coils
  4x brake line extenders
  necessary hardware

Notes:

• 35" tires will clear but rubbing may occur w/ extreme articulation
• If running 35" tires on factory wheels, check clearance with the front tire, lower control arm and sway-bar links.
