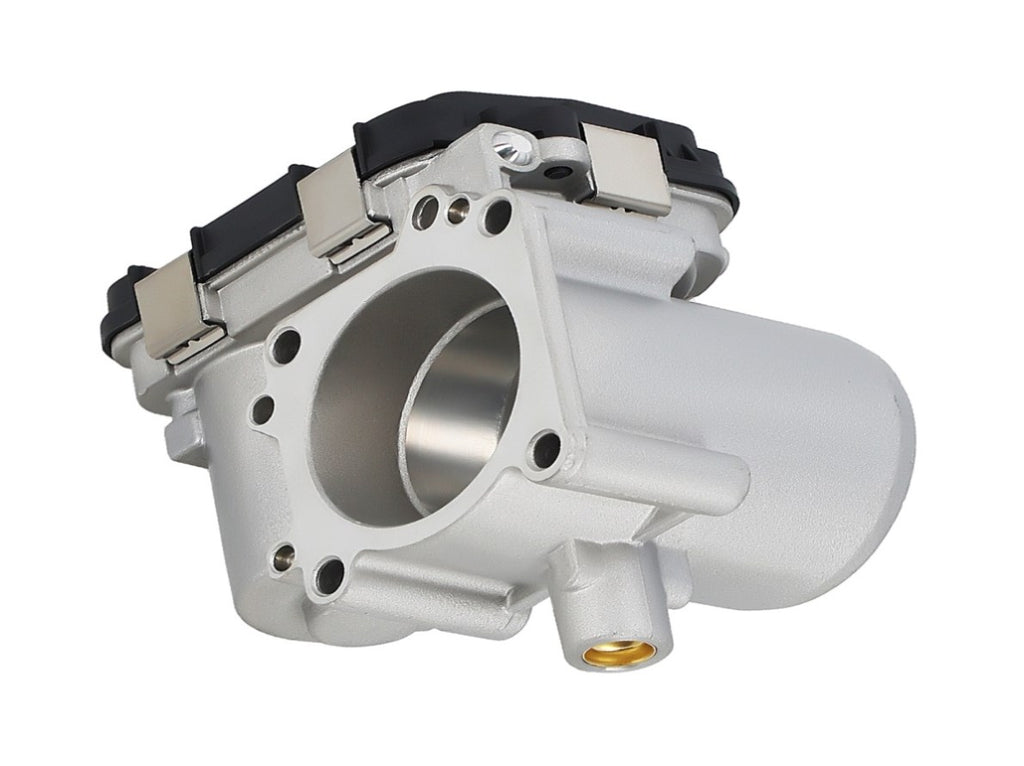

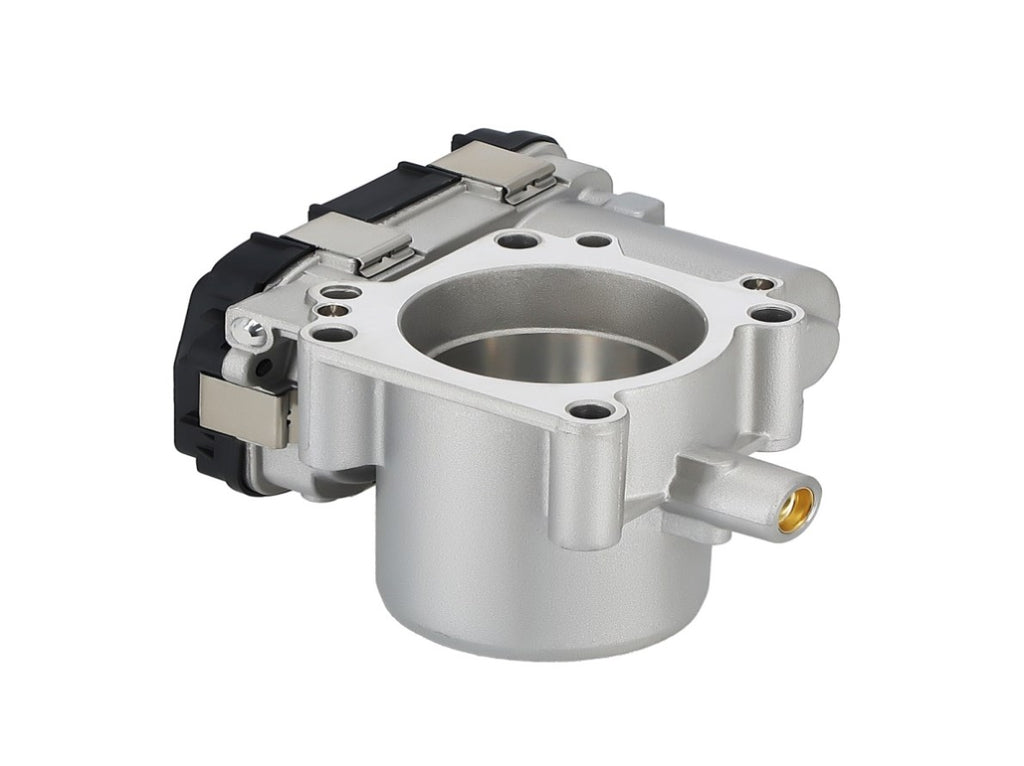

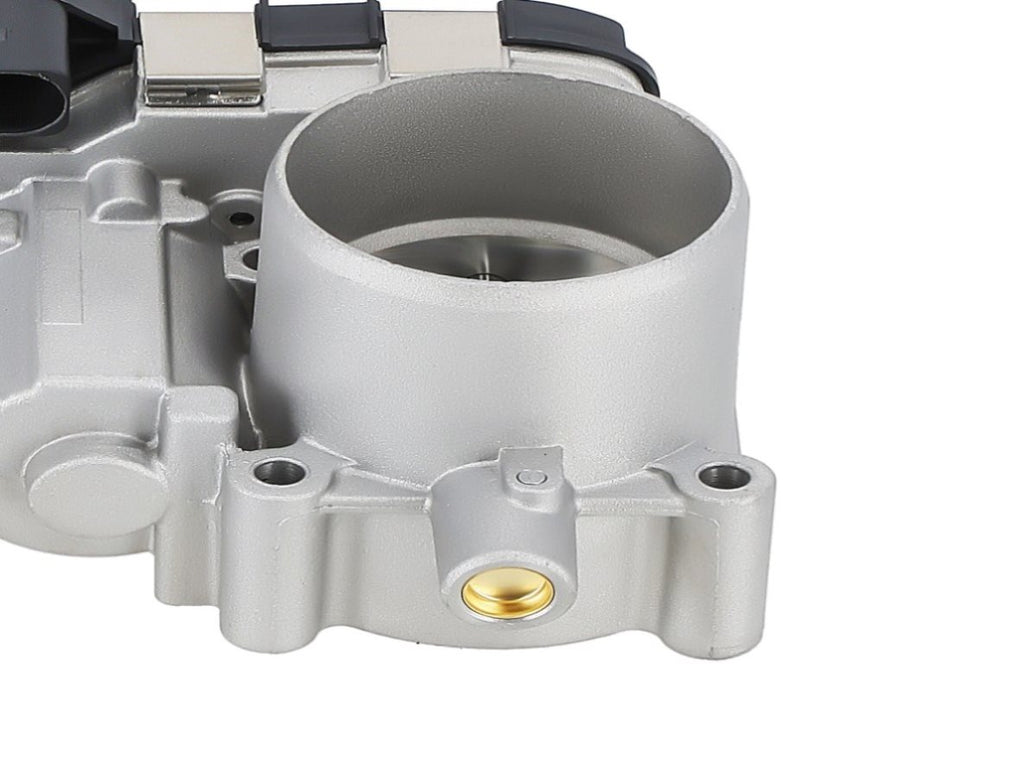

Throttle Body Assembly fit for Volkswagen Jetta 1.4L 2013 2014 2015-2018 7519197 21343036
fit for VW Caddy All track (SAA) 2015-2019
fit for VW CC (358.0) 2011-2016
fit for VW Golf Sportsvan (AM1) 2014-2019
fit for VW Passat / Passat All track (3G2, 3G5) 2014-2019
fit for VW Polo 6R 2009-2019
fit for VW Tiguan 2007-2019
fit for VW Touran (5T1) 2015-2019
fit for VW Caddy MK IV 2015-2019
fit for VW Golf MK VII 2012-2019
fit for VW Jetta MK IV 2010-2019
fit for VW Scirocco (137.0 138.0) 2008-2017
fit for VW Sharan (7N1 7N2) 2010-2019
fit for Audi A3 (8V1, 8V7, 8VA, 8VF, 8VS) 2012-2019
fit for Audi Q2 (GAB) 2016-2019
fit for Audi Q3 (8U) 2011-2019
fit for Audi A1 (8X1, 8XK, 8XA, 8XF) 2010-2019
fit for Volkswagen 1.4 Audi A1 A3 Skoda Seat 2013-2016
Specification:
Features: Electronic

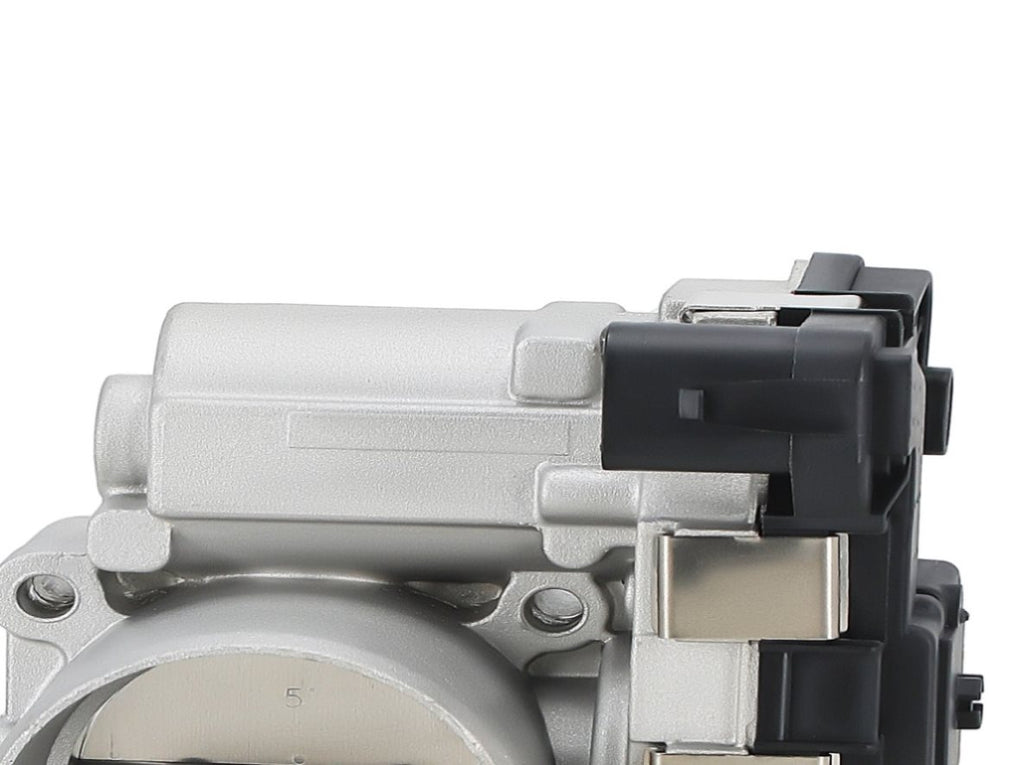

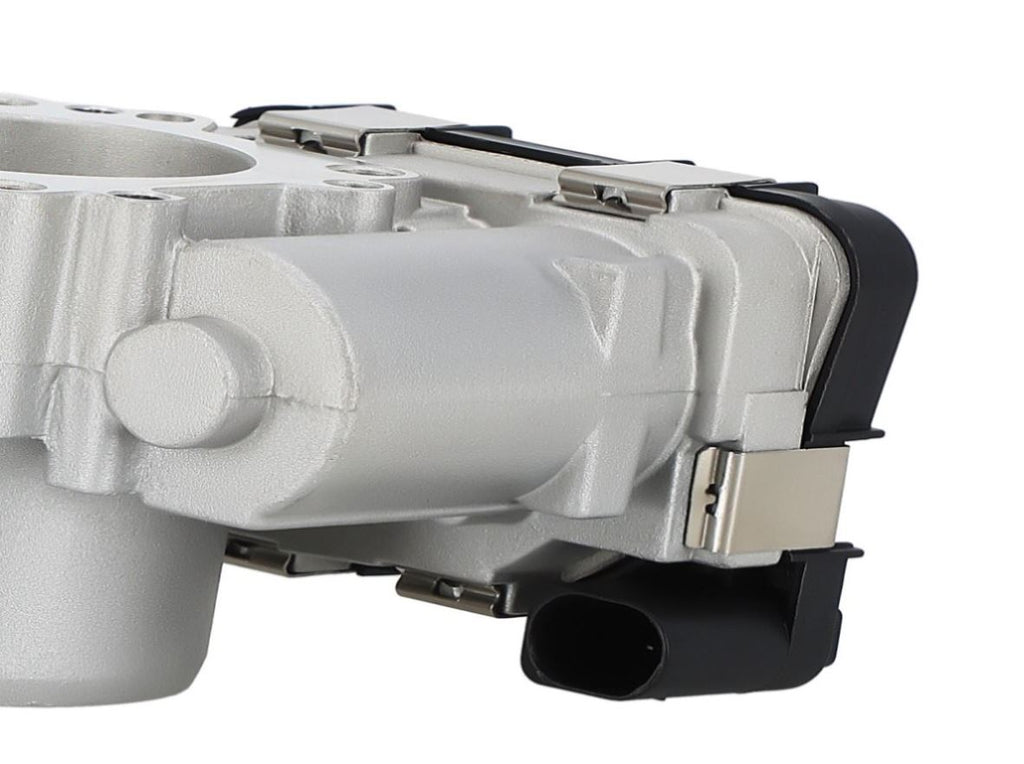

Connector Type: Blade
Color: Silver
Fuel Type: Gasoline
Bore Diameter: 75mm
Manufacturer Warranty: 2 Years
Universal Fitment: No
Material: Metal
Vintage Part: No
Terminal QTY: 6
Gaskets Included: No
Placement on Vehicle: Front
Mount Hole Quantity: 4
Fuel System Type: FI
Housing Length (in): 5-1/2
Housing Width (in): 4-5/8
Main Port Inside Diameter(in): 1-15/16
Air Intake Port Maximum Diameter (in): 2-9/16

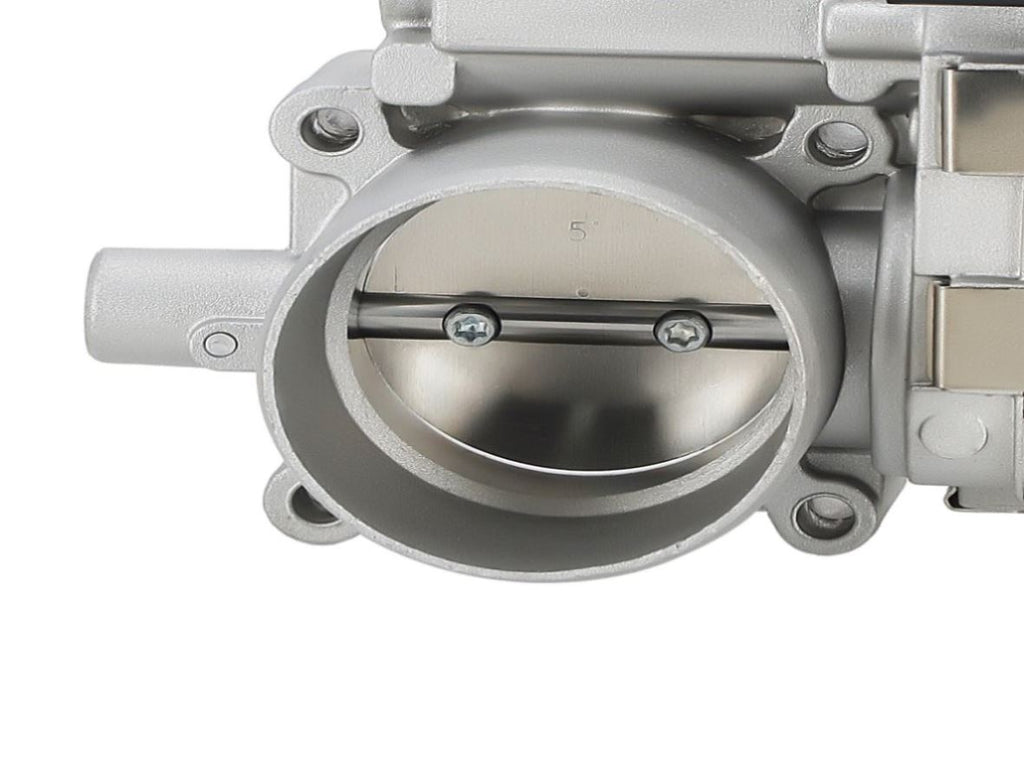

Throttle Plate Diameter (in): 1-15/16
Package included: 1*Throttle Body
Feature:
>> Optimized Engine Performance
Play a crucial role in maintaining the overall performance of the car engine by providing airflow that matches the demand while driving. This helps in the optimization of engine power, throttle response, and driver comfort.
>> Enhanced Fuel Efficiency
By controlling airflow, the throttle body helps to create efficient combustion conditions, which can improve fuel use efficiency. This is important fit for optimizing fuel consumption and reducing unwanted exhaust emissions.
>>Responsive Acceleration
Directly influence the power output by regulating the airflow into the engine. A responsive and well-maintained throttle body ensures quick acceleration and efficient power delivery.
Load the vehicle first and then match it. There are specifically two methods:
1. Matching through a diagnostic instrument. Start the engine. When the water temperature reaches 90 degrees, turn off the engine. Connect the diagnostic instrument, enter the engine management system, select the engine type, and enter the electronic throttle matching program. Wait fit for success. Exit the system. Conduct an external test.
2. Manual matching: Replace the electronic throttle or after the ECU is powered off, the electronic throttle needs to be initialized. The initialization process is as follows: Turn off the ignition key and do not step on the accelerator pedal. Turn on the ignition switch, then press the accelerator pedal all the way down and hold it fit for a certain period of time. Finally, release the accelerator pedal and start the engine
- Professional Installation is Highly Recommended
- No Instruction Included
