Throttle Body fit for Toyota 4Runner Tundra 4.7L 2004-2009 Lexus Lx470 05-07 S20197 22587582
Application:
fit for Lexus Gx470 4.7L 2004-2009fit for Lexus Lx470 4.7L 2005-2007
fit for Toyota 4Runner 4.7L 2004-2009
fit for Toyota Land Cruiser 4.7L 2005-2007
fit for Toyota Sequoia 4.7L 2004-2009
fit for Toyota Tundra 4.7L 2004-2009
Part Number:
22030-0F010, 22030-0S010, 22030-38020, 22030-50200, 220300F010, 220300S010
2203038020, 2203050200, TB1218, TB1153, S20197, 67-8007, 6E-8007, 977-805
2203038020, 2203050200, TB1218, TB1153, S20197, 67-8007, 6E-8007, 977-805
Specification:
Type: Throttle Body
Bore Diameter: 76mm
Main Port Inside Diameter(in): 2-15/16
Air Intake Port Maximum Diameter (in): 3-7/16
Throttle Plate Diameter (in): 2-15/16
Throttle Body Actuation Type: Electrical
Material: Aluminum
Housing Length (in): 5-3/4
Housing Width (in): 5-1/4
Connector Quantity: 1
Mount Hole Quantity: 4
Terminal QTY: 6
Fuel System Type: FI
Connector Type: Blade
Weight: 3 LB
Bore Diameter: 76mm
Main Port Inside Diameter(in): 2-15/16
Air Intake Port Maximum Diameter (in): 3-7/16
Throttle Plate Diameter (in): 2-15/16
Throttle Body Actuation Type: Electrical
Material: Aluminum
Housing Length (in): 5-3/4
Housing Width (in): 5-1/4
Connector Quantity: 1
Mount Hole Quantity: 4
Terminal QTY: 6
Fuel System Type: FI
Connector Type: Blade
Weight: 3 LB
Package Included:

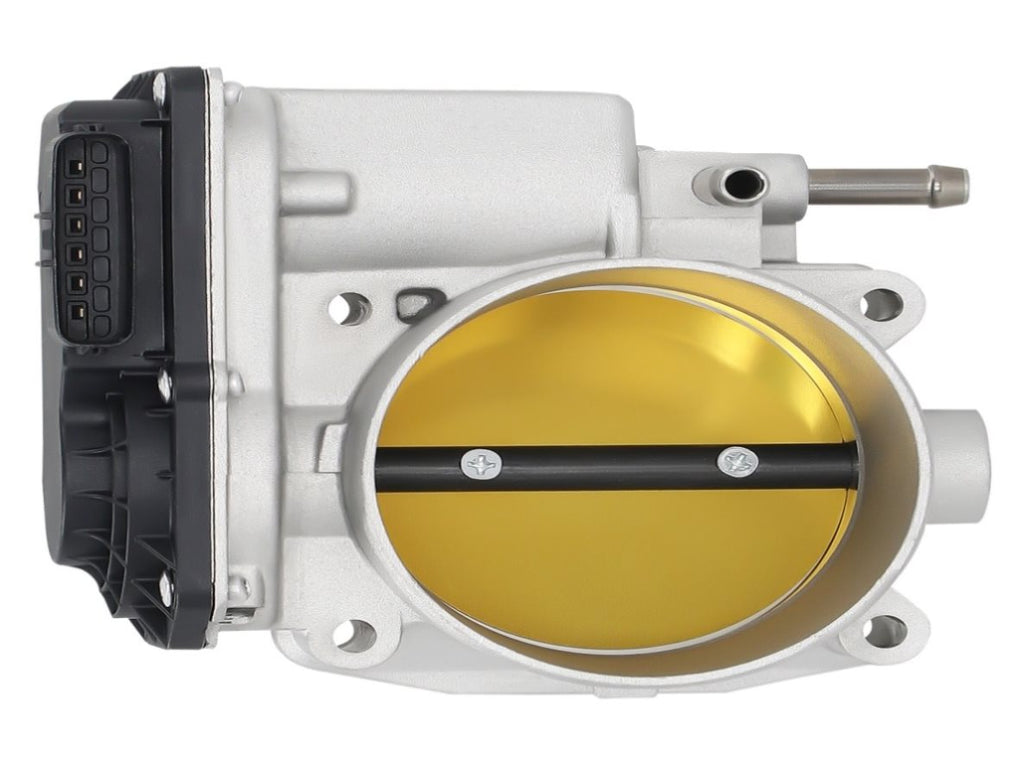

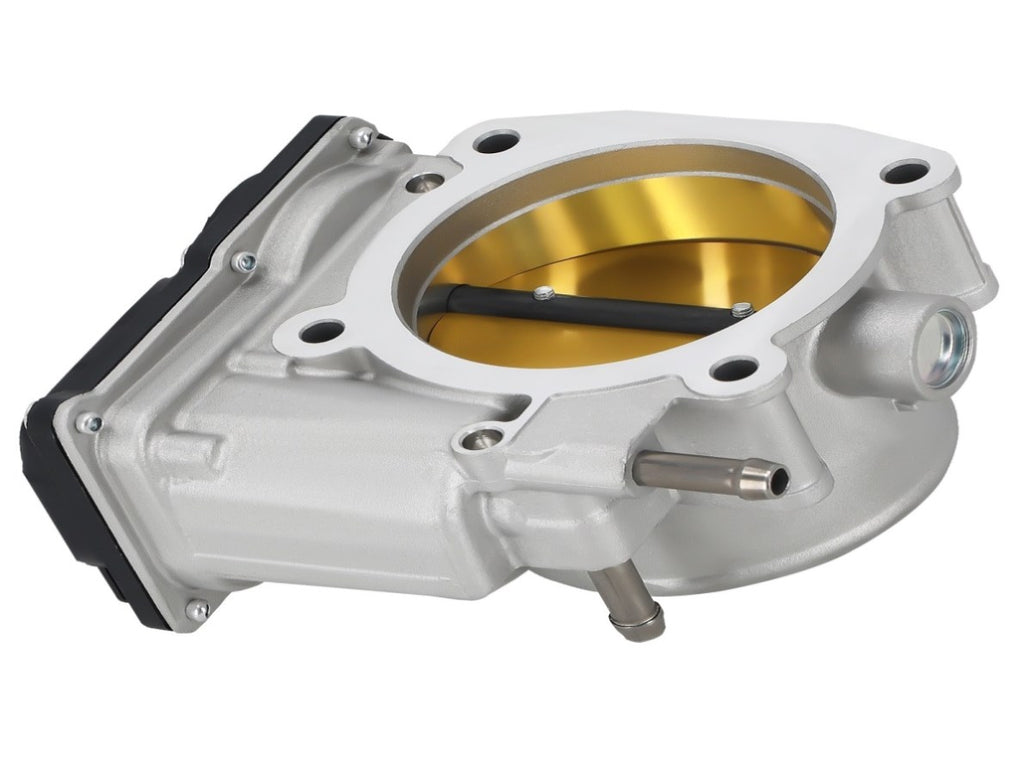

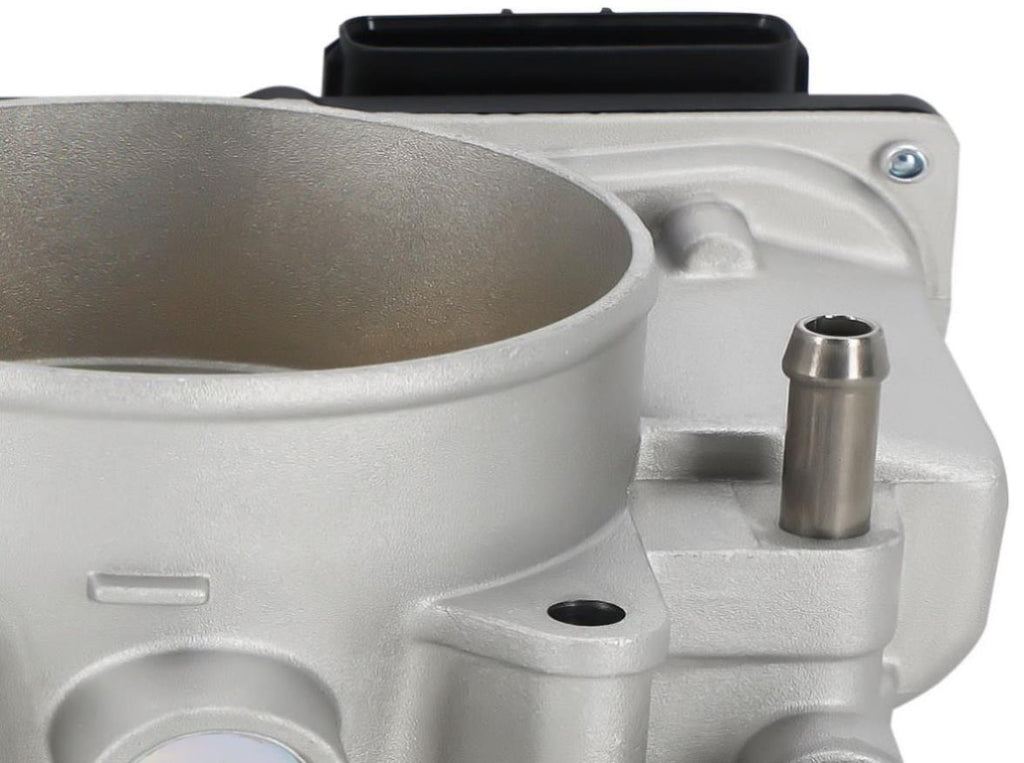

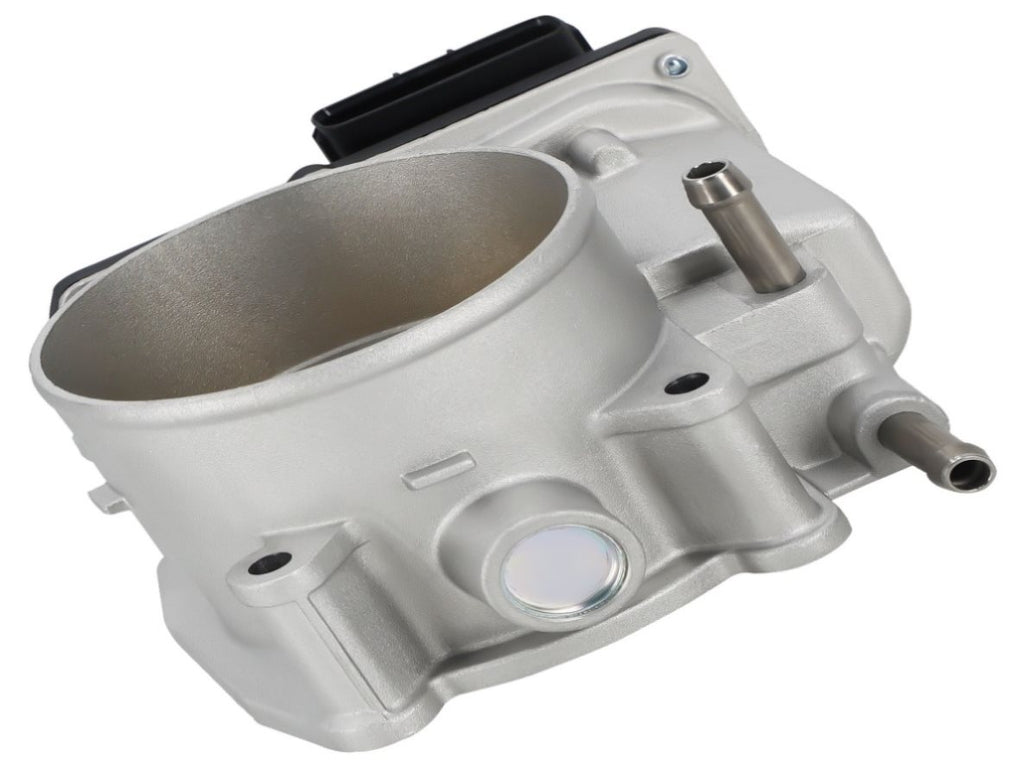

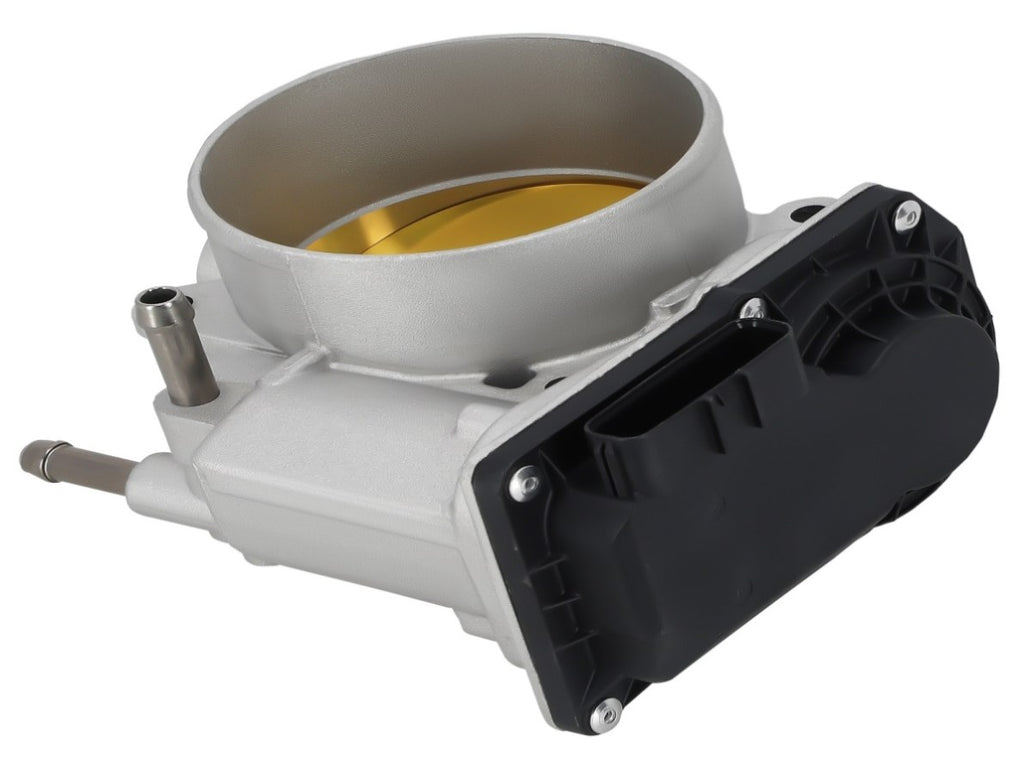

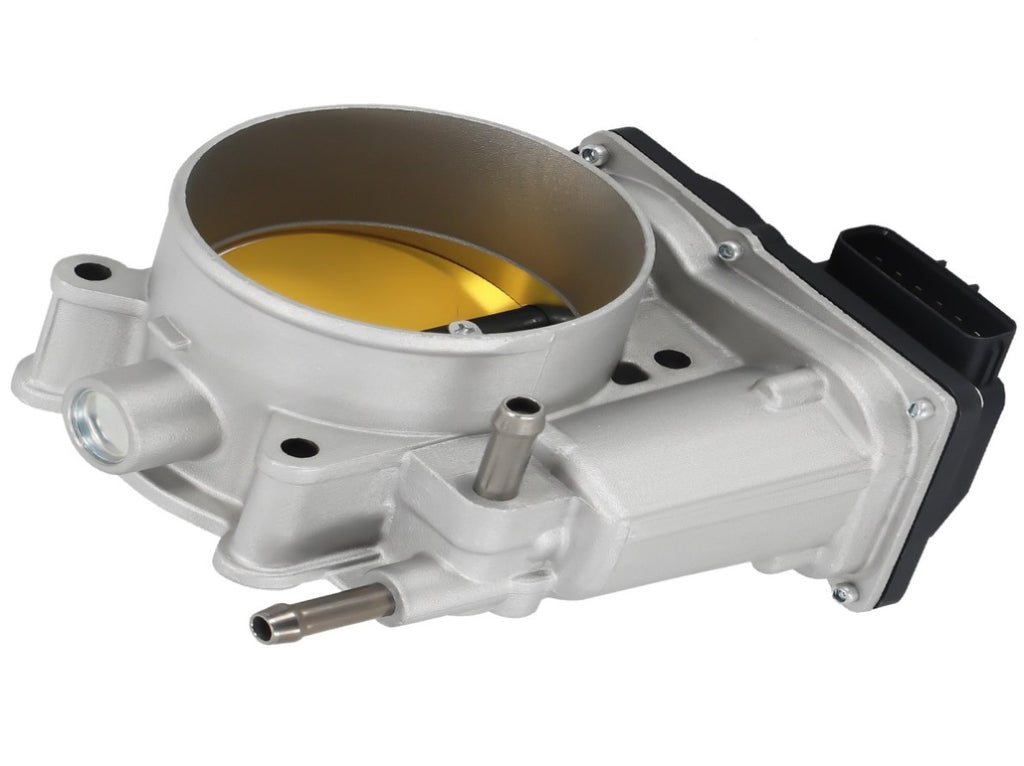

1x Throttle Body (As Picture Shown)
Features:
>> Optimized Engine Performance
Play a crucial role in maintaining the overall performance of the car engine by providing airflow that matches the demand while driving. This helps in the optimization of engine power, throttle response, and driver comfort.
>> Enhanced Fuel Efficiency
By controlling airflow, the throttle body helps to create efficient combustion conditions, which can improve fuel use efficiency. This is important fit for optimizing fuel consumption and reducing unwanted exhaust emissions.
>>Responsive Acceleration
Directly influence the power output by regulating the airflow into the engine. A responsive and well-maintained throttle body ensures quick acceleration and efficient power delivery.
Signs of damage to the throttle body:
When your car cannot start, or step on the throttle after starting, the throttle will not return.
Smoke, fuel consumption.
High idle speed and uneven acceleration.
If the above issues occur, there may be a problem with the throttle body of your vehicle
Note:
-It Fits Aftermarket Intake Manifold that is Bigger than Stock Size. Otherwise a Spacer is Needed to be able to Fully Open the Butterfly.
- Professional Installation is Highly Recommended
- No Instruction Included
- Professional Installation is Highly Recommended
- No Instruction Included
