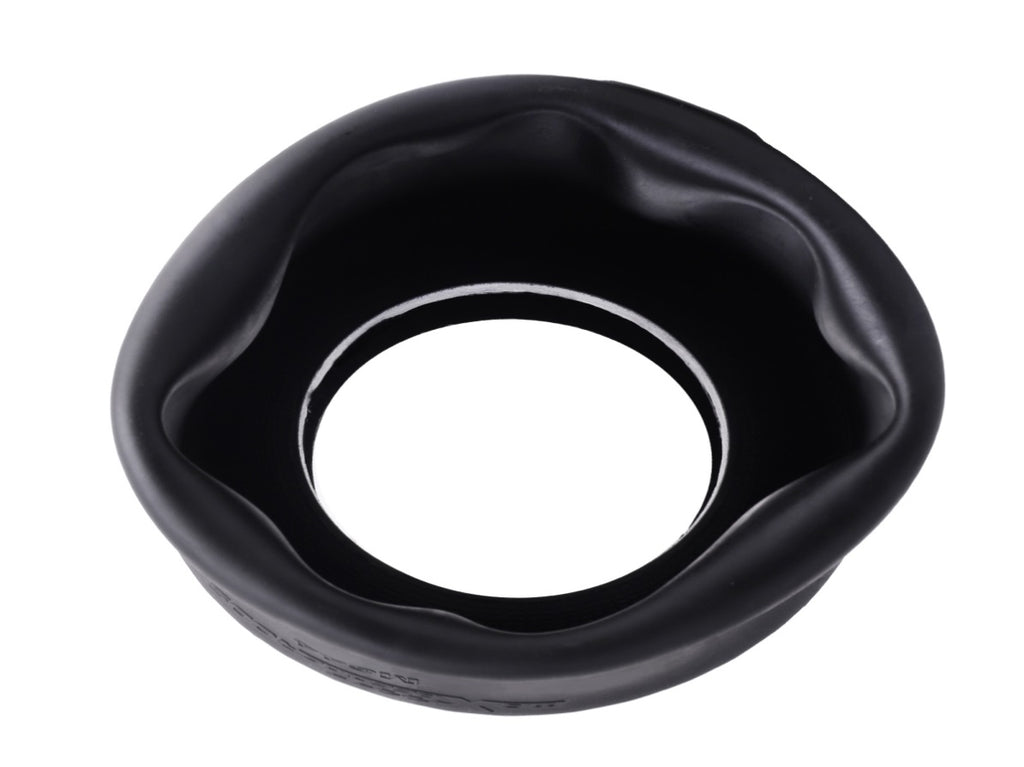

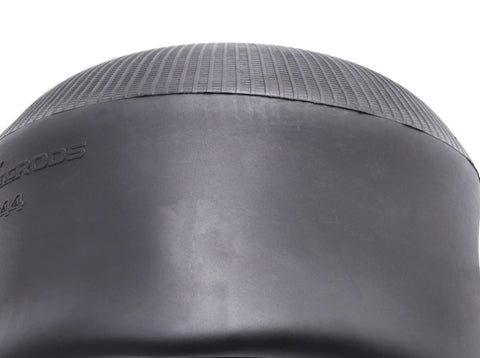

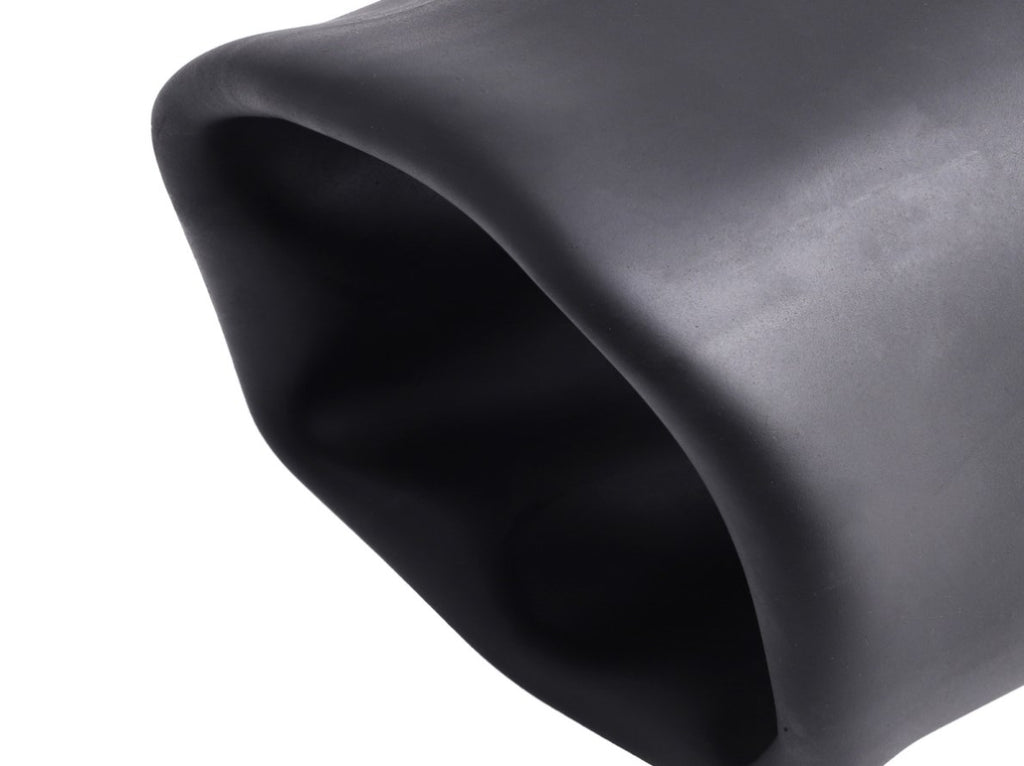

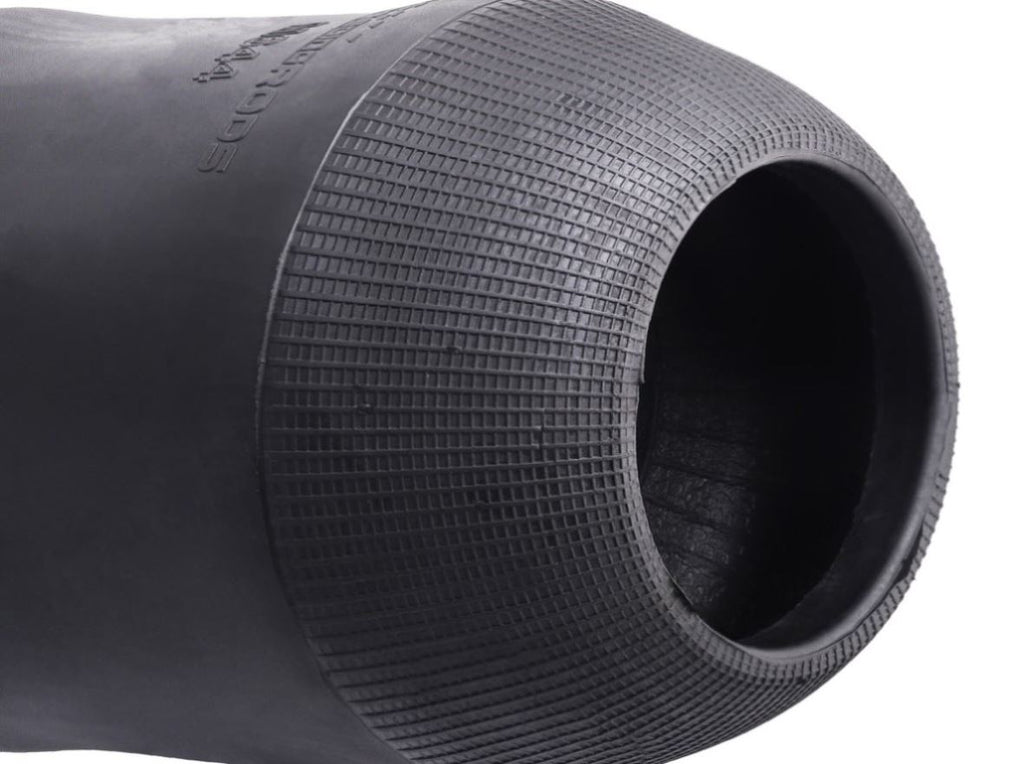

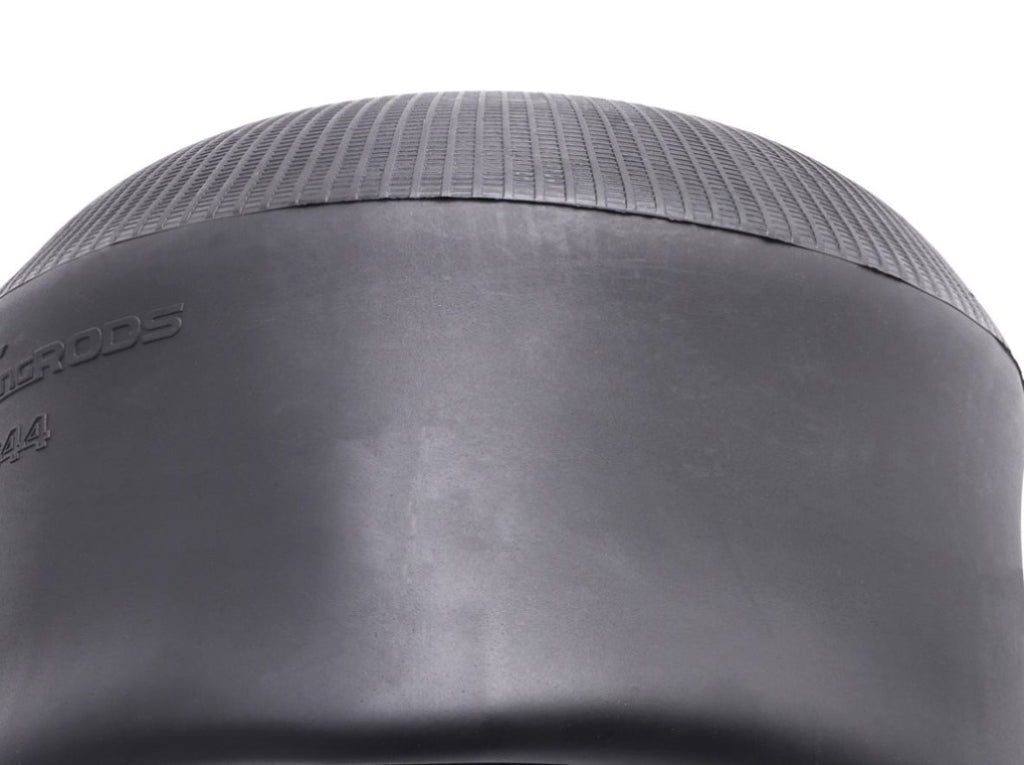

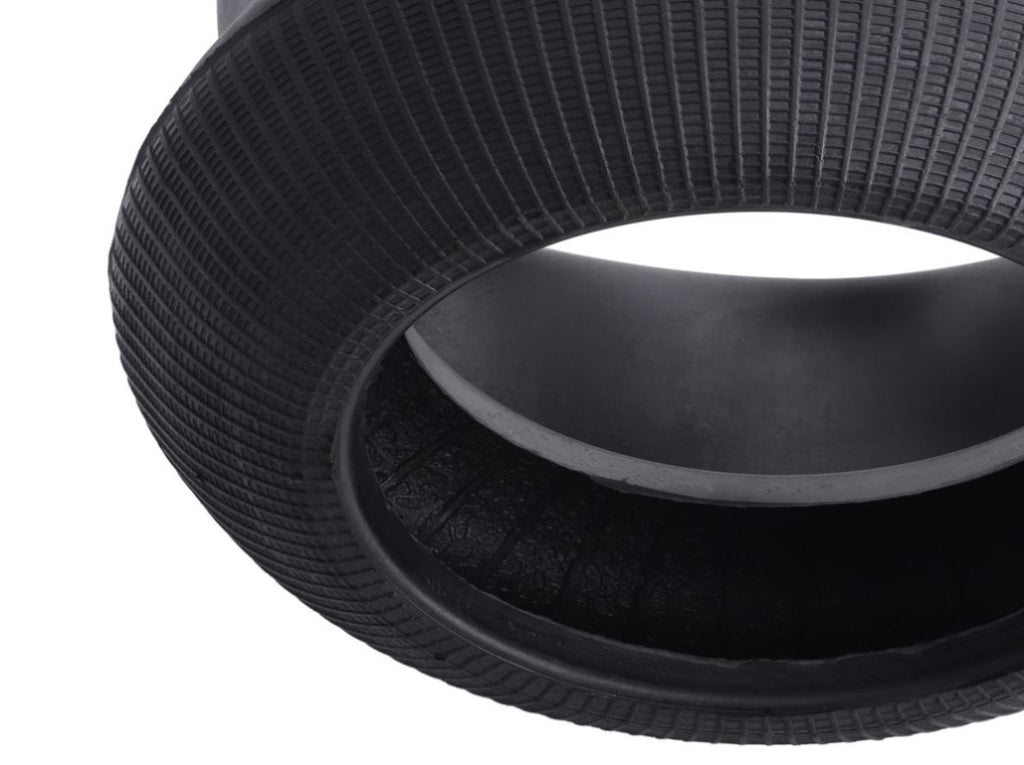

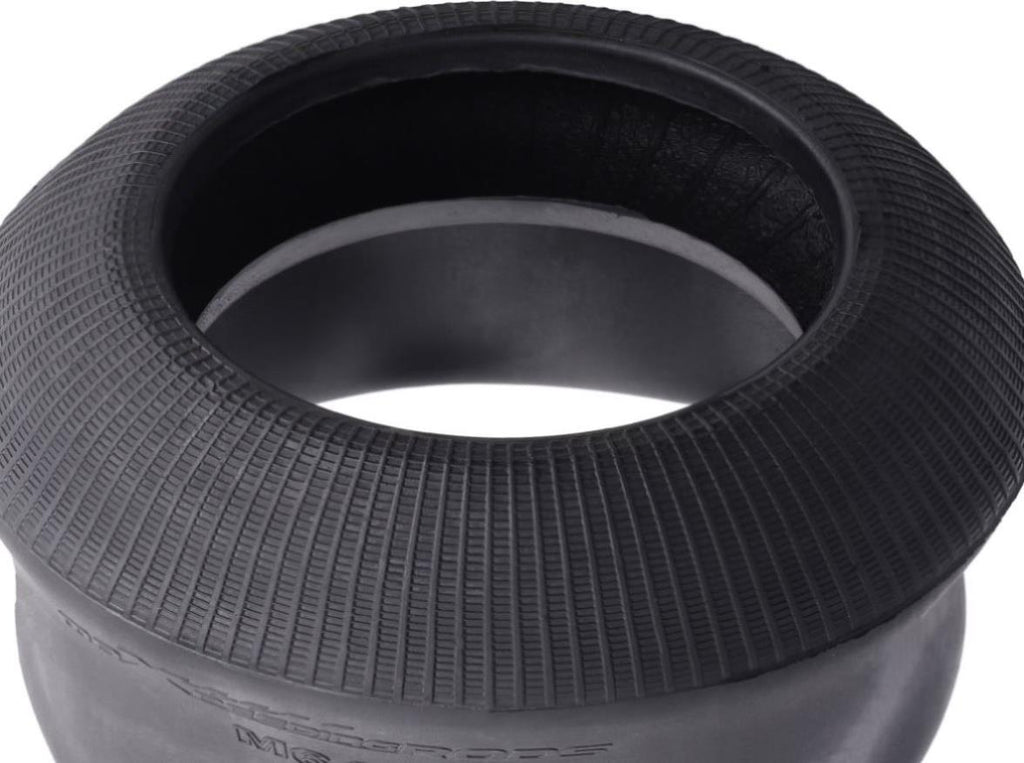

1pc Air Suspension Spring Bag fit for MercedesBenz A0003270101 fit for ContiTech 644NP 30743668

Reference Part Number:

replacement fit for Firestone W01-095-0118
replacement fit for ContiTech 644N
replacement fit for Goodyear 8017
replacement fit for Volvo 1622111, 1199893, 1134445
replacement fit for Dunlop FR D11S01
replacement fit for MercedesBenz A0003270101, A613327001

Other parts number:
fit for ODS ODS000003
fit for DAF 0689677 0696229
fit for Granning 15620
fit for Neopian 100112254
fit for Phoenix 1E21
fit for Taurus B121
fit for CF Gomma 1S285-24
fit for BPW 02.200.24.40.0
fit for EVO 4.771.170.000
fit for Kassbohrer 4771143
fit for VanHool 624319-610

Specification:

Top diameter: 130.8mm / 5.15 inch
Bottom diameter: 130.8 mm / 5.15 inch
Diameter: 221 mm / 8.7 inch
Design height: 397 mm / 15.74 inch
Intern Jounce Bumper: No
Quantity: 1 Piece
Condition: Brand New
Material: Natural rubber
Package Length, width and height: 33*32*27cm/ 12.99*12.6*10.63 inch
Package Wight: 2.85 Kg / 6 LBS

Features:

1、Highest leak test ratio: 100% Air Tightness Testing.
2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
4、The thickness of the rubber is 4.5-5.00mm
5、12.9 grade high strength steel studs.
6、Withstand 2Mpa of air pressure before the rubber burst.
7、Careful evaluation of OEM specifications.
8、Strict quality control.
9、Sturdy & Durable Material.
10、Reduces Damage of Trailer, Cab And Truck Body.
11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
12、Allow perfect load equalization between axles. Provide constant-level hauling.
13、Increase life of tires and brake linings.
14、Substantially reduce breakage and maintenance of other vehicle components.

Notice:

- These air suspension bags are aftermarket ones. They will replace the original air springs.

-Instruction is not included. Professional installation is recommended

-Contact us please fit for whatever we can help
