24-Way Damper Coilover Suspension Lowering Kit fit for Toyota Corolla 2003-08 12867442

Features

- 24 levels of dampening adjustability.
- Fully height adjustable via the lower mount with no need to change preload and sacrifice shock stroke.
- Cold-bent springs made from high strength 55CrSi steel.

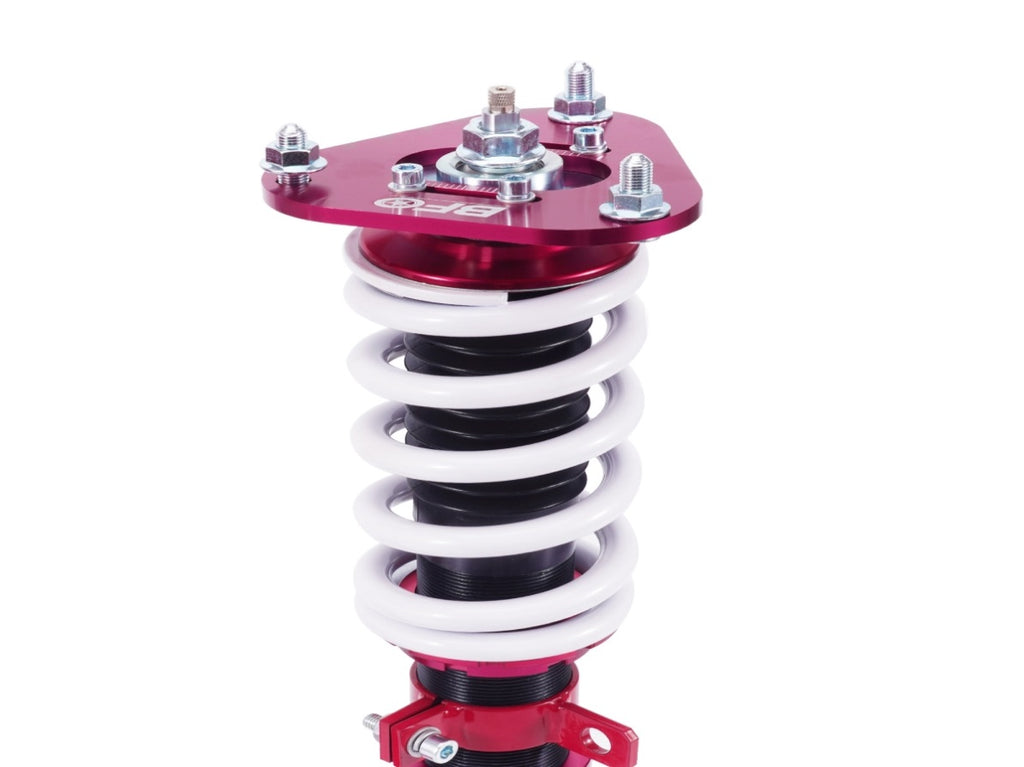

- Adjustable camber plates are designed to offer up to 3 degree's of camber adjustment at any ride height to dial in your aligment.
- Manufactured from high quality T-6061 billet aluminum with an anodized finish fit for superior strength and corrosion protection.

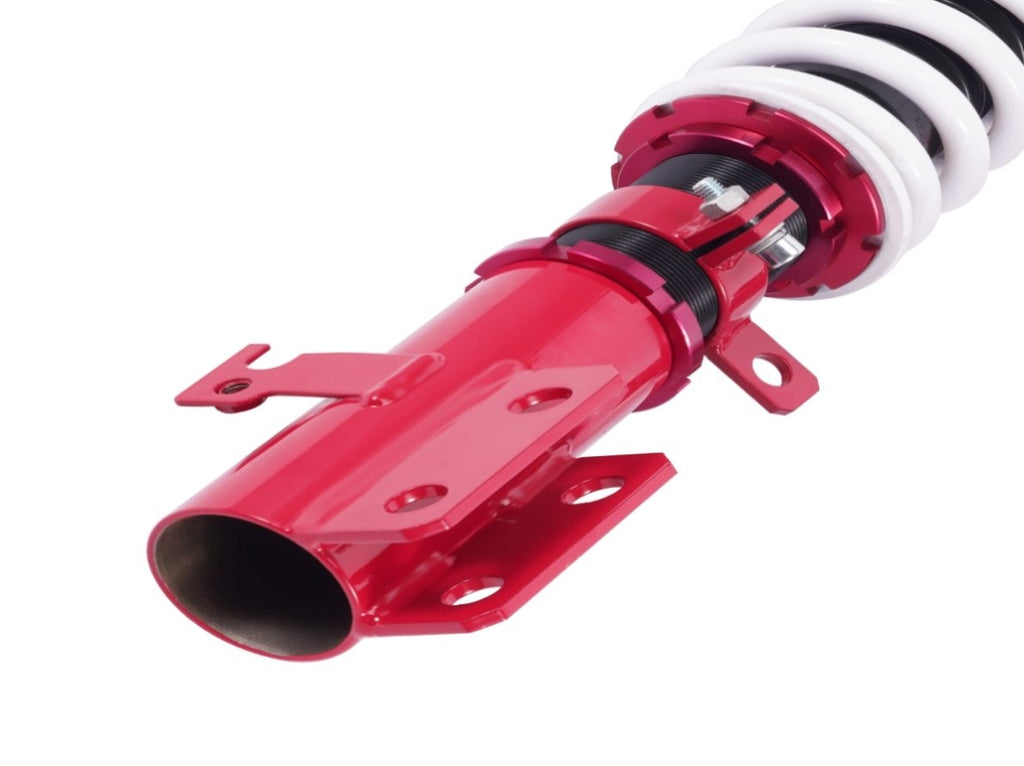

- Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
- Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy fit for intalling.
- Quality Assured - Full Year Limited Warranty From Date of Purchase.
- Fully Rebuildable With All Parts Available.

Application

fit for Toyota Corolla 9th Gen. (E130) 2003-2008
fit for Toyota Corolla 9th Gen (_E12_) (01/2001-12/2007) other markets
fit for Toyota Matrix XRS (E130) 2003-2008

Specification

- Damping adjustable: 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 12 kg/mm (672 lbs/in)
- Spring Rate Rear: 8 kg/mm (448 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 190 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with white spring

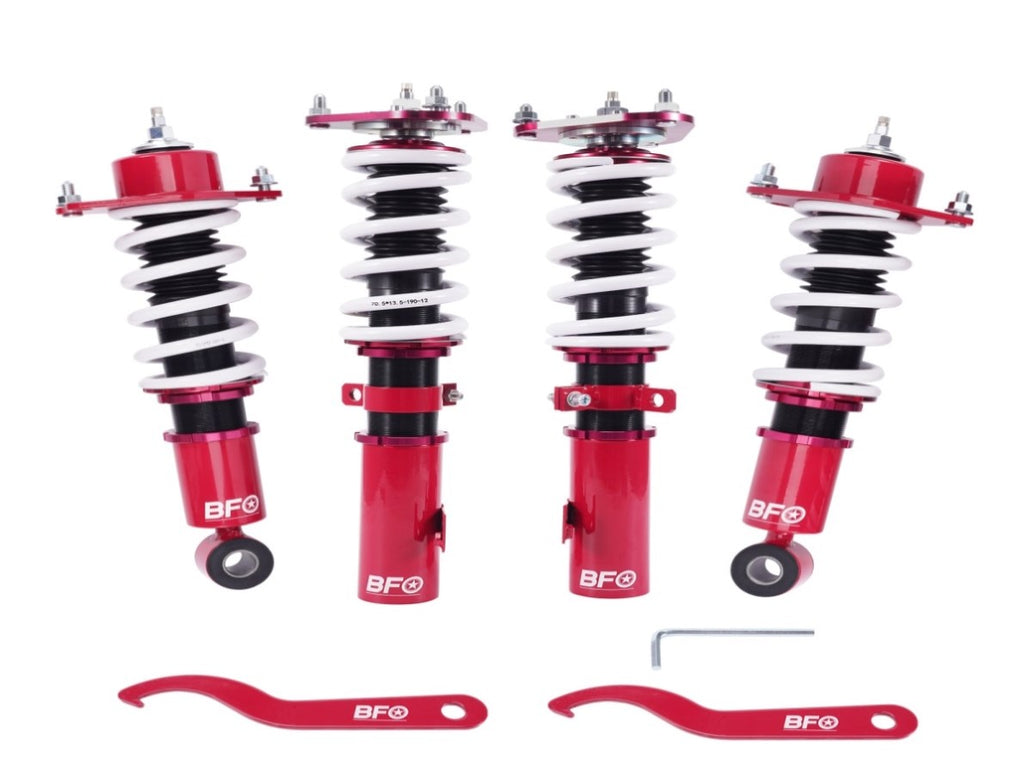

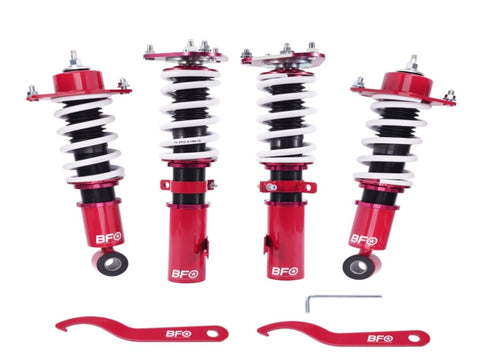

Package included

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners
