4x Air Suspension Spring Bags 2500lb Fit For Heavy Duty 1/2"NPT 3/8"-16UNC 51297309

Fit for:

Universal Air Suspension Bags for Ford F150/F250, for GMC Sierra, for Chevrolet Silverado, for Dodge Ram 1500 2500 3500, etc

Please confirm whether the air spring bag parameters below (especially height, diameter, bolt specifications) are consistent with ours before purchasing.

(Fits for most brand trucks)

Item Specifications:

Condition: 100% Brand New
Loading cap. at 3.0bar: 2.88KN
Loading cap. at 7.0bar: 7.25KN
Placement on Vehicle: Left,Right,Front,Rear
Air spring bag capacity:  2500LBS
Min height: 72mm±5mm
Max height: 218MM±5mm
Working stroke: 146mm±5mm
Single air port size: 1/2NPT

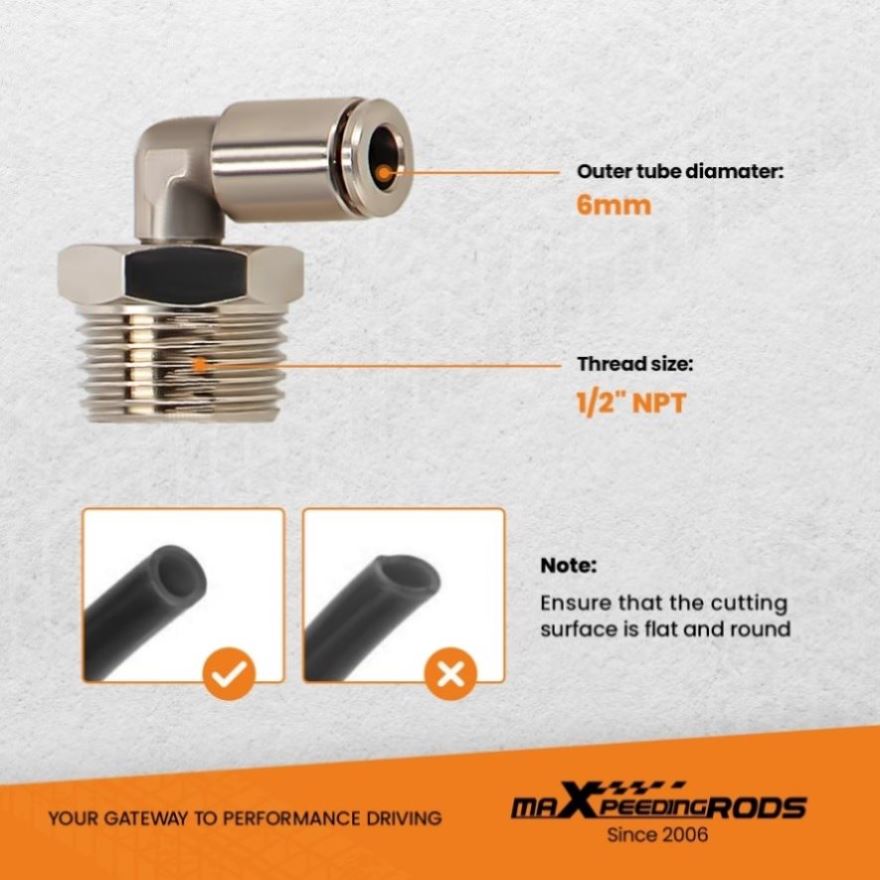

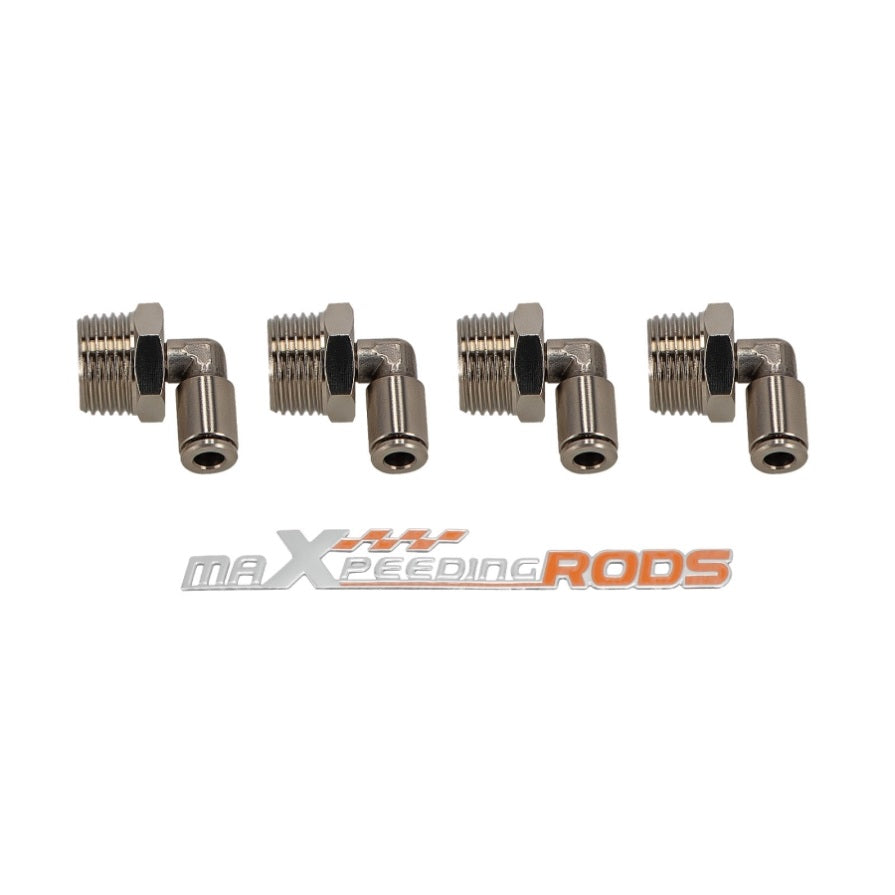

Air fitting elbow connector: G1/2-φ6(male) (Not included in the package)
Install hole size: 3/8-16UNC
Top plate diameter: 113mm
Air spring bag body diameter: 148mm±2mm

Condition: 100% Brand New

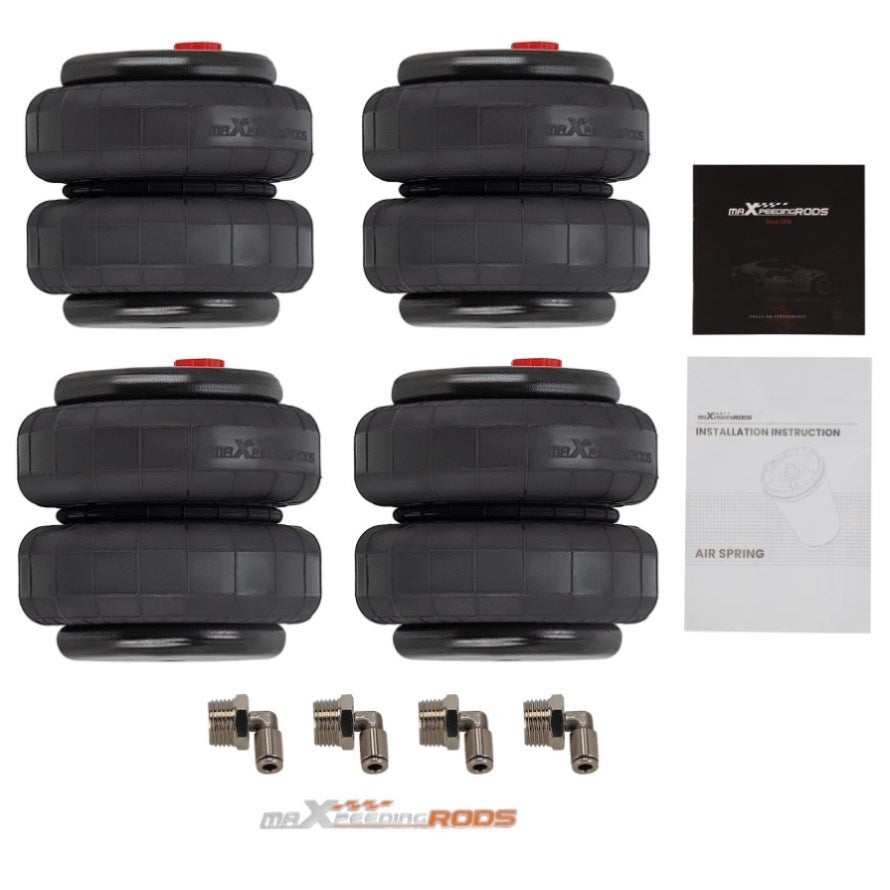

Quantity: 4 pieces in one set. (for rear / front left or right)

Warranty: 1 Year Warranty for any manufacturing defect.

Features:

- Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

- Hold up to 350 PSI
- Test more than 5,000,000 times
- 100% Air Tightiness testing
- Gives the driver more control of ride
- Built to strict quality control standards
- Designed for Comfort Suspension

Notice

- These air suspension bags are aftermarket ones. They will replace the original air spring bags.

- Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
