Air Suspension Spring Bag Kit Air Compressor fit for Ford Transit 2001-2020 RWD 72045060

Fitment:

• fit for Ford Transit 2001-onwards RWD Twin rear wheel

BODY TYPE: PANEL VAN, TIPPER, MOTORHOME, CAMPER, BOX VAN, HORSEBOX, MINIBUS, LUTON, CREW VAN, RECOVERY, DROPSIDE, FLATBED

Feature:

• 1、Stress Test Over 5,000,000 Times：Durable and Safe
• 2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
• 3、100% Air Tightness Guarantee
• 4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
• 5. 4-Layer reinforcement construction: Enhances air spring load support.
• 6、Use high-quality steel with high load-bearing capacity and long life.
• 7、Excellent and practical bolt-on installation.
• 8、Safe carrying capacity and stability
• 9、Restore the original ride height and improve ride quality
• 10、Ensure our driving comfort and reduce tire wear.
• 11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.

Specification:

• Condition: Brand New
• Placement on Vehicle: Rear left and right
• Max loading: 4000Kg/8818.5LBS
• Package Length, width and height: 74*27*21 cm
• Package Wight: 16.5 kg

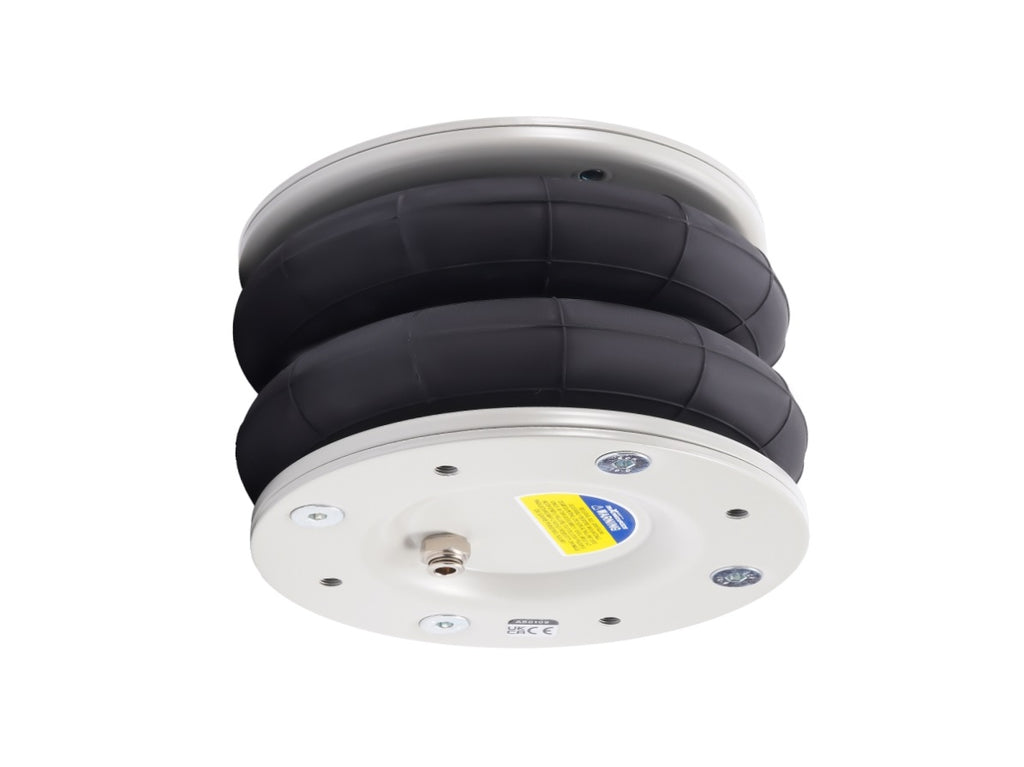

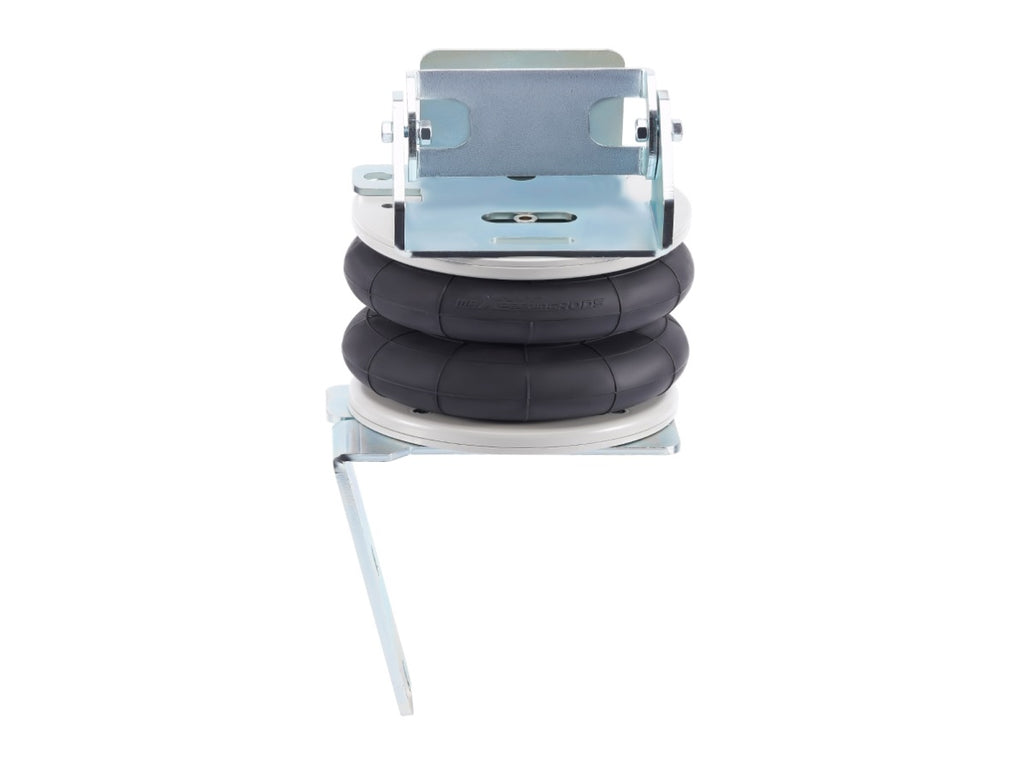

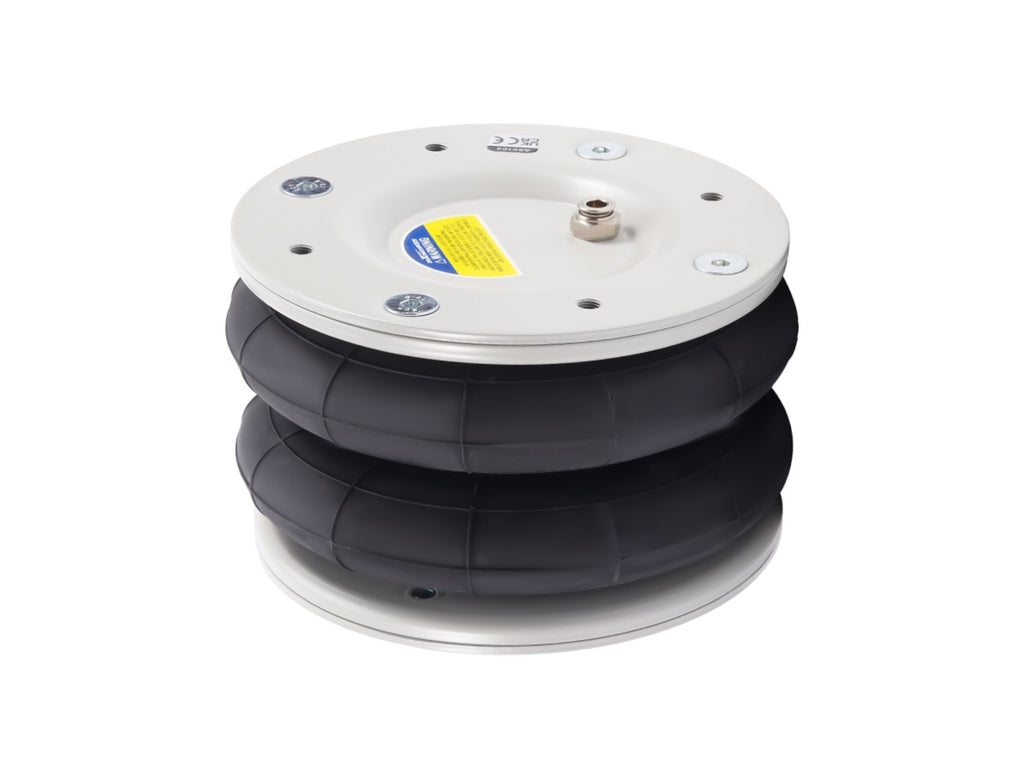

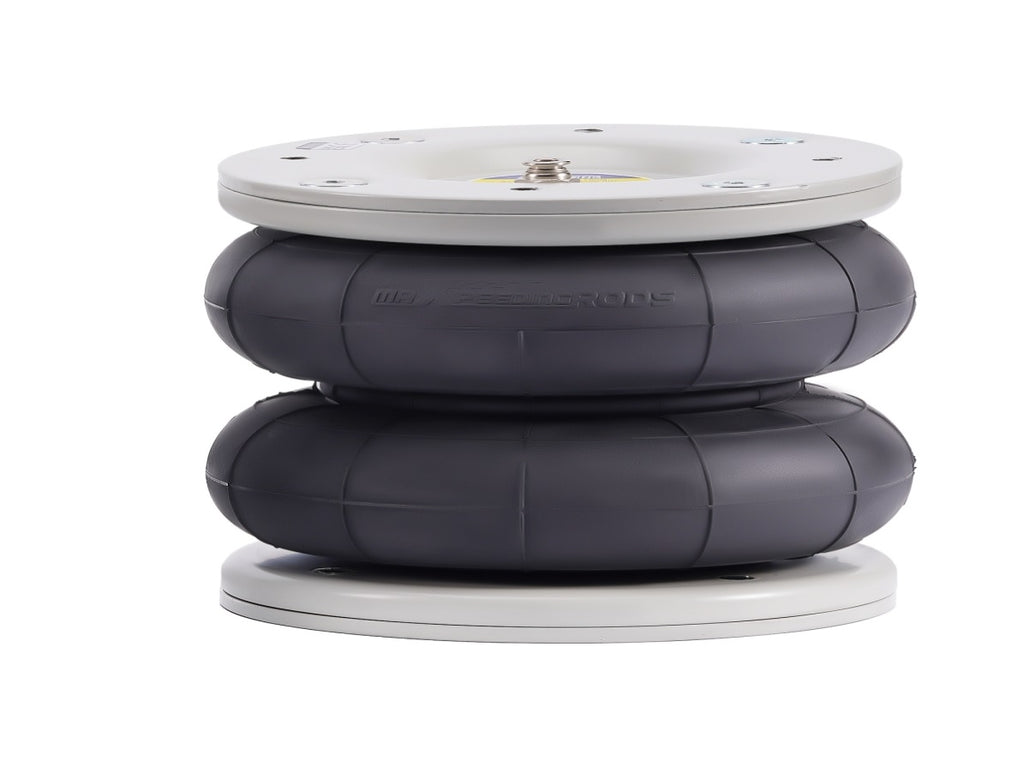

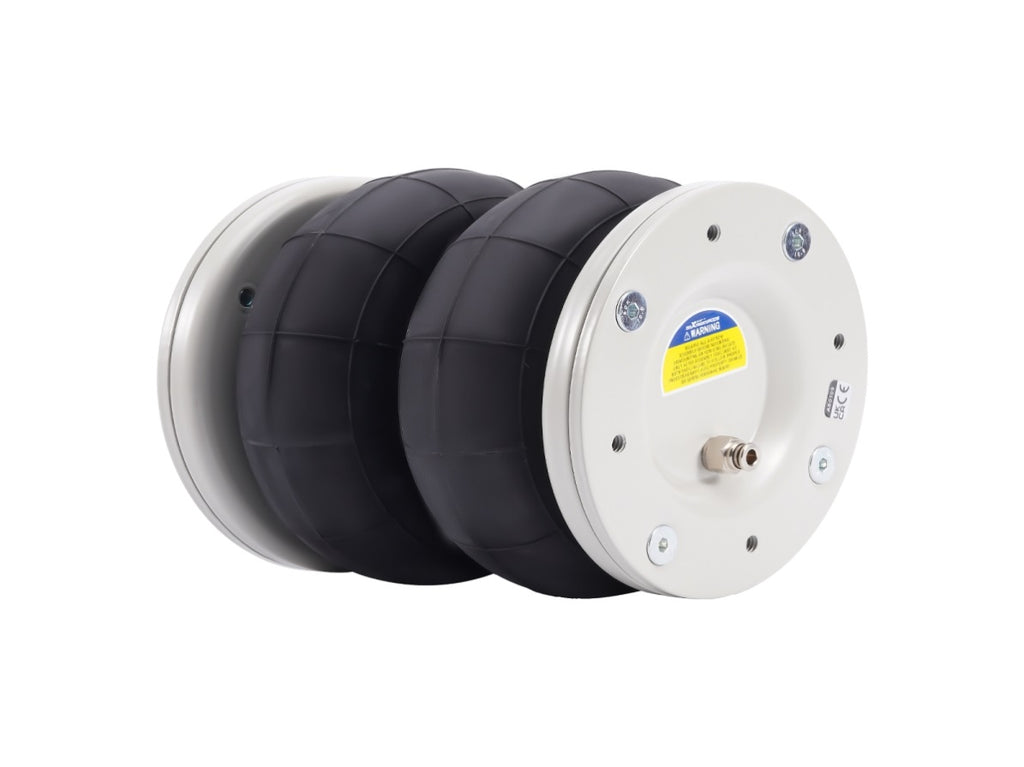

• Air spring---
• Stroke: 140 mm
• Max. Extended: 230 mm
• Min. Compressed: 90 mm
• Operating Pressure : ≤2.0 MPA
• Temperature range：≤+70°, ≥-40°
• Air pump---
• Power: 150W
• Output Voltage:  12V
• Maximum current:  10A
• Maximum Working Voltage: 10bar（1MPa ）

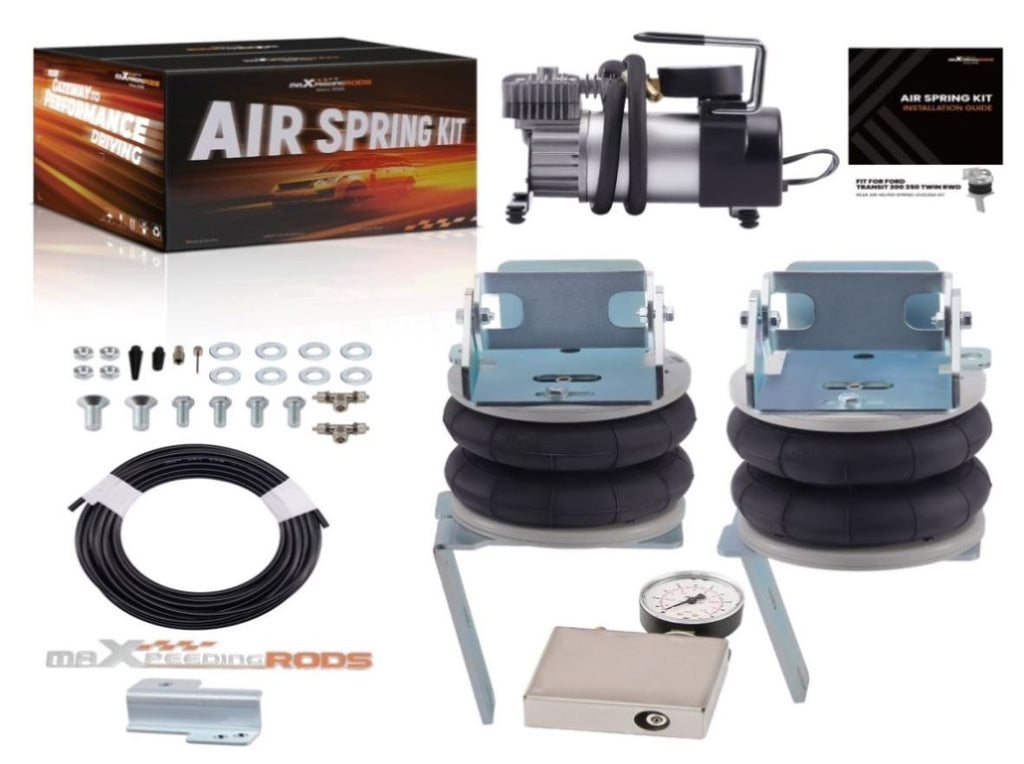

Package Includes(as the picture shows):

• 2x Air springs
• 1x Air suspension compressor
• 1x Gauge
• 7x Mounting bracket
• 1x Air line
• Mounting bolts and Air fittings

Notice:

• We Recommend Professional Installation
• fit for any questions, please contact us freely
