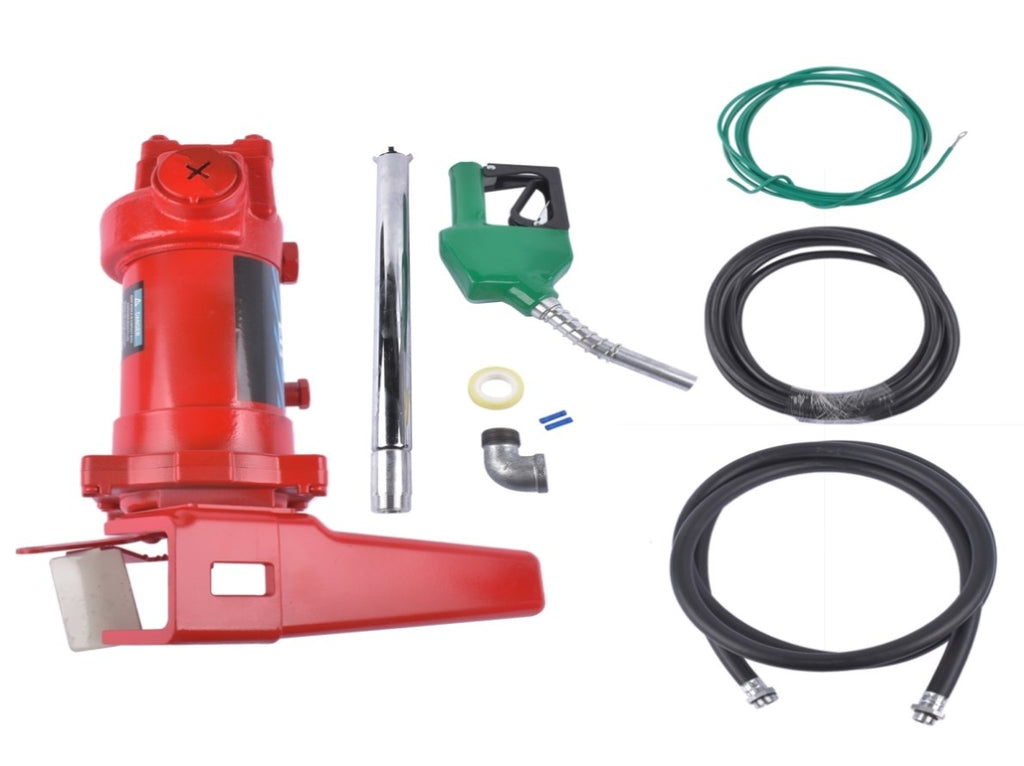

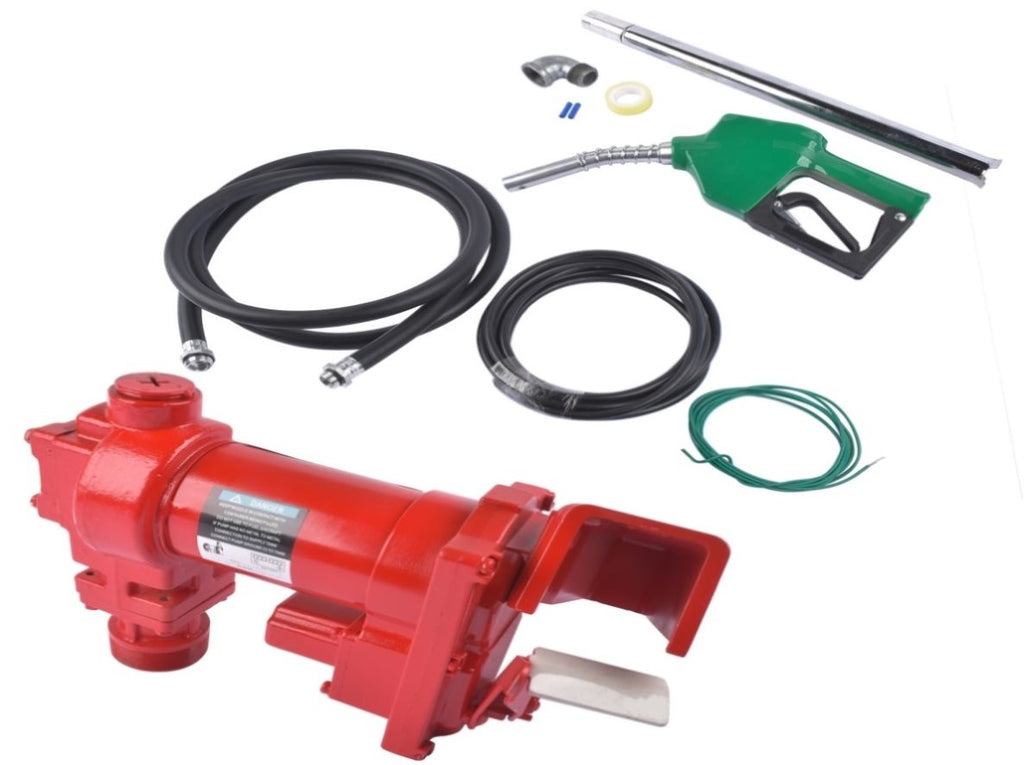

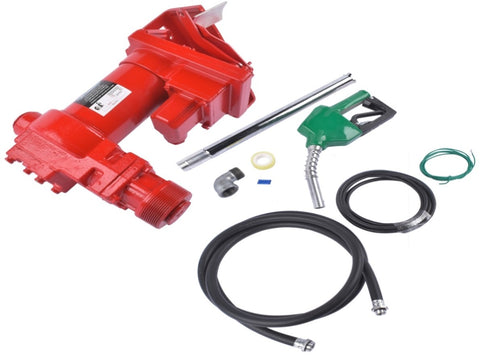

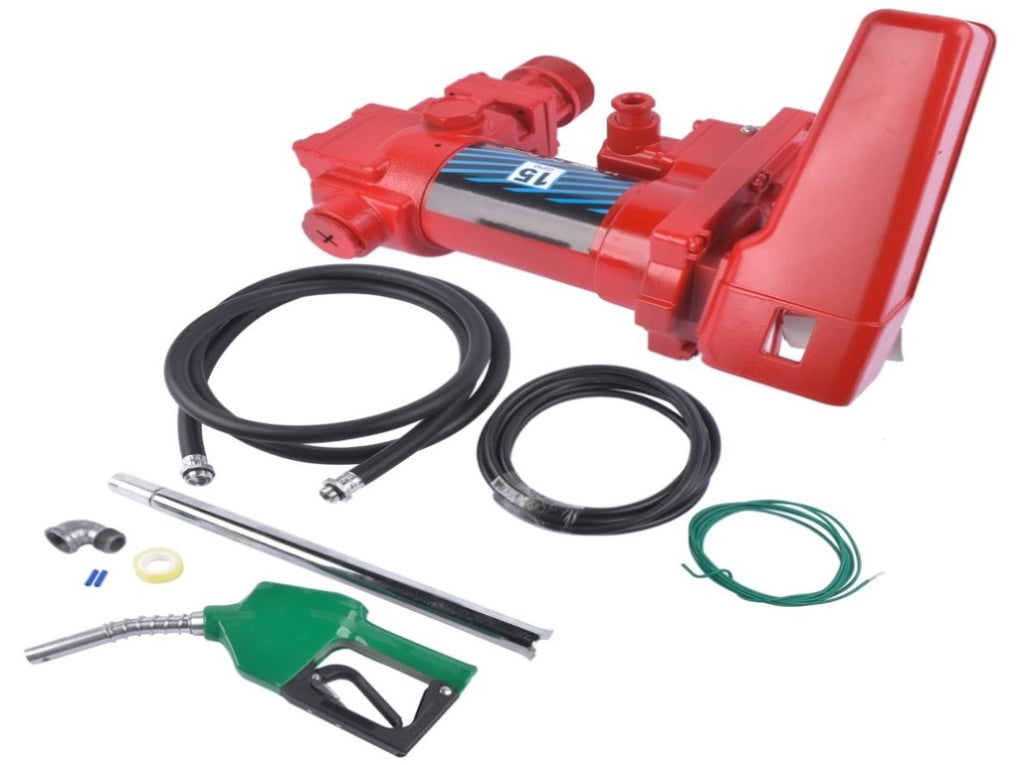

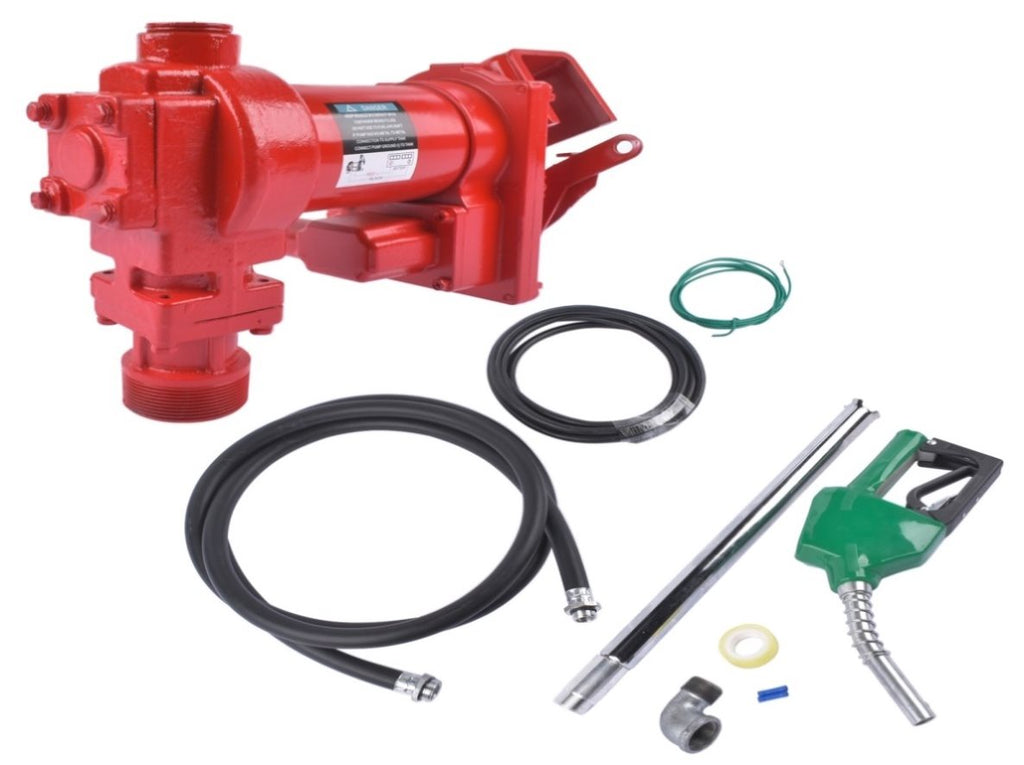

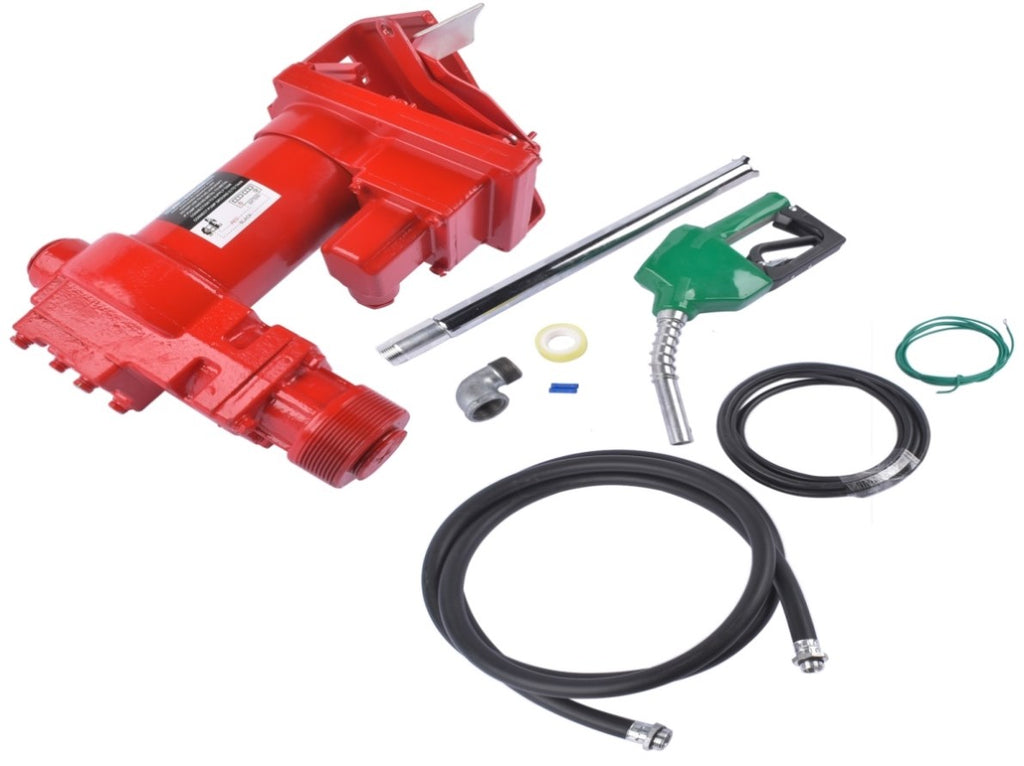

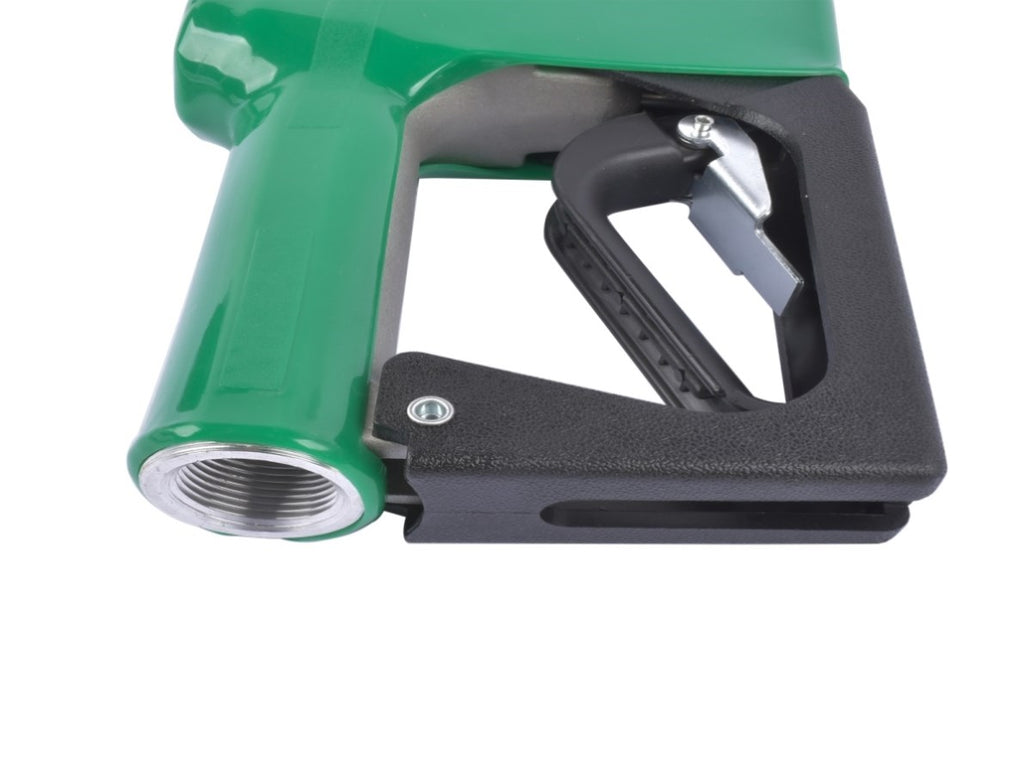

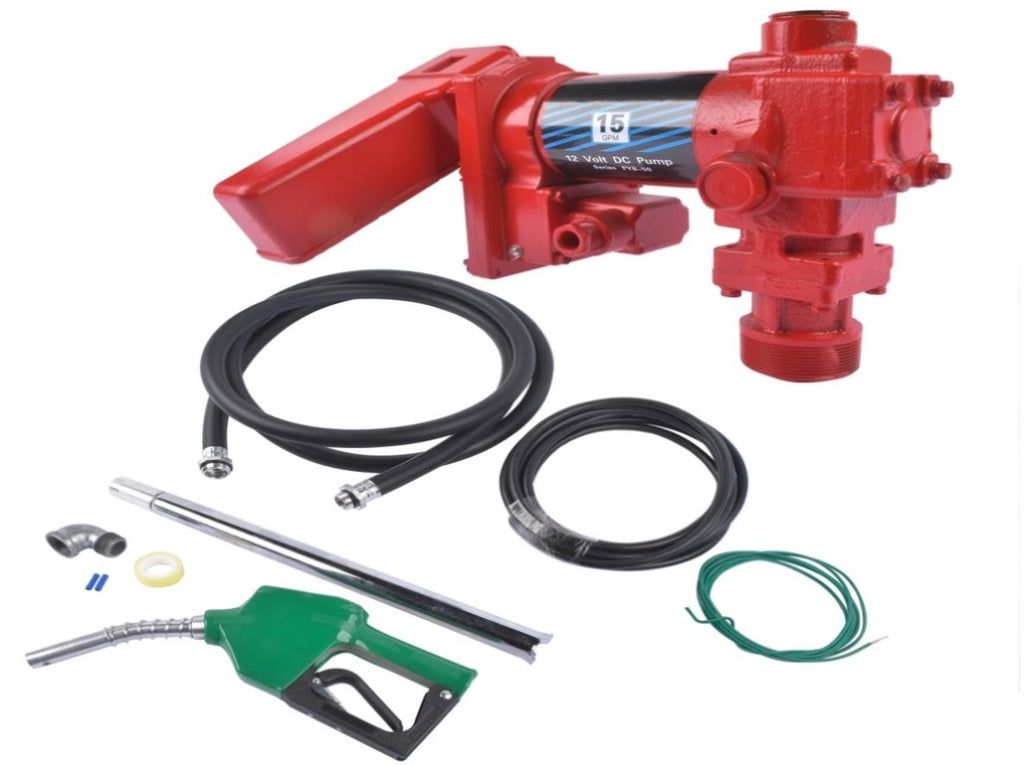

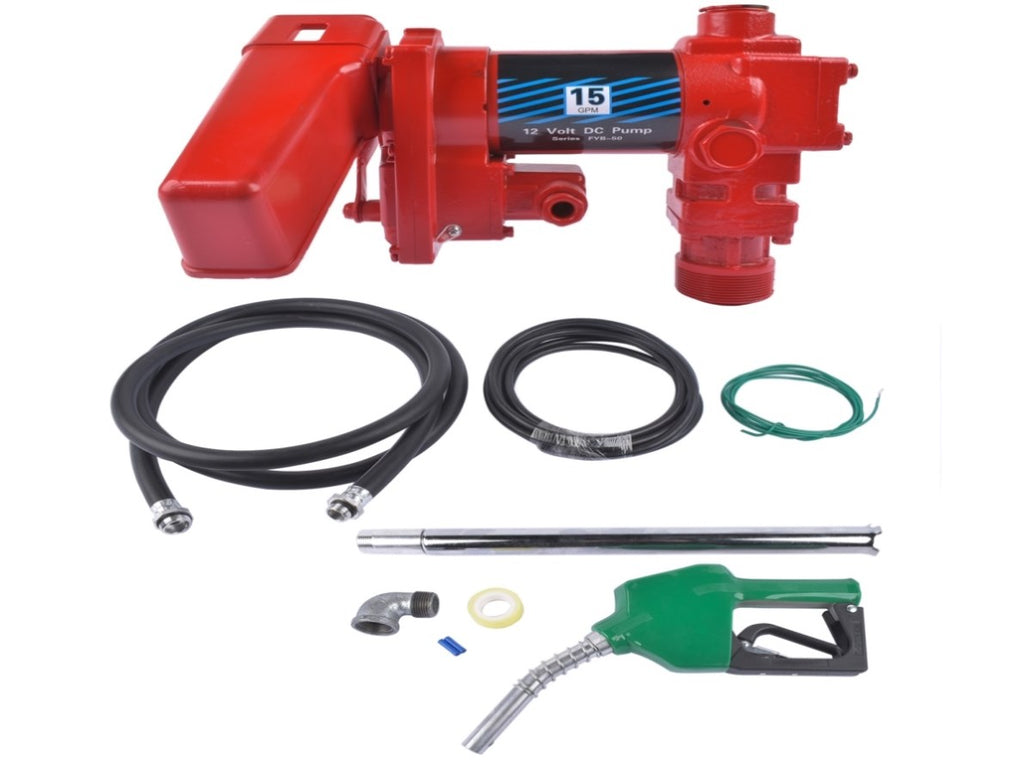

15 GPM 12V Fuel Transfer Pump Cast Iron with Discharge Hose Automatic Green Nozzle for Trucks 19700036
Increased suction lift
No performance loss due to vane wear
Self-priming ability
Easy maintenance
Consistent performance
Attention
To achieve maximum suction lift, the inlet plumbing should be as straight as possible with no elbows or bends in the line. Accessories, such as filters, should not be installed on the inlet side of the pump. Valves should be set with minimum spring pressure and must contain a pressure relief valve.
Variables that increase discharge pressure/decrease flow-rate:
- Adding accessories (filters, measuring devices, swivels, etc…)
- Changing accessories (increasing the length or decreasing diameter of hose)
- Dispensing fuel above the pump (the higher the discharge point is above the pump the lower flow-rate)
- Pumping higher viscosity fluids (umps are designed to pump at a viscosity no greater than kerosene)
Safety Information
WARNING! Electrical wiring should be performed ONLY by a licensed electrician in compliance with local, state, and national electrical code NEC/ANSI/ NFPA 70, NFPA 30, and NFPA 30A, as appropriate to the intended use of the pump. Threaded rigid conduit, sealed fittings, and conductor seal should be used where applicable. The pump must be properly grounded. Improper installation or use of this pump can result in serious bodily injury, or death!
WARNING! To ensure safe and proper operation of your equipment, it is critical to read and adhere to all of the following safety warnings and precautions. Improper installation or use of this product can cause serious bodily injury or death!
NEVER smoke near the pump, or use the pump near open flames when pumping a flammable liquid! Fire can result!
A filter should be used on the pump outlet to ensure no foreign material is transferred to the fuel tank.
Threaded pipe joints and connections must be sealed with the appropriate sealant or sealant tape to minimize the possibility of leaks.
Storage tanks must be securely anchored to prevent shifting or tipping when full or empty.
To minimize static electricity build up, use only static wire conductive hose when pumping flammable fluids, and keep the fill nozzle in contact with the container being filled during the filling process.
The pump motor is equipped with thermal overload protection; if overheated, the motor will shut off to prevent damage to the windings.
WARNING! This product shall not be used to transfer fluids into any type of aircraft.
WARNING! This product is not suited for use with fluids intended for human consumption or fluids containing water.
