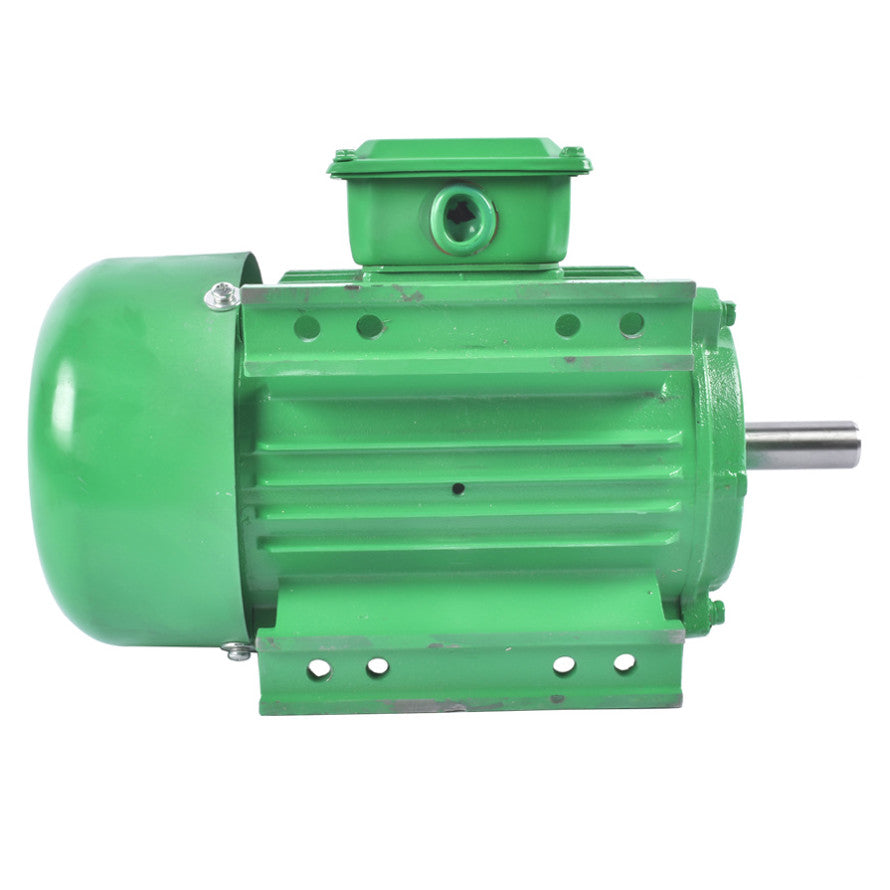

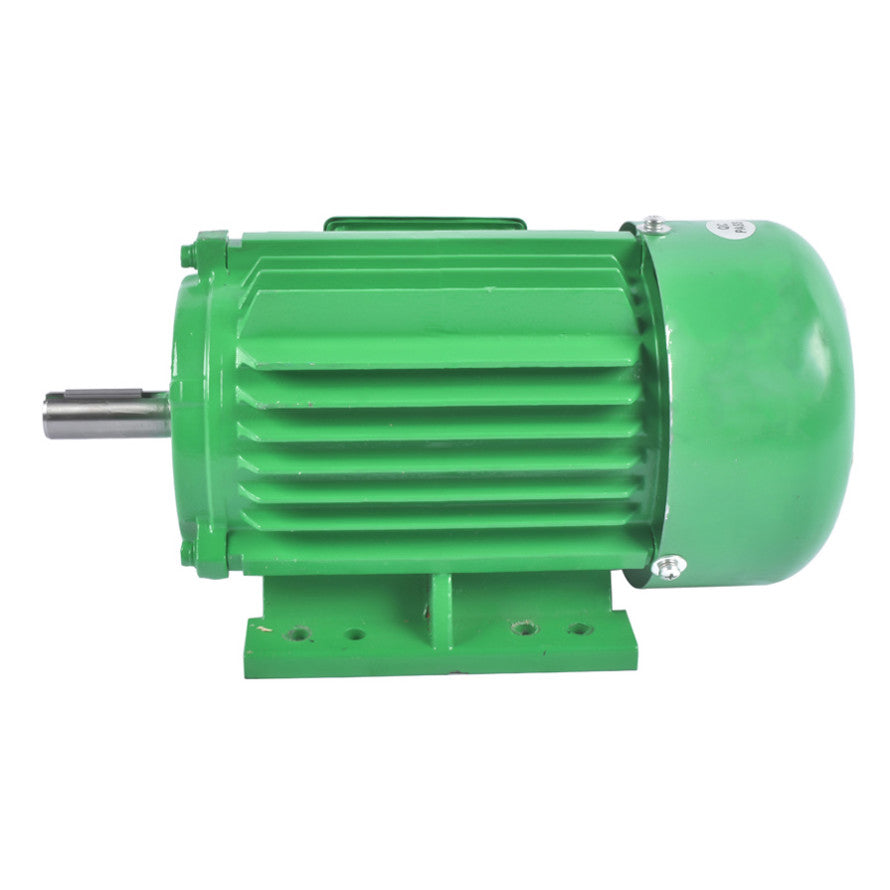

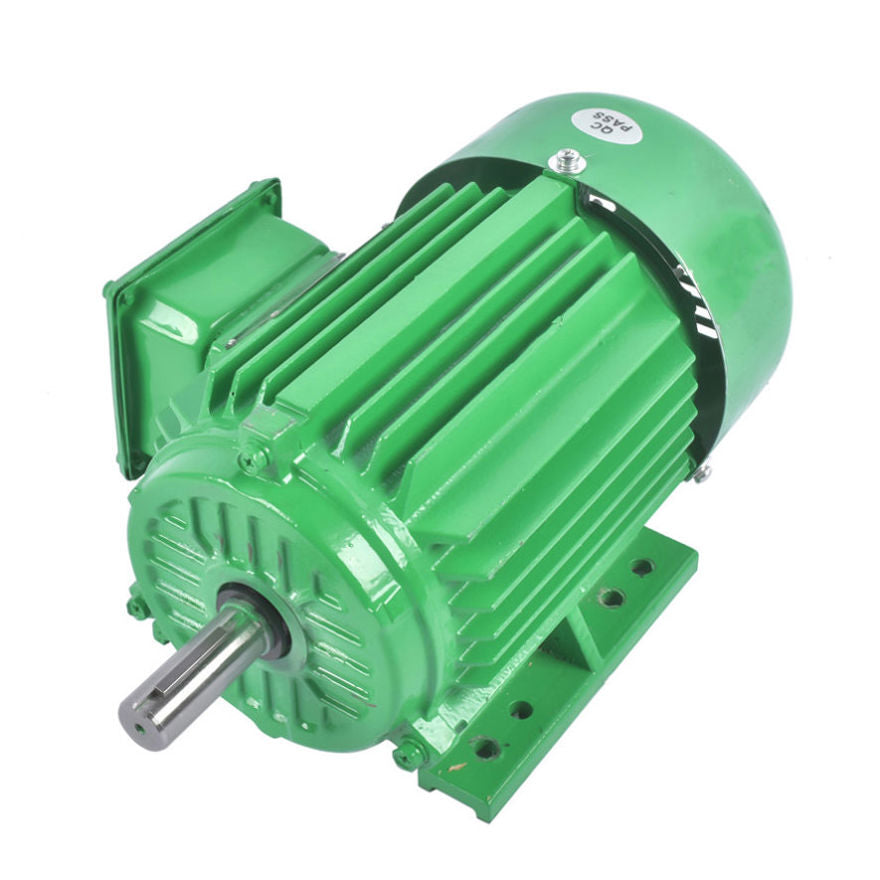

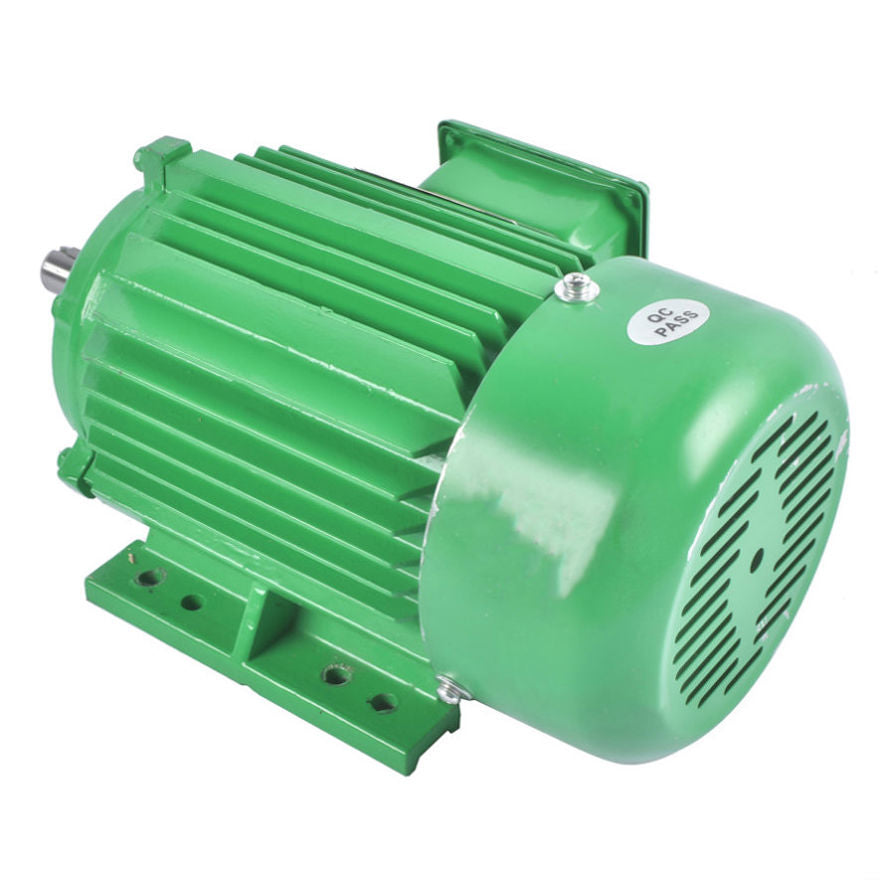

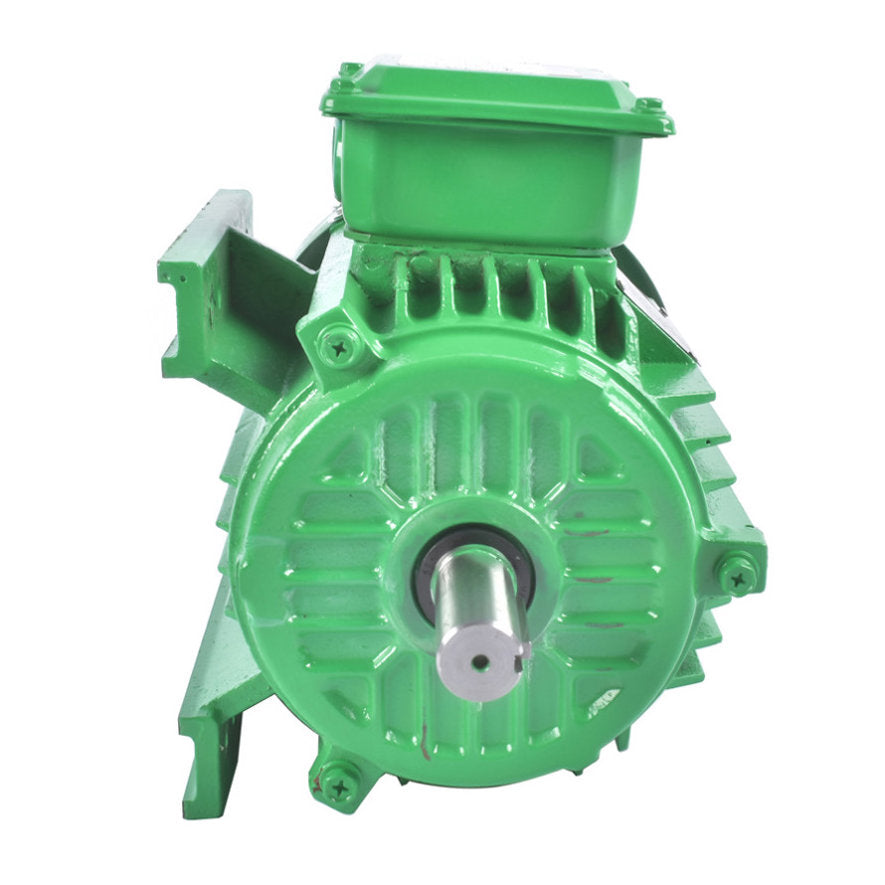

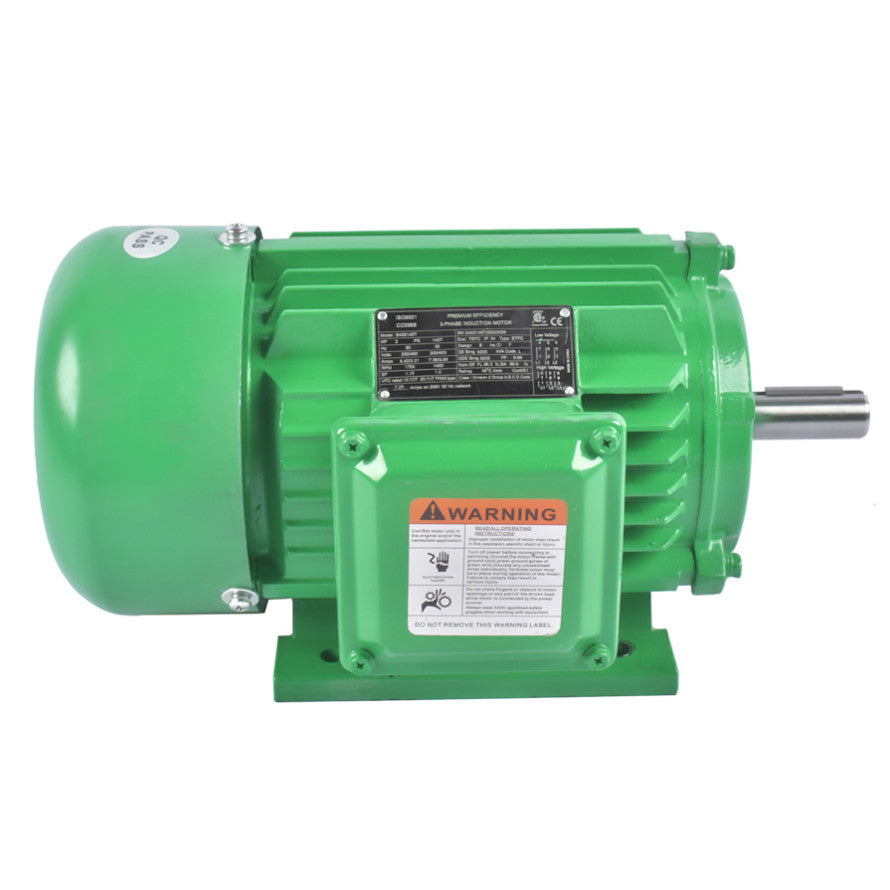

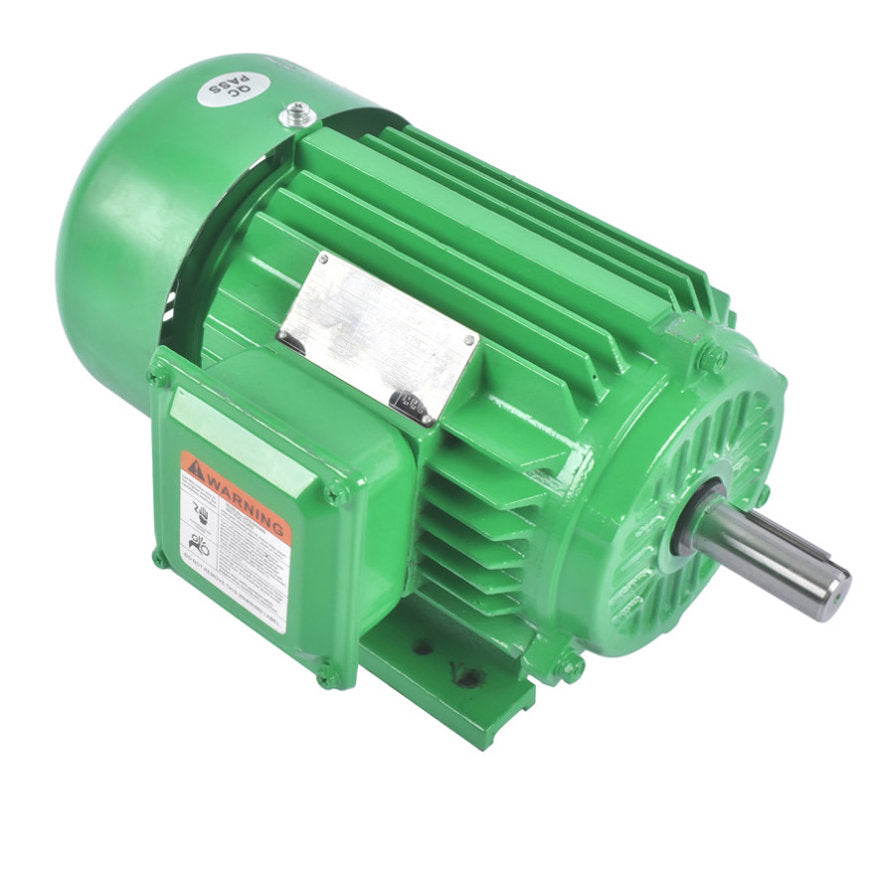

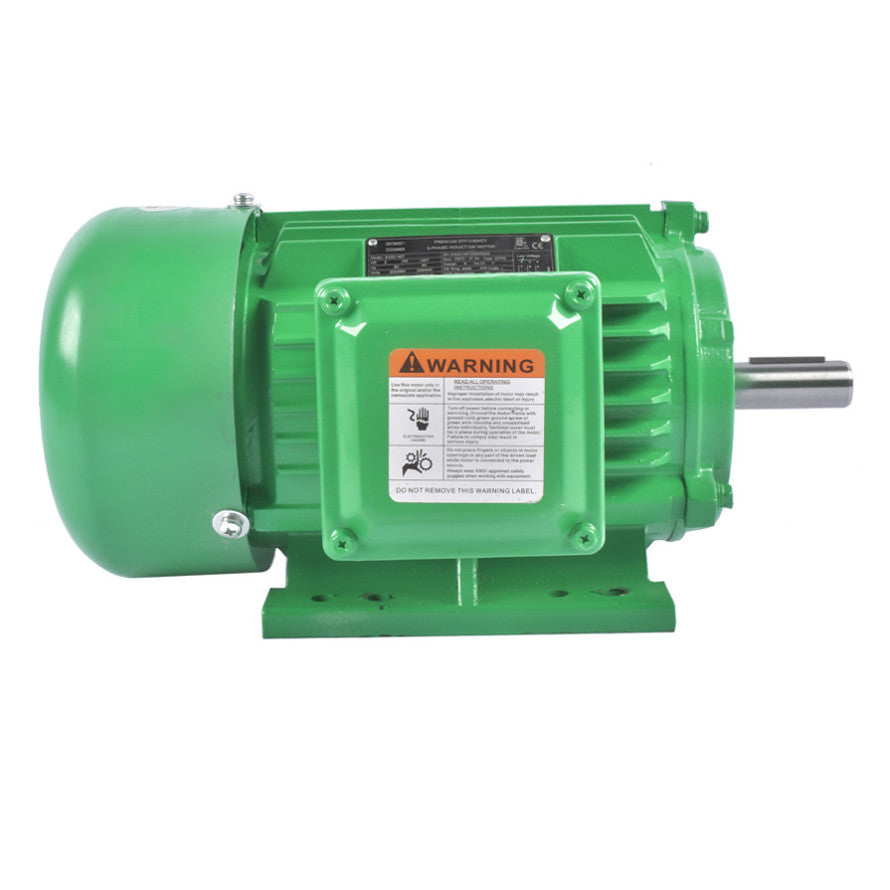

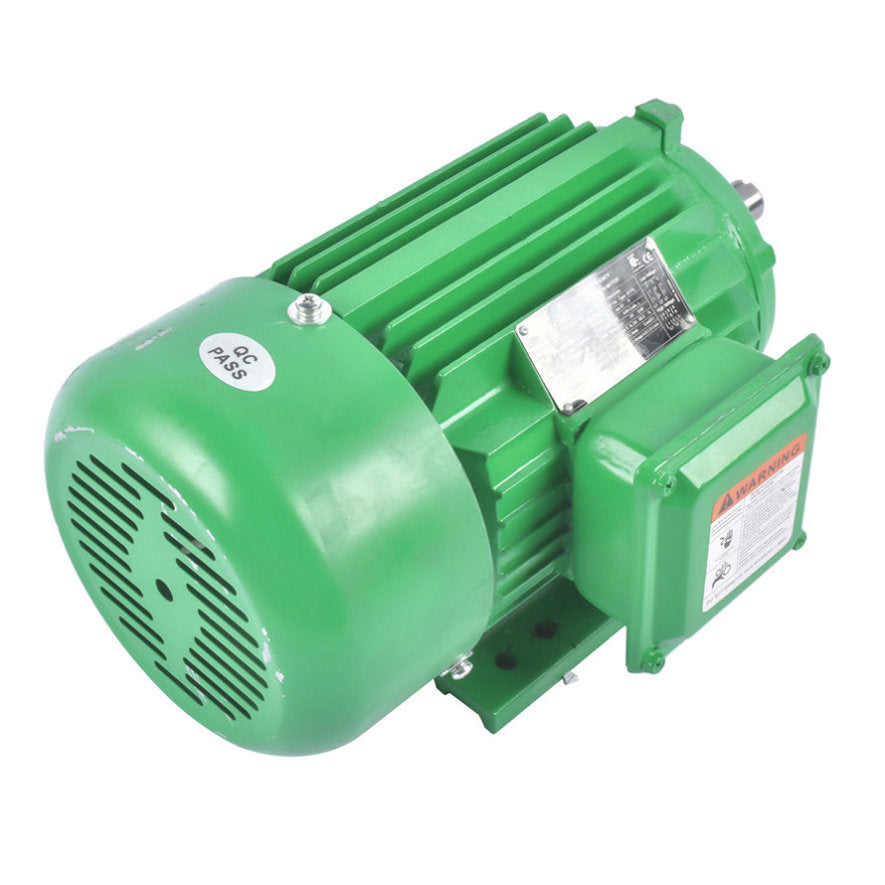

2HP 3 Phase Electric Motor 1800 RPM 145T Frame TEFC 230/460 Volt High Efficiency 24974946
Specifications
Rated Load: 2 HP
AC Phase: 3 Phase
RPM: 1800
Frame: 145T
AC Phase: 3 Phase
RPM: 1800
Frame: 145T
Service Factor 1.25
Class F Insulation
Class F Insulation
Rated Input Voltage: 230/460 Volt

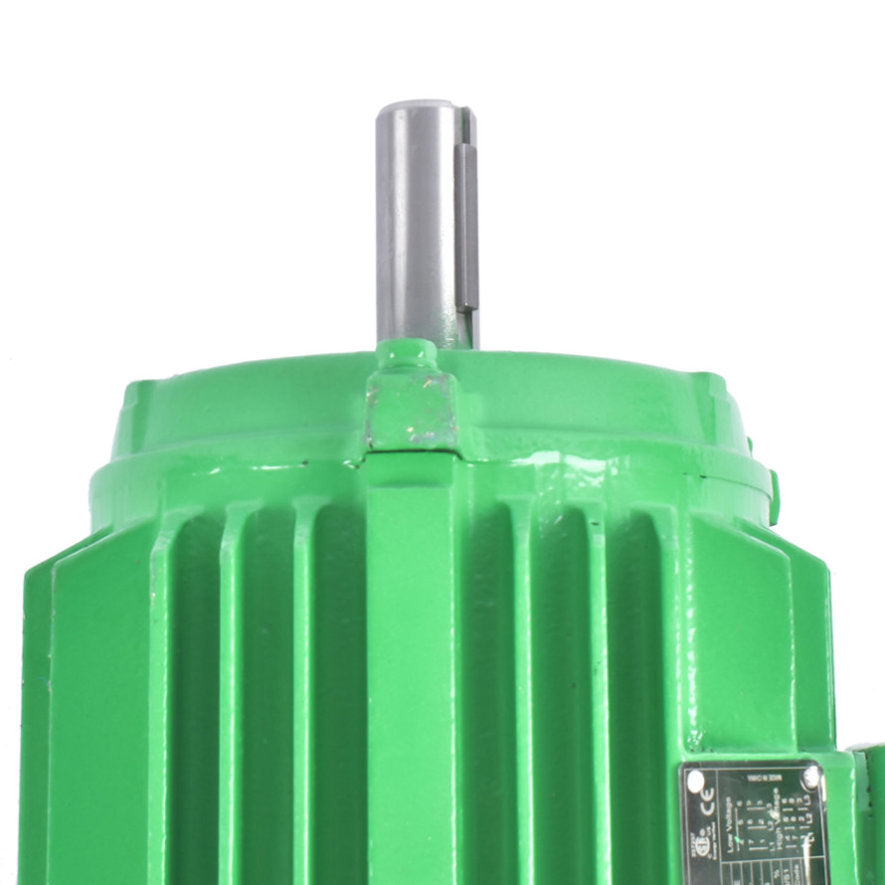

Shaft Length: Approximately 2 3/8"
Keyed 7/8" Diameter Shaft
Current: AC
Full Load Amps: 5.85/2.93
AC Frequency Rating: 60 HZ
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
Shaft Length: Approximately 2 3/8"
Keyed 7/8" Diameter Shaft
Current: AC
Full Load Amps: 5.85/2.93
AC Frequency Rating: 60 HZ
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
TEFC / IP55 enclosure
Insulation Class: F (Max 311°F)
Mounting Type: Base-Mounted
IP Rating: IP55
Shaft Type: Keyed
Package Included:
1x Electric Motor
