2X Steering Cylinder fit for Case 580C 580D 580E 580F 580SD 580SE 584D 234447A1 90979245

Application

fit for Case Models 480C, 480D, 480E, 480ELL, 480F, 480FLL, 580C, 580D, 580E, 580F, 580SD, 580SE, 584D, 584E, 585E, 586D, 586E (all with 2WD)

Part Number

D128454, D84800, 234447A1, 234466A1, D147753, A37859, D82569, A135366, A137503, A51731, A37509

Specification

- 16-1/4" center-to-center closed

- 23" center-to-center open

- Double piston cylinder replaces single piston cylinder

- Uses D148100 Seal Kit

-  Note: Will fit earlier B series, but power steering hoses will need to be adapted

Features

- Made of high quality steel & plastic.

- High strength and heavy duty.

- Prevent from rust and corrosion .

- Easy to install, direct replacement.

 Package Includes

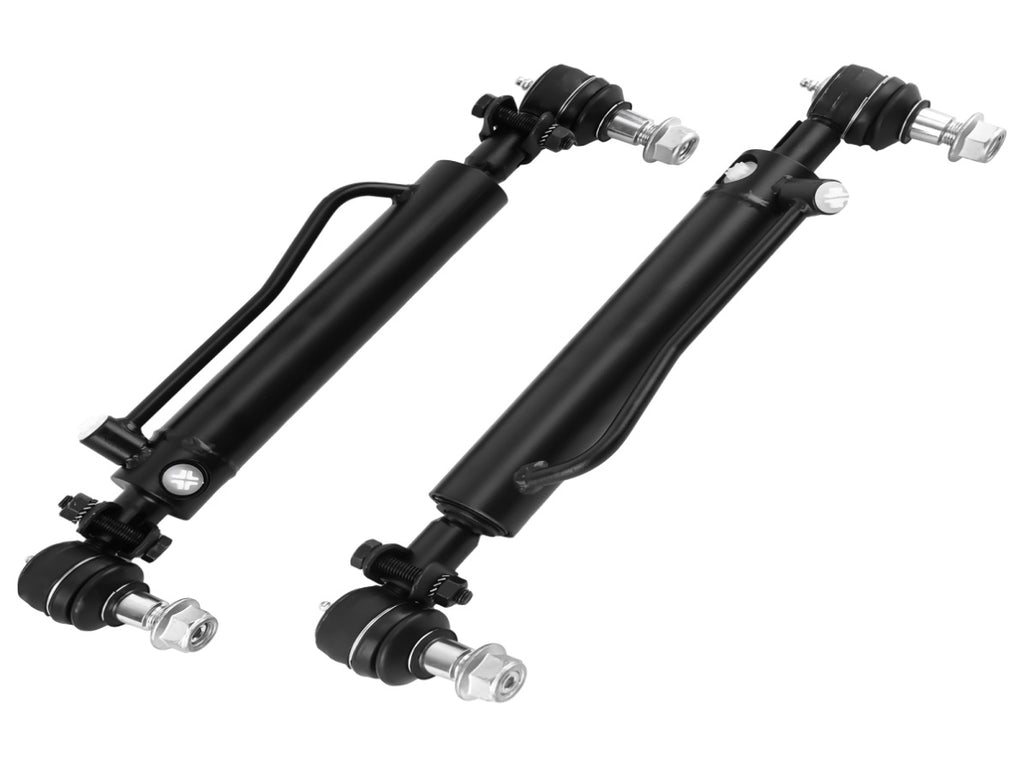

2x Power Steering Cylinder

Note

- Please compare your OE mumber & picture carefully before pay

- Professional installation is highly recommended (No Instruction Included)
