2X Universal 2500 lb Air Strut Air Suspension Bag for GMC Sierra for Dodge Ram 84853340

Application

Compatible for Ford F150/F250, compatible for GMC Sierra, compatible for Chevrolet Silverado, compatible for Dodge Ram 1500 2500 3500, etc

Specification

Condition: 100% Brand New

Loading cap. at 3.0bar:2.88KN

Loading cap. at 7.0bar:7.25KN

Placement on Vehicle: Left,Right,Front,Rear

Air spring bag capacity:  2500LBS

Min height: 72mm±5mm

Max height: 218MM±5mm

Working stroke: 146mm±5mm

Single air port size: 1/2NPT

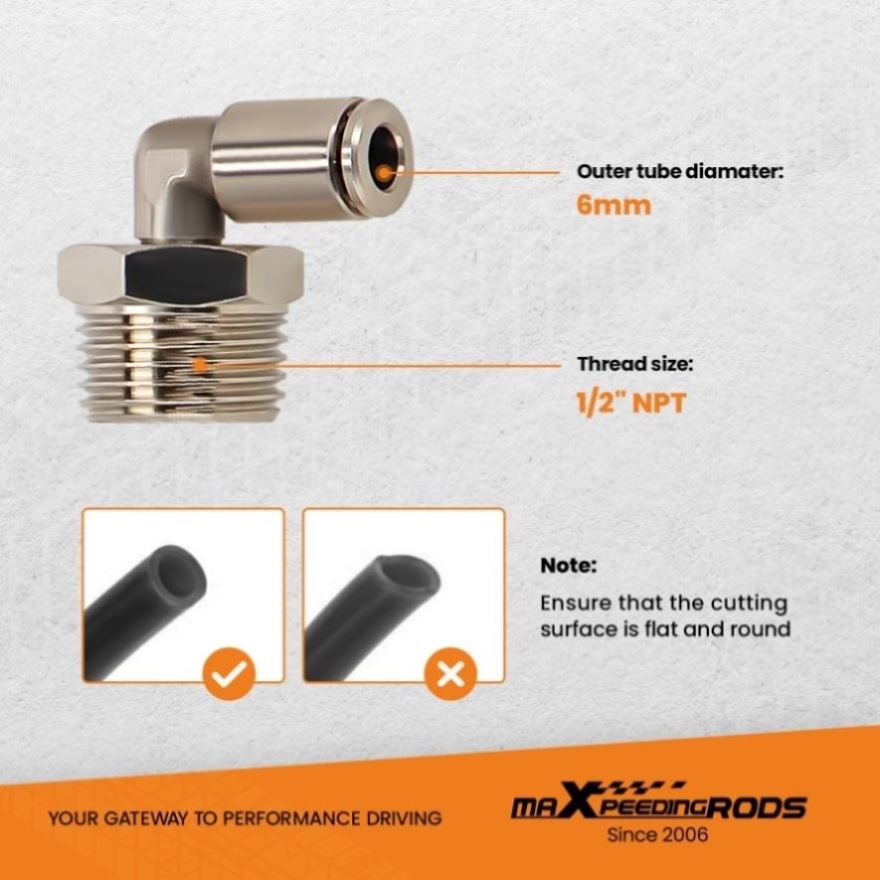

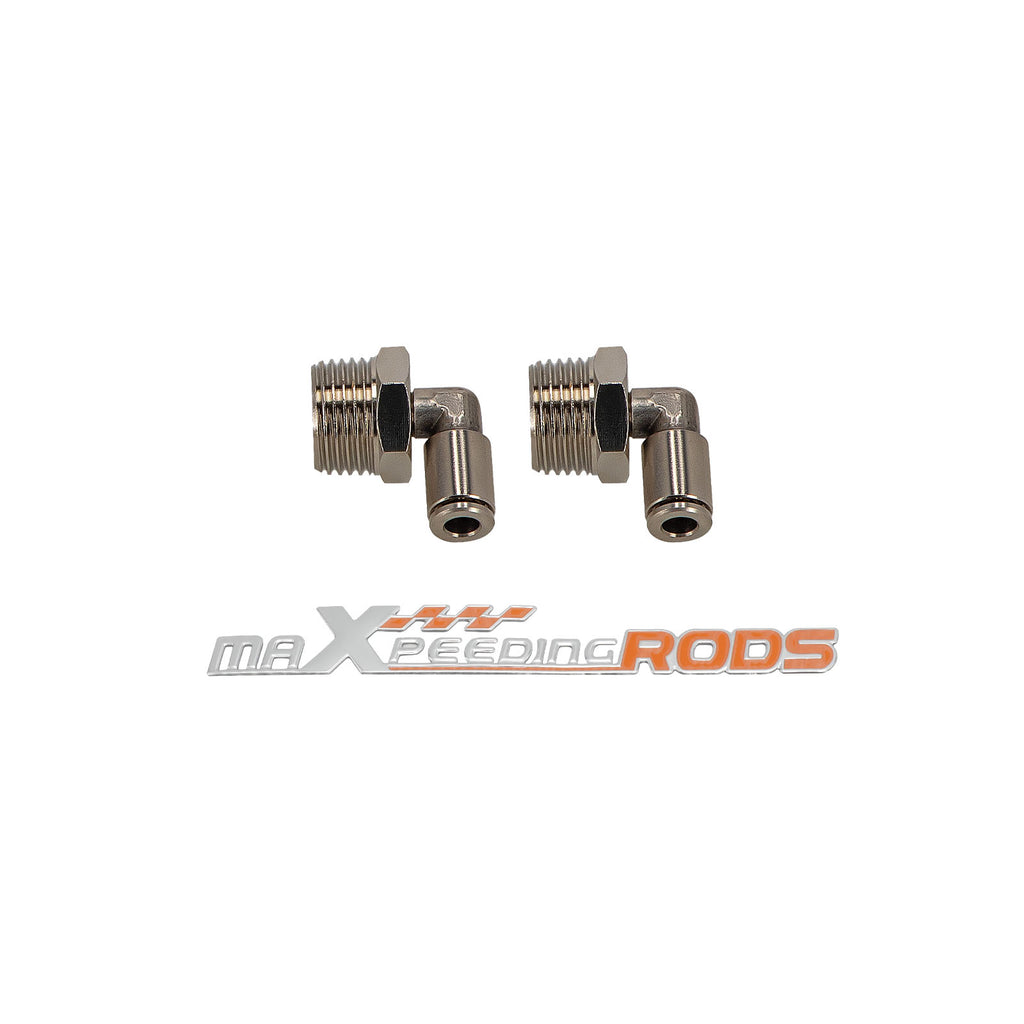

Air fitting elbow connector: NPT1/2-14-Φ6

Install hole size: 3/8-16UNC

Top plate diameter:113mm

Air spring bag body diameter:148mm±2mm

Feature

1、OEM Product：Easy to install

2、Test more than 5,000,000 times：Durable and Safe

3、24 hours air tightness test ≤0.02MPa：Air Tightness Guarantee

4、Temperature Range ≥ -40℃/ ≤ 70℃(≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

5. 4-Layer reinforcement construction: Enhances air spring load support

Notice:

- These are aftermarket ones. They will replace the original  steering parts. Please double confim the compatibility as well as --- the OEM number before purchasing.
- Instruction is not included. Professional installation is recommended.
- Contact us please for whatever we can help.
