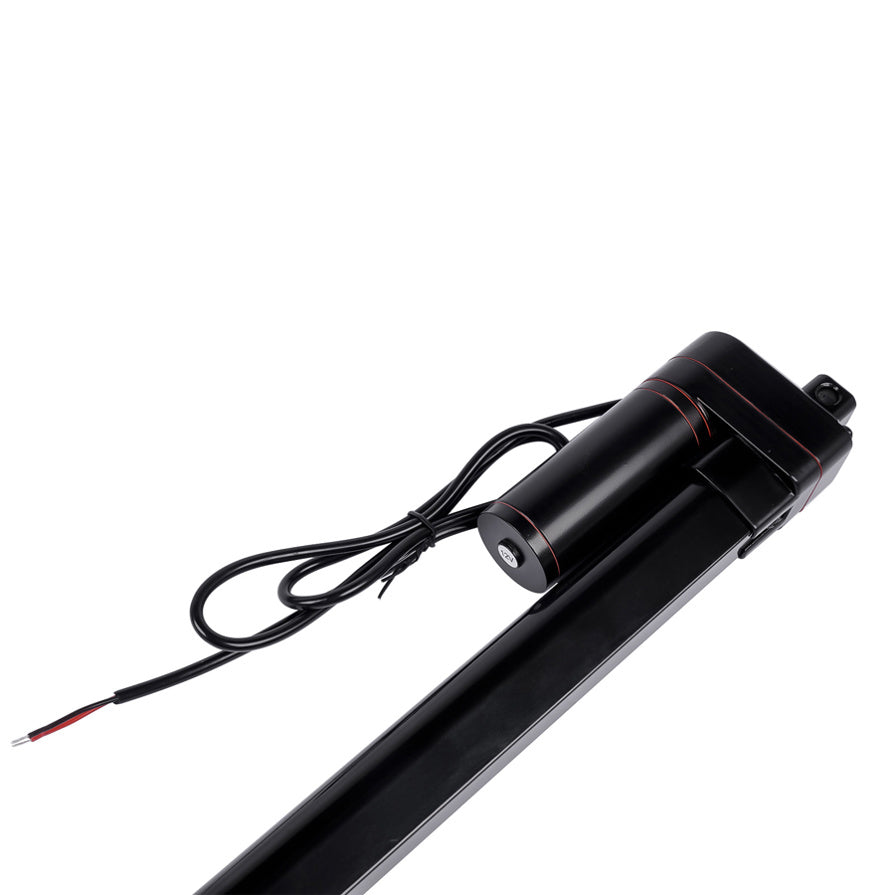

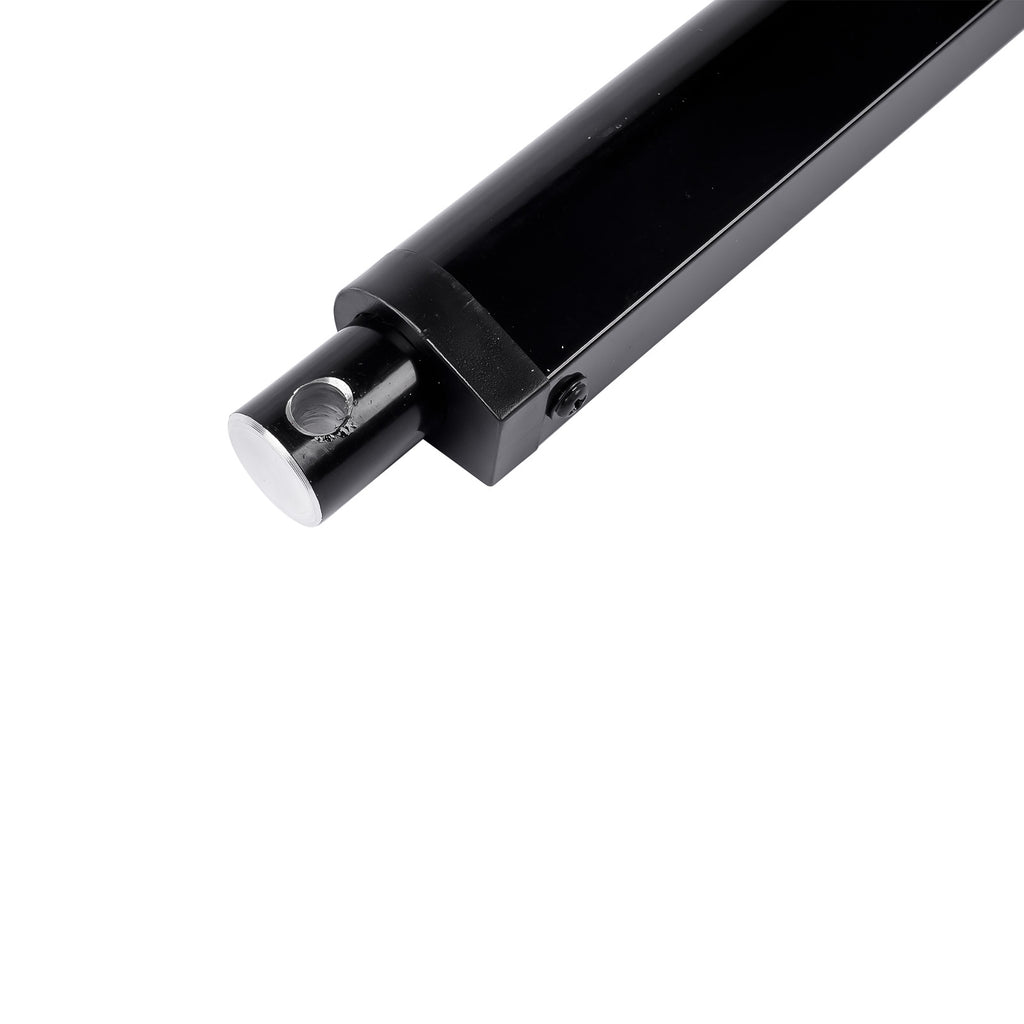

30" Long Stroke Linear Actuator High Load 440lbs/2000N Speed 0.31"/sec 12V 25027856

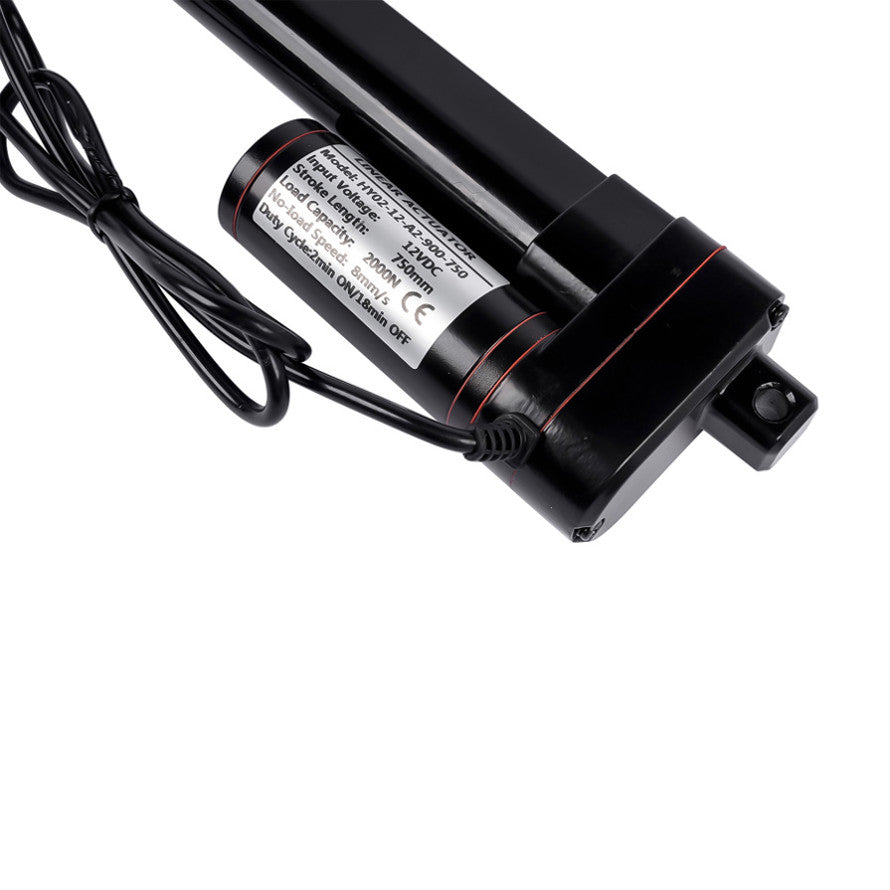

I. Specifications
Voltage: DC 12V
Stroke length:30"(750mm)

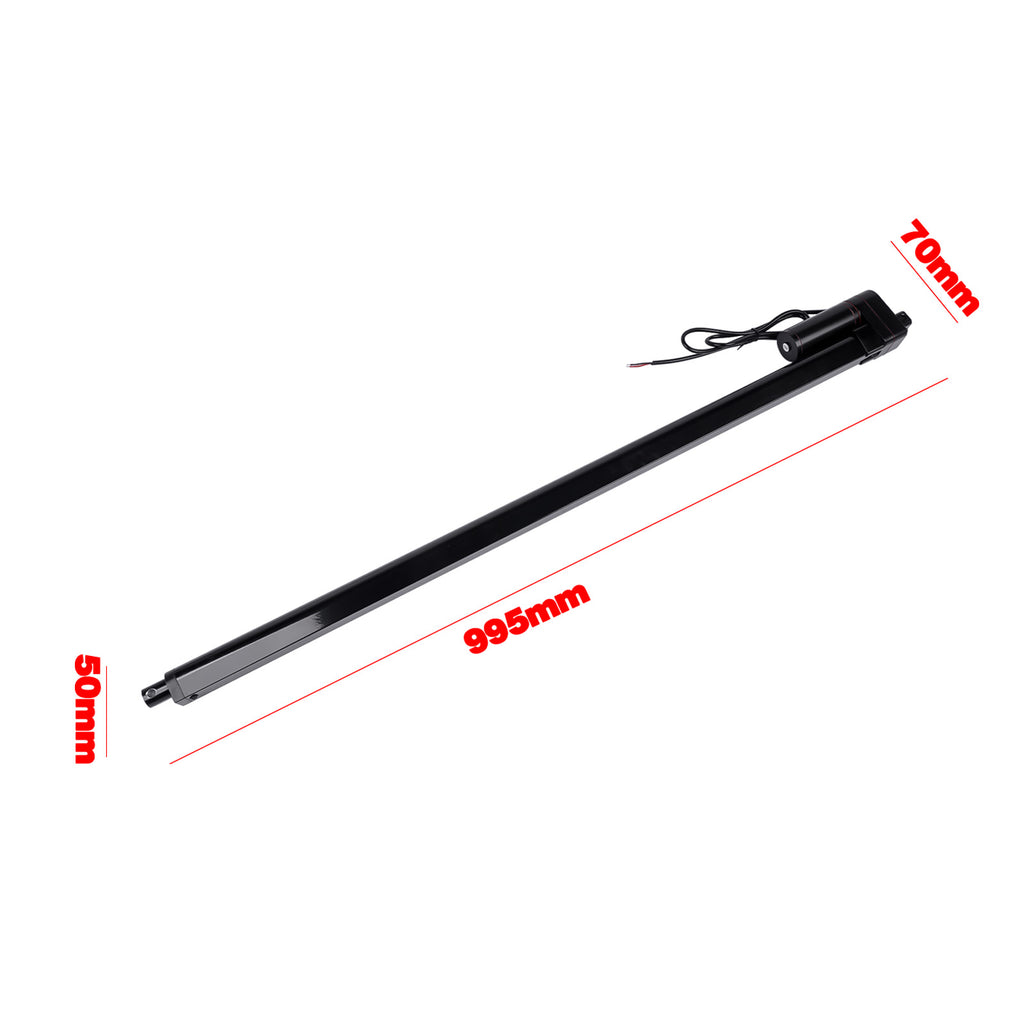

Fully retracted length: 36"(900mm)
Fully extended length: 66"(1650mm)
No load speed: 0.31"/sec (8mm/s)
Maximum load:440lbs(2000N)
Maximum current draw:5A
Stroke length:30"(750mm)
Fully retracted length: 36"(900mm)
Fully extended length: 66"(1650mm)
No load speed: 0.31"/sec (8mm/s)
Maximum load:440lbs(2000N)
Maximum current draw:5A
II. Features
①Aluminum Alloy Material: More safe and well constructed for long-term use.
②Stable Base: Four corner fixation. More durable and sturdy.
③IP65 Protection: Suitable for home and outdoor use. Can withstand harsh working environments.
②Stable Base: Four corner fixation. More durable and sturdy.
③IP65 Protection: Suitable for home and outdoor use. Can withstand harsh working environments.

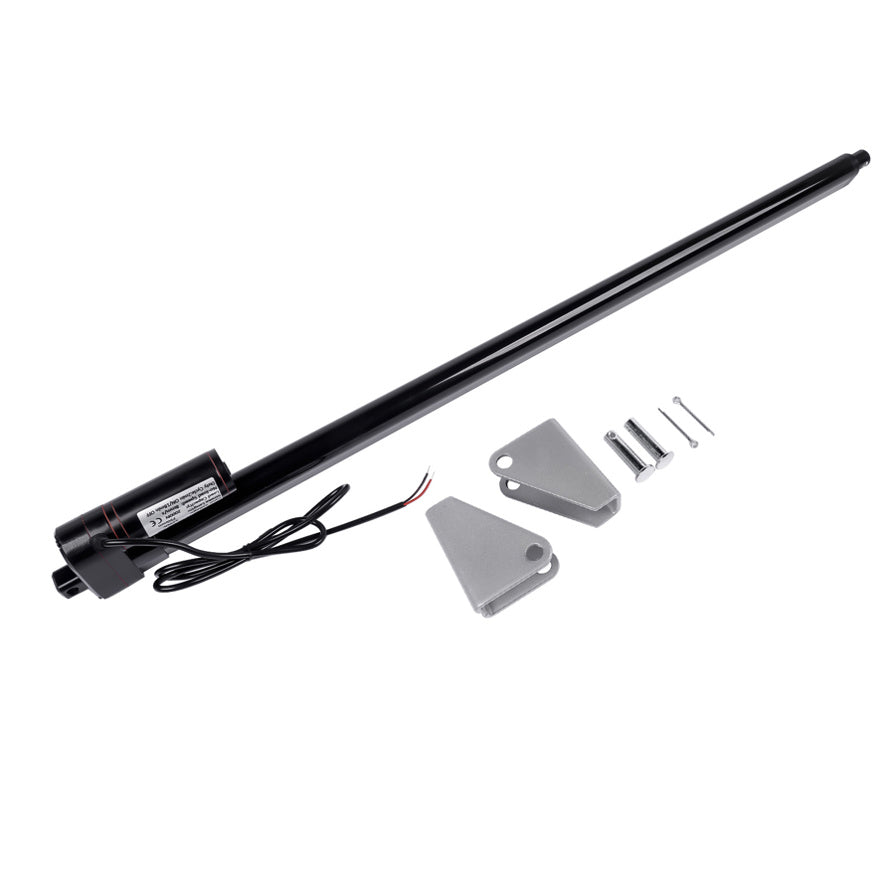

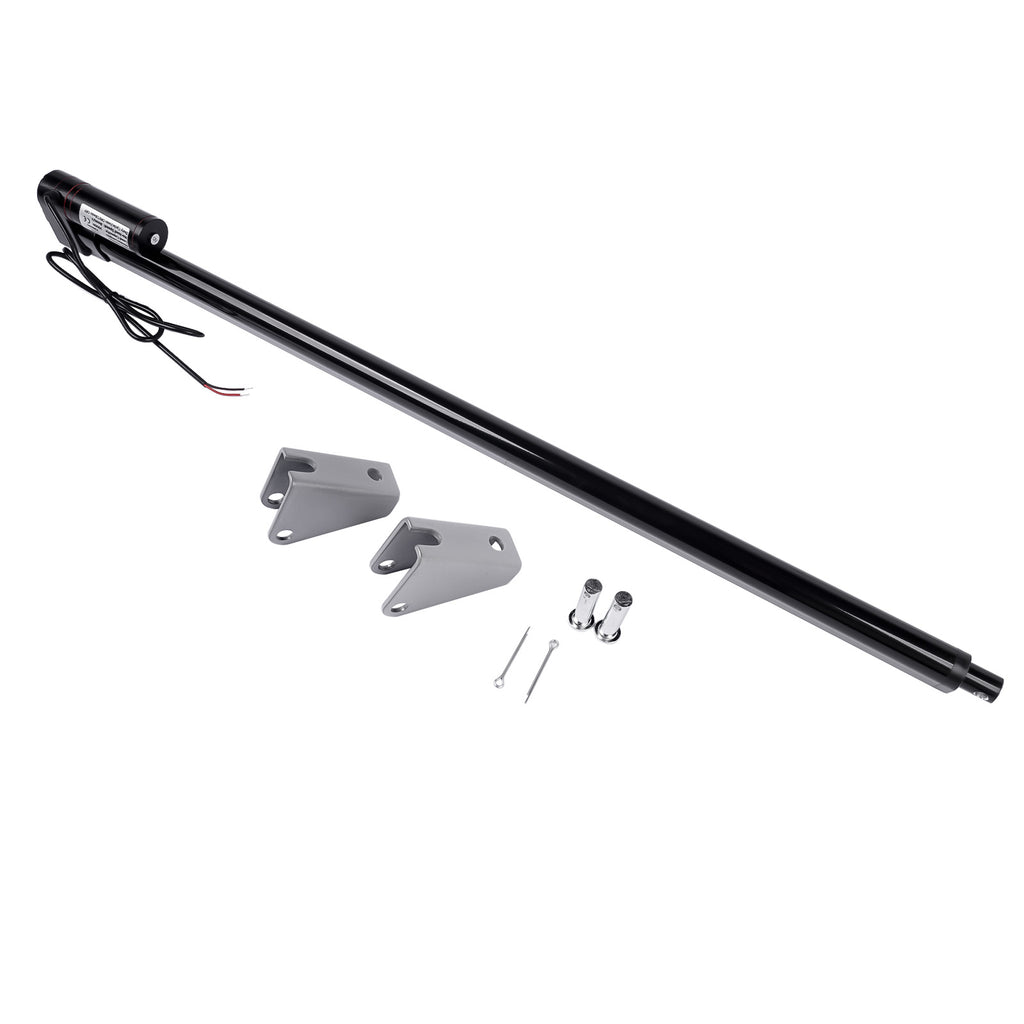

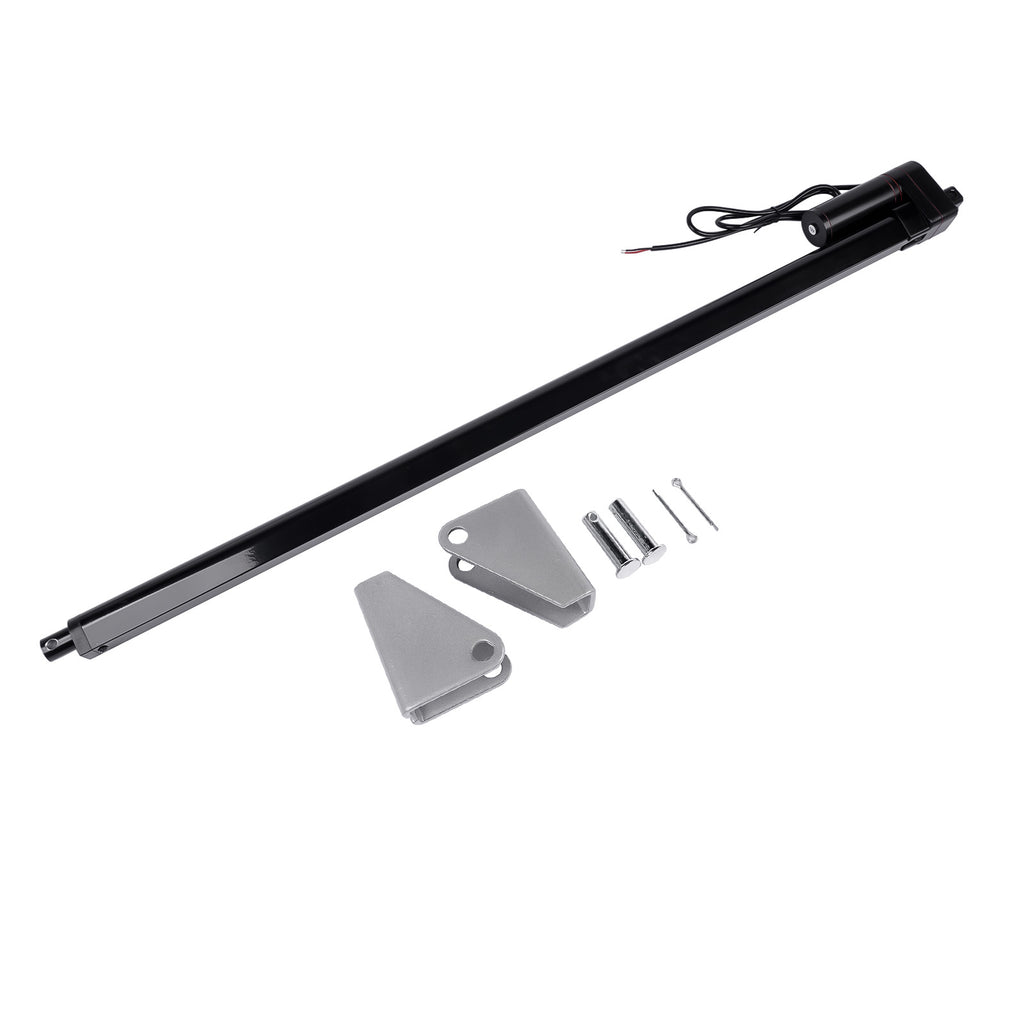

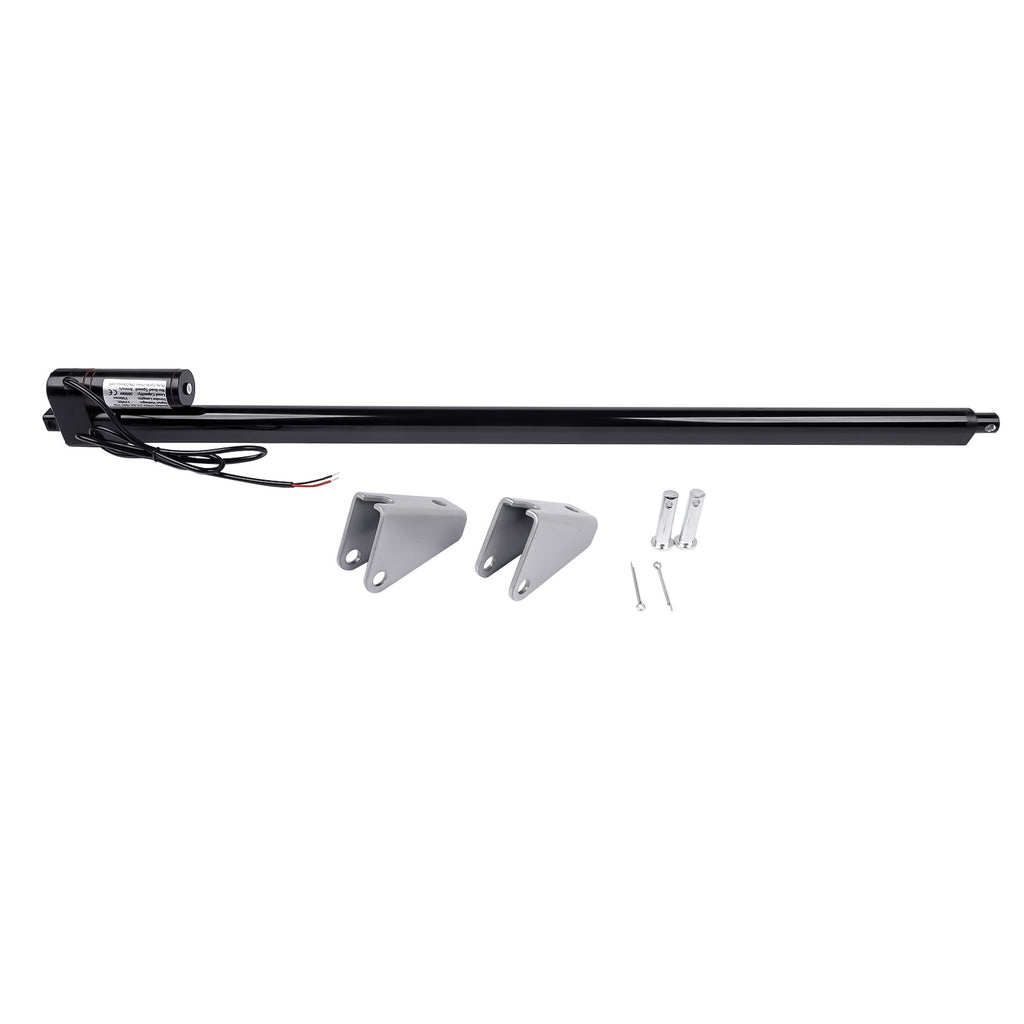

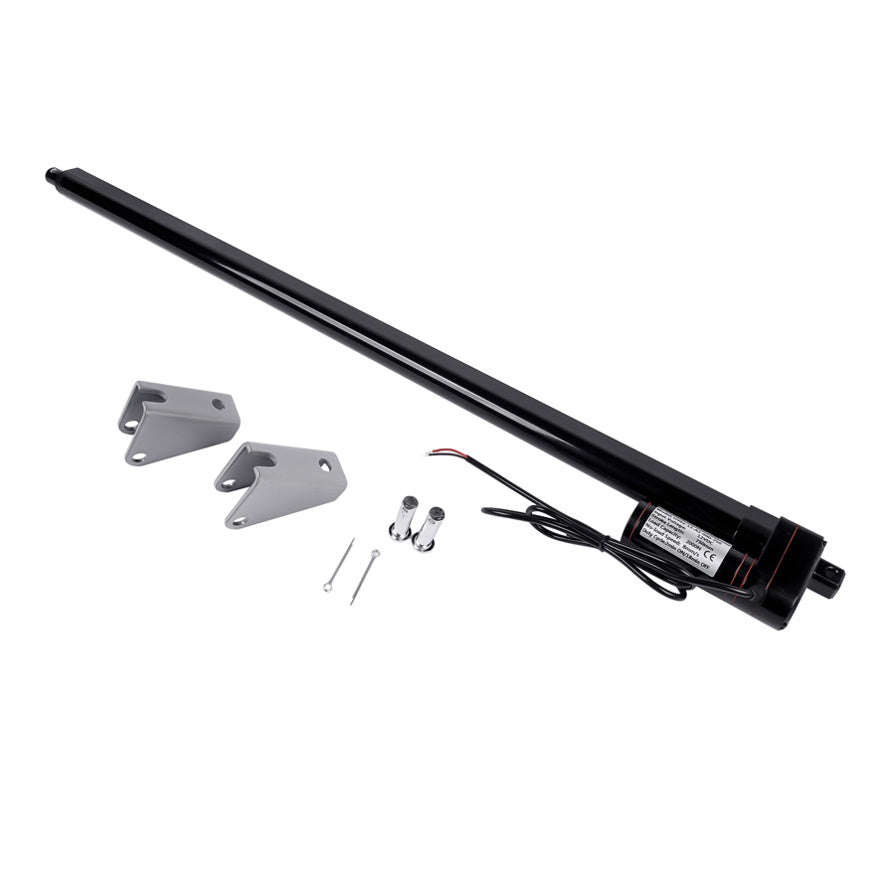

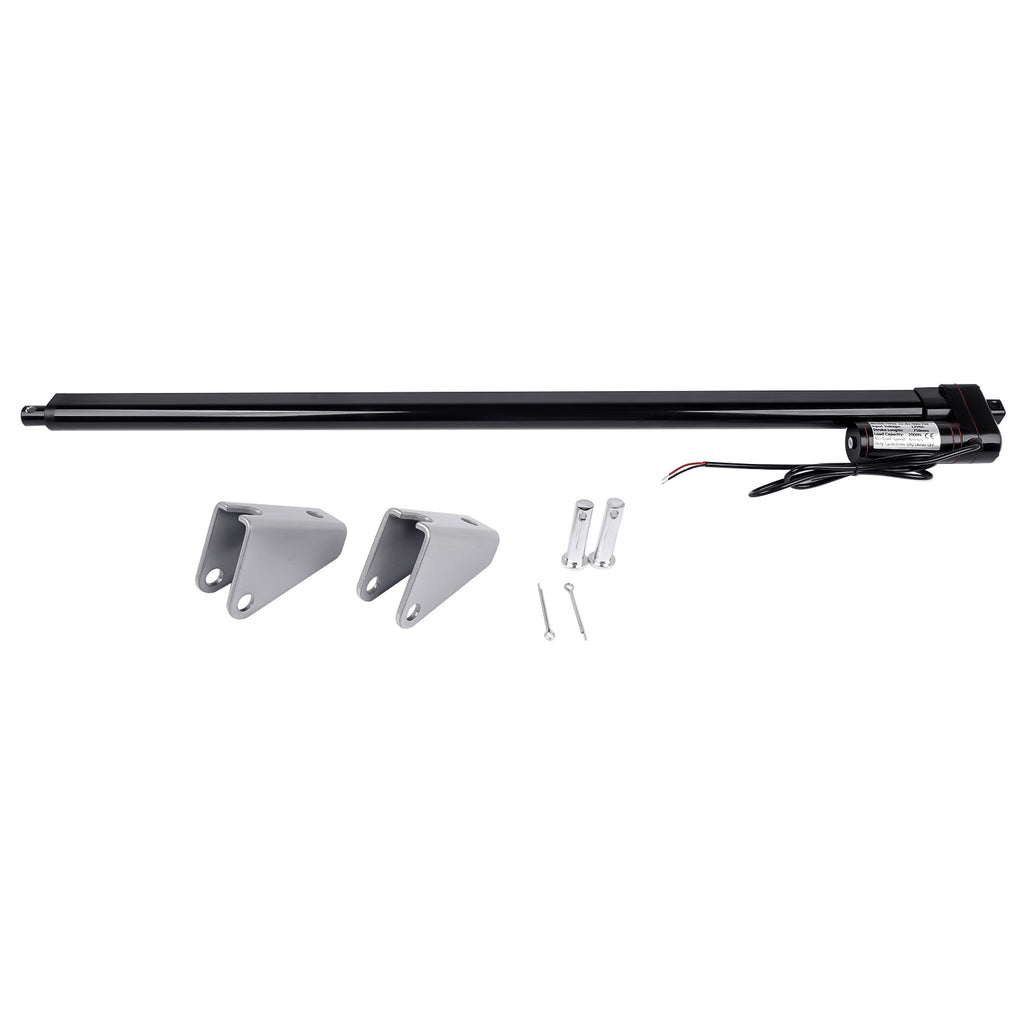

III. Package Includes
1x Linear Actuator

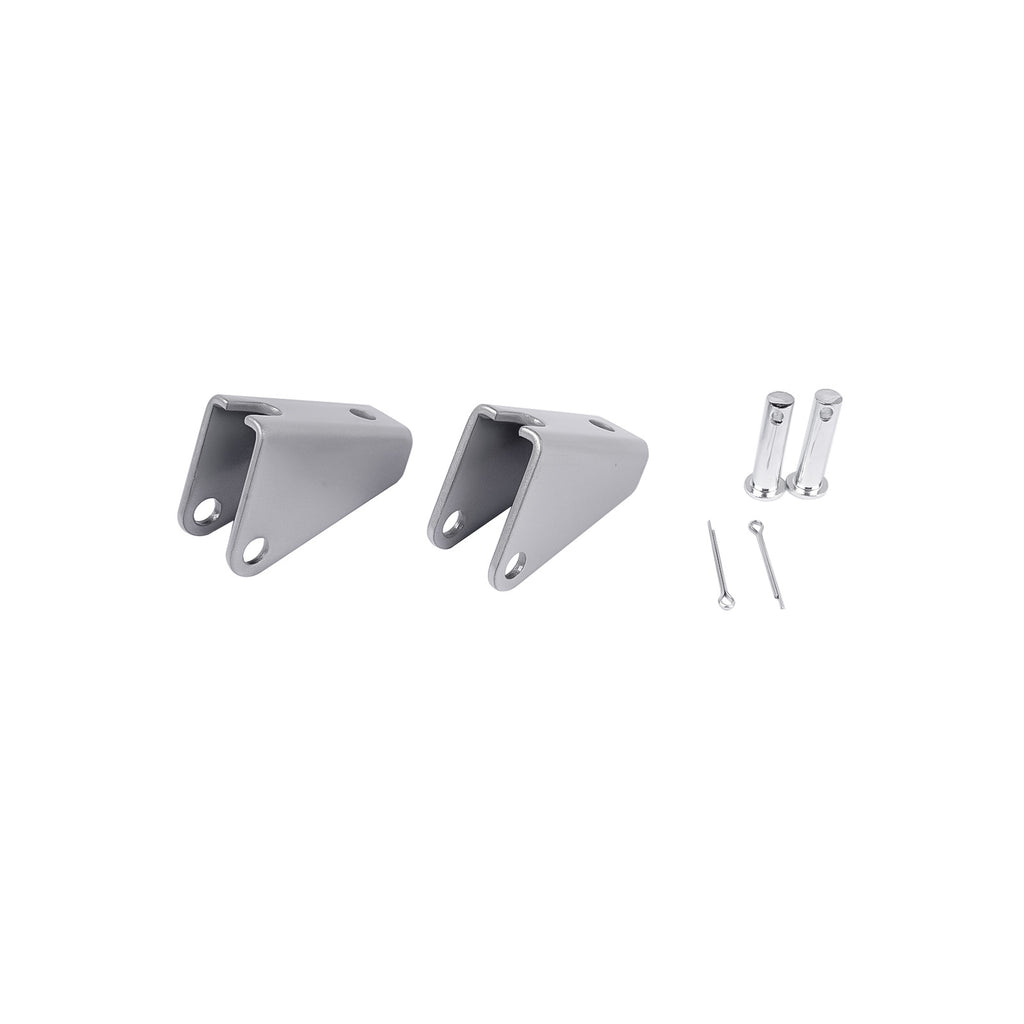

2x Mounting Brackets
2x Mounting Brackets
(As Pics Shown)
IV. How to connect
①Connect the two wires of the linear actuator to a 12V battery or 12V 5A adapter.
②Black to the positive and red to negative will make it extend. To make it retract, reverse the terminal connections.
③For optimal performance,you can use the actuator in conjunction with a controller,which makes it easier to control the extension and retraction of actuator.
②Black to the positive and red to negative will make it extend. To make it retract, reverse the terminal connections.
③For optimal performance,you can use the actuator in conjunction with a controller,which makes it easier to control the extension and retraction of actuator.
