468 Complete Marine Hydraulic Steering System w/ 2 x 22ft Hoses HO5122 03272338
?Specifics
Output Force: 468(KGF)
Application: Up to 300HP
Max Pressure: 6.9 Mpa/1000psi
Hose Length: 22 FT
Steering Wheel Dia.: 13.5"
Material: Aluminum Alloy+Stainless Steel
?Application
Suitable for boats with a maximum speed of 60 mph equipped with a single external engine (power not exceeding 300 hp) or twin external engines (power not exceeding 450 hp, non-counter-rotating). Twin engine applications require the installation of a connecting rod kit.
?Features

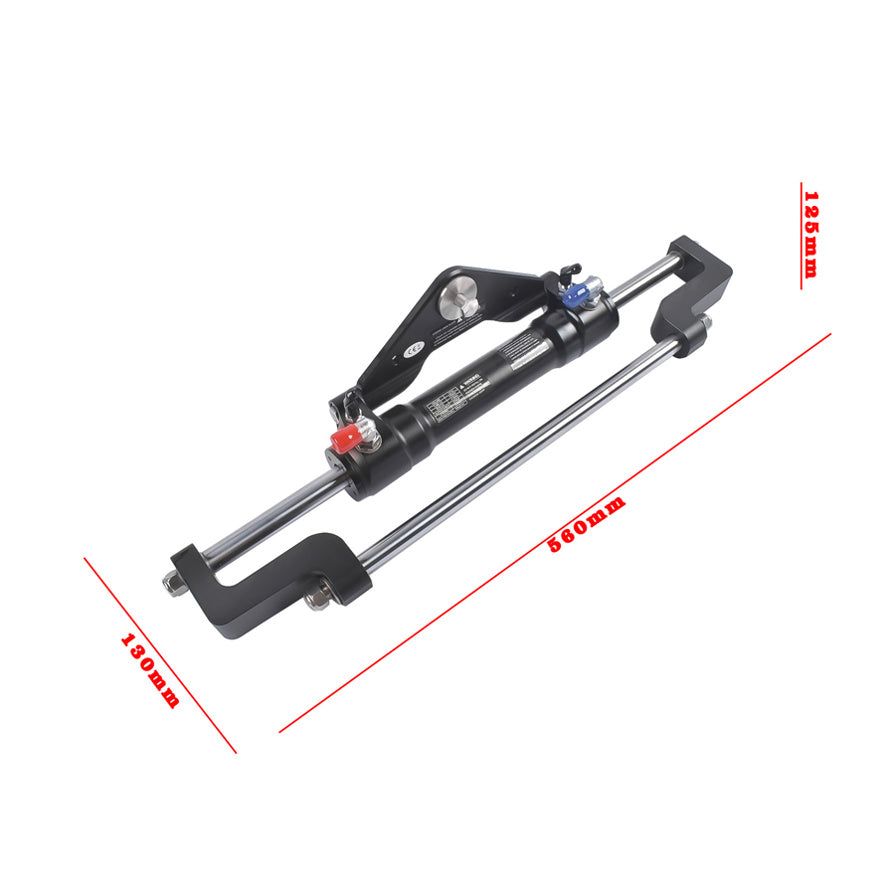

⇥Hydraulic Cylinder: The stainless steel O-ring (ORB) fitting is for easy hose routing. And robust barrel design and the sealing system can withstand the harsh environment.

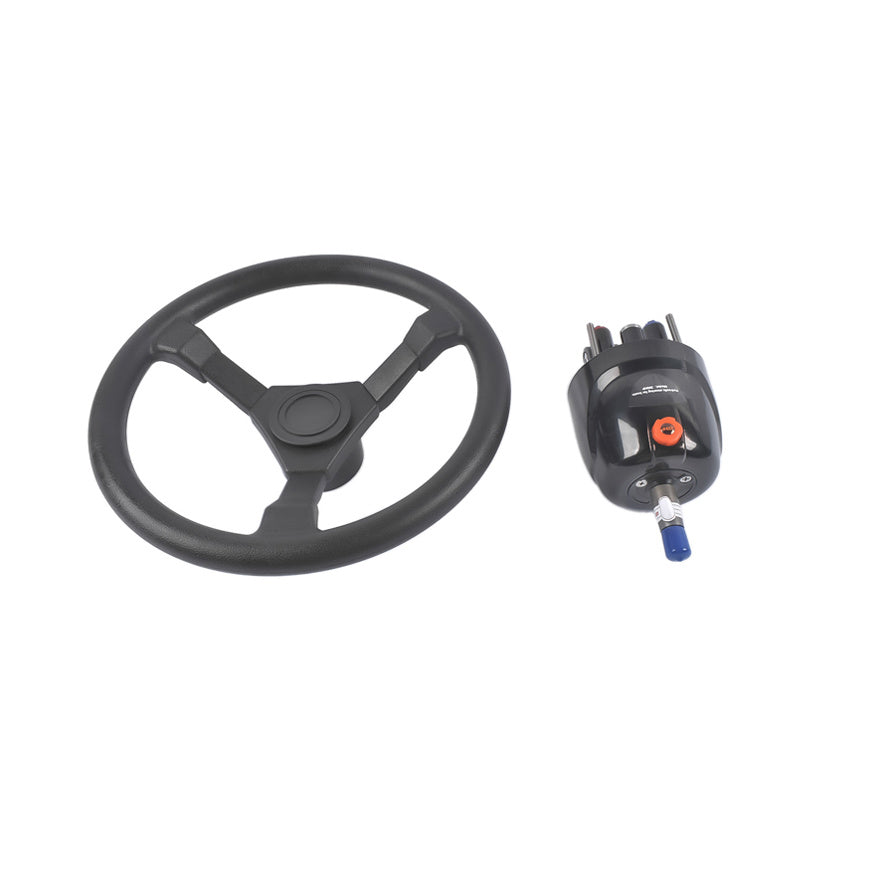

⇥Hydraulic Helm Pump: The helm has a maximum operating pressure of 6.9 MPa/1000 psi. It is equipped with replaceable shaft seals to prevent fluid leakage, ensuring easy maintenance for long-term use. ORB fittings facilitate hose routing and quick assembly. Efficient low-friction design ensures easy handling and reduces steering fatigue.
⇥Hydraulic Hose: Equipped with two 22ft hoses, featuring a high-strength nylon reinforced design, suitable for harsh marine environments. Maximum working pressure up to 200 bar (approx. 2900 psi). And 1/4-inch pipe fittings for easy installation, compatible with most outboard motors and accessories. The hose can be cut to the desired length as needed for custom installation.
⇥Steering Wheel: Made from aluminum alloy material with corrosion resistance for long-term use. Additionally, the anti-slip wave design provides a more comfortable operating experience.

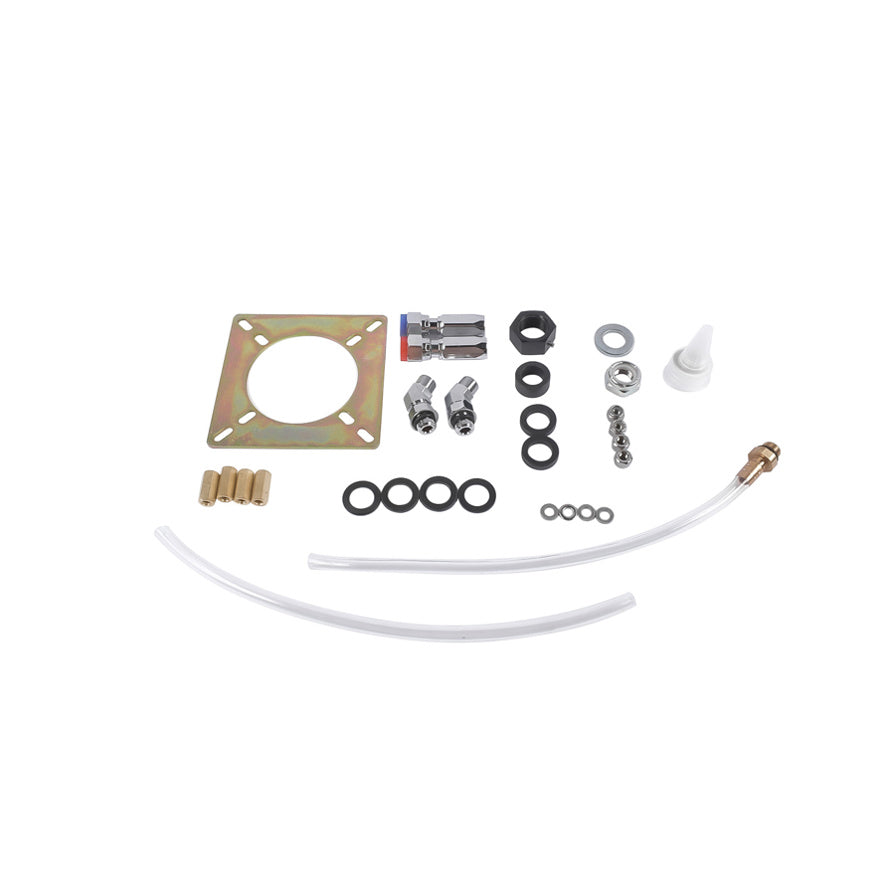

⇥Accessories: The kit includes two tubes. One plastic tube connects to a quarter-liter bottle, and the other end is threaded to the pump's oil filling port for system venting.

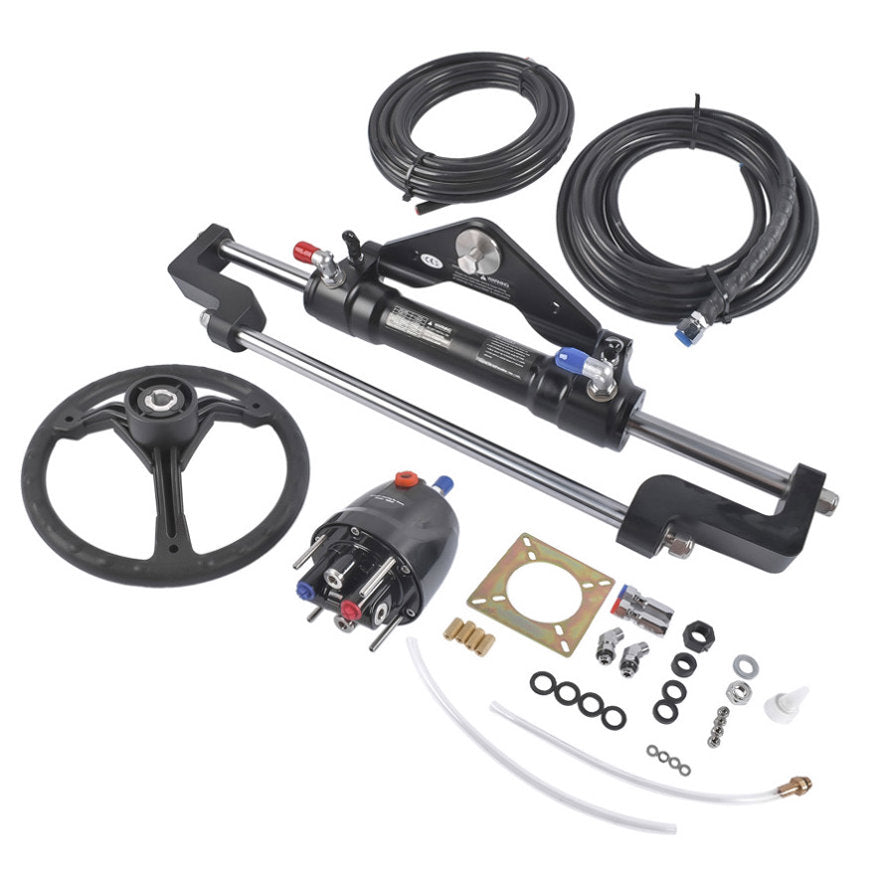

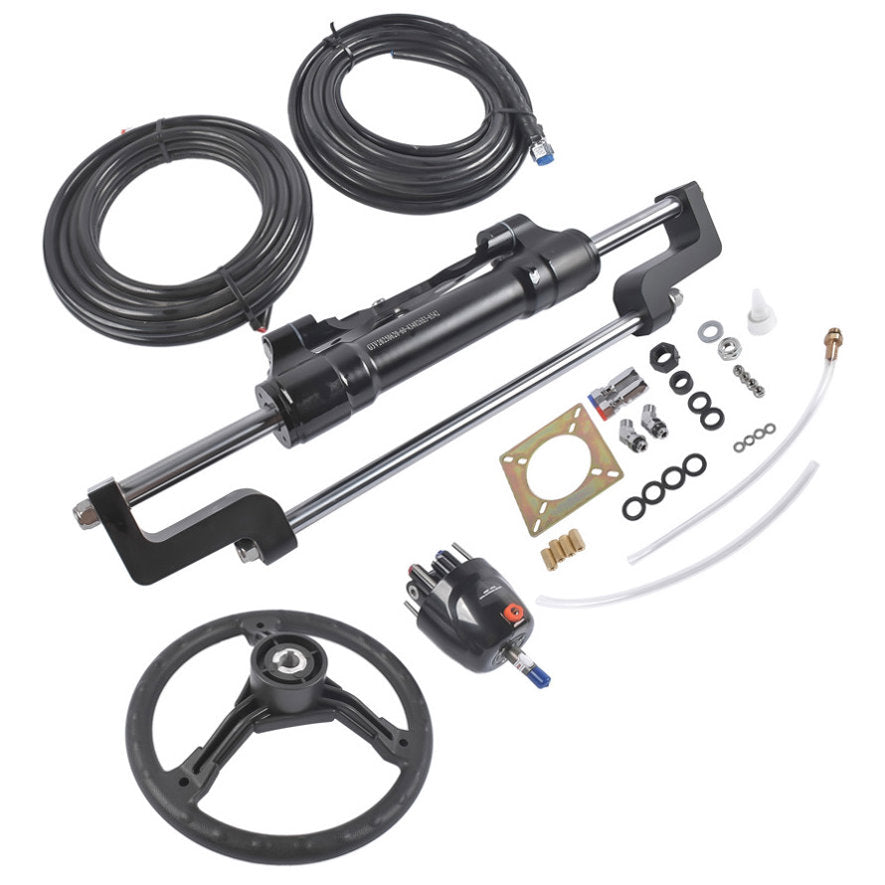

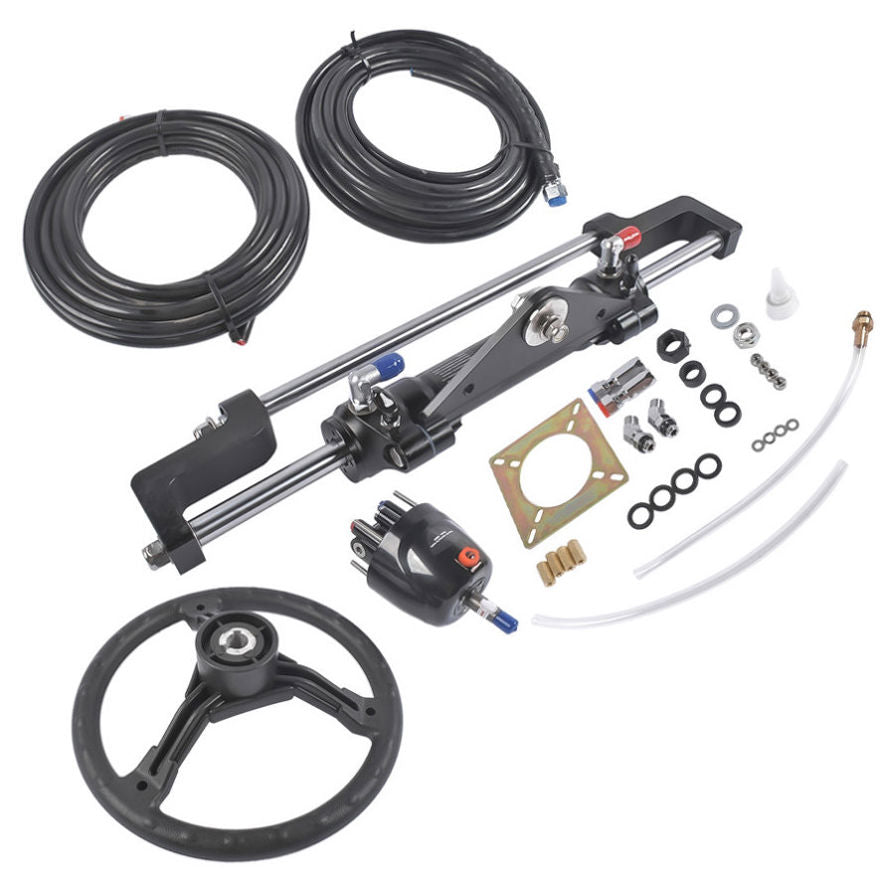

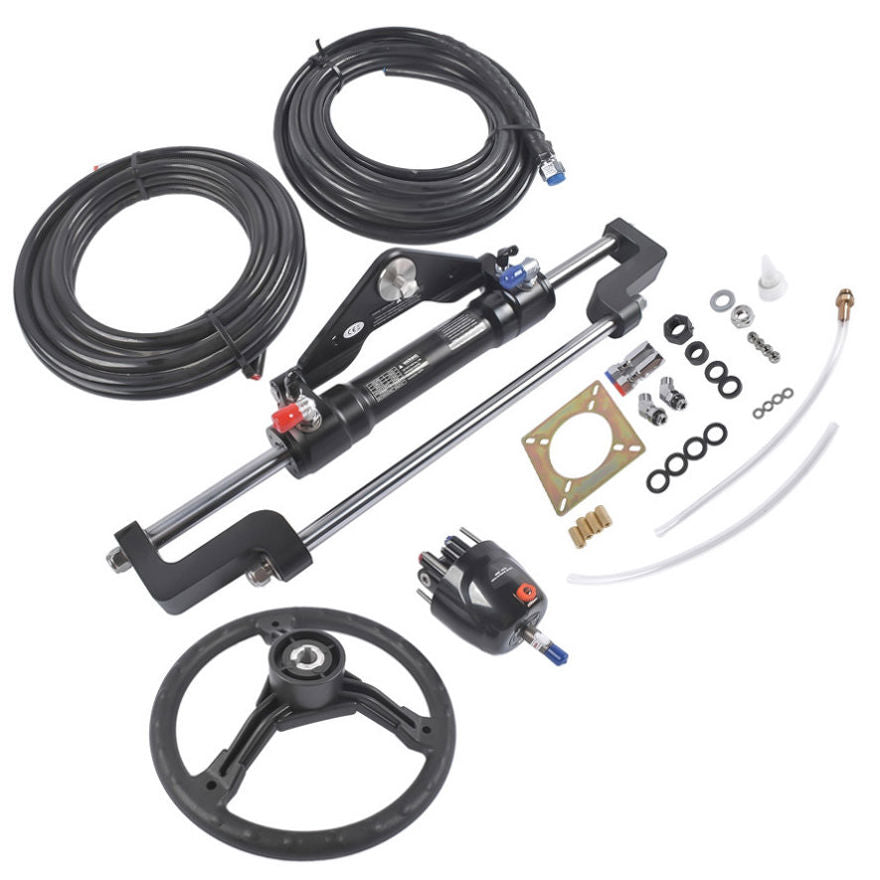

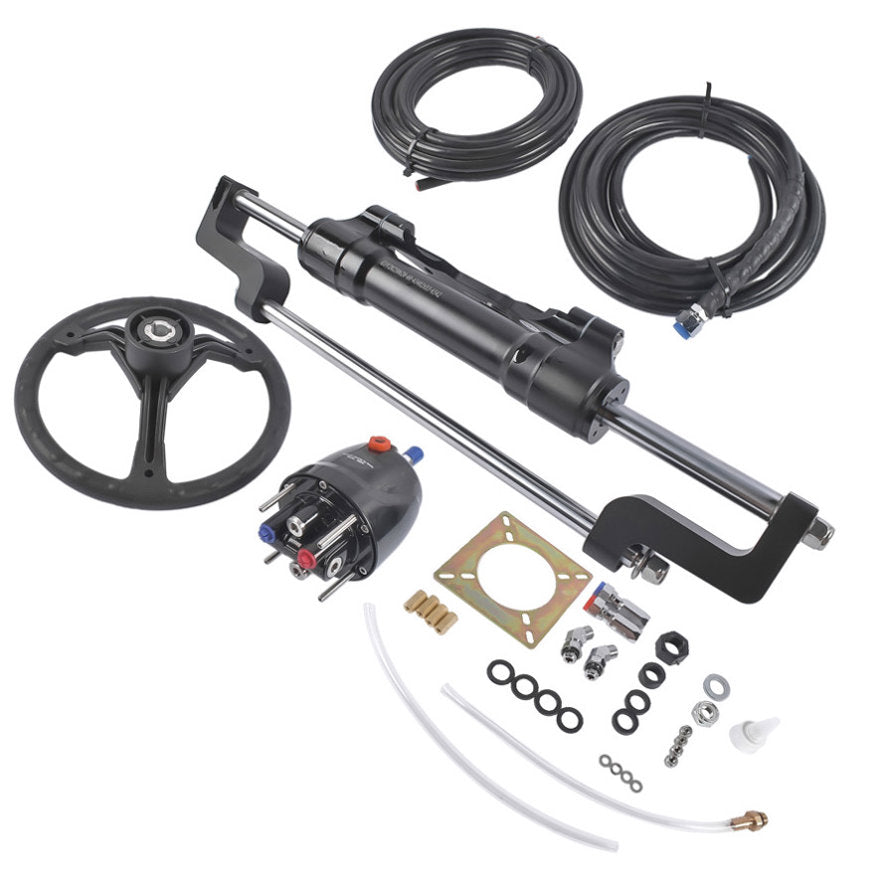

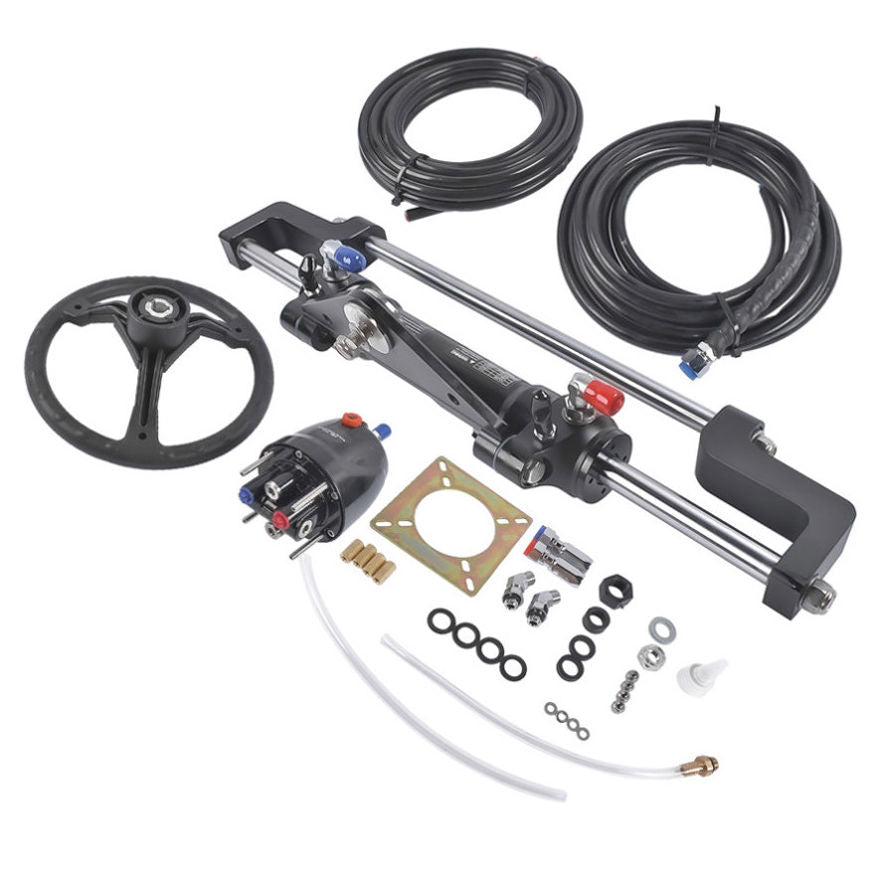

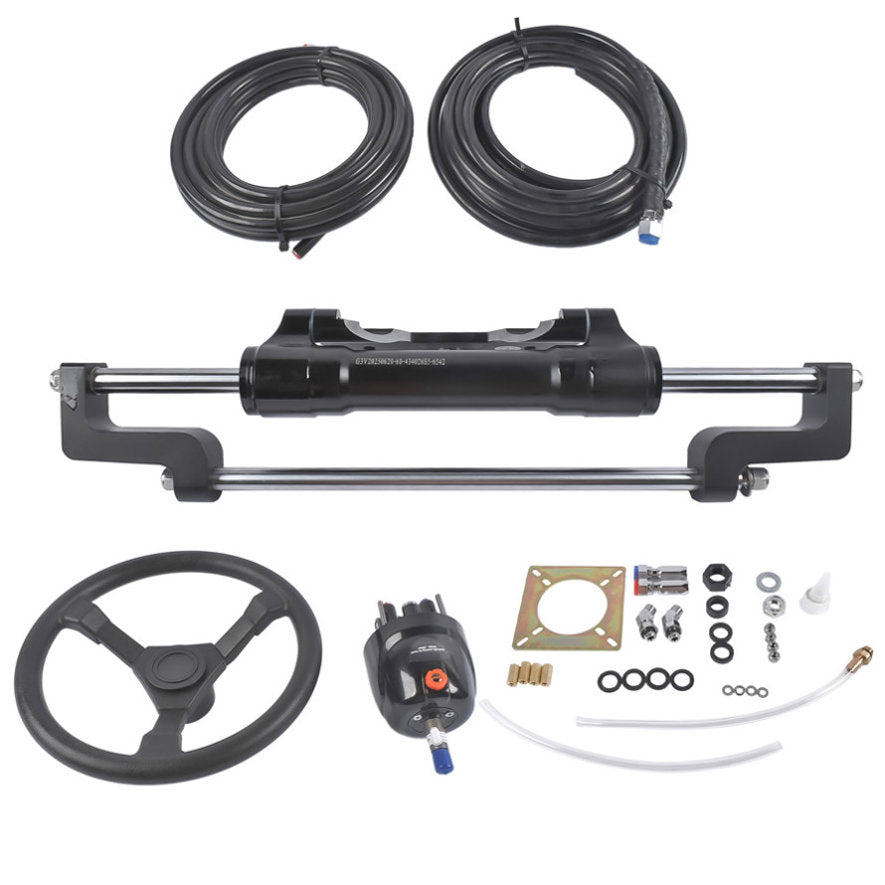

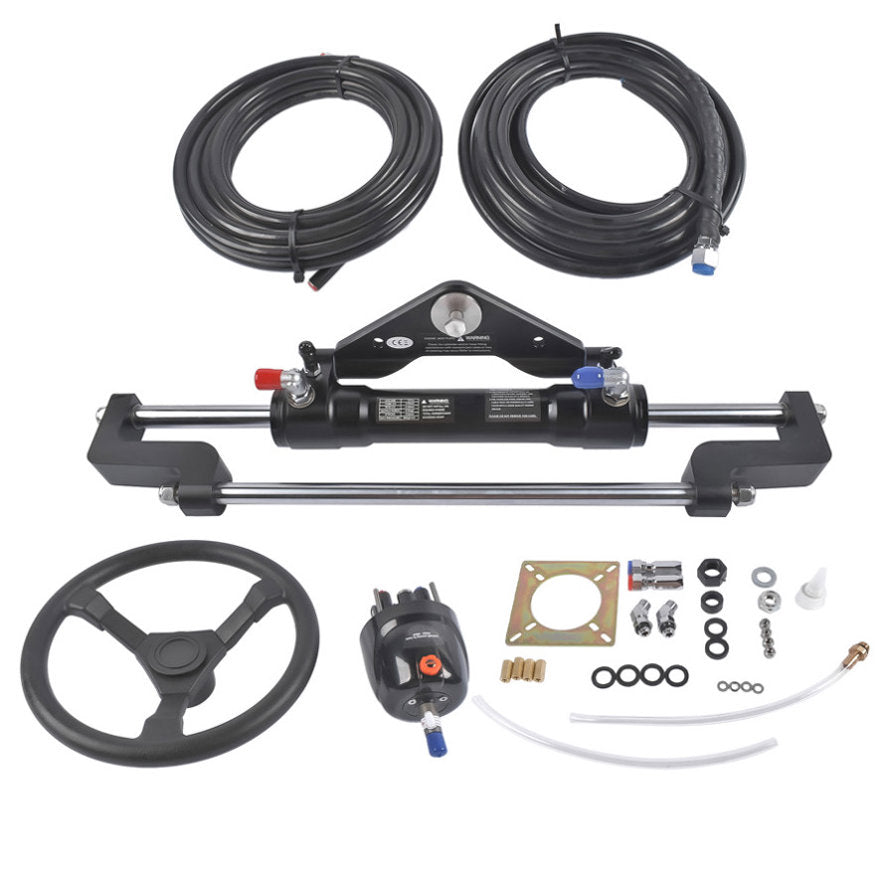

?Package Included
1 x Hydraulic Pump
1 x Cylinder
2 x 22 ft Hose
1 x 13.5" Steering Wheel
1 x Accessory Kit
Output Force: 468(KGF)
Application: Up to 300HP
Max Pressure: 6.9 Mpa/1000psi
Hose Length: 22 FT
Steering Wheel Dia.: 13.5"
Material: Aluminum Alloy+Stainless Steel
?Application
Suitable for boats with a maximum speed of 60 mph equipped with a single external engine (power not exceeding 300 hp) or twin external engines (power not exceeding 450 hp, non-counter-rotating). Twin engine applications require the installation of a connecting rod kit.
?Features
⇥Hydraulic Cylinder: The stainless steel O-ring (ORB) fitting is for easy hose routing. And robust barrel design and the sealing system can withstand the harsh environment.
⇥Hydraulic Helm Pump: The helm has a maximum operating pressure of 6.9 MPa/1000 psi. It is equipped with replaceable shaft seals to prevent fluid leakage, ensuring easy maintenance for long-term use. ORB fittings facilitate hose routing and quick assembly. Efficient low-friction design ensures easy handling and reduces steering fatigue.
⇥Hydraulic Hose: Equipped with two 22ft hoses, featuring a high-strength nylon reinforced design, suitable for harsh marine environments. Maximum working pressure up to 200 bar (approx. 2900 psi). And 1/4-inch pipe fittings for easy installation, compatible with most outboard motors and accessories. The hose can be cut to the desired length as needed for custom installation.
⇥Steering Wheel: Made from aluminum alloy material with corrosion resistance for long-term use. Additionally, the anti-slip wave design provides a more comfortable operating experience.
⇥Accessories: The kit includes two tubes. One plastic tube connects to a quarter-liter bottle, and the other end is threaded to the pump's oil filling port for system venting.
?Package Included
1 x Hydraulic Pump
1 x Cylinder
2 x 22 ft Hose
1 x 13.5" Steering Wheel
1 x Accessory Kit
Professional installation is recommended.
Please check the part number and illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
