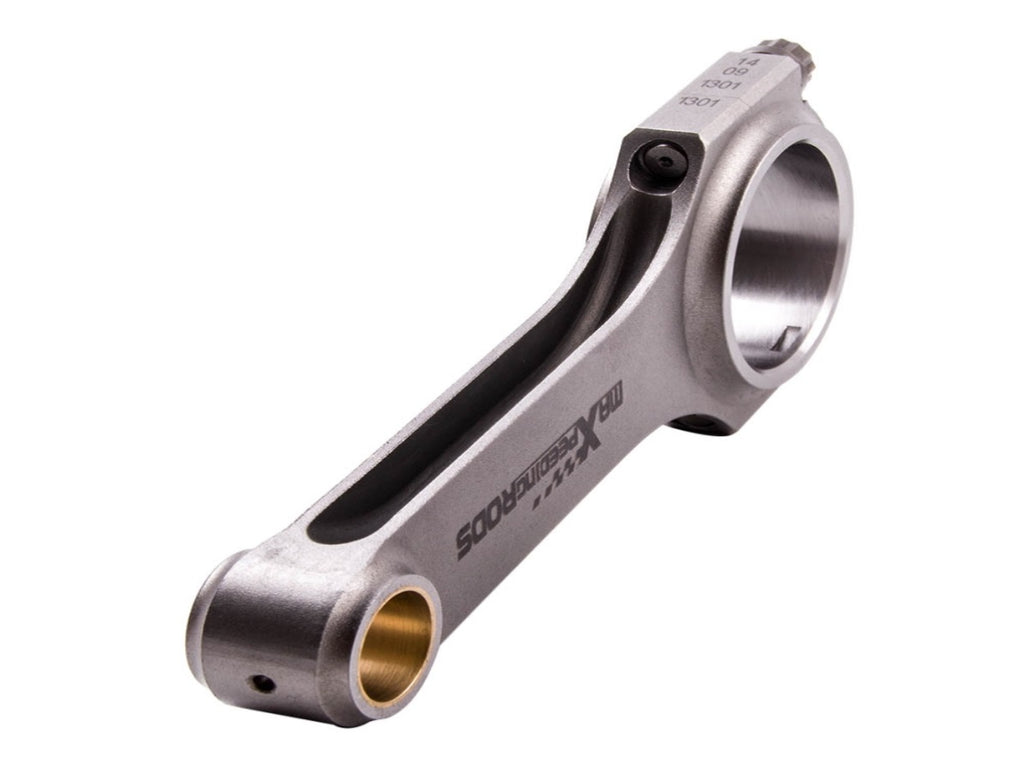

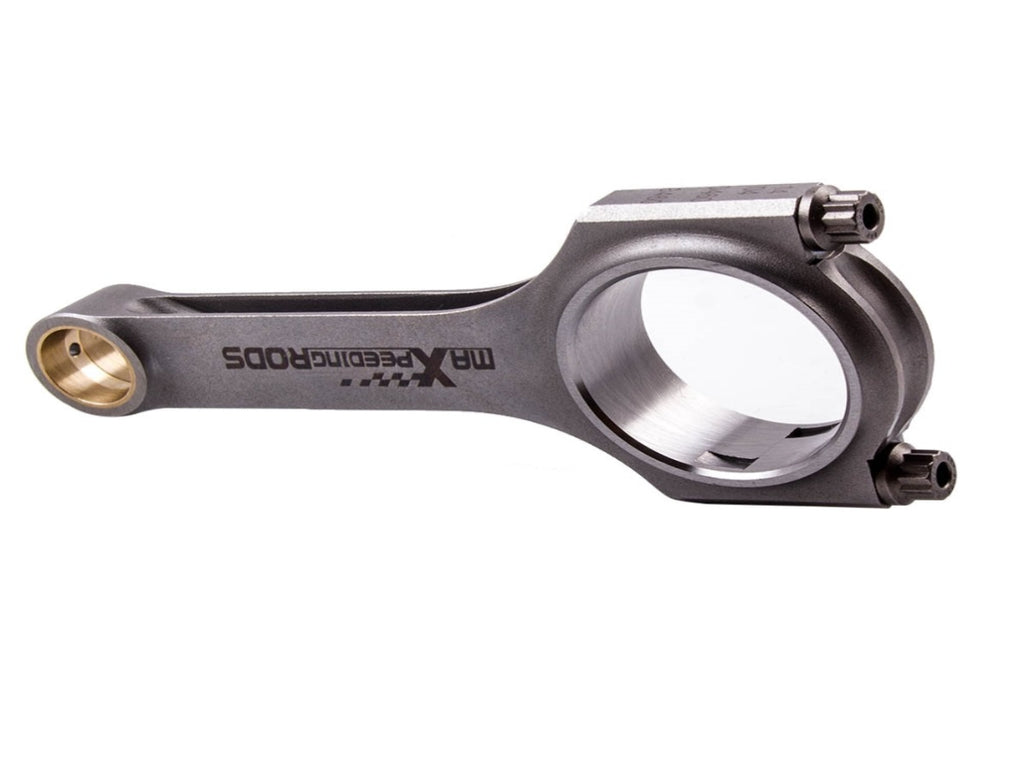

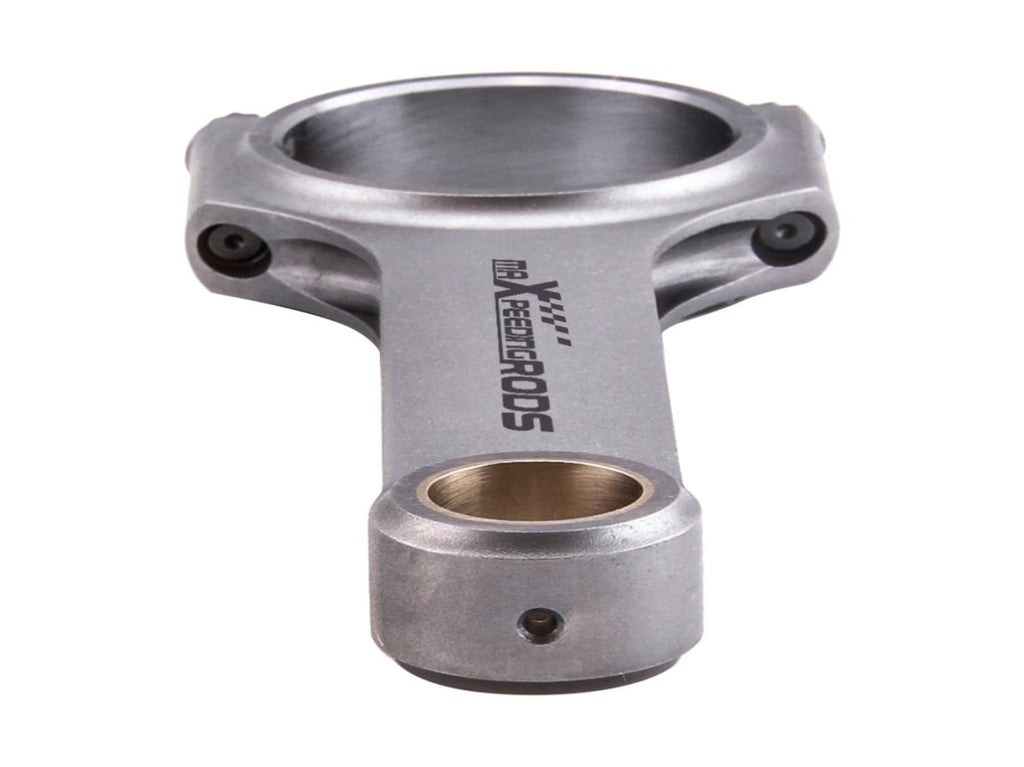

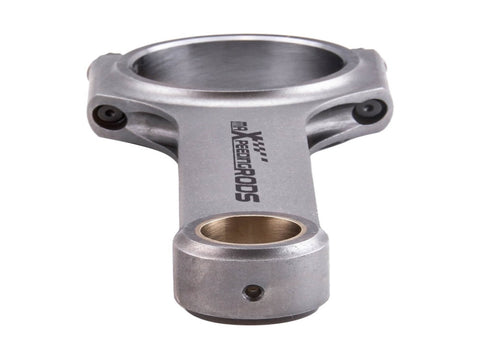

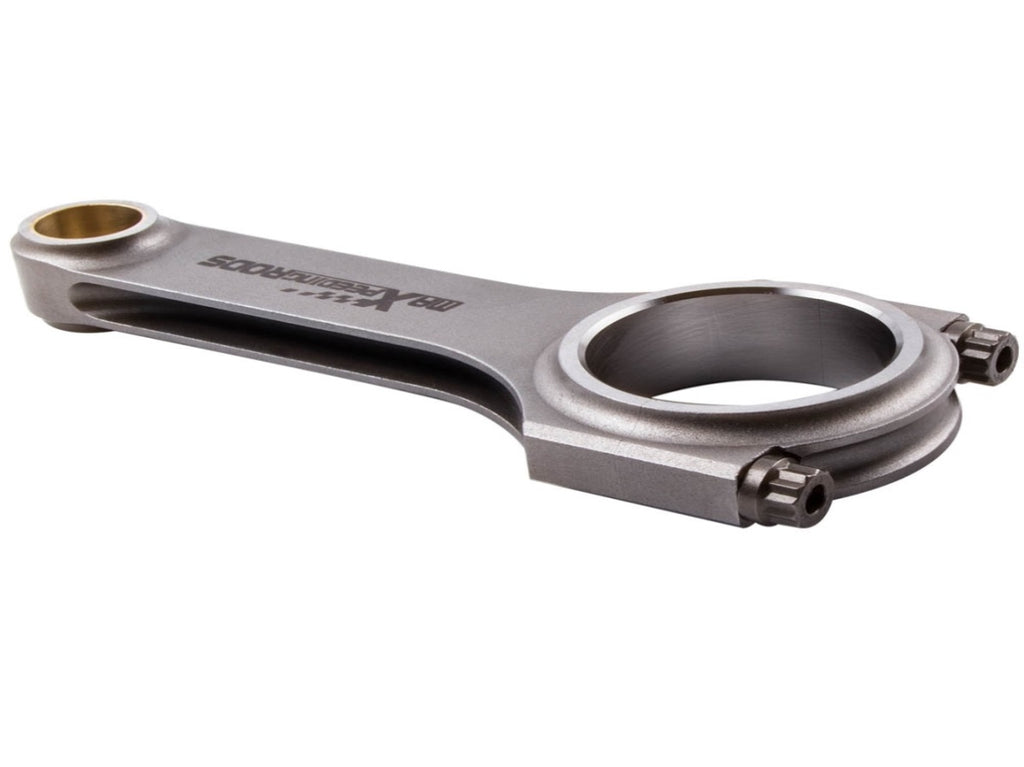

4x Steel H-Beam Connecting Rods Fit for Mazda Miata MX5 1.6L 1.8L B6/BP 5.2362" 45123863

Application:

Fit for Mazda B6 1.6 / B6F Engine:

Fit for Mazda 323 BG / 323F BG models B6F 1989-1994

Fit for Mazda Miata /MX-5 B6 1.6 16-valve DOHC  1989-1993

Fit for Mazda Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999

Fit for Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003

Fit for Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005

Fit for Mazda Familia / 323 1.6 L B6 I4 1985–1989

Fit for Ford Tonic GT-X Fifth Generation 1985–1989

Fit for Mazda Familia / 323 1.6 L B6 I4 Sixth generation 1989–1994

Fit for Mazda BP 1.8 Engine:

Fit for Mazda Familia GT (European & Australian Market) 1989-1994

Fit for Ford Laser TX3 (Australian Market)1989-1994

Fit for Ford Laser KJ GLXi (Australian Market)1994-1998

Fit for Mazda Artis "LX" VICS jm1 (North America Market)1994-1998

Fit for Mazda Protege LX (with VICS)1990-1994

Fit for Mazda Protege ES (Australian Market: 1994-1998 )1995-1998

Fit for Mazda Infini1990

Fit for Mazda Protege GT (Canadian Market)1990-1991 and 1993

Fit for Mazda 323 (European Market)1990-1993

Fit for Ford Escort GT and LX-E 1991-1996

Fit for Mercury Tracer LTS 1991-1996

Fit for Kia Sephia RS, LS, for GS 1995-1997

Fit for Mazda Familia (Japanese Market) 1994-1998

Fit for Mazda Lantis 1994-1998

Fit for Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997

Fit for Suzuki Cultus Crescent/Baleno/Esteem 1996-1998

Pin Type: Floating Pin Piston

Dimension:

Center to center length: 133mm/5.236"

Big end diameter: 48mm/1.89"

Small end diameter: 20mm/0.787"

Big end width: 21.84mm/0.86"

Small end width: 21.84mm/0.86"

Specification:

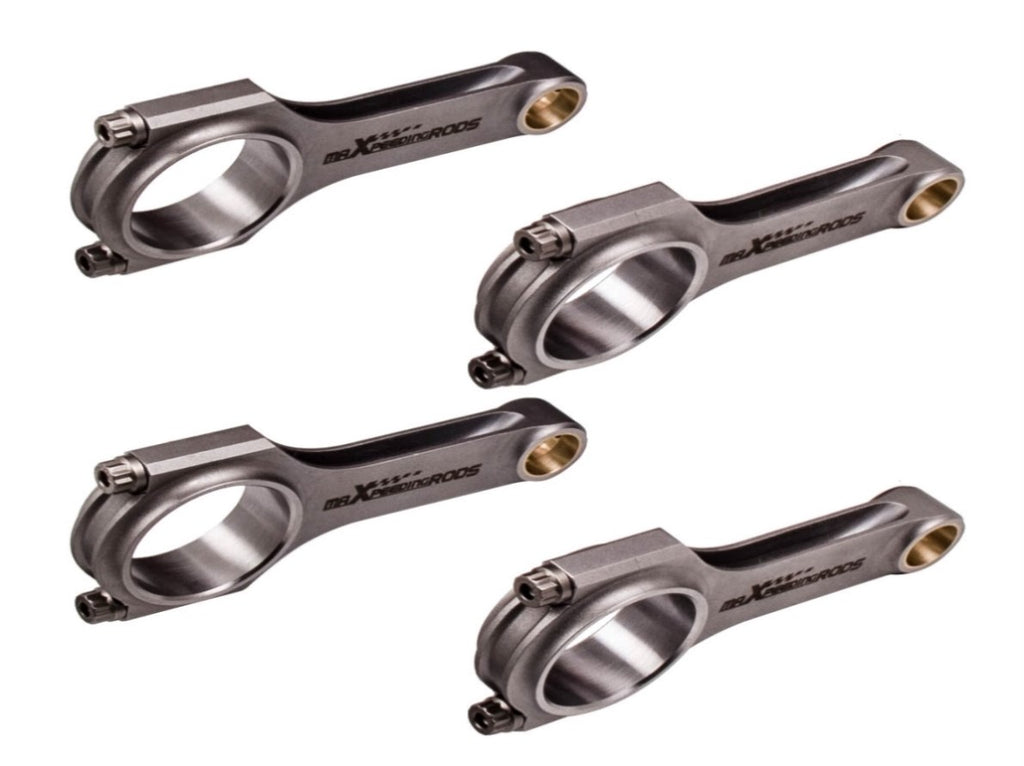

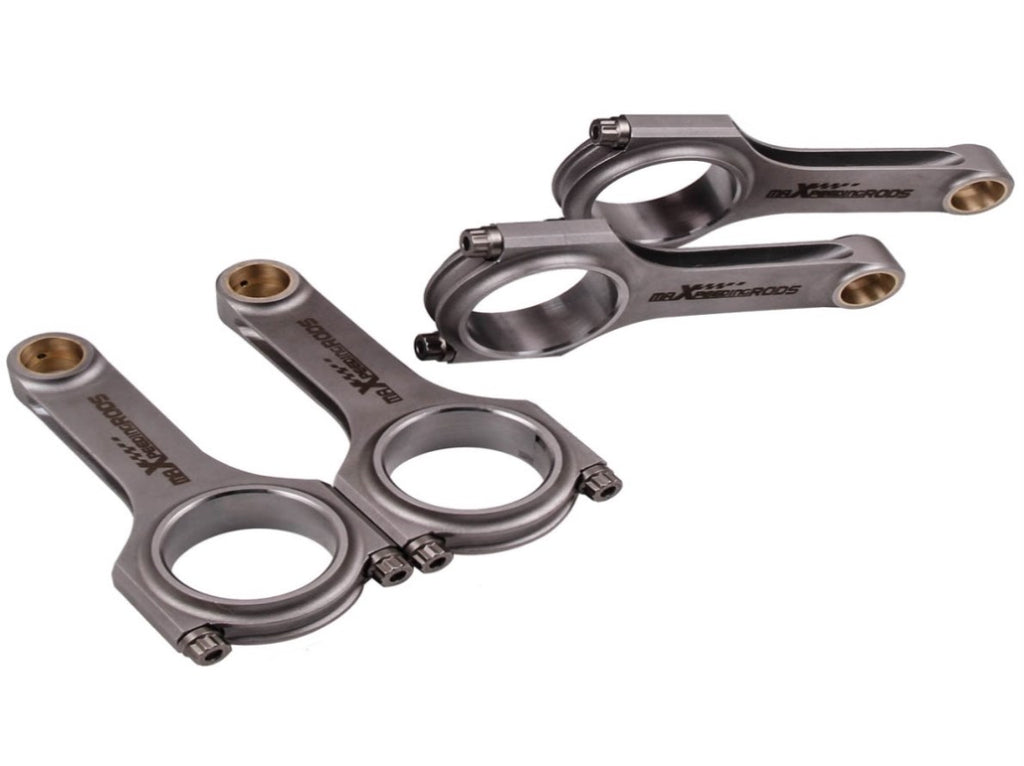

Quantity: 4 Pieces as showing in picture

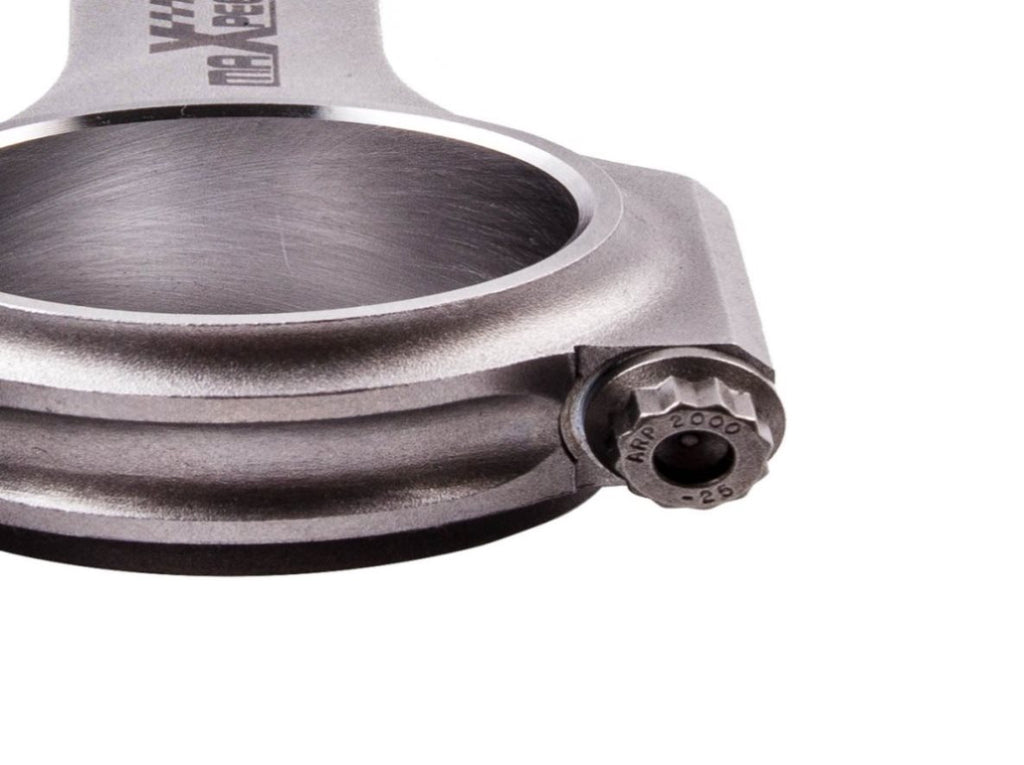

Bolts: Including ARP 2000 bolts

Bolts Size: ARP 2000 5/16" bolts

Bores finished to: +/- .005mm or .0002"

Balanced to within: +/- 1 g per rod

Advertised Horsepower Rating: 600HP-800HP

Top acceleration: 9000rpm

Strength of the fastening PSI: 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Warranty: 2 years warranty for any manufacturing defect

Package size: 28CM*21CM*10CM

Note:

*Professional installation is highly recommended;

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
