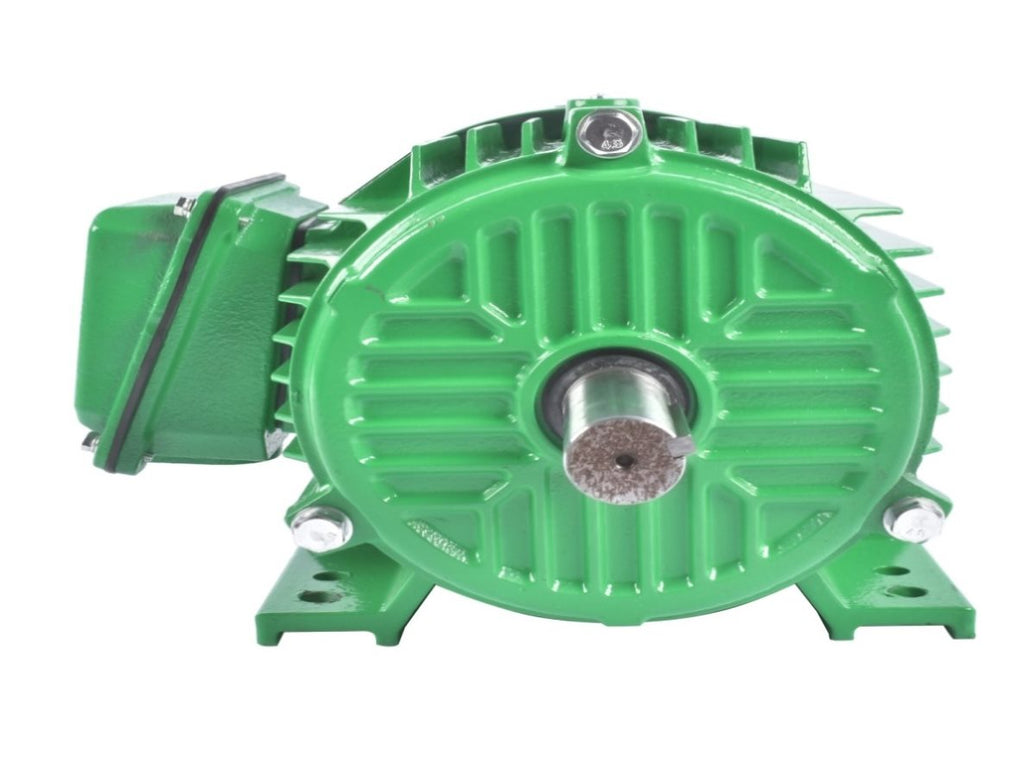

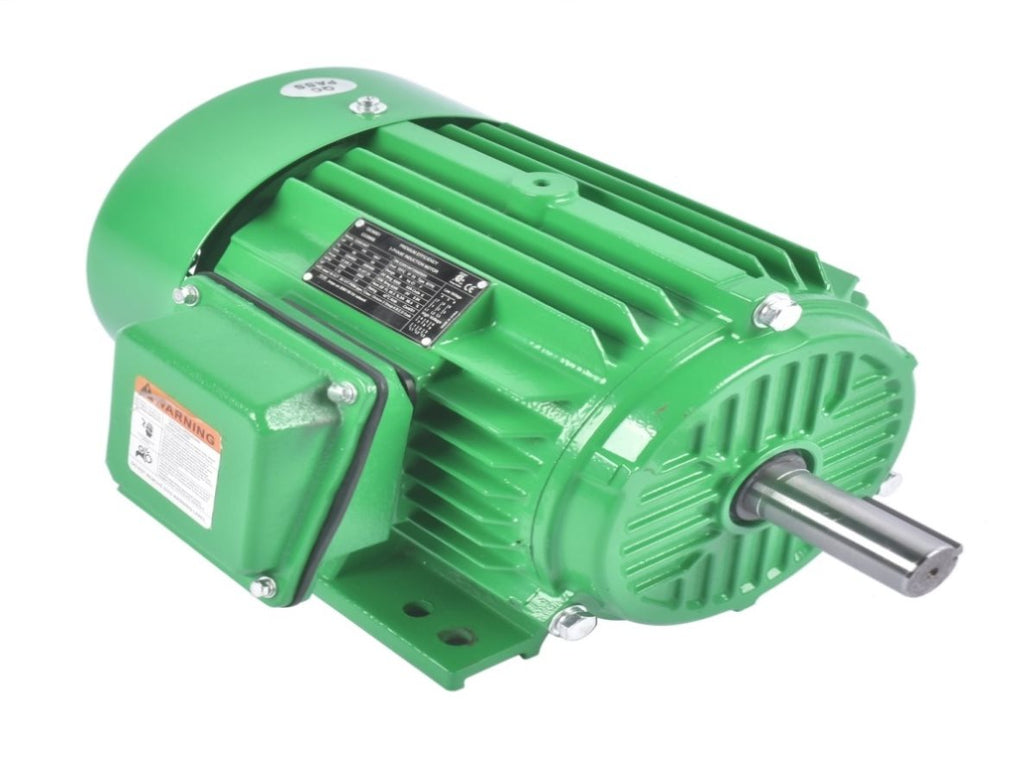

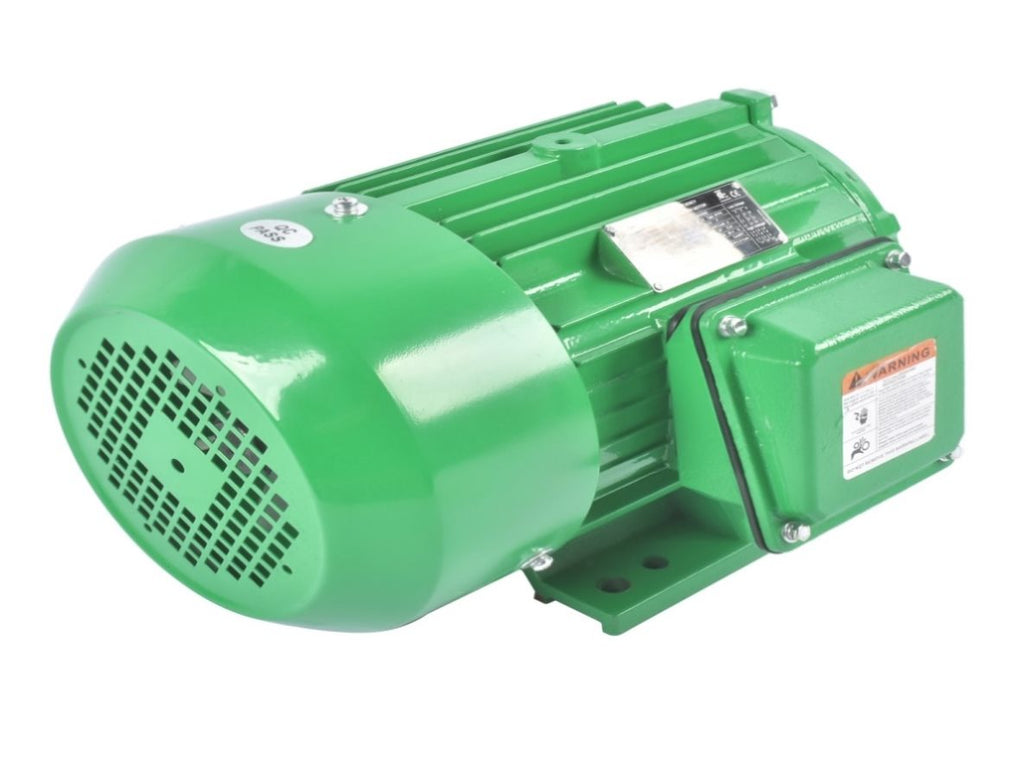

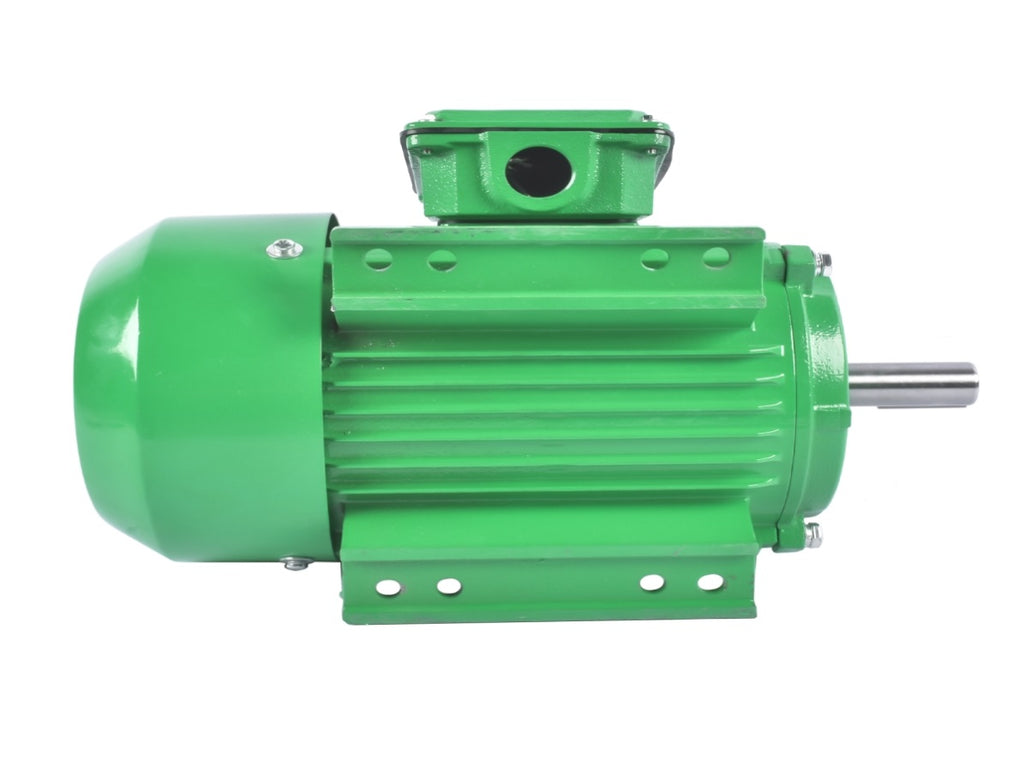

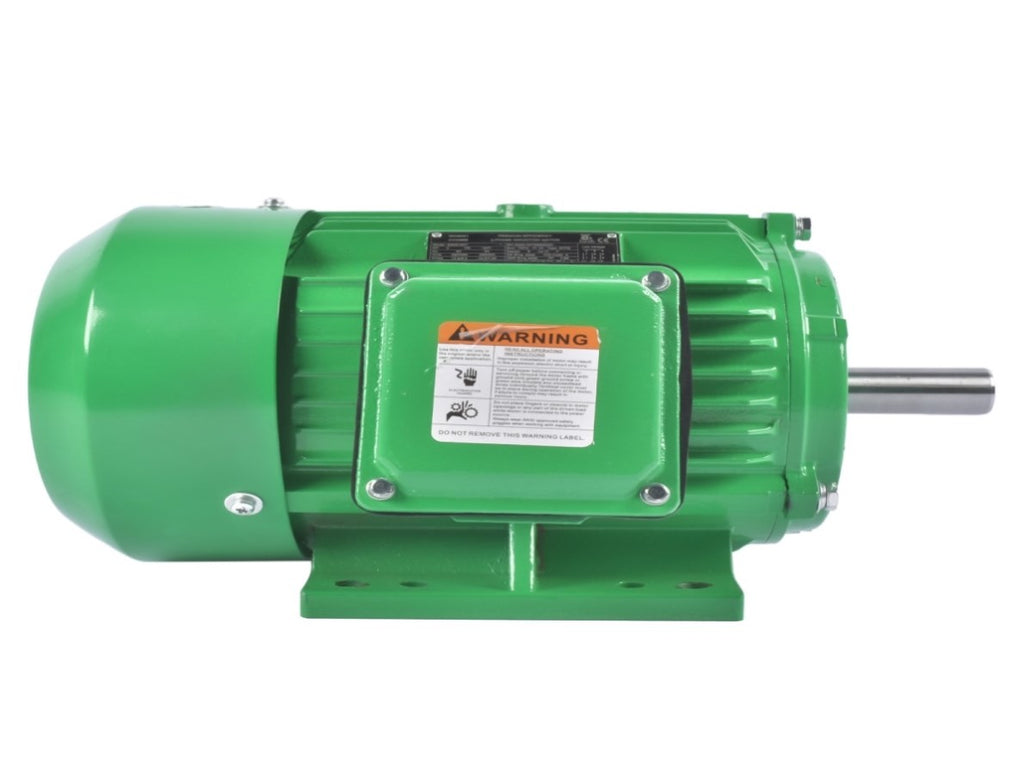

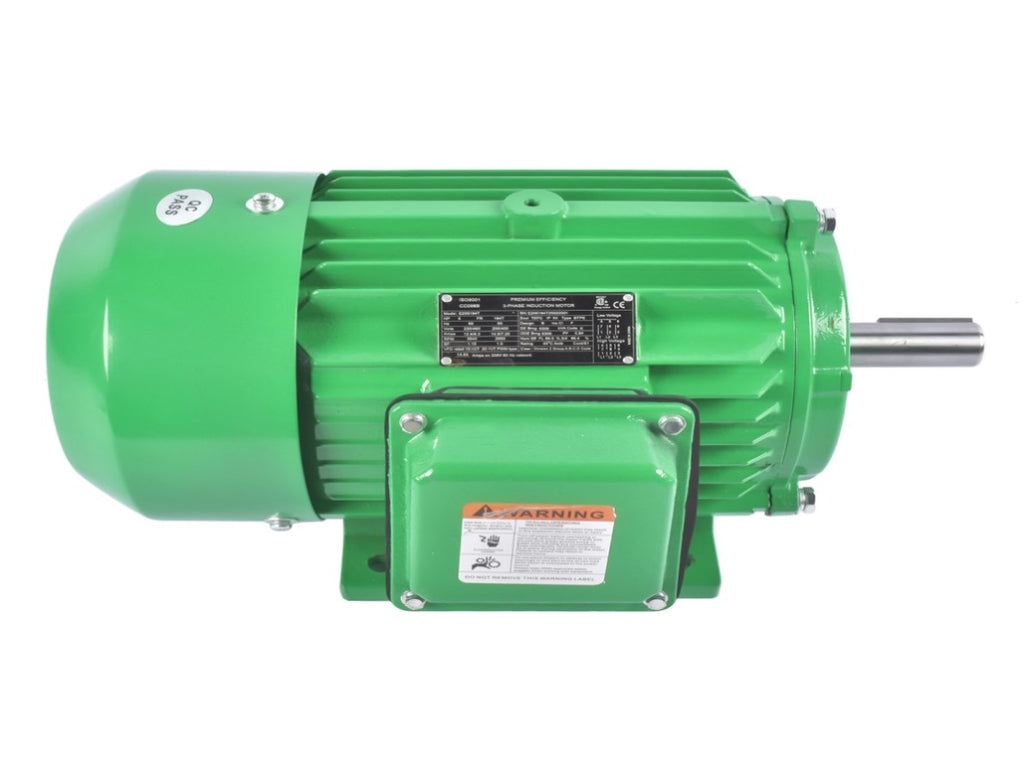

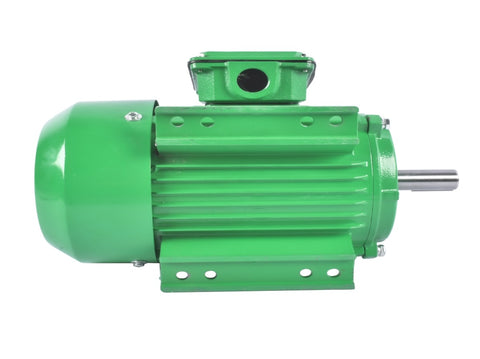

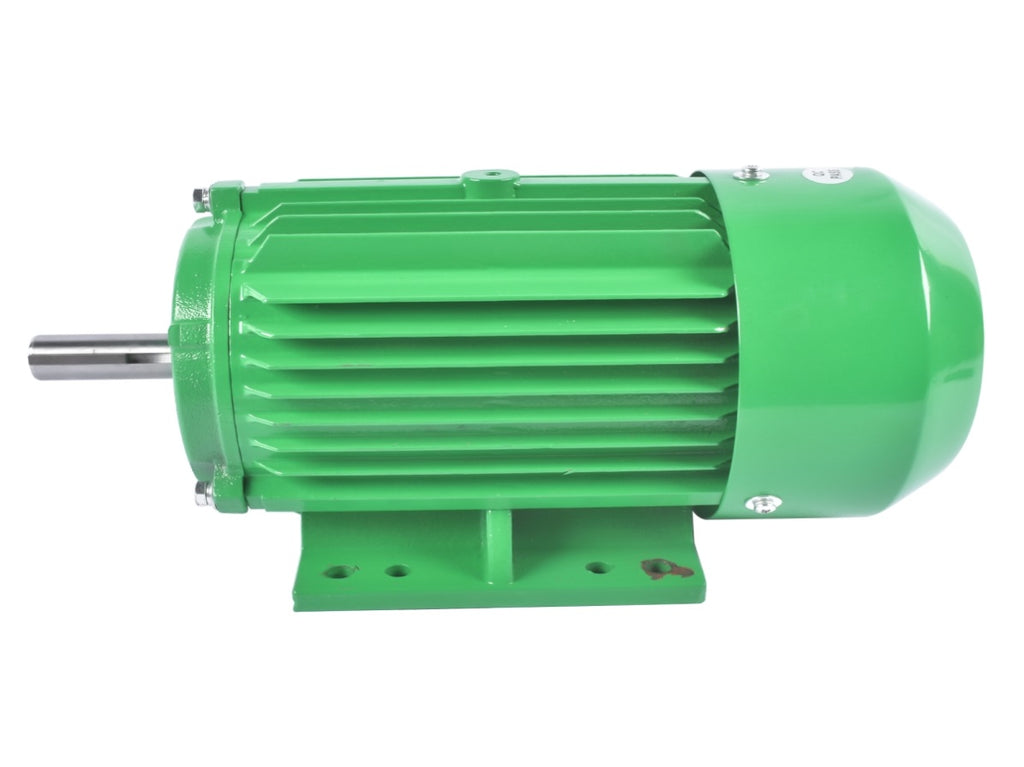

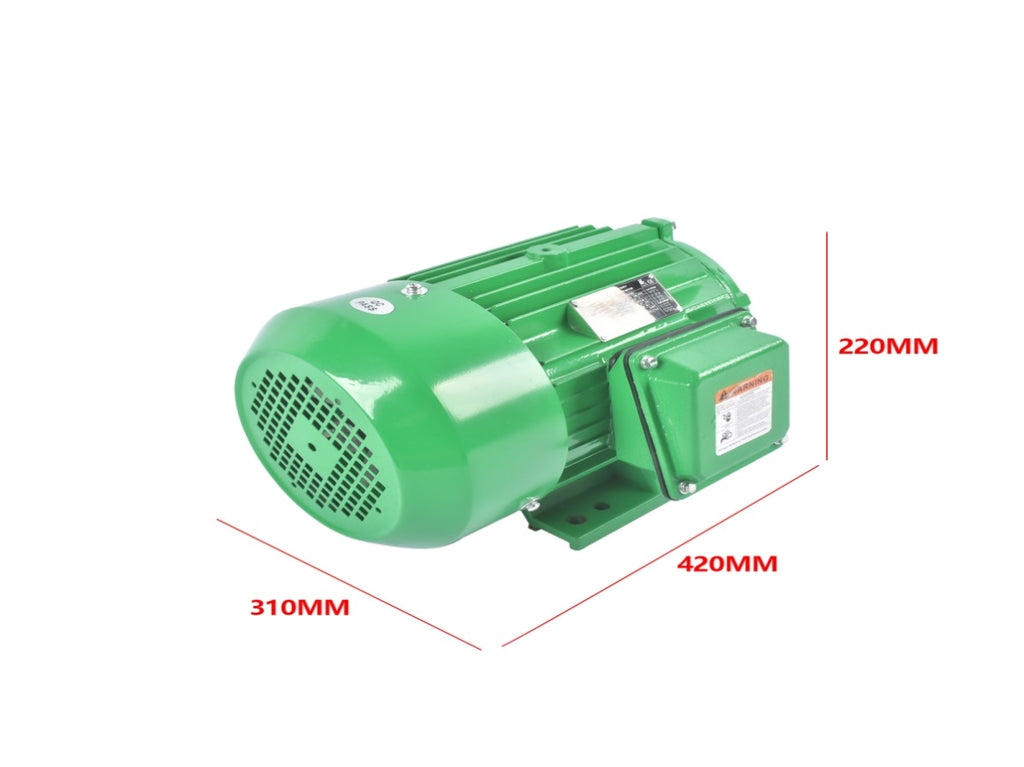

5 HP 3 Phase Electric Motor 3600 RPM 184T Frame TEFC IP55 230/460 Volt Severe Duty 76454204
Specifications
Rated Load: 5 HP
AC Phase: 3 Phase
RPM: 3600
Frame: 184T
AC Phase: 3 Phase
RPM: 3600
Frame: 184T
Service Factor 1.25
Class F Insulation
Class F Insulation
Rated Input Voltage: 230/460 Volt

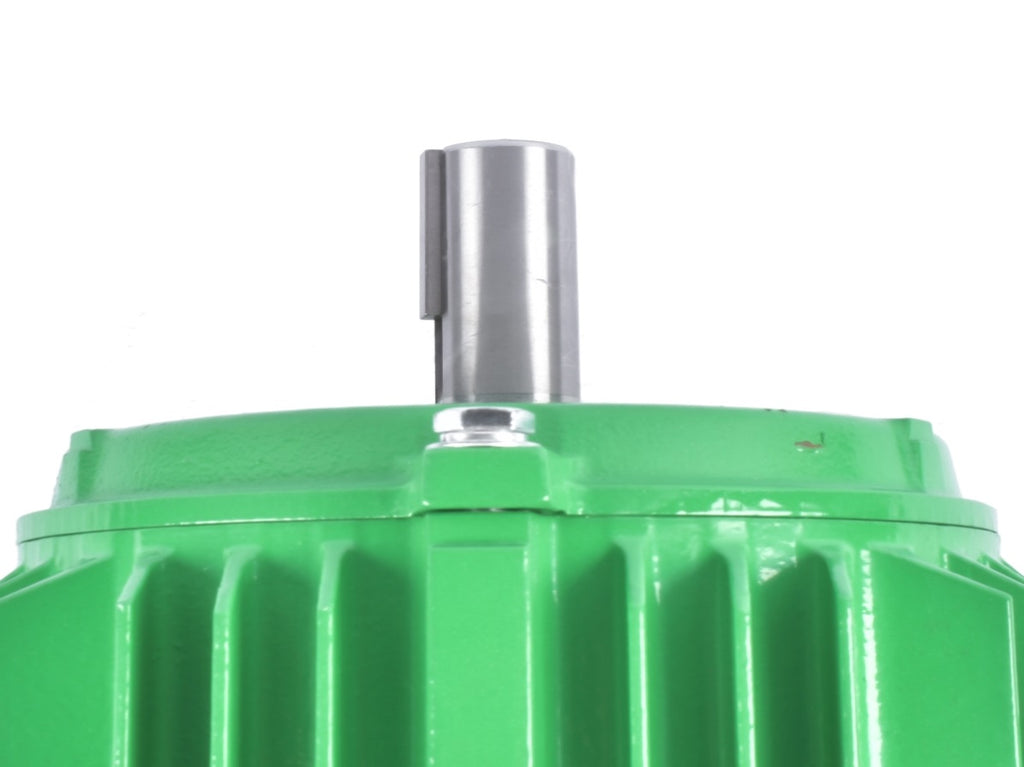

Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 12.0/6.01
AC Frequency Rating: 60 HZ (Suitable for 50 HZ with 1.0 SF)
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 12.0/6.01
AC Frequency Rating: 60 HZ (Suitable for 50 HZ with 1.0 SF)
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C

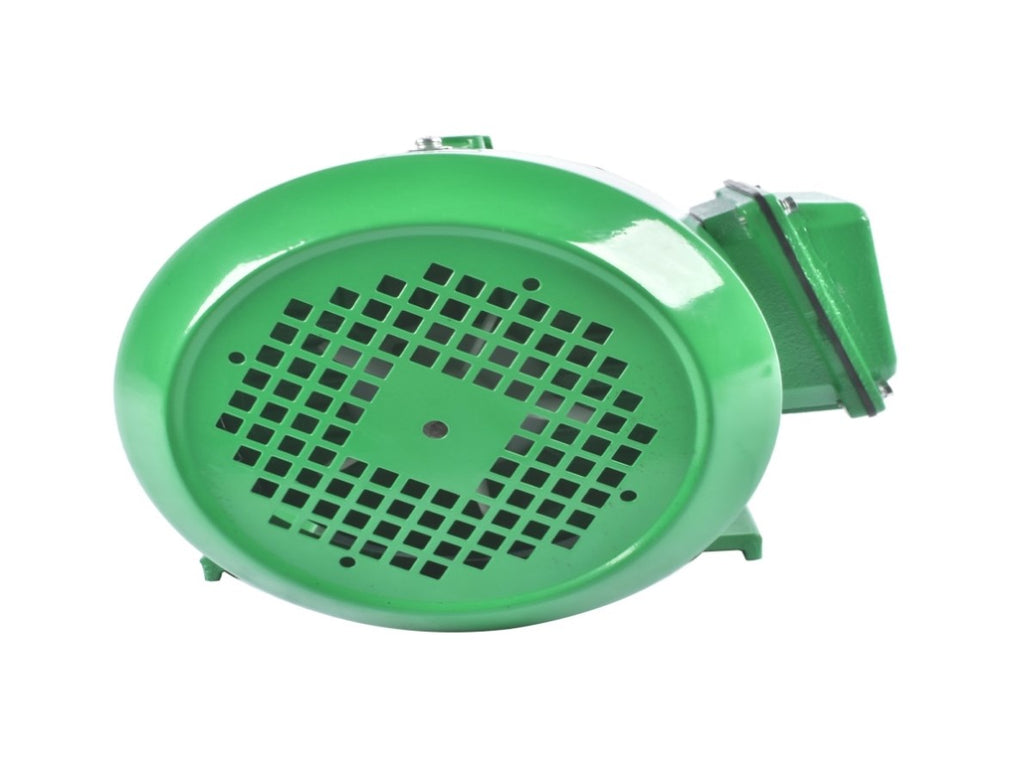

TEFC / IP55 enclosure
Insulation Class: F (Max 311°F)
Mounting Type: Base-Mounted
Notes!
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
Package included
1x Electric Motor
