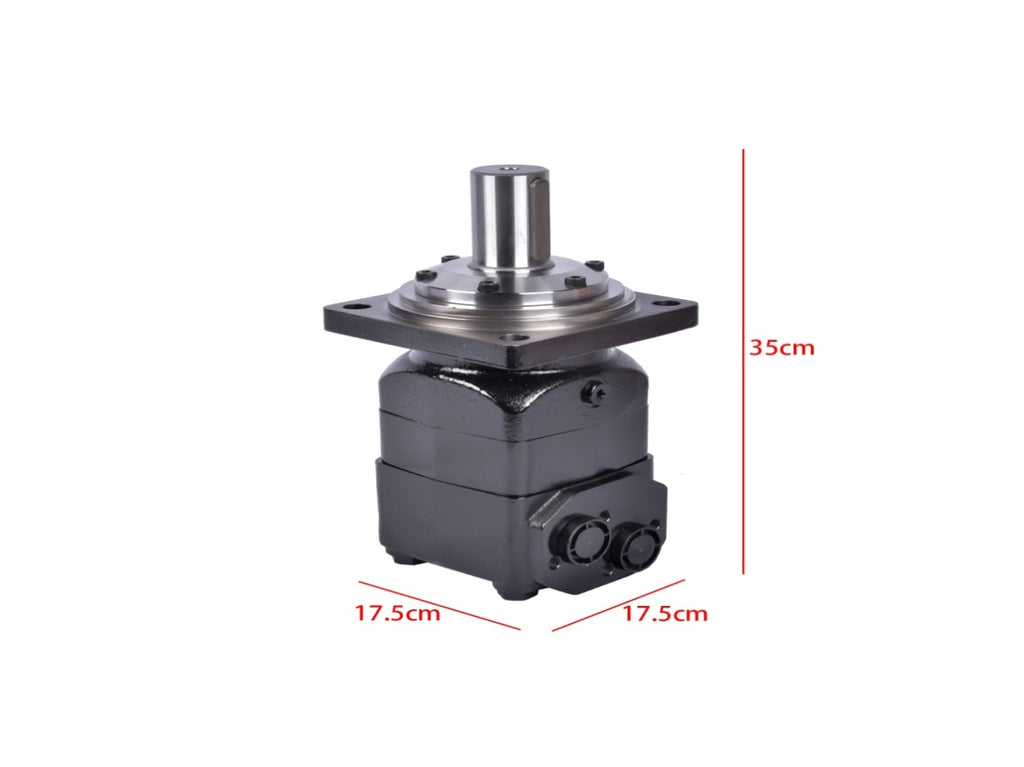

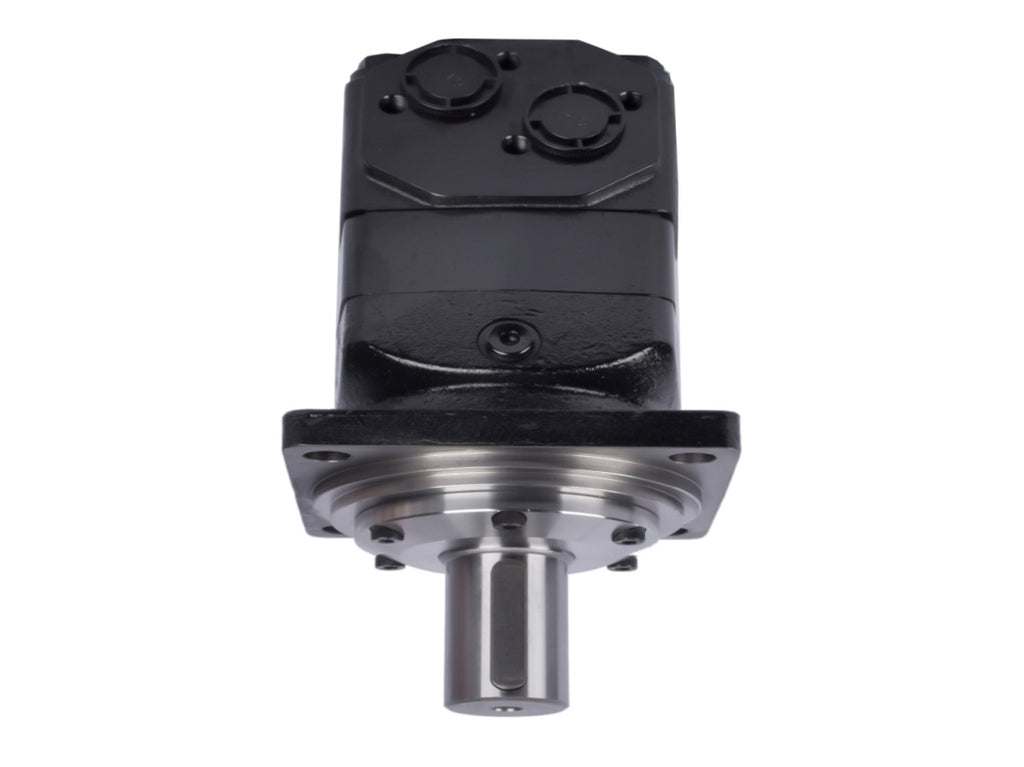

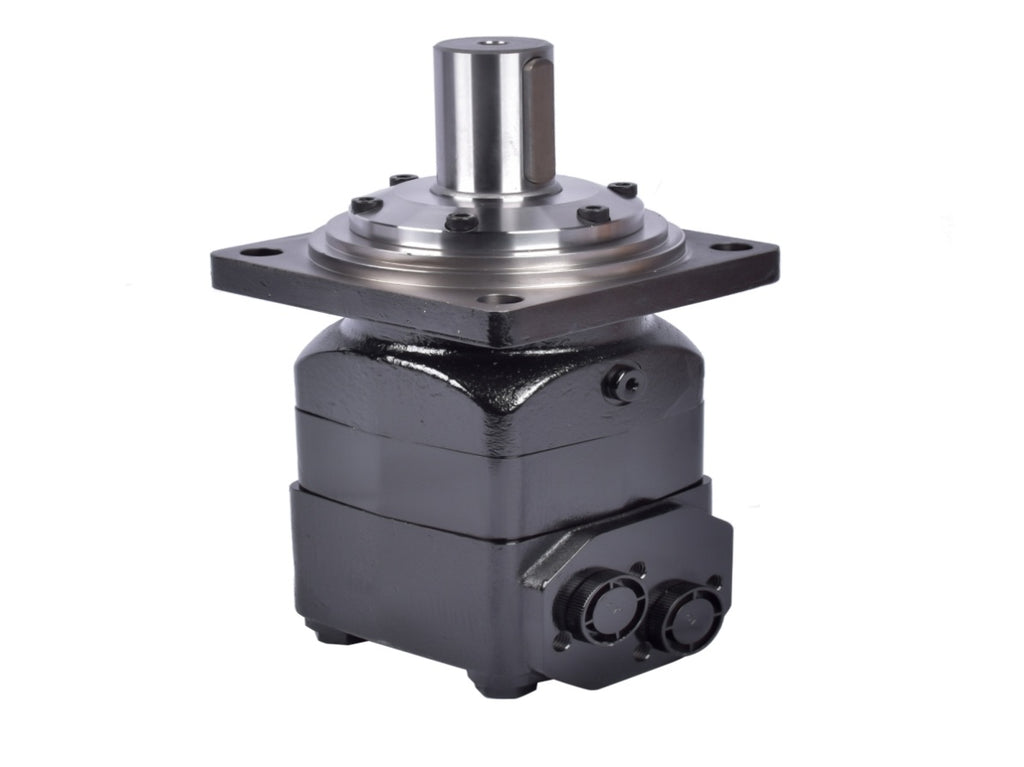

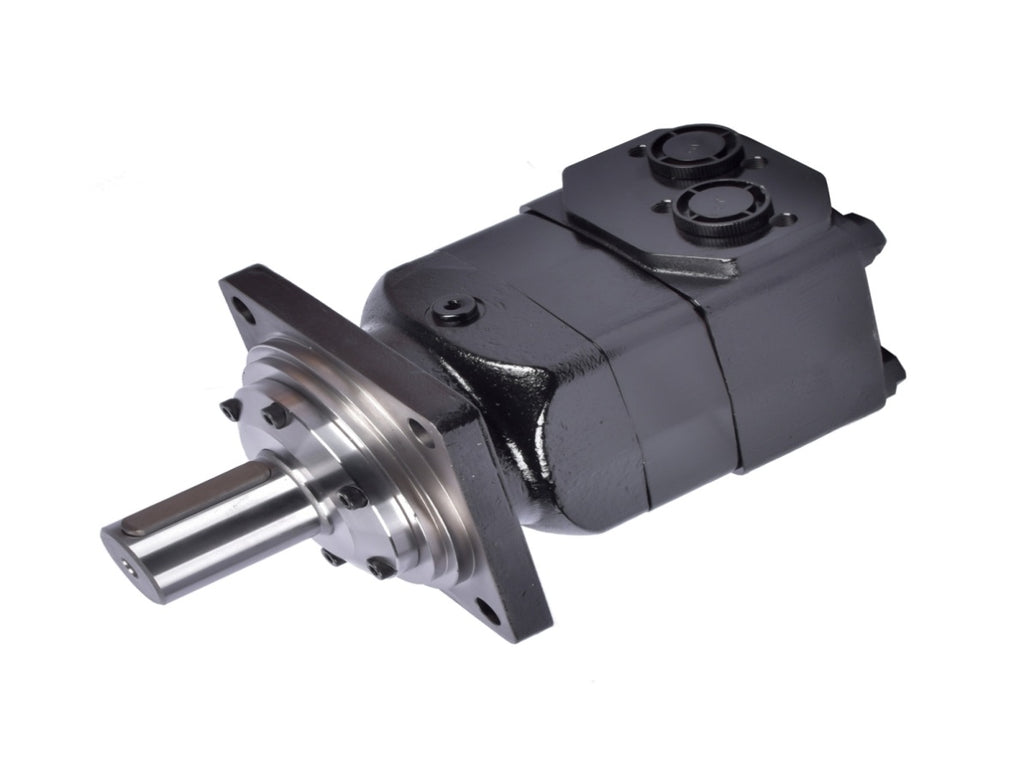

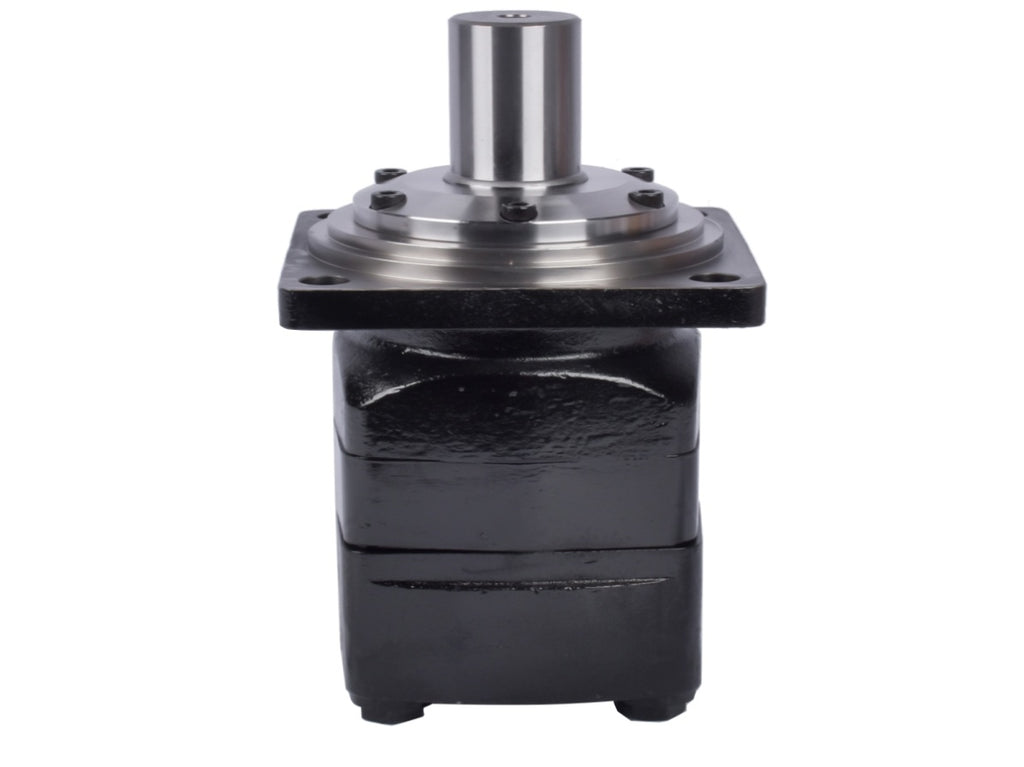

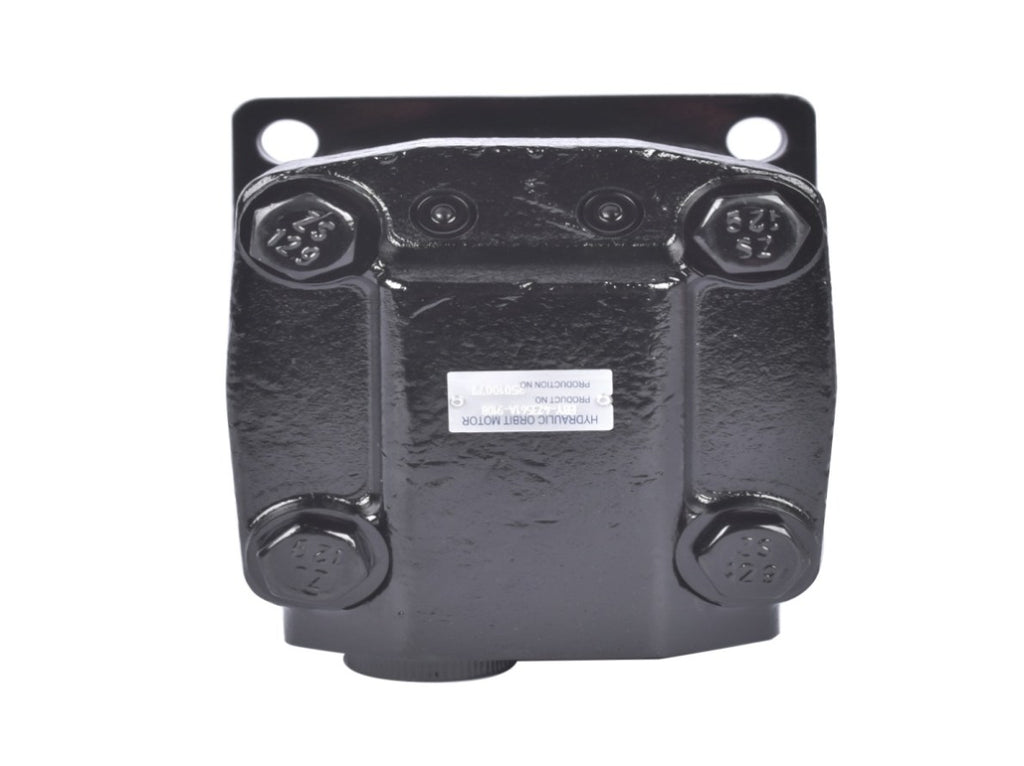

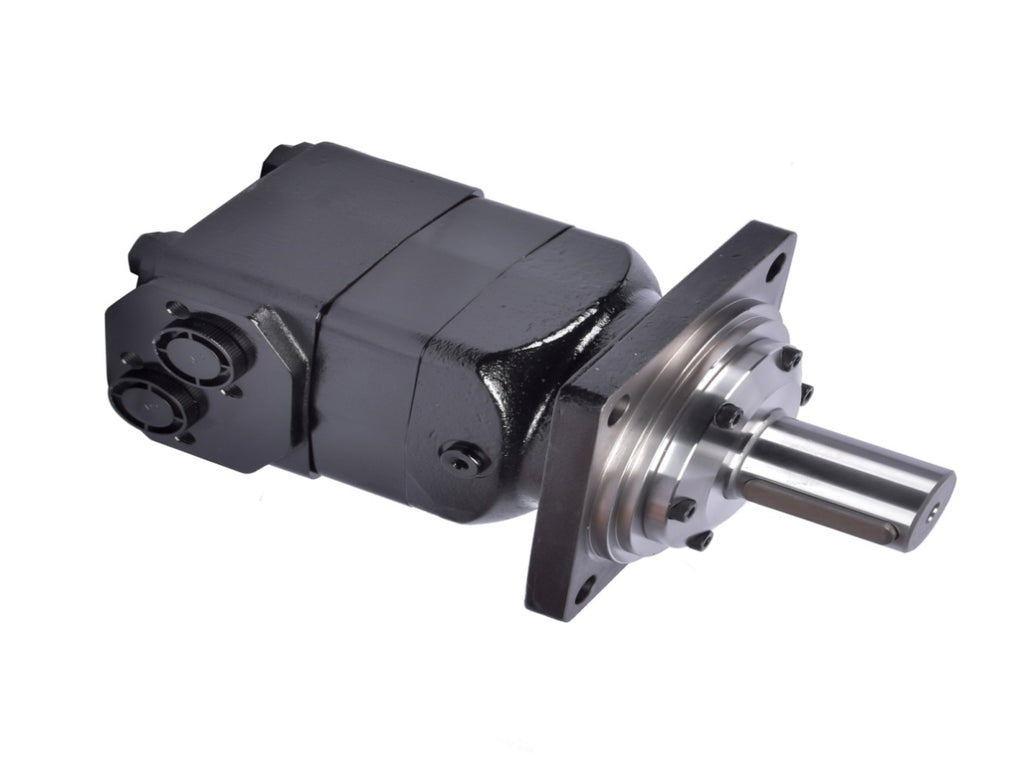

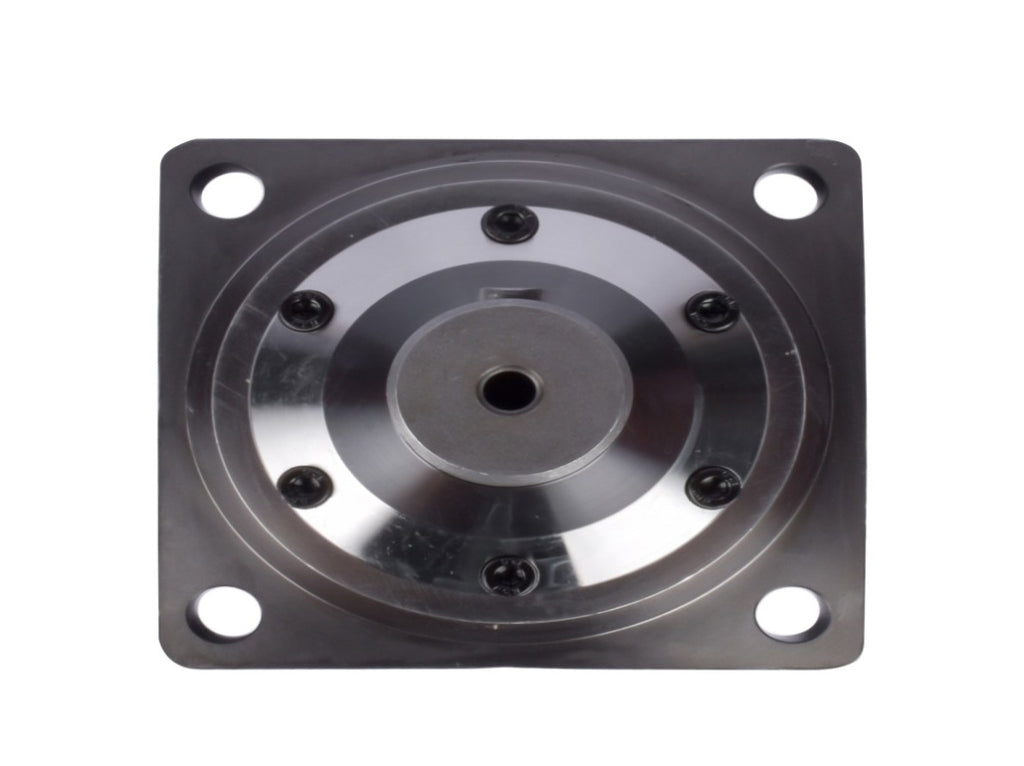

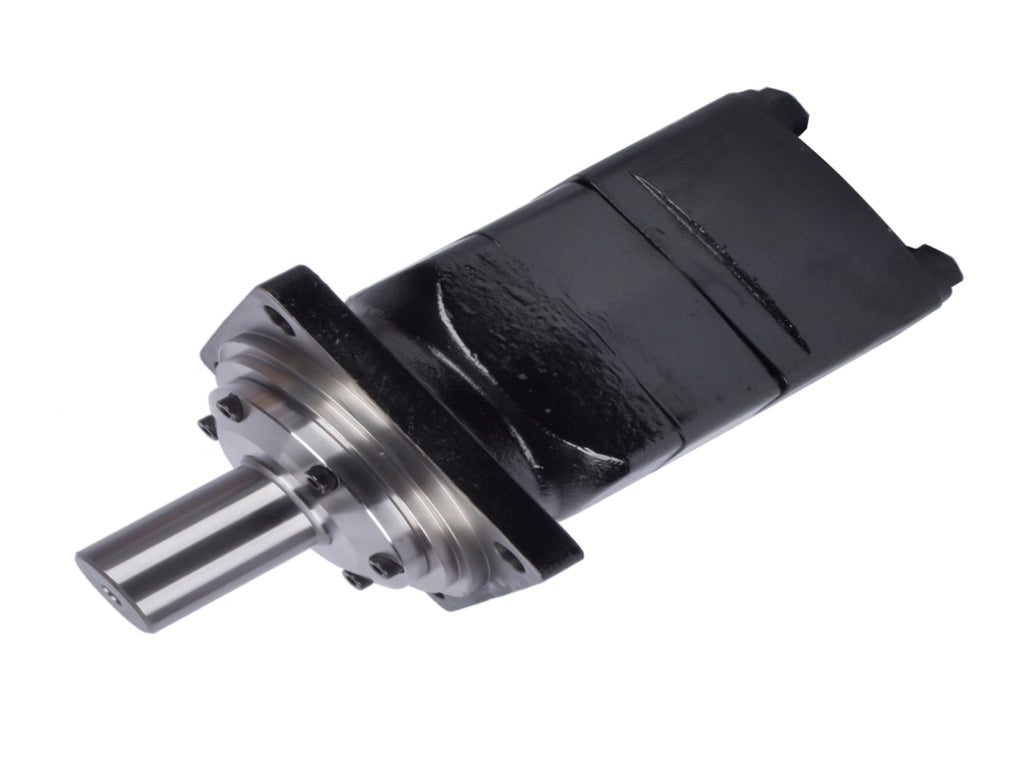

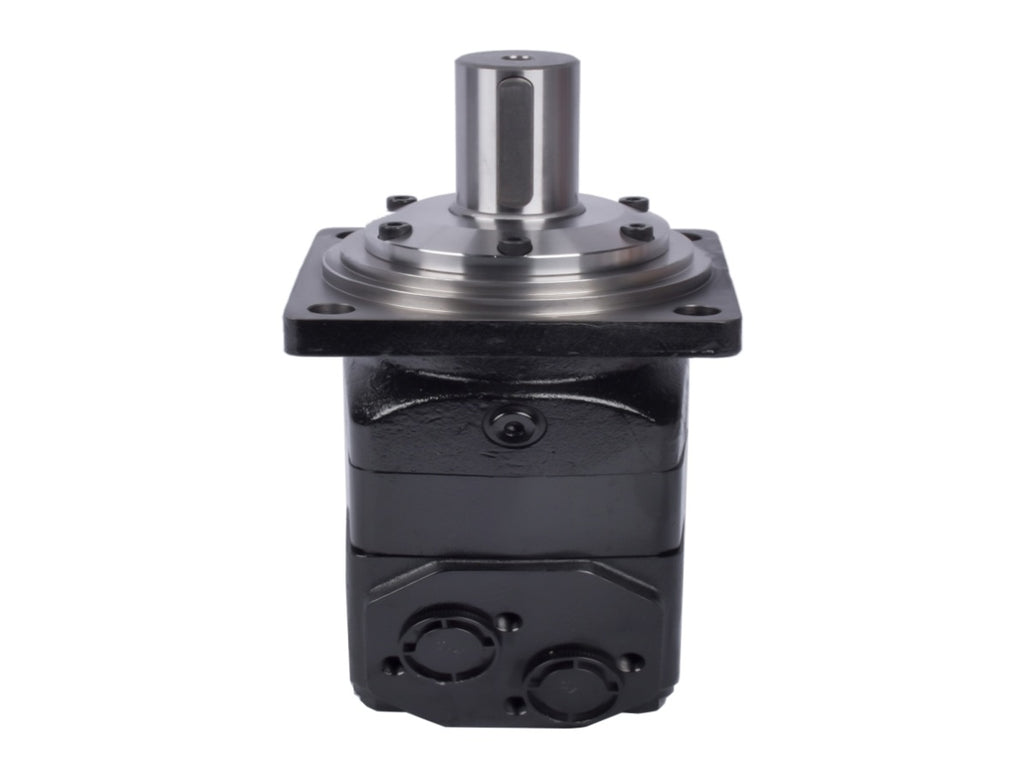

50mm G1 BSP Hydraulic Orbital Motor for OMV630-151B3103 BMV-630-4AD3103 OMV630151B3103 86452330

Applications:

151B3103
OMV630-151B3103
OMV630151B3103
BMV-630-4AD3103

OE Part Numbers:

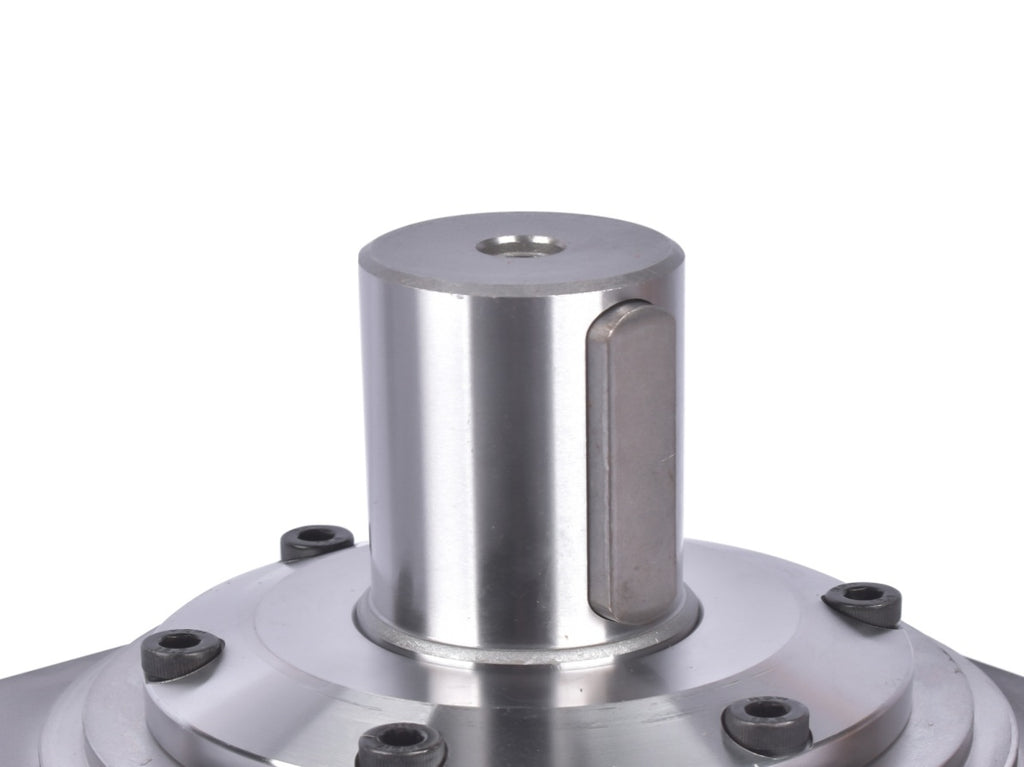

Cylindrical output shaft 50mm with G1 BSP port
OMV 630 Low Speed High Torque motor, Geometric Displacement 629.1 cm3

For OMV630 - 151B3103

Motor size: 630
Geometric displacement( cm^3[in]): 629,1[38.39]
Max speed cont: 315 rpm
Max speed int: 380 rpm
Max torque cont(Nm[lbf in]): 1660[14690]
Max torque int(Nm[lbf in]): 1940[171780]
Max output power cont(kW[hp]): 48,0[64.4]
Max output power int(kW[hp]): 56,0[75.1]
Max pressure drop cont(bar[psi]): 180[2610]
Max pressure drop int(bar[psi]): 210[3050]
Max pressure drop peak(bar[psi]): 240[3480]
Max oil flow cont(l/min[gpm]): 200[52.8]
Max oil flow int(l/min[gpm]): 240[63.4]
Max starting pressure with unloaded shaft(bar[psi]): 8[115]
Min starting torque at max press drop cont(Nm[lbf in]): 1330[11770]
Min starting torque at max press drop int(Nm[lbf in]): 1550[13720]
Max inlet pressure cont(bar[psi]): 210[3050]
Max inlet pressure int(bar[psi]): 250[3630]
Max inlet pressure peak(bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line peak(bar[psi]): 210[3050]

Package Includes:
1x 50mm G1 BSP Hydraulic Orbital Motor
