5HP Air Compressor Motor 23378805 54421193 for Ingersoll Rand 230V 3450 Rpm 44442524
Specifications
Power 5 HP SPL
FLA 24.9
SFA 27.3
RPM: 3450
Frame: 184T

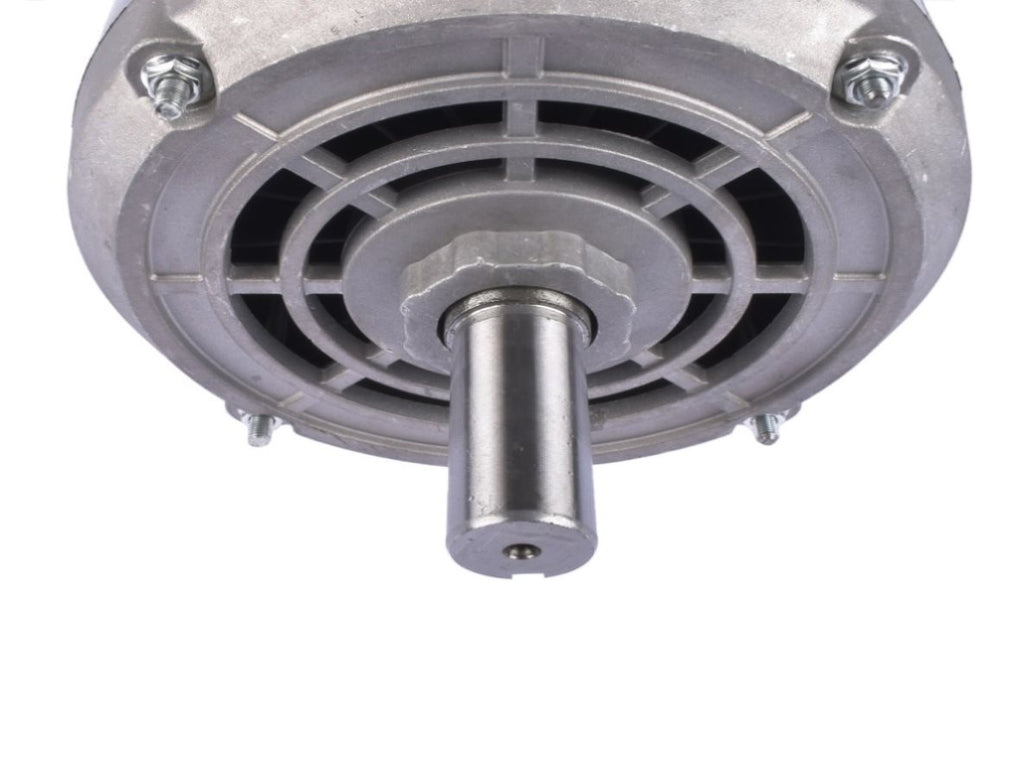

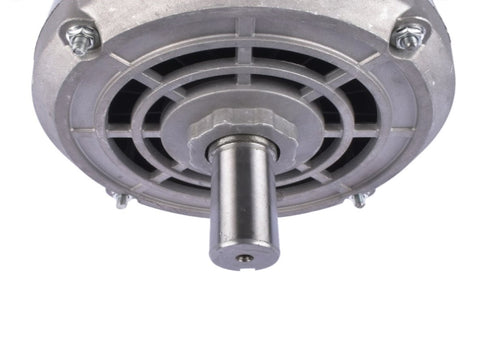

Shaft Size: 7/8" x 2 1/4" with Keyway
Shaft height: 4.5" (Measured to Shaft Center)
Base: Flat Rigid Mounting Base
Voltage: 208-230V 60hz, 24.9 AMPS
Phase: Single Phase
Service Factor: 1.15
Insulation Class B
Ball Bearings
Open Drip Proof Enclosure
FLA 24.9
SFA 27.3
RPM: 3450
Frame: 184T
Shaft Size: 7/8" x 2 1/4" with Keyway
Shaft height: 4.5" (Measured to Shaft Center)
Base: Flat Rigid Mounting Base
Voltage: 208-230V 60hz, 24.9 AMPS
Phase: Single Phase
Service Factor: 1.15
Insulation Class B
Ball Bearings
Open Drip Proof Enclosure
Manual Overload Protection
OE Number
56283138
23378805
23220064
54421193
Feature
Brand new, high starting torque design for compressor duty applications.

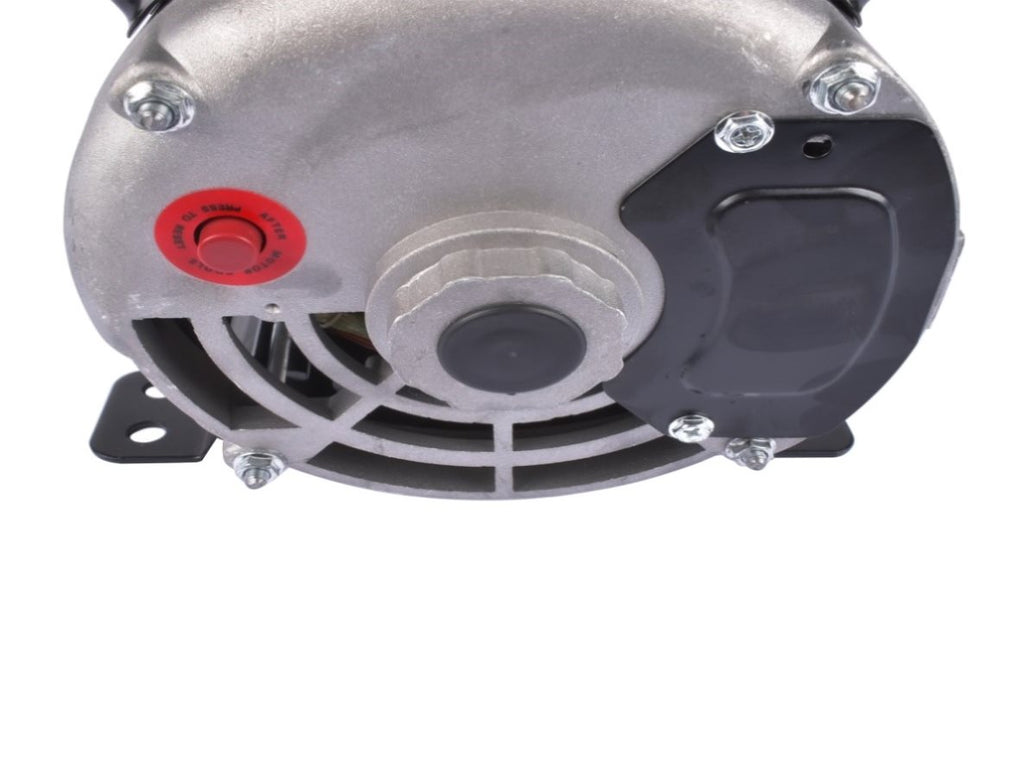

Overload protection with manual reset.
Steel frame and base.
Welded base. Capacitor start/capacitor run.
Note
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
Please check the part number and illustration carefully to ensure that it fits your model.
Professional installation is recommended.

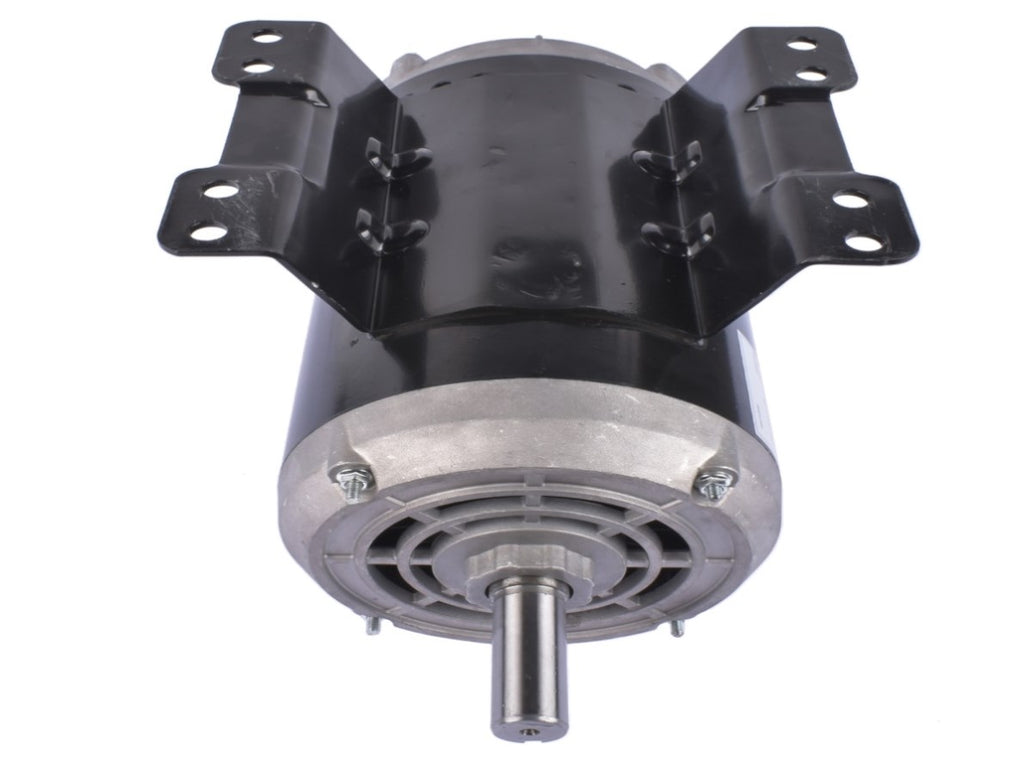

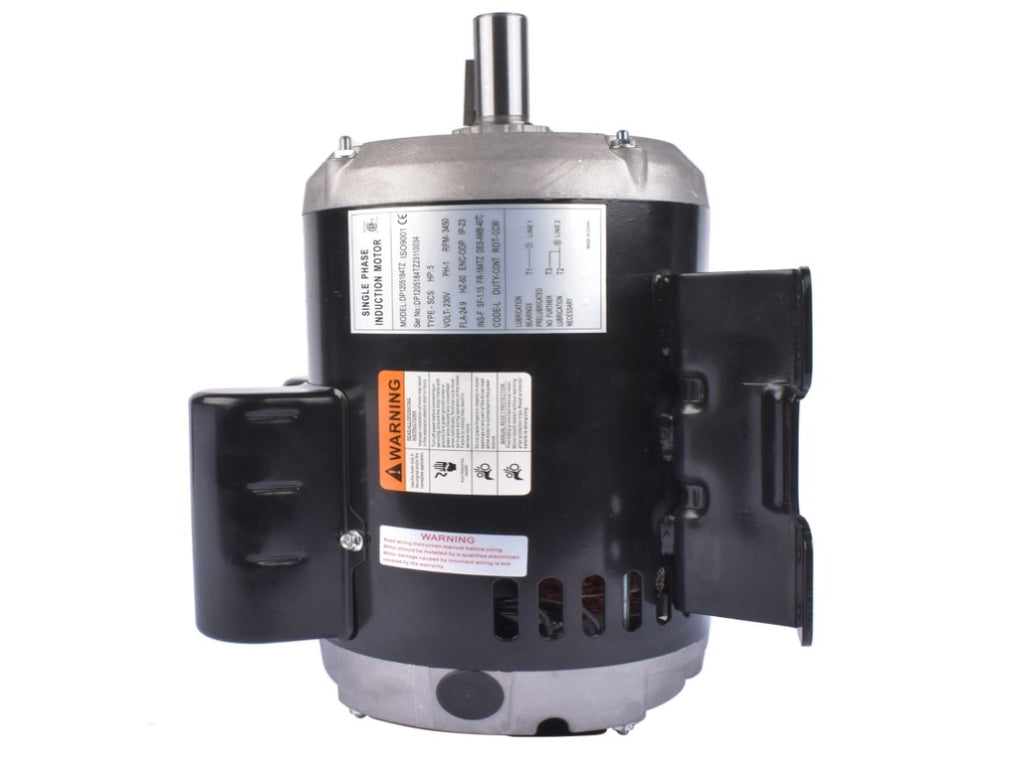

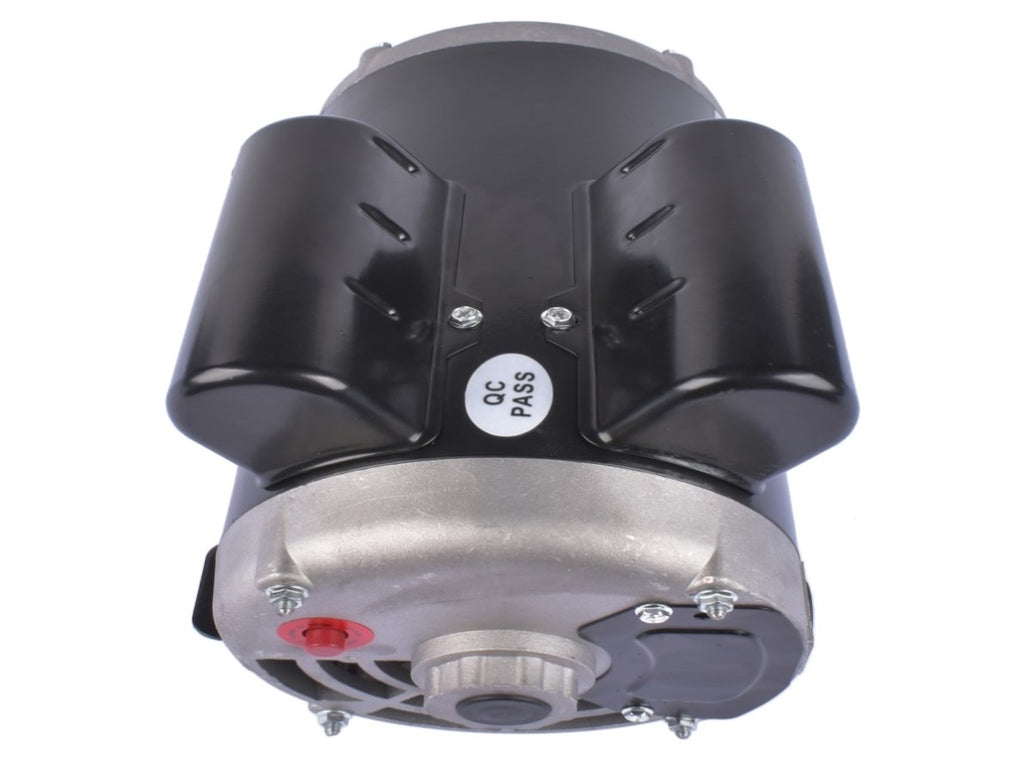

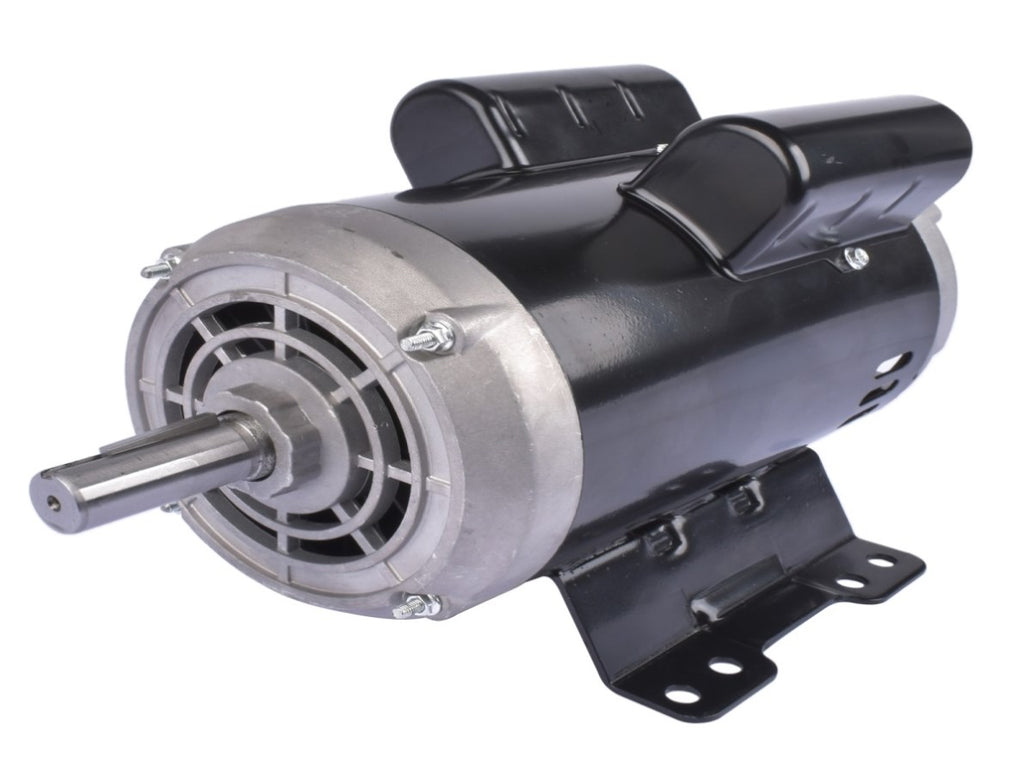

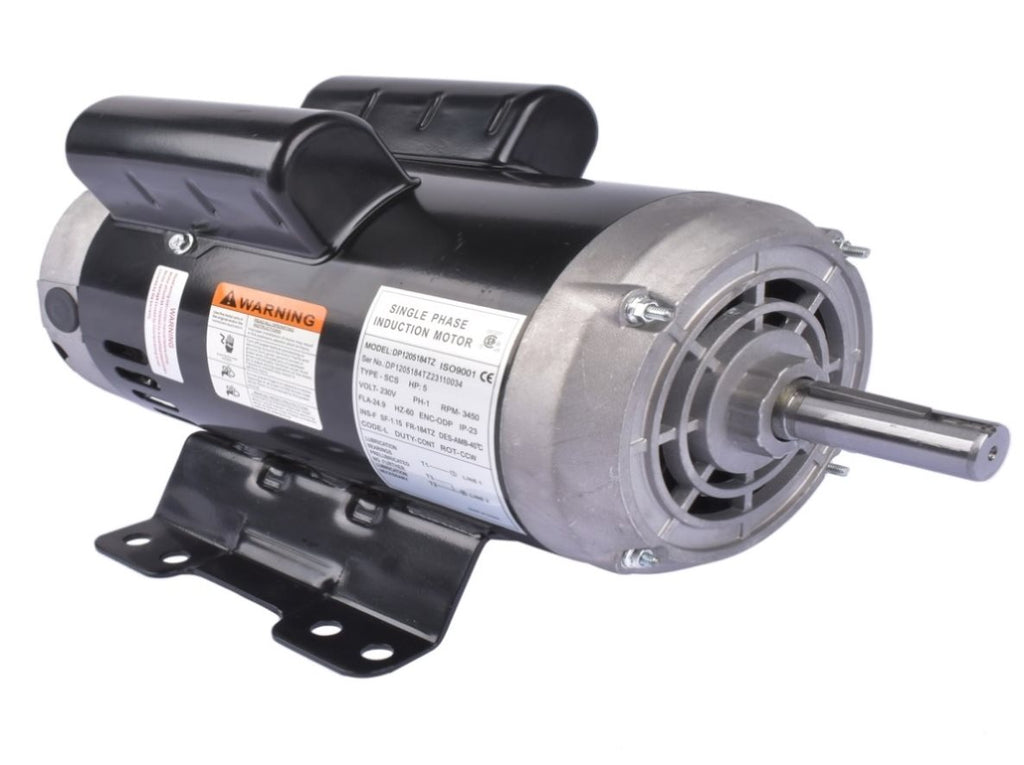

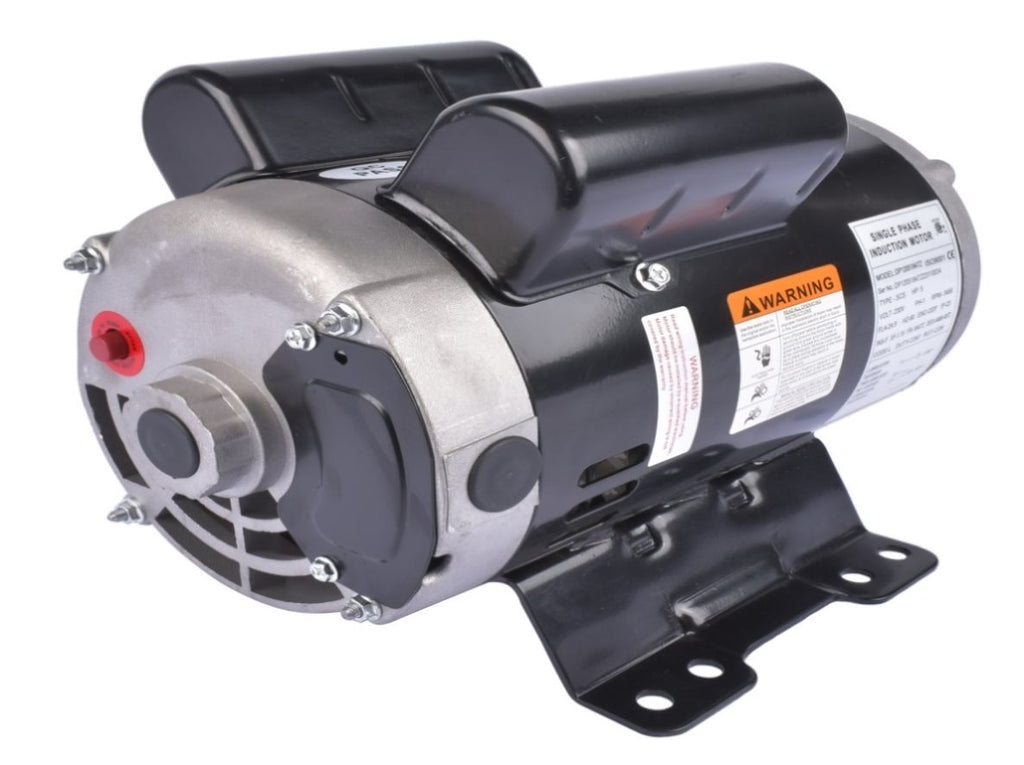

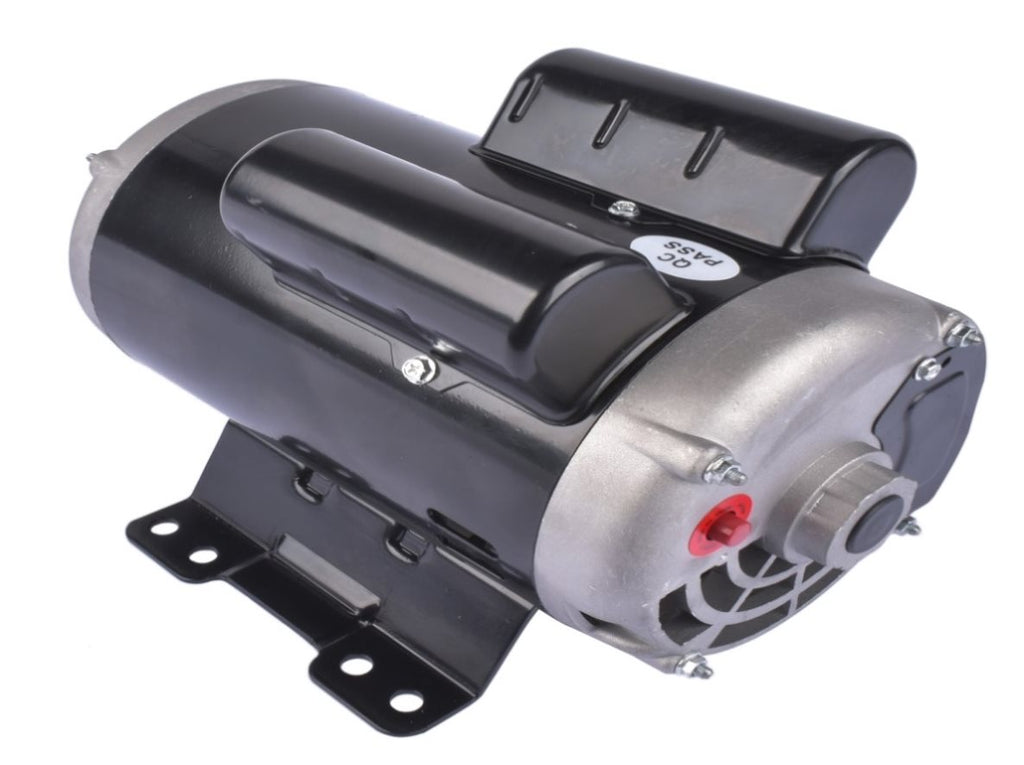

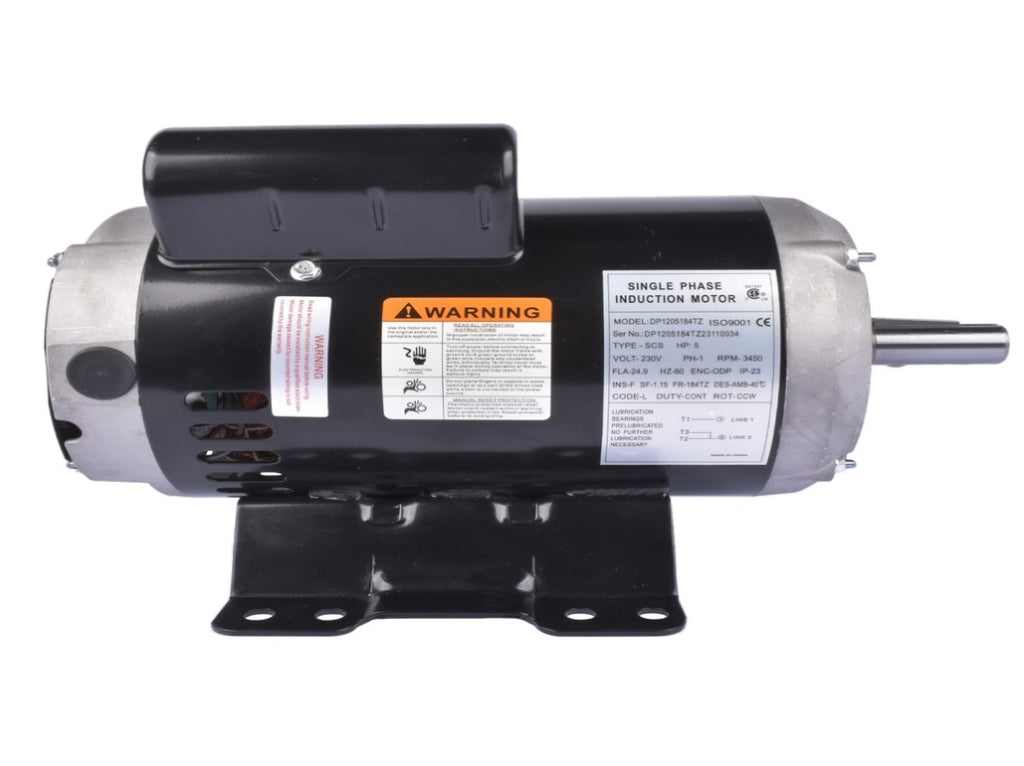

Package Includes: 1x Air Compressor Motor (As Pics Shown)
