77mm Cylinder Jug Piston Gasket Kit for Kawasaki KX 250 F KX250F 2004-2008 94126319

Application

for Kawasaki KX250F (KX250-N1) 2004

for Kawasaki KX250F (KX250-N2) 2005

for Kawasaki KX250F (KX250T6F) 2006

for Kawasaki KX250F (KX250T7F) 2007

for Kawasaki KX250F (KX250T8F) 2008

for Suzuki RMZ250 K4 2004

for Suzuki RMZ250 K5 2005

for Suzuki RMZ250 K6 2006

Part Number

Cylinder: 11005-0005, 11005-0037, 11005-0069, K1100-50005, K1100-50037

Cylinder Base Gasket: 11061-0025, K1106-10025

Cylinder Head Gasket: 11004-0090, K1100-40090

Piston: 13001-0052, K1300-10052, 13001-0088

Pin, Piston: 13002-0018, K1300-20018

Piston Ring Set: 13008-0028, K1300-80028

Circlips, Piston: 92033-1161, K9203-31161

110050005, 110050037, 110050069, K110050005

K110050037, 110610025, K110610025, 110040090

K110040090, 130010052, K130010052, 130010088

130020018, K130020018, 130080028, K130080028

920331161, K920331161

Specification

Type: Cylinder Piston Top End Rebuild Kit

Bore Type: Standard Bore

Bore Size: 77mm

Stroke: 53.6mm

Pin diameter: 16mm

Displacement: 249cc

Compression Ratio: 13.5:1

Displacement Type: Direct replacement

Features

- Direct replacement, easier to install.

- Made of high quality material, impact-resistant, corrosion and wear resistance.

- Wear resistance and heat resistance, long service life.

- The Gaskets with great sealing performance, leakage prevention.

- Cylinder Piston Kit bore size - 77mm

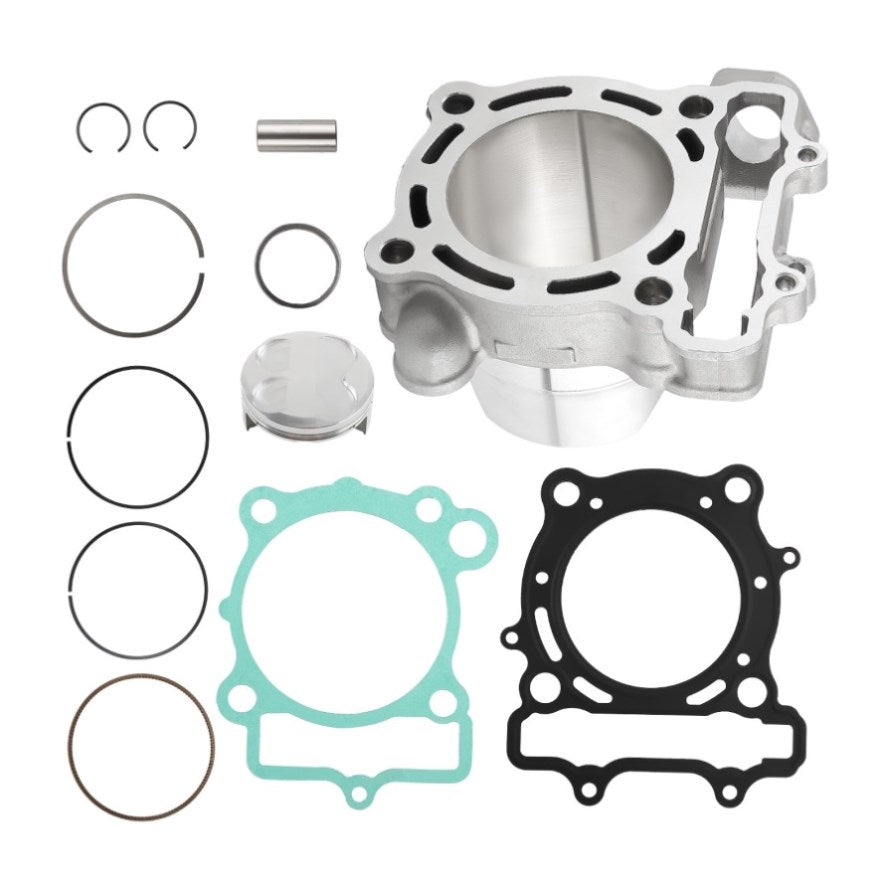

Package Included

1x Cylinder

1x Piston

1x Piston Ring Set

1x Wristpin

1x Circlip(2)

1x Cylinder Base Gasket

1x Cylinder Head Gasket

(As shown in the pictures)

Note

- Please confirm the model number before purchase

- Not Included installation instructions, Professional installation required

NOTIECE:

Authority ID：MXR02FXSY

Notice：California Prop 65 Warning
