Billet Turbo Charger T3 T4 Universal fit for 1.5L to 2.5L any 4/6 cylinder engine up to 400HP 37929696

Fit for:

Universal fit for 1.5L to 2.5L any 4/6 cylinder engine up to 400+HP

Specification:

Turbine:

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns

Turbine Exhaust Flange: Standard T3 5 bolt flange pattern

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust inlet: 44.5mm/81mm

Compressor:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet: 45mm(inside diameter)/53mm(outer diameter)

Compressor inlet: 68 mm(inside diameter)/72mm(outer diameter)

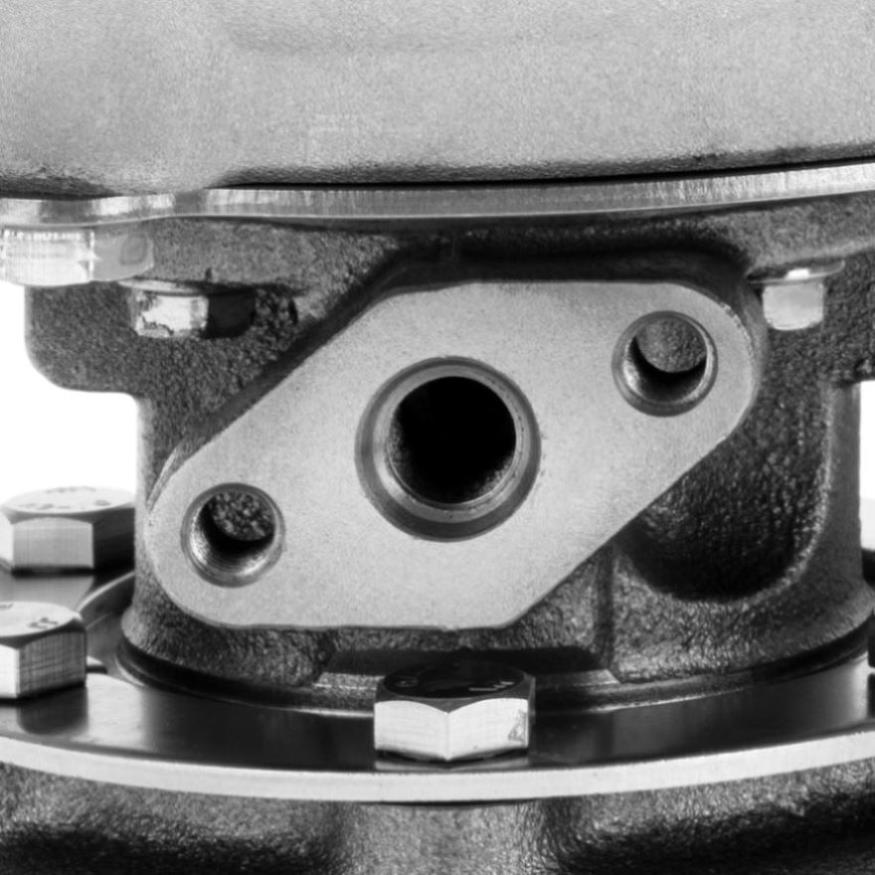

Oil Inlet: M12*1.25

Oil Outlet: 2*M8*1.25

Wastegate: W/O Wastegate

Cooling Type: Oil Cooled

Bearing Type: Floating Bearing

Trust Bearing: 270 degree

Hosepower:  Up to 400+HP

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Condition: 100% Brand New

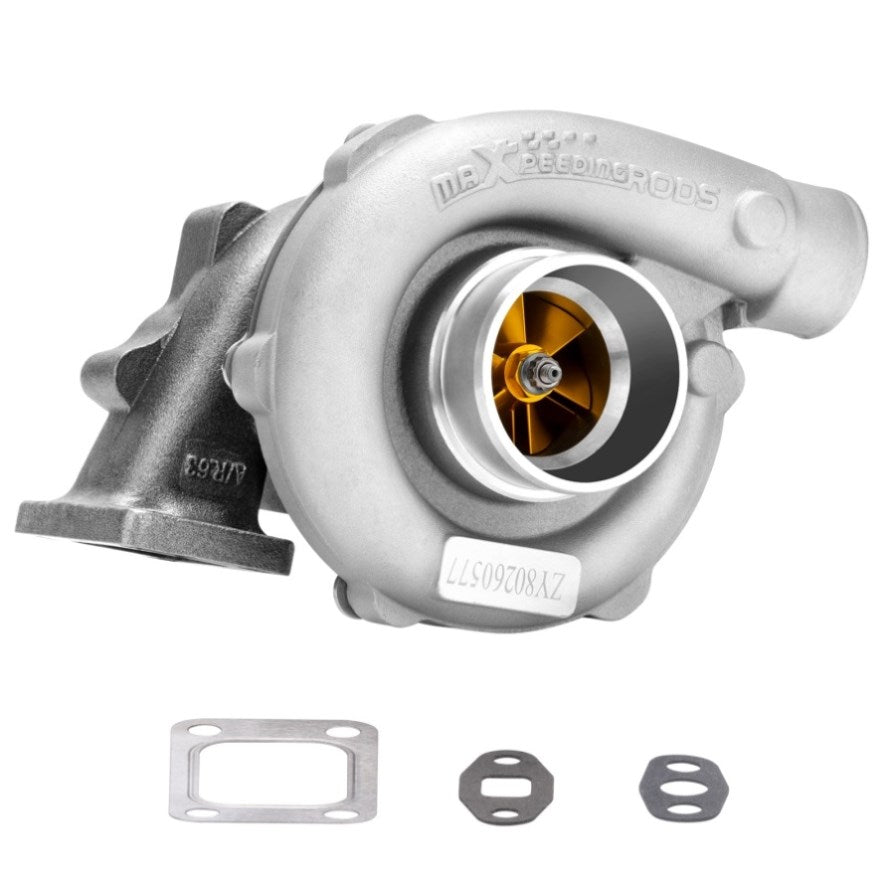

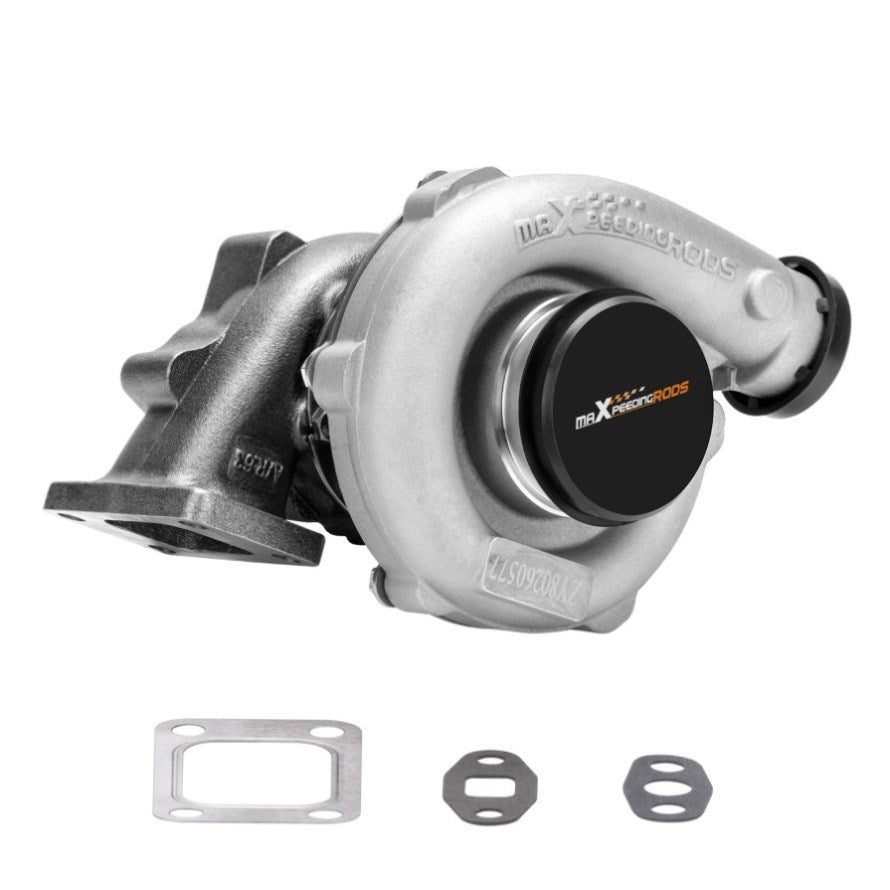

Accessories: You will get exactly as shown as picture above

Package Size: 27x 25x 23 cm

Package Weight: 7220g

Features:

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

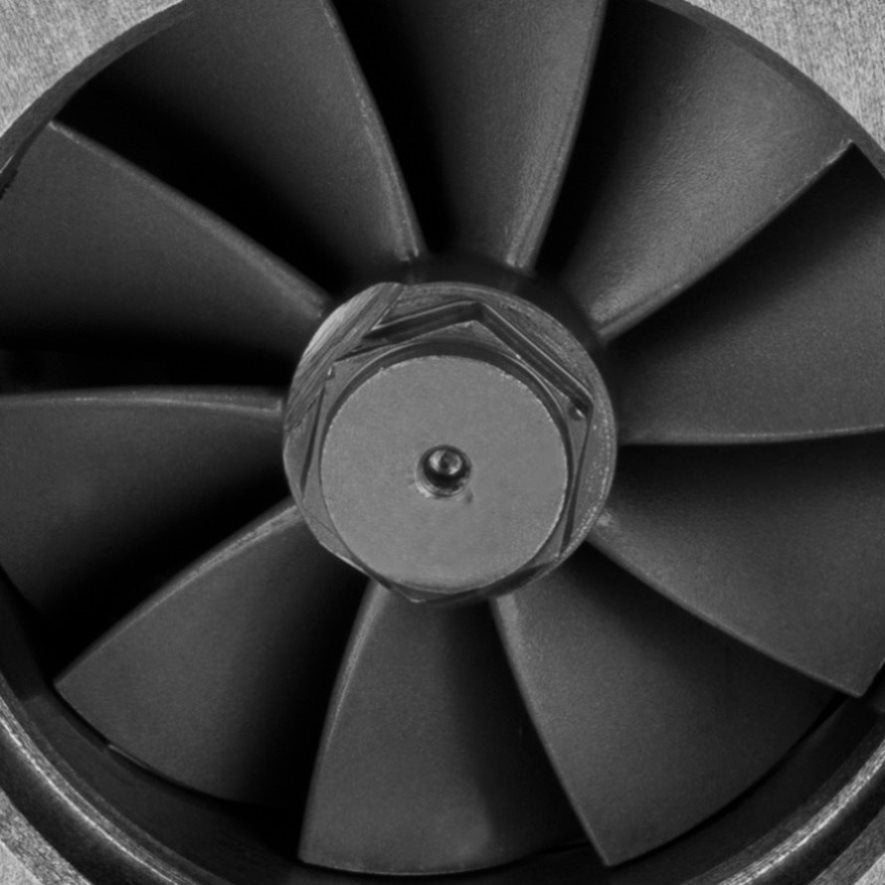

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

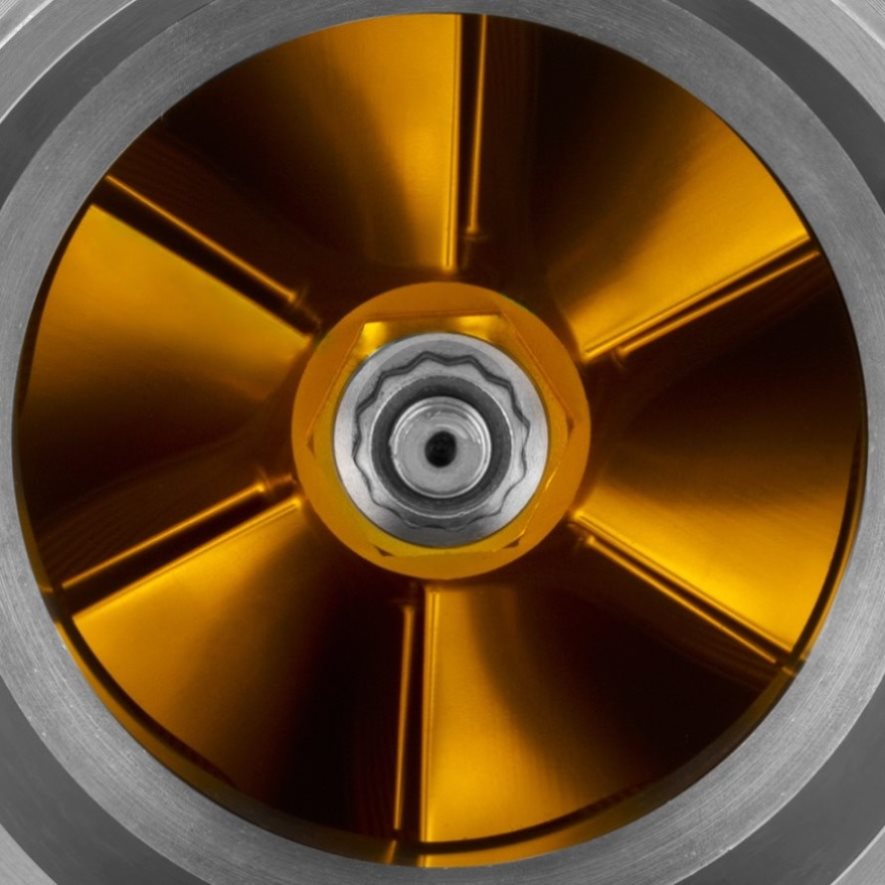

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

NOTE:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.

* Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
