Coilover Shock Absorber Suspension Parts Fit For Ford Mustang S-197 2005-2014 Fit For Ford Mustang 26204794

Introduction:

BFCO coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.

Application:

Fit For Ford Mustang S-197 2005-2014

Fit For Ford Mustang GT S-197 2005-2014

Specification:

Front top mount: Pillow ball with camber plate

Rear top mount: OE top mount required

Damping adjustable: Not available

Camber adjustable: Available, front only

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Front spring rate: 8 kg/mm (448 lbs/in)

Rear spring rate: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 62 mm

Spring length Front: 230 mm

Spring length Rear: 180 mm

Spring Preload advised: 7-10 mm

Color: Black body with black spring

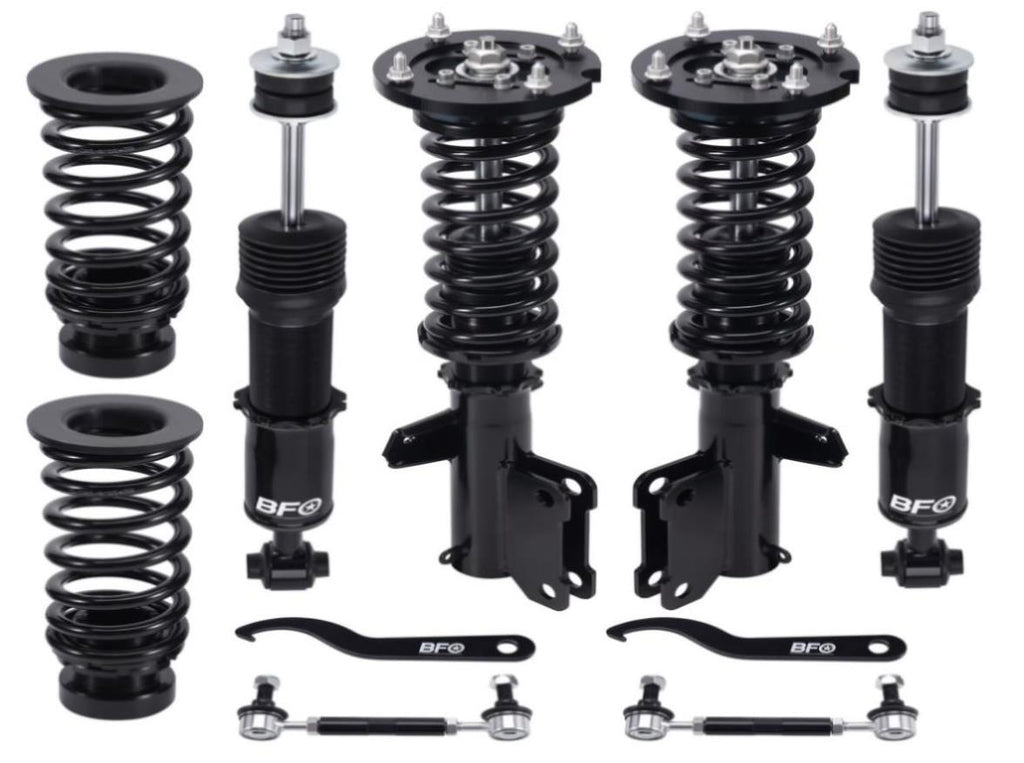

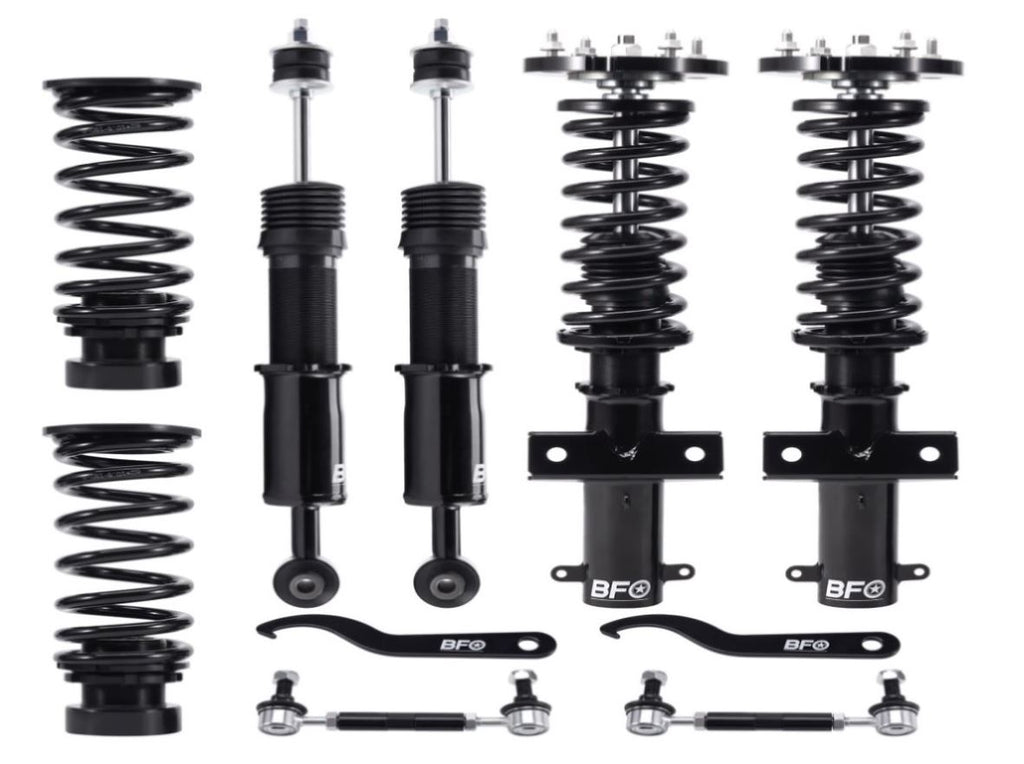

Package included:

2x Front coil-overs

2x Rear  coil-overs

2x Sway bar links

2x C spanners

Dimension:

Package size: 71*51*20 cm

Weight: 27550 g

Feature:

1. Self-design structure and new manufacturing system to give more customers good coil-overs without breaking the bank.

2. Height adjustable---lower your car 25-75mm (depending on vehicle models) to get a performance ride

3. Independent Ride Height and Spring Pre-load Adjustments

4. Twin-Tube System for Comfortable Ride on Streets

5. Coated finish to avoid rust

6. Heavy Duty Steel Lower Mounts

7. Simple install,  easy to adjust.

Note:

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
