Coilover Shocks Springs Kit Fit For TOYOTA COROLLA AZE141L XRS 2009-2010 67106818

Key Features:

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height

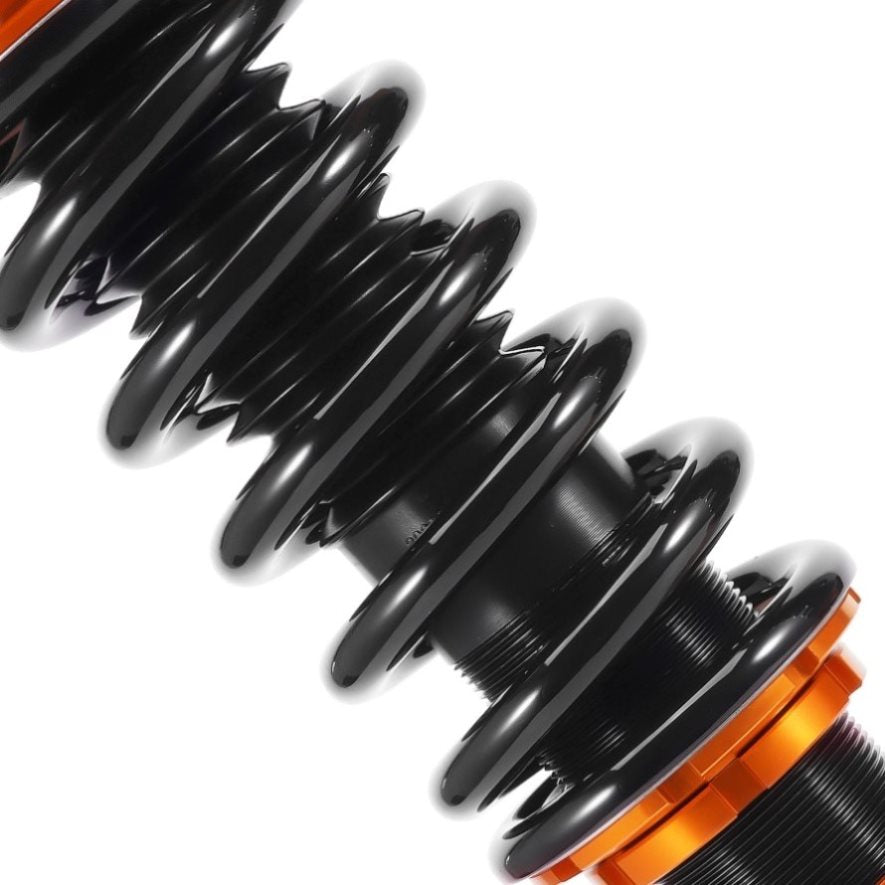

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate

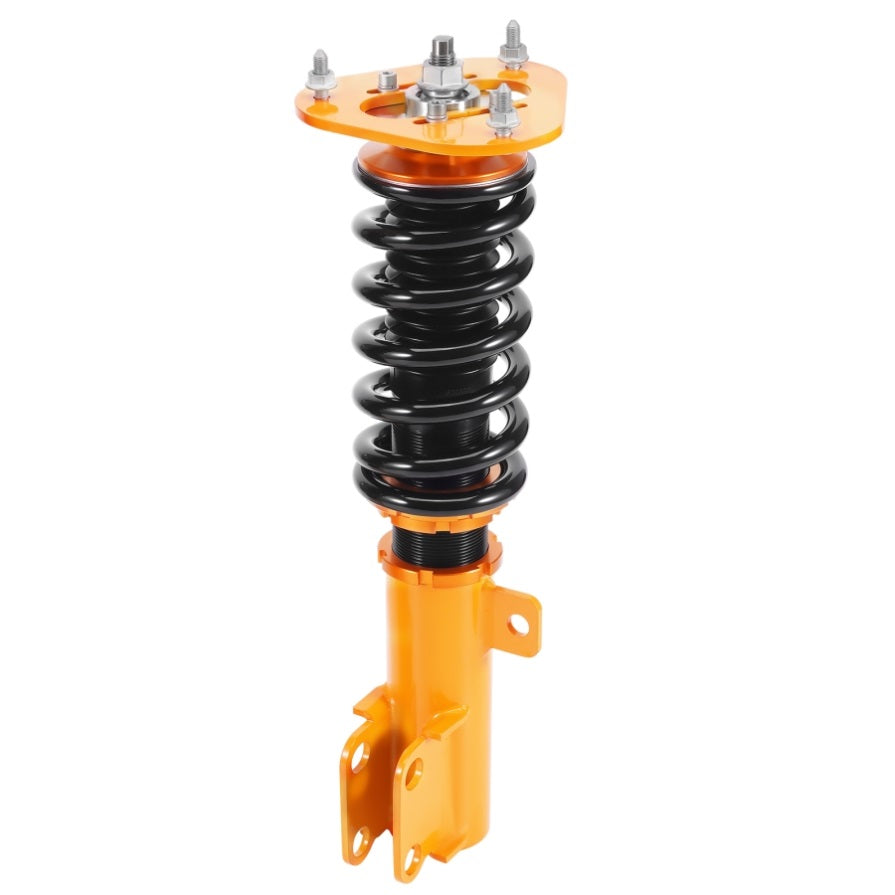

Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering

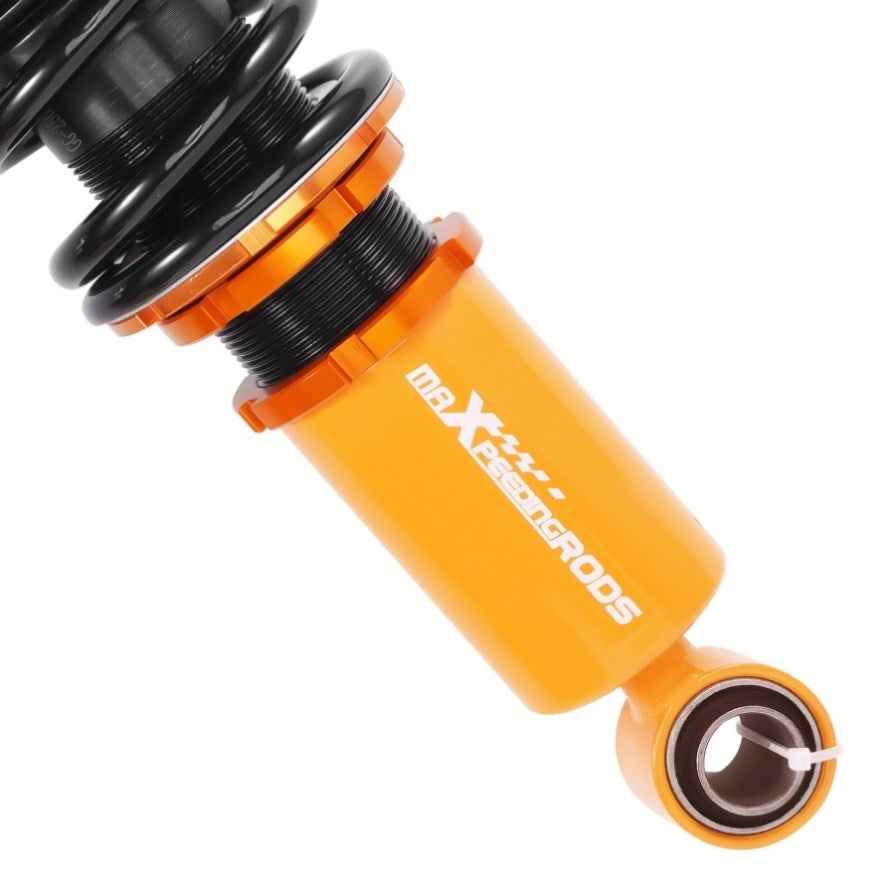

Anti-Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Quality Assured - Full Year Limited Warranty From Date of Purchase

Application:

Fit For TOYOTA COROLLA (E140) AZE141L XRS 2009-2010

Fit For TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013

Fit For TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019

Fit For TOYOTA MATRIX (E140) LE 2009-2014

Specification:

- Adjustable camber plate: Yes

- Adjustable height: lowering 1-3 inch

- Spring rate Front: 10 kg/mm (560 lbs/in)

- Spring rate Rear: 6 kg/mm (336 lbs/in)

- Spring length Front: 200mm

- Spring length Rear: 160mm

- Coilover overall length Front: 360mm-455mm

- Coilover overall length Rear: 313mm-370mm

- Shock type: Twin tube

- Spring Preload: 7-10 mm

- Color: Gold

Package included:

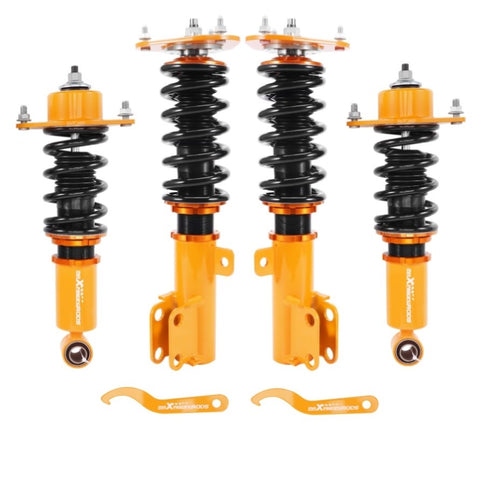

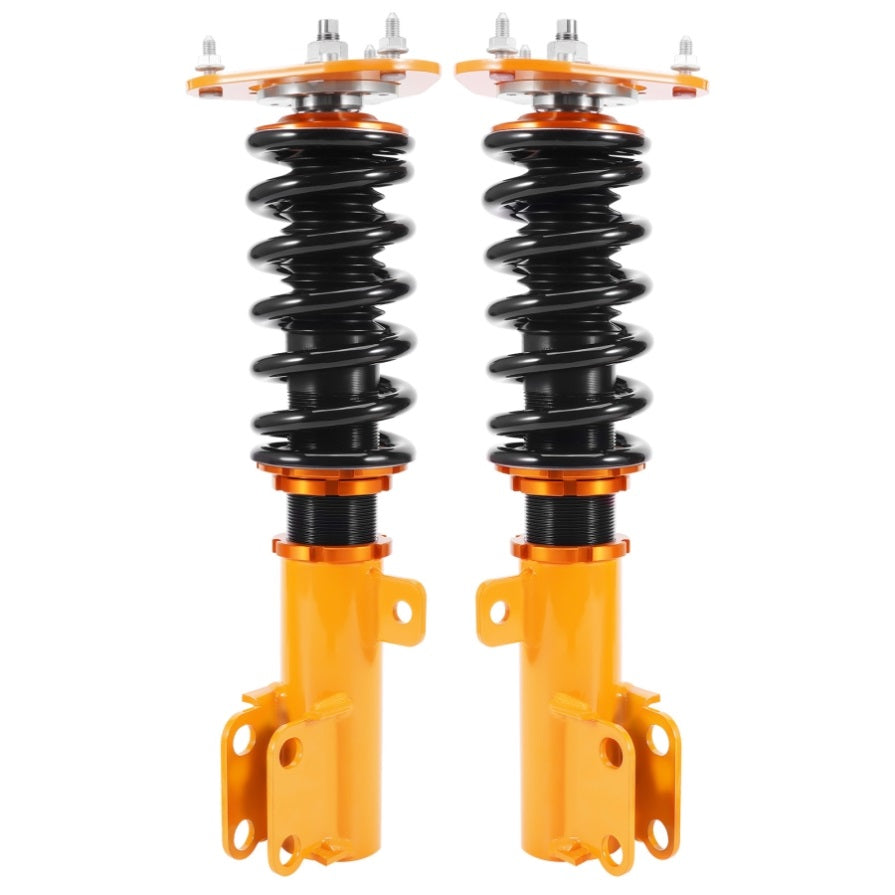

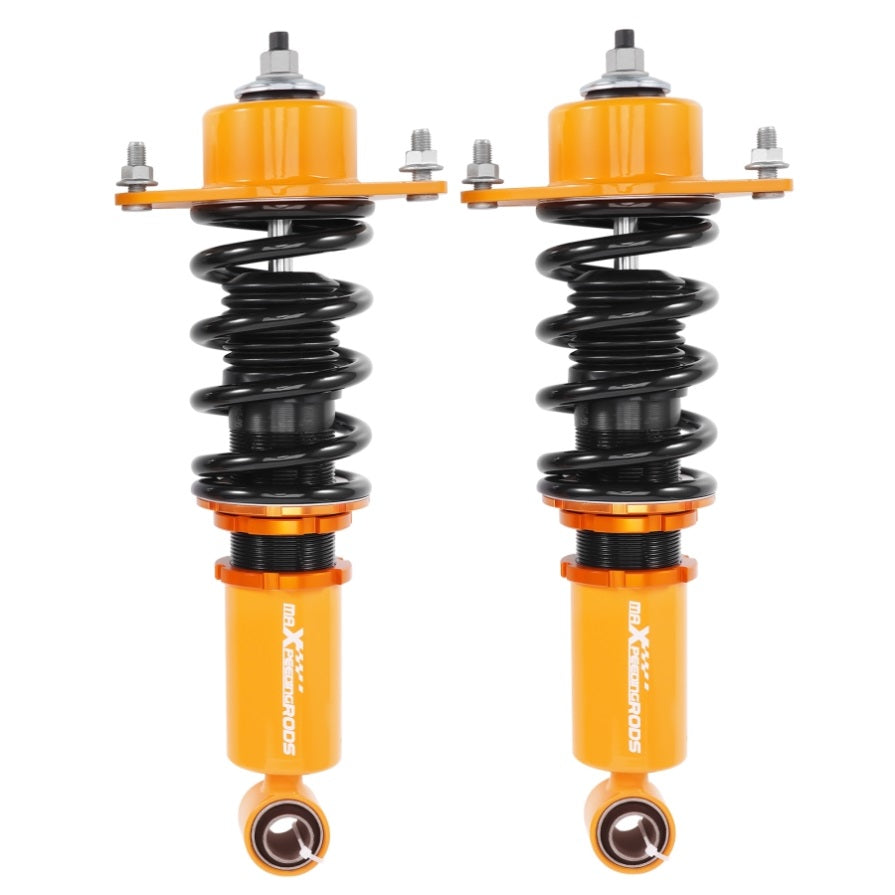

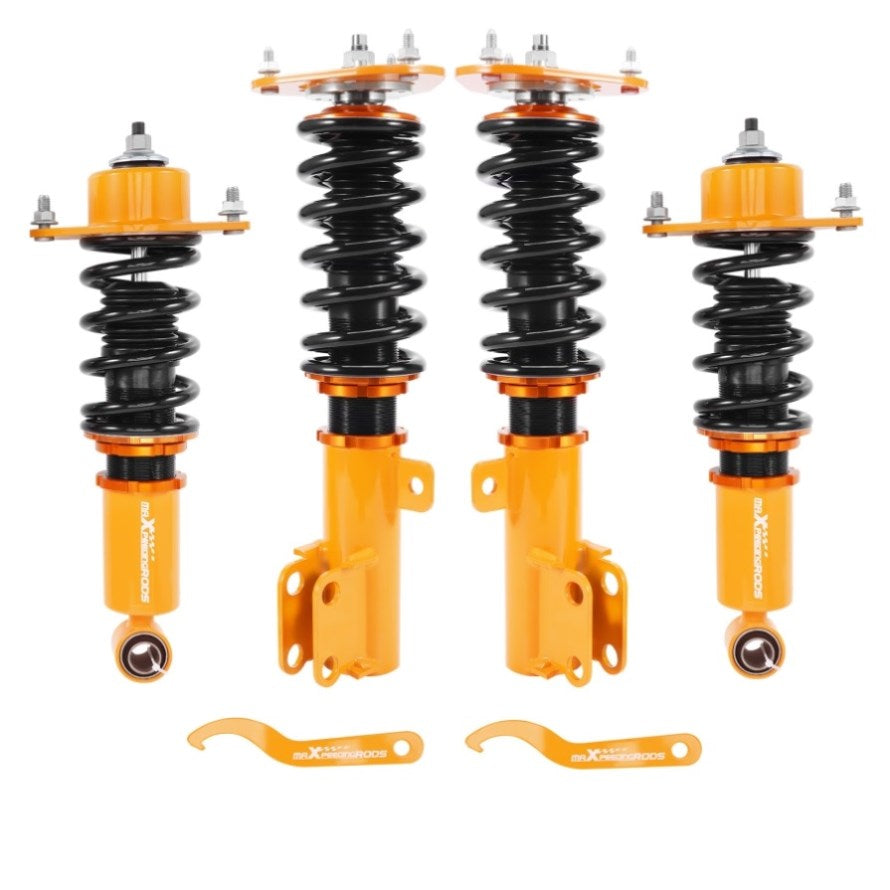

- Complete coilovers for 2 front and 2 rear

- A pair wrench for height adjustment

Authority ID: MXR02FXSY（Very important, please do not delete）

Notice: California Prop 65 Warning
